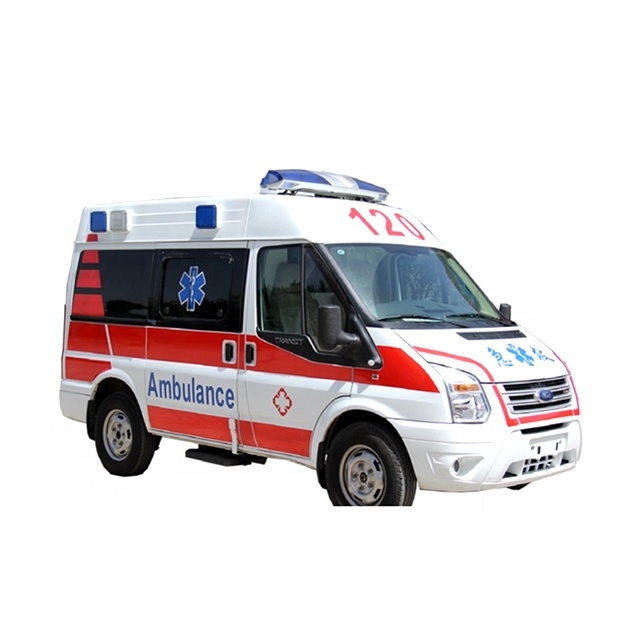

Ford Transit Short axis diesel transportation stretcher ambulance
Ford Transit short axle mid-top ambulance adopts Ford’s new generation Transit V348 light passenger modification, 2.2T PUMA diesel engine, 136 horsepower, 2.933m wheelbase, nearly 5m long body, and clear height of nearly 2m.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| The main technical parameters of Cheng Liwei CLW5040XJHJ5 stretcher ambulance | |||
| Vehicle model | CLW5040XJHJ5 | Emission Standards | Eruo 5 |
| manufacturer | Chengli Special Purpose Vehicle Co., Ltd. | Fuel type | Diesel |
| Total quality | 3550 kg | Curb quality | 2300 kg |
| Number of passengers | 3-9 people | Maximum speed | 140 km/h |
| Front track | 1745 mm | Rear track | 1700 mm |
| Wheelbase | 2933 mm | Tire specifications | 215/75R16LT |
| Dimensions | 4963×2000×2560, 2400, 2242 mm | ||
| other | Equipped with mechanical pedals or electric pedals, optional ordinary headlights; when the roof is equipped with forehead bosses with police lights or forehead bosses with LED screen mounted police lights, the height is 2400mm; the optional ventilator is 2560mm ; Optional low-roof cab with a height of 2242mm; single or multiple strobe lights around the top; vehicle appearance signs and lettering can be sprayed or pasted according to industry or user requirements; equipped with medical equipment cabinets, stretchers, oxygen bottles and other ambulances Special equipment; ABS system manufacturer, models are Bosch Automotive Parts (Suzhou) Co., Ltd., 6C11 2M110 A*. | ||
| Cheng Liwei CLW5040XJHJ5 ambulance engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| DURATORQ4D225H | Jiangling Motors Co., Ltd. | 2198 | 100 |
Transport Ambulance configuration:
| basic configuration | |||||
| 1 | Medical cabin air conditioner | 1 | |||
| 2 | Medical cabin heater | 1 | |||
| Circuits and electrical appliances | |||||
| Alarm and warning system | 1 | Long row of standard police lights, | 1 | ||
| 2 | 100W alarm and handheld control | 1 | |||
| Interior roof, interior, power supply | 3 | 500W power inverter | 1 | ||
| 4 | Medical cabin rocker control switch | 1 | |||
| 5 | 12V power port | 1 | |||
| 6 | 220V power port | 2 | |||
| 7 | Top LED lighting | 4 | |||
| 8 | Positive and negative ventilation fan | 1 | |||
| 9 | Long delay disinfection lamp | 1 | |||
| Oxygen circuit and oxygen | |||||
| Oxygen supply system | 1 | One 10-liter medical iron bottle and shock-absorbing clamp | 1 | ||
| 2 | One humidification bottle with oxygen pressure reducing valve, directly connected to the oxygen bottle | 1 | |||
| Medical cabin production | |||||
| Inside the medical cabin | 1 | Original car interior | 1 | ||
| 2 | Partition wall | 1 | |||
| 3 | Sliding window for partition wall | 1 | |||
| 4 | 1 medical cabinet behind the partition wall | 1 | |||
| 5 | Oxygen cylinder fixed beside the medicine cabinet | 1 | |||
| 6 | Wear-resistant non-slip blue medical floor leather | 1 | |||
| Seat | |||||
| Seat system | 1 | Independent left seat | 2 | ||
| 2 | Independent right seat | 2 | |||
| First aid | |||||
| medical system | 1 | Auto stretcher | 1 | ||
| 2 | Stretcher pad | 1 | |||
| 3 | 1 sliding infusion stand | 1 | |||
| 4 | 1KG fire extinguisher | 1 | |||
| Exterior | |||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | ||
| 2 | Translucent matte film on right and rear | 1 | |||
| 3 | Cross marks on the left and right doors | 1 | |||

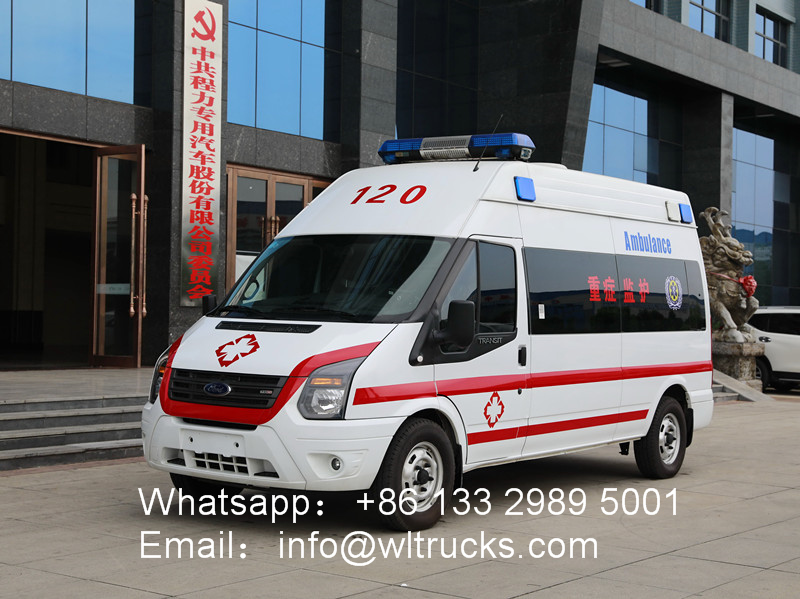

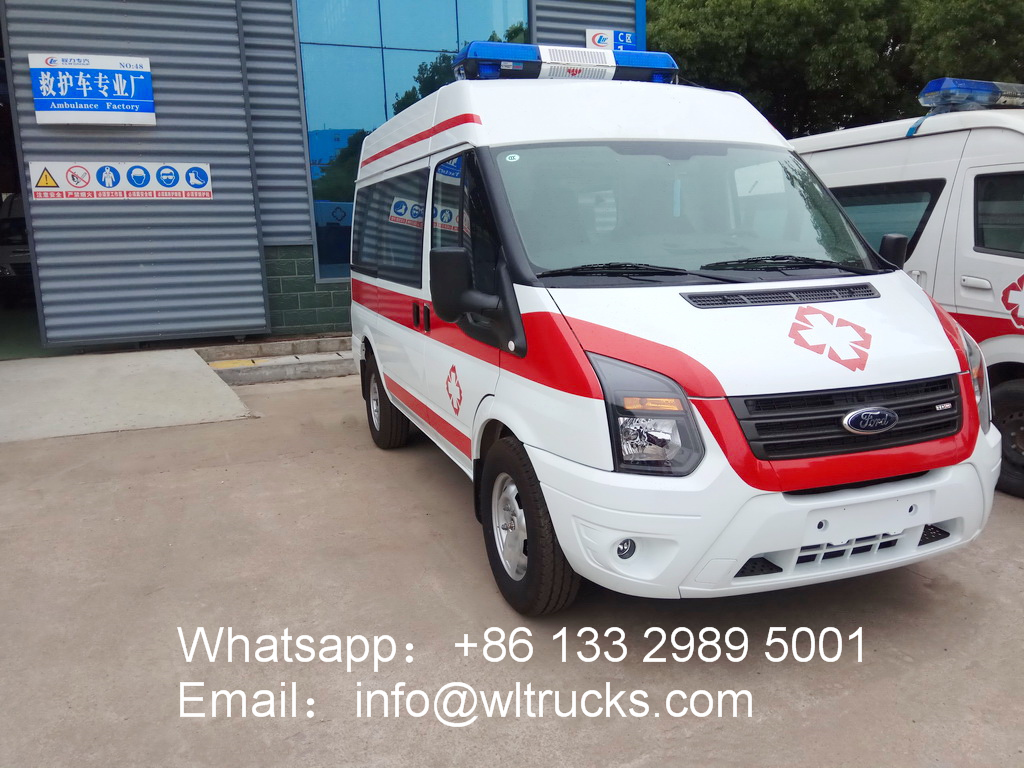

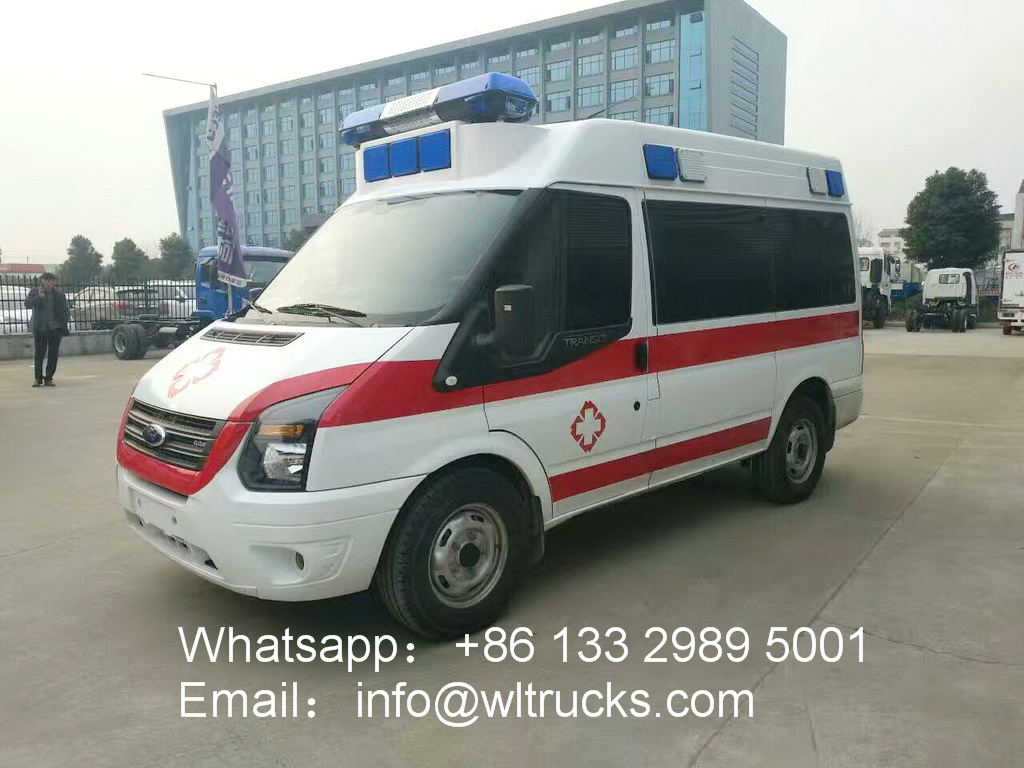

Ambulance car details:

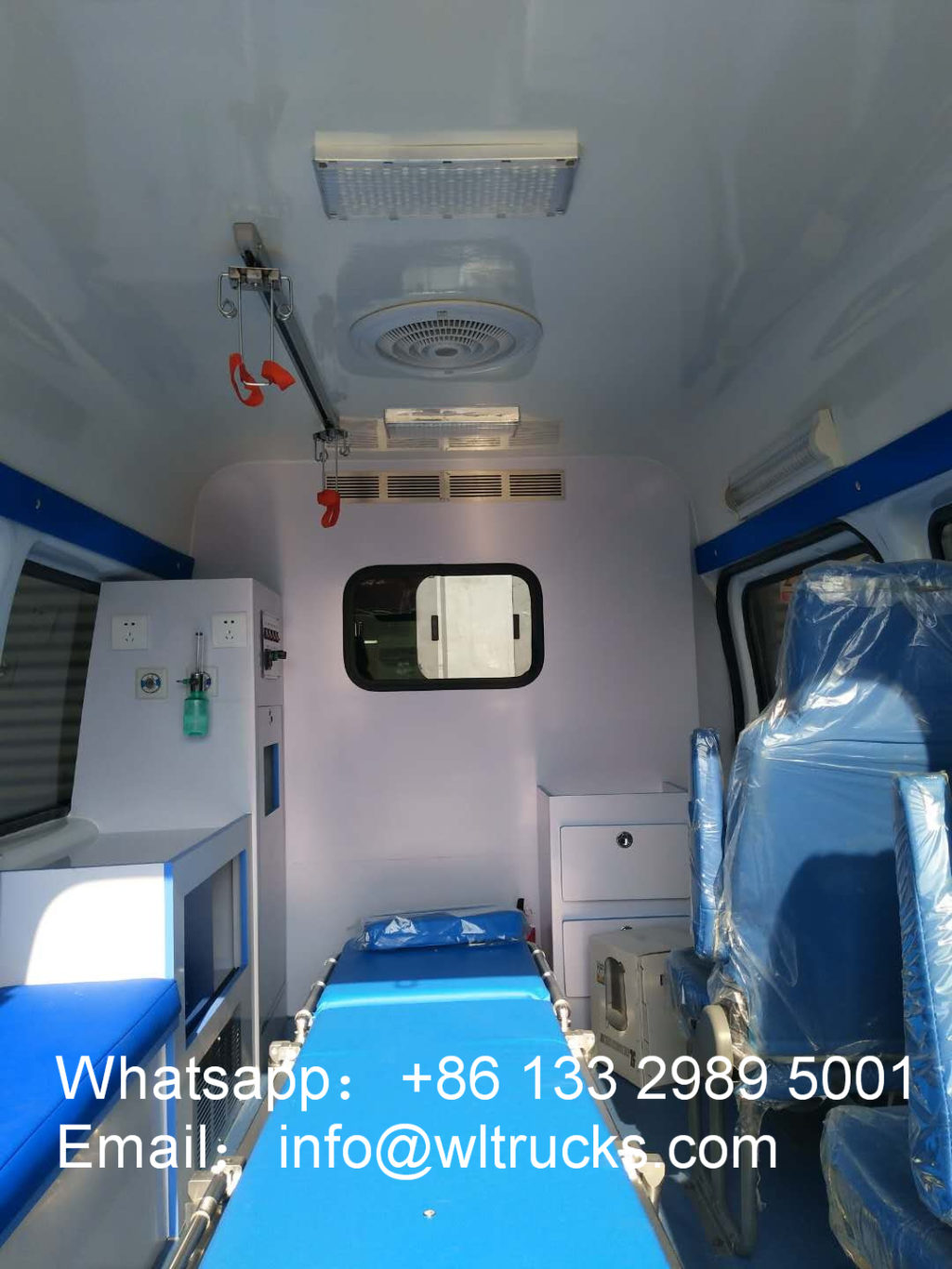

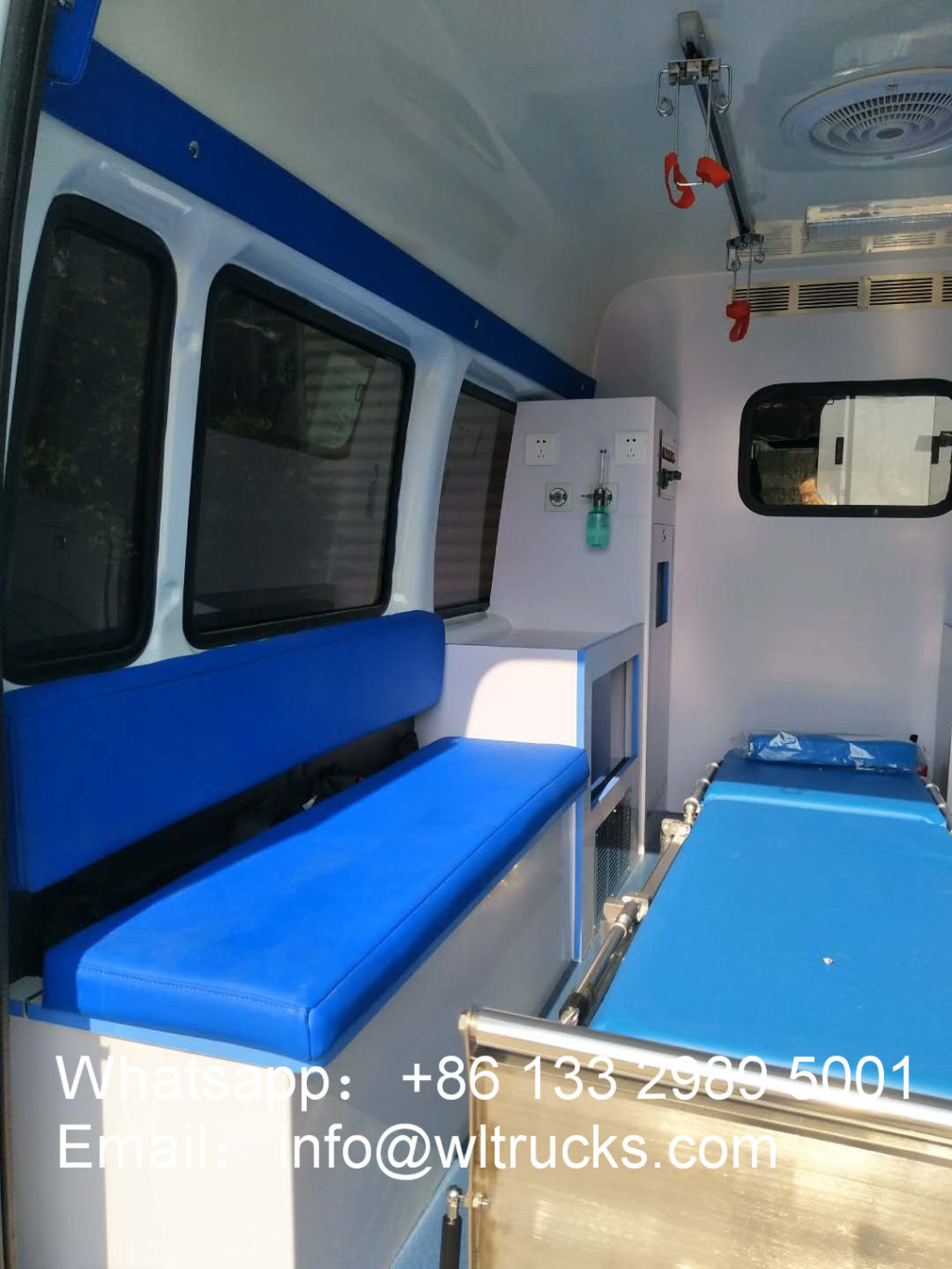

Ford Transit Short axis diesel transportation stretcher ambulance equipment：
