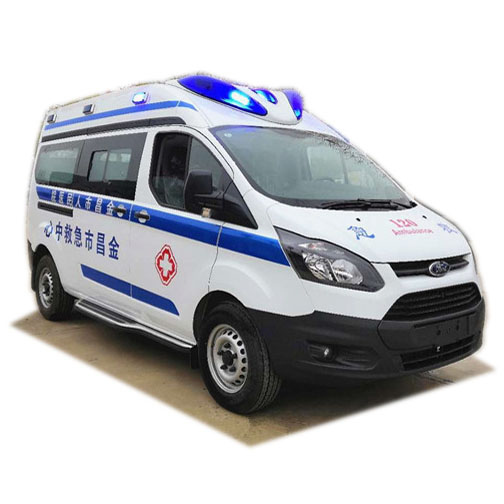

Ford V362 Long Axis Middle Roof ICU Emergency Rescue Vehicle
Ford V362 Long Axis Middle Roof ICU Emergency Rescue Vehicle Optional mechanical pedal or electric pedal, rim decorative plate, vehicle appearance logo and lettering can be sprayed or pasted according to industry or user requirements. Equipped with medical equipment cabinets, stretchers, oxygen bottles and other special rescue equipment.
ABS system controller model: EV5051, production plant: Bosch Automotive Components (Suzhou) Co., Ltd. Optional forehead boss with warning lights, forehead boss with LED screen mounted warning lights, height: mm: 2407. Optional ventilating fan, single or multiple strobe lights around the roof.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| Main technical parameters of CLW5030XJHJ5 Rescue Vehicle | |||
| Vehicle model | CLW5030XJHJ5 | Emission Standards | Eruo 3 |
| manufacturer | Chengli Special Purpose Vehicle Co., Ltd. | Fuel type | gasoline |
| Total quality | 3300 kg | Curb quality | 2150 kg |
| Number of passengers | 5-6 people | Maximum speed | 156 km/h |
| Front track | 1736 mm | Rear track | 1720 mm |
| Wheelbase | 3300 mm | Tire specifications | 215/75R16LT |
| Dimensions | 5341×2032×2630, 2407 mm | ||
| other | Install mechanical pedal or electric pedal. Optional rim decorative plate, vehicle appearance signs and words can be sprayed or pasted according to industry or user requirements. Equipped with medical equipment cabinets, stretchers, oxygen bottles and other special rescue equipment. ABS system controller model: EV5051, production plant: Bosch Automotive Components (Suzhou) Co., Ltd. Optional forehead boss with warning lights, forehead boss with LED screen mounted warning lights, height: mm: 2407. Optional ventilating fan, single or multiple strobe lights around the roof. Optional lights of different styles. | ||
| CLW5030XJHJ5 ambulance engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| ECOBOOST4G20B5L | Jiangling Motors Co., Ltd. | 1997 | 149 |
ICU ambulance emergency configuration:
| basic configuration | ||||||
| 1 | High-power medical air-conditioning | 1 | ||||
| 2 | Medical cabin high-power heater | 1 | ||||
| Circuits and electrical appliances | ||||||
| Alarm and warning system | 1 | Long row of standard police lights | 1 | |||
| 2 | 100W alarm and handheld control | 1 | ||||
| 3 | Tail blue rectangular flash | 2 | ||||
| 4 | Blue rectangular flashing on the left and right sides | 2 | ||||
| 5 | White rectangular lights on the left and right sides | 2 | ||||
| In-car power system | 1 | 1000W positive spin wave inverter electrical system | 1 | |||
| 2 | Integrated circuit integrated control and protection system | 1 | ||||
| 3 | Medical switch integrated switch control panel | 1 | ||||
| 4 | Medical compartment national standard 220V power port | 3 | ||||
| 5 | Medical compartment national standard 12V power socket | 1 | ||||
| 6 | LED lighting on top of medical cabin | 4 | ||||
| 7 | Time delay function disinfection lamp installed in the medical cabin | 1 | ||||
| 8 | Medical cabin can be installed with positive and negative ventilation fans | 1 | ||||
| 9 | Intercom system before and after medical cabin installation | 1 | ||||
| Oxygen circuit and oxygen | ||||||
| Oxygen supply system | 1 | Two 10 liter medical oxygen cylinders and special shock-absorbing clamps | 2 | |||
| 2 | Hidden oxygen piping system | 1 | ||||
| 3 | Install two oxygen ports of national standard for medical cabin column | 2 | ||||
| 4 | 1 humidification bottle | 1 | ||||
| Medical cabin production | ||||||
| Inside the medical cabin | 1 | The polymer hardtop interior is easy to clean and disinfect | 1 | |||
| 2 | Polymer material special-shaped partition wall | 1 | ||||
| 3 | Transparent sliding observation window for partition wall | 1 | ||||
| 4 | Left upper walker board medical long hanging cabinet | 1 | ||||
| 5 | Walker Sheet Medical Device Cabinet, Central Left | 1 | ||||
| 6 | Walker sheet vertical oxygen cabinet on the left rear | 1 | ||||
| 7 | Install hidden safety embedded parts for the whole vehicle | 1 | ||||
| 8 | Medical cabin full set of blue anti-collision soft package wall | 1 | ||||
| 9 | Environment-friendly wear-resistant, non-slip blue medical floor and cushion | 1 | ||||
| Seat | ||||||
| Seat system | 1 | Reverse folding soft seat 1 | 1 | |||
| 2 | 1 forward-mounted independent backrest seat on the right side | 1 | ||||
| 3 | Right side 2 people long horizontal soft bag seat and seat belt | 1 | ||||
| First aid | ||||||
| medical system | 1 | Auto stretcher | 1 | |||
| 2 | Stretcher pad and guide plate | 1 | ||||
| 3 | 1 sliding infusion stand | 1 | ||||
| 4 | Fire extinguisher | 1 | ||||
| Exterior | ||||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | |||
| 2 | Translucent matte film on right and rear | 1 | ||||
| 3 | Standard medical appearance customization | 1 | ||||

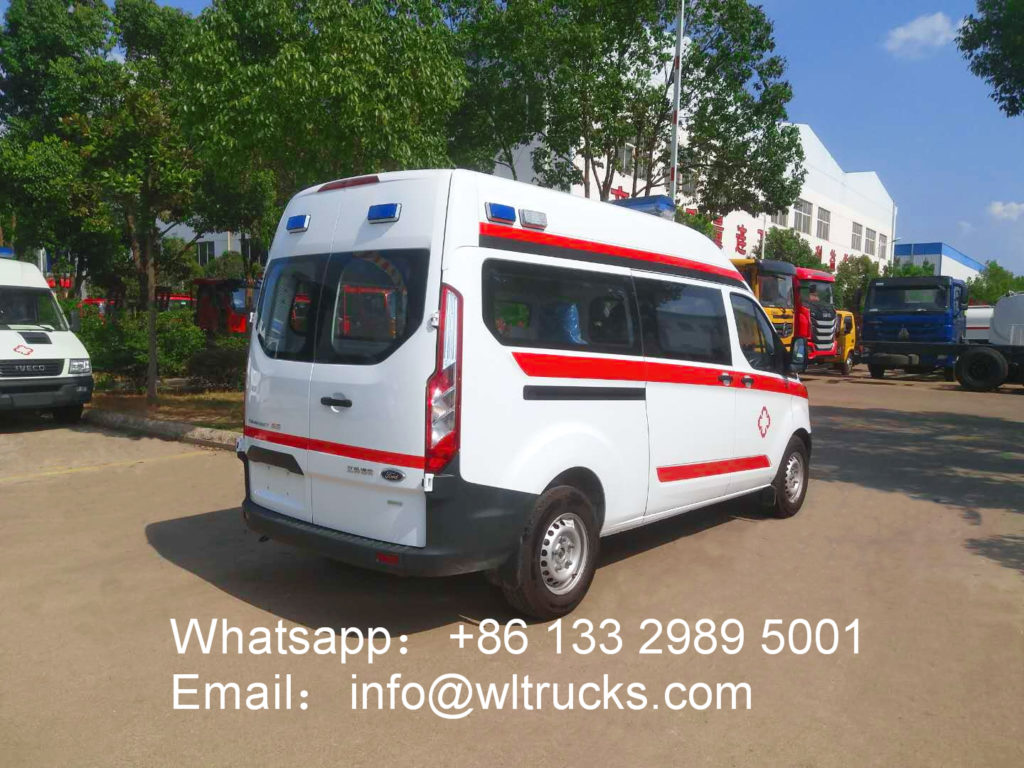

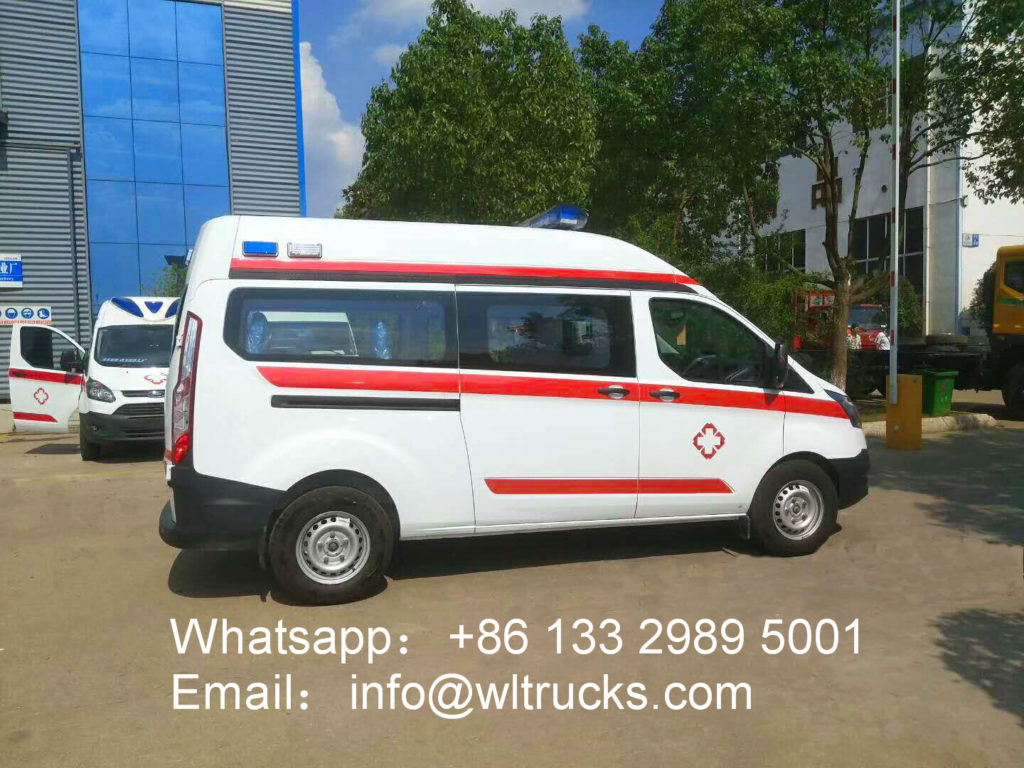

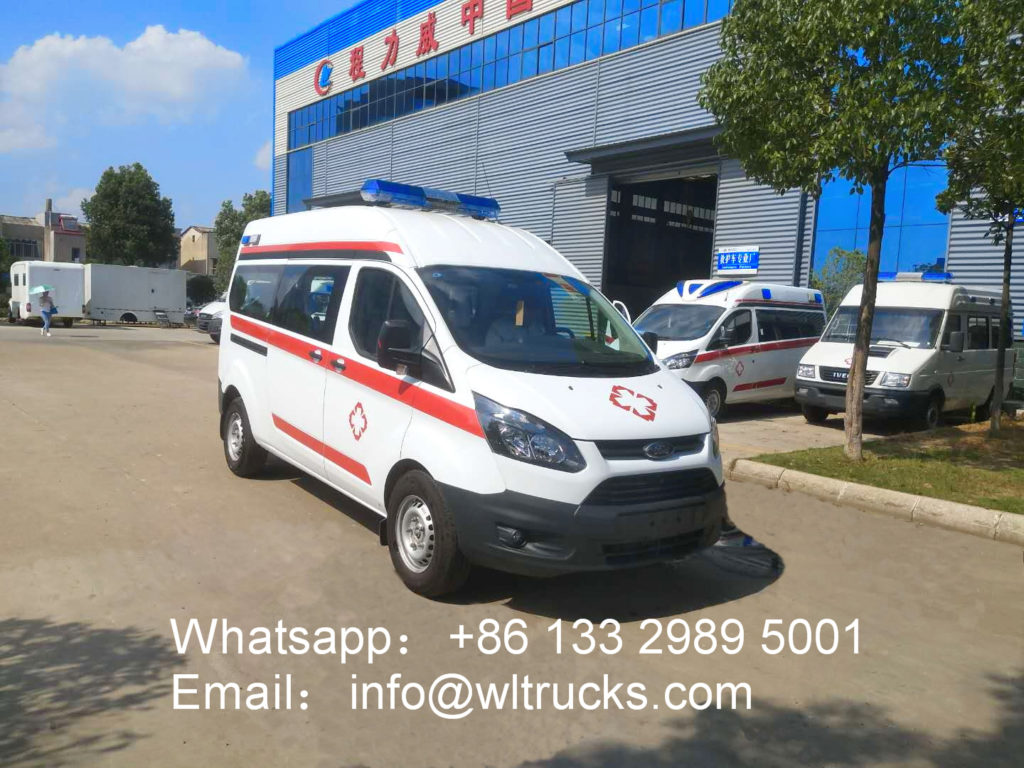

Ambulance car details:

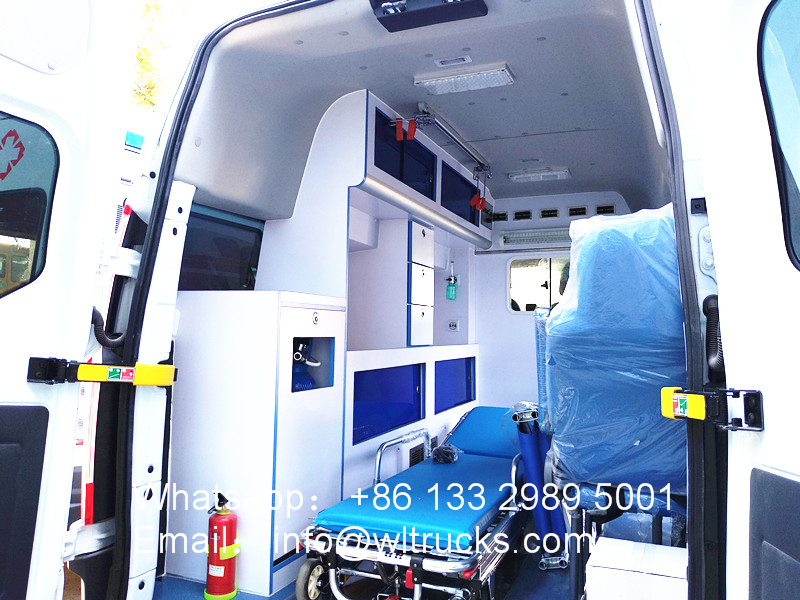

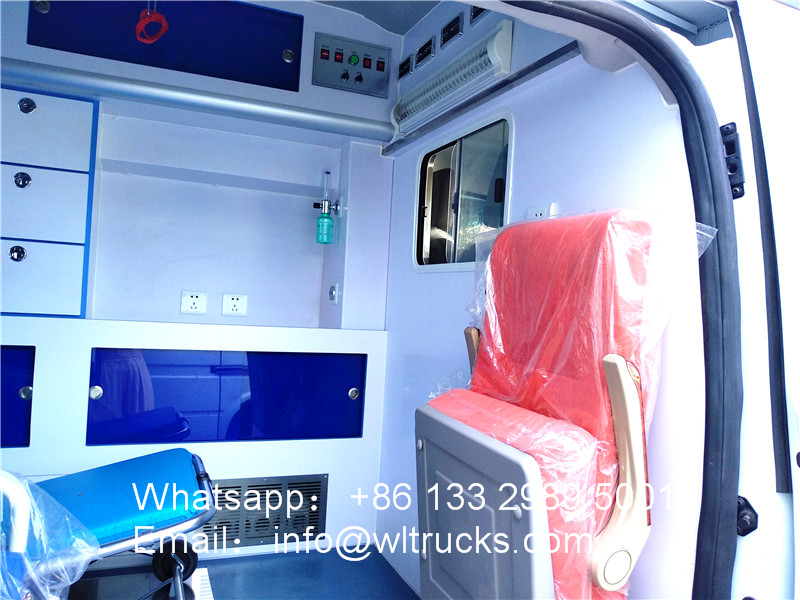

Ford V362 Long Axis Middle Roof ICU Emergency Rescue Vehicle hospital equipment：
