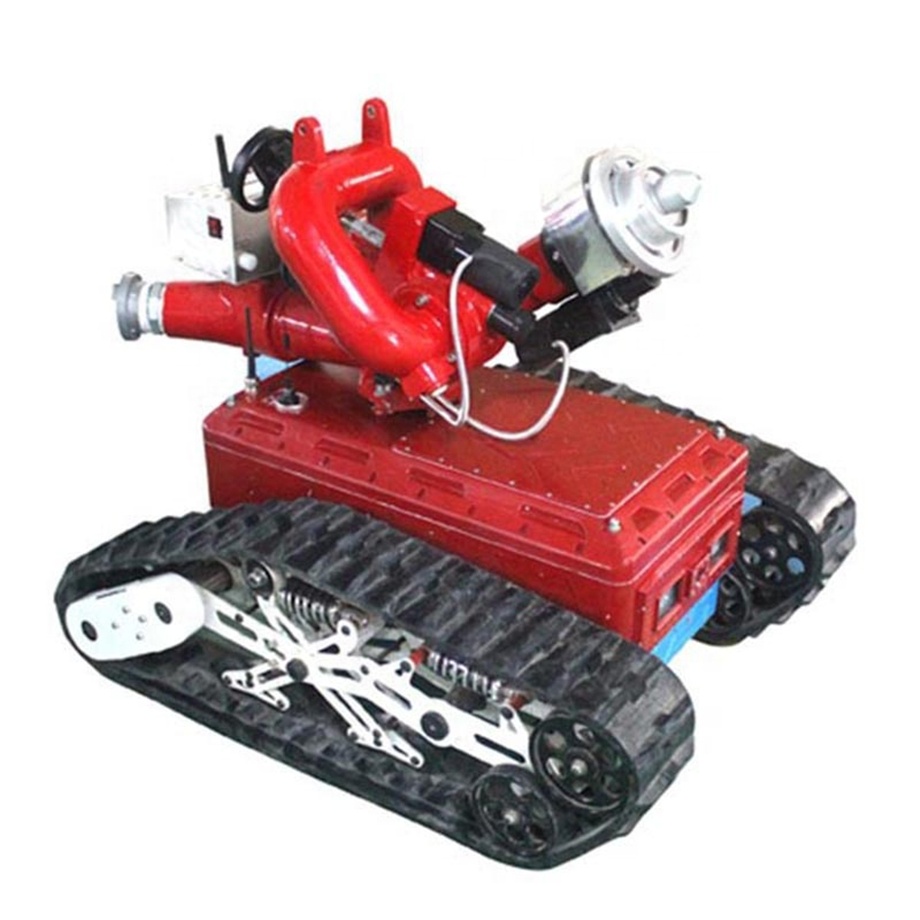

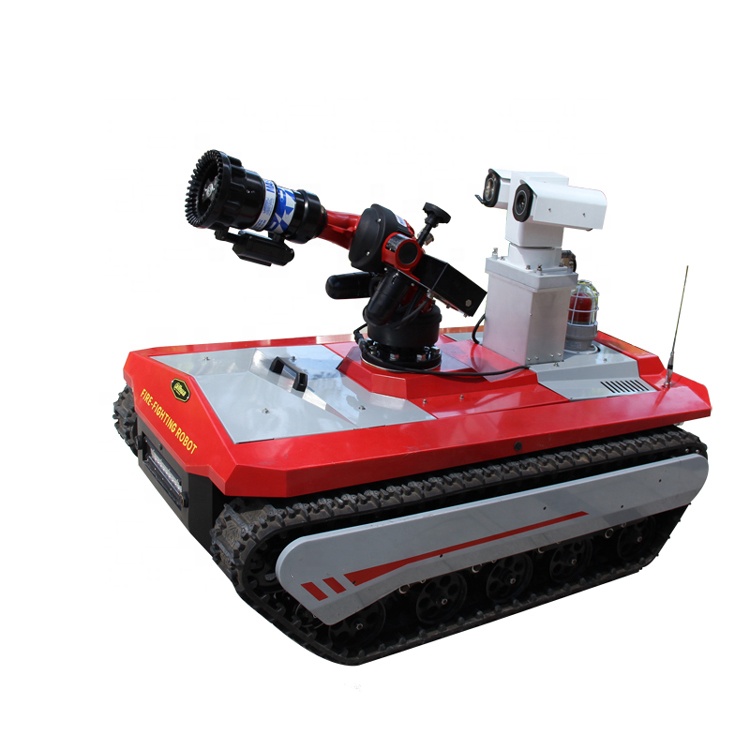

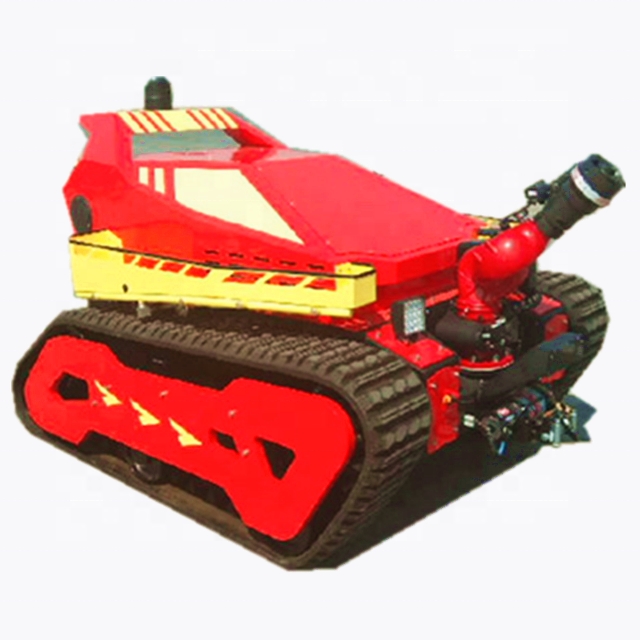

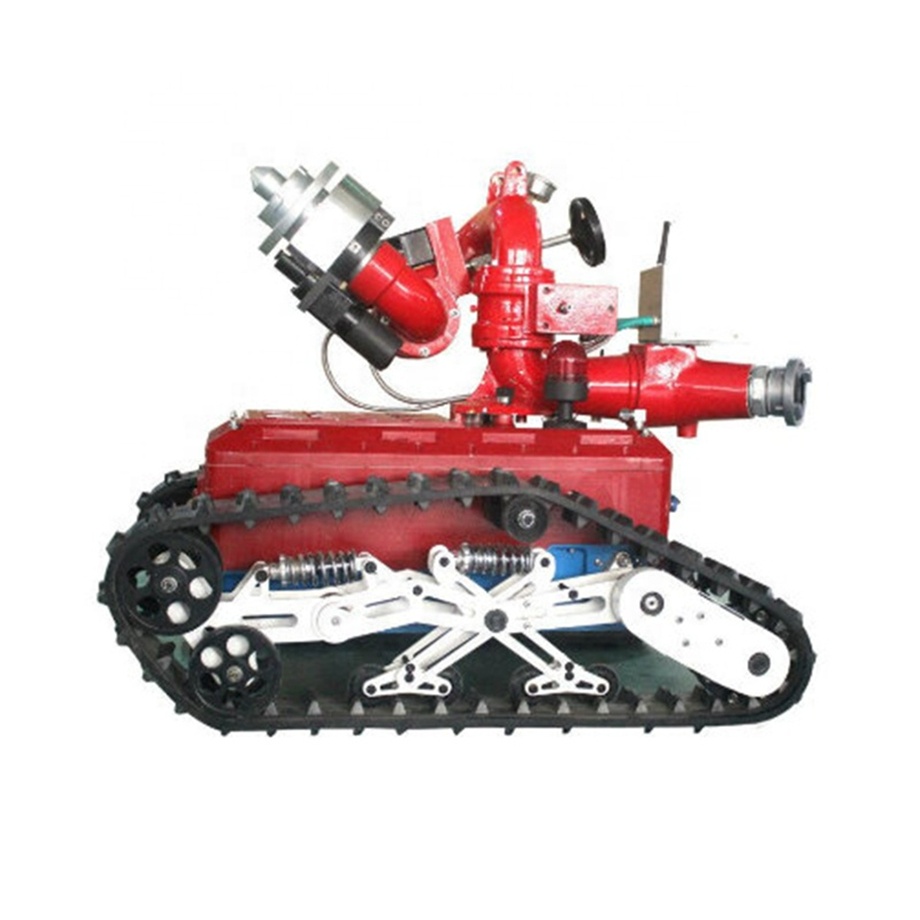

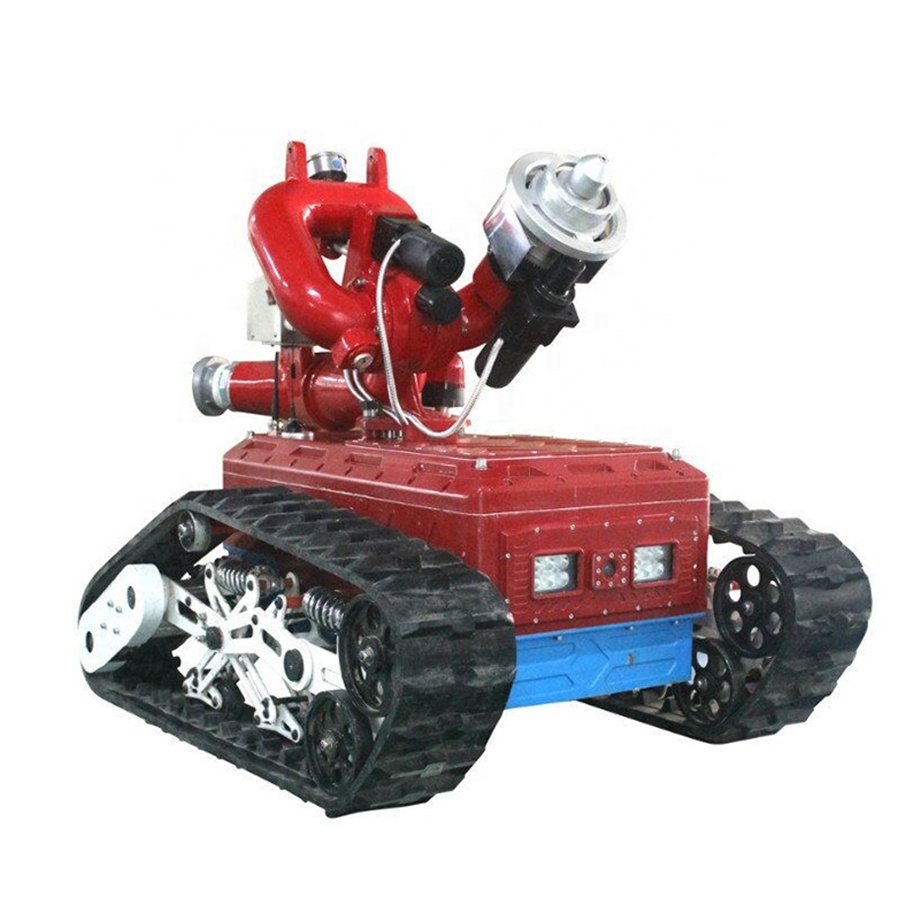

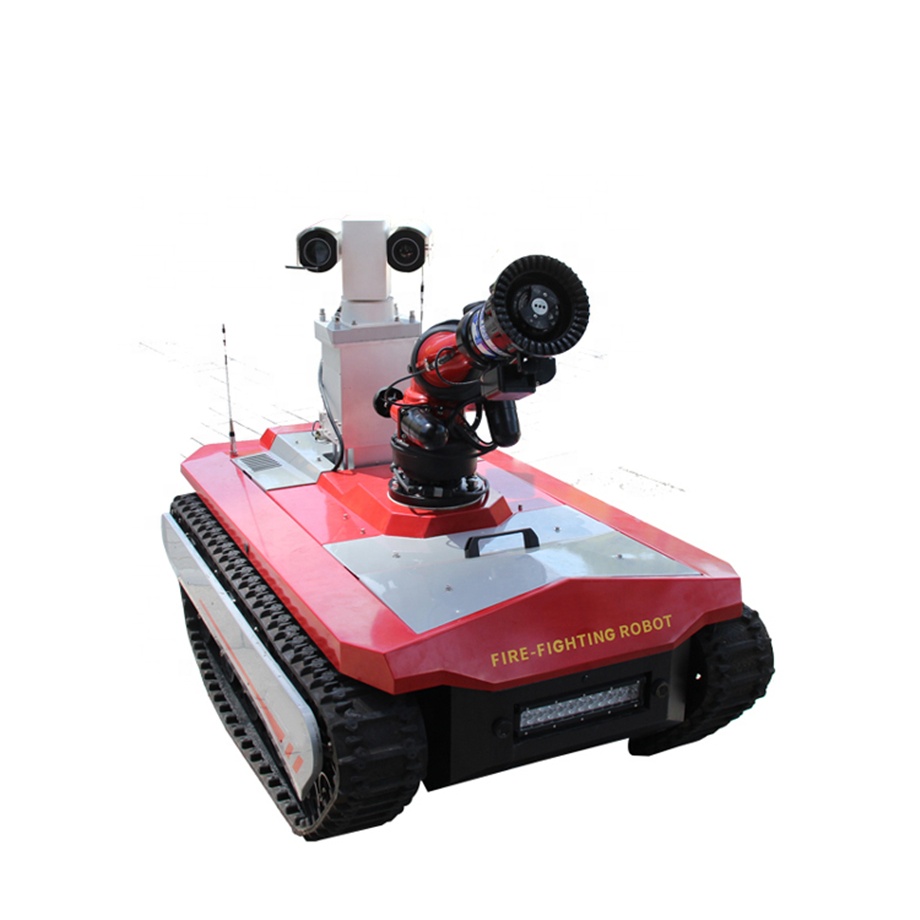

Fire fighter rescue robot

Fire fighter rescue robot – Create a new direction for unmanned fire in the future. Fire fighting robots, also known as fire rescue robots , are composed of robot bodies, fire cannons, high-definition cameras, lights, and remote controls. It is mainly used for fire fighting and image shooting in various fields. It is especially suitable for flammable and explosive environments such as petrochemicals and gas. It is of great significance to improve rescue safety and reduce casualties.

Features:
1. Internal combustion engine drive, closed hydraulic system, small volume and strong power.
2. The track adopts external high temperature resistant, flame retardant rubber and internal metal frame. Even if the external rubber melts under high temperature, it will not affect the walking and stability of the robot.
3, four water belt water supply, with waterproof belt knot design.
4, the traction is large, drag four 200m long water-filled water belt to walk.
5. Remote control of fire cannon rotation, pitching, high flow, high range, multiple injection methods.
6, fire cannon automatic spray, water spray, foam freely switch.
7, high-definition wireless map transmission system, to achieve line-of-sight, non-line-of-sight remote real-time video surveillance (500m or more).
8, using advanced wireless communication technology, image transmission and integration, easy to carry, can simultaneously access drone control.
9. The ability to overcome obstacles is strong, and it is possible to carry out large-angle climbing and obstacles.
10, strong mobility, fast moving speed, adjustable speed, the maximum can be more than 10km / h.
11, can be equipped with automatic dewatering belt function, automatically remove the water belt after completing the fire fighting task, lightly return.
12. Continuous walking time is more than 6 hours.

Product Specifications:

Product Features:
1, Internet functions: network communication function is strong, the transmission of data to the command center, to provide a reliable basis for decision making rescue manager, while the drone with the realization of “Trinity” fire command and control.
2, remote diagnostics Function: Remote diagnosis and fault analysis of fire fighting robot through Internet function
3. Hot eye detection function: Detection and tracking of heat source through infrared thermal imaging (optional)
4. Sound collection function:The live sound can be collected in real time to facilitate understanding of the situation of the trapped person.
5, image acquisition function: 5-channel camera uses only live images and uploads in real time, including robot panoramic images, God’s perspective.
6, autonomous obstacle avoidance function (optional).
7. On-site rescue: The robot has a strong load capacity, can drag the rescue vehicle into the disaster site, and timely rescue the trapped personnel.

Product number	CLW5368GSSD3	RXR-M80D
Basic configuration parameters
Field of application	Fire fighting and disaster relief materials transportation in various fields
Imported device	Engine, hydraulic pump, hydraulic motor, water cannon, electric winch, etc.
Dimensions	Length 1900mm × width 1500mm × height 1500mm
Curing weight	1000kg
Walking mechanism	All-terrain high-strength track, internal full metal skeleton
Walking speed	2.7m/s
Obstacle height	240mm
Gradeability	70% (350) slope or 38 degree staircase
Water cannon flow	≥120L/s	≥80L/s
Water gun range	≥100m	≥70m
Extinguishing agent type	Water and foam, easy to replace
Spray method	DC, flowering atomization, continuous adjustable
Rotation angle	Horizontal 360, vertical -20 degrees to 90 degrees can be set
Turning radius	In situ rotation
Way to control	Wireless remote control, semi-autonomous driving or autonomous driving
Continuous walking time	>6.5 hours
Operating hours	>12 hours
Wading attempt	500mm
Controller configuration parameters
Dimensions	290mm × 180mm × 95.35mm
Weight	3.5kg
Display	8.3-inch high-brightness LCD screen
Display image	Multiple video signals can be switched or displayed on the same screen

Fire fighter rescue robot detail structure diagram:

1. Equipment layout

1	According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby.
2	Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch.
3	Signs are eye-catching, multi-person operation, non-interference.

2. Equipment and equipment (standard)

1	straw	150×4 meters	2	root	Threaded
2	Water filter	FLF150	1	Piece	Threaded
3	Trap	FII80/65×3-1.6	1	Piece	Internal button
4	Water trap	JII150/65×2-1.0	1	Piece	Internal button
5	Hose	13-65-20	6	plate	Low pressure;
6	Hose	13-80-20	6	plate	Low pressure;
7	Reducing interface	KJ65/80	2	Piece	Internal button
8	Water-retaining cloth	DT-SB	4	Piece
9	Hose hook		4	Piece
10	Ground fire hydrant wrench	QT-DS1; length 400	1	Piece
11	Underground hydrant wrench	Long 860	1	Piece
12	Suction pipe wrench	FS100	2	Piece
13	DC switch water gun	QZG3.5/7.5; 65	1	support	Low pressure;
14	DC Flowering Water Gun	QZK3.5/7.5; 65	1	support	Low pressure;
15	Foam gun	PQ4/0.7Z	1	support
16	Foam pipette	40*2700	1	Piece
17	Fire bucket		1	Pc
18	Fire extinguisher	3㎏	1	With
19	Fire waist axe	Length 390; GF-285	1	Piece
20	Rubber hammer		1	Piece
twenty one	Rechargeable portable lighting		1	Piece

Optional fire equipment table:

Serial number	name	specification	Quantity	unit	Remarks
1	Automatic charging device	24V	1	set
2	Air backrest		3	set
3	Air breathing apparatus	Number of members		set
4	Hose bridge	rubber	2	vice
5	Telescopic ladder		1	vice
6	Hand pump		1	station
7	Breaking tools		1	set
8	Other fire equipment
