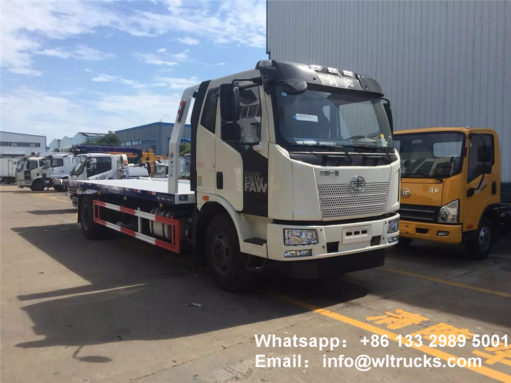

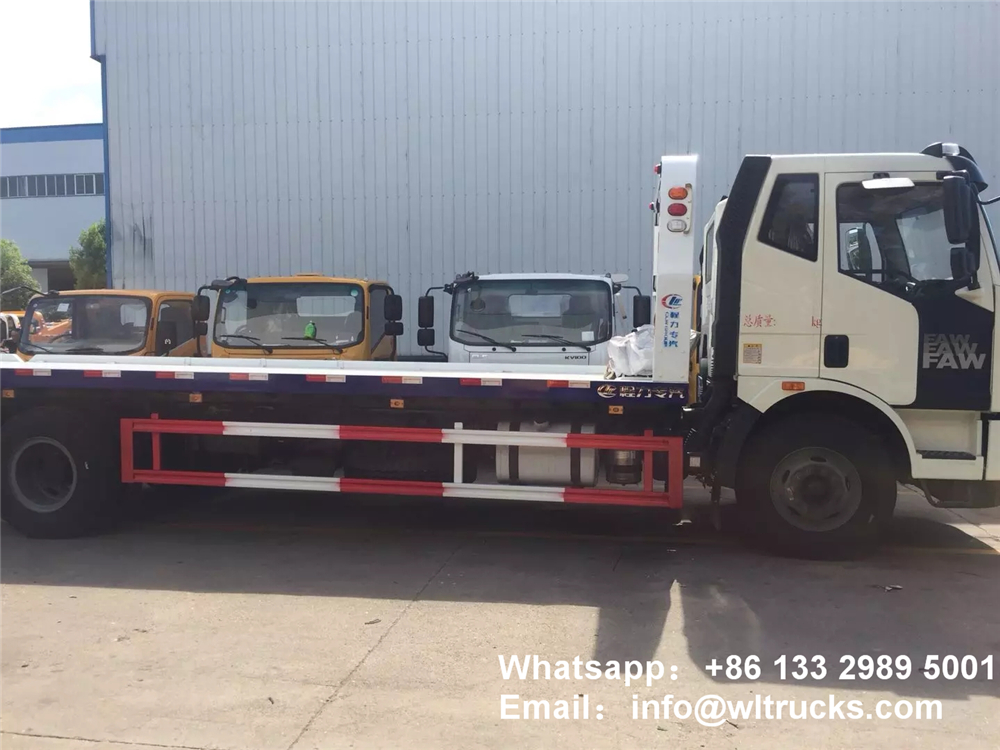

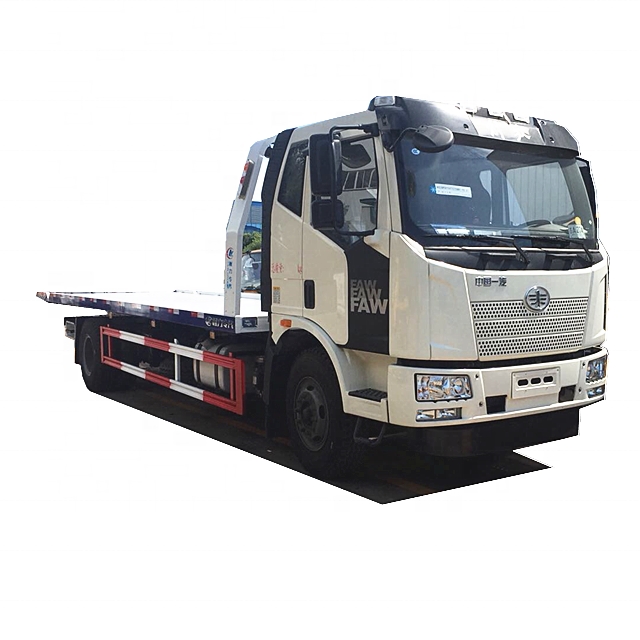

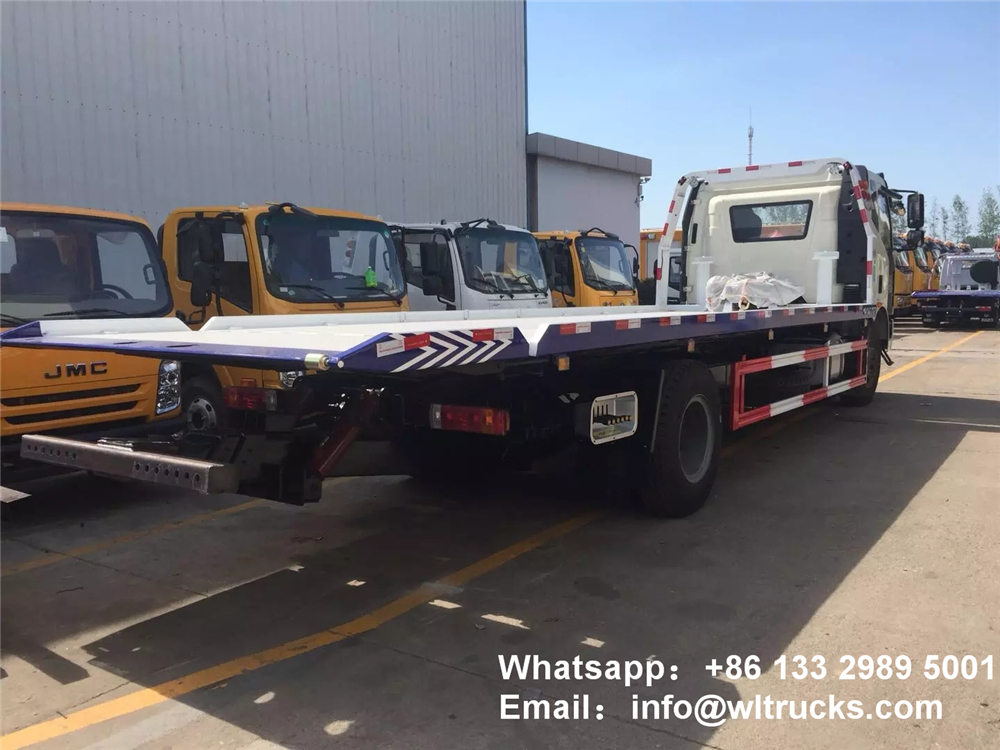

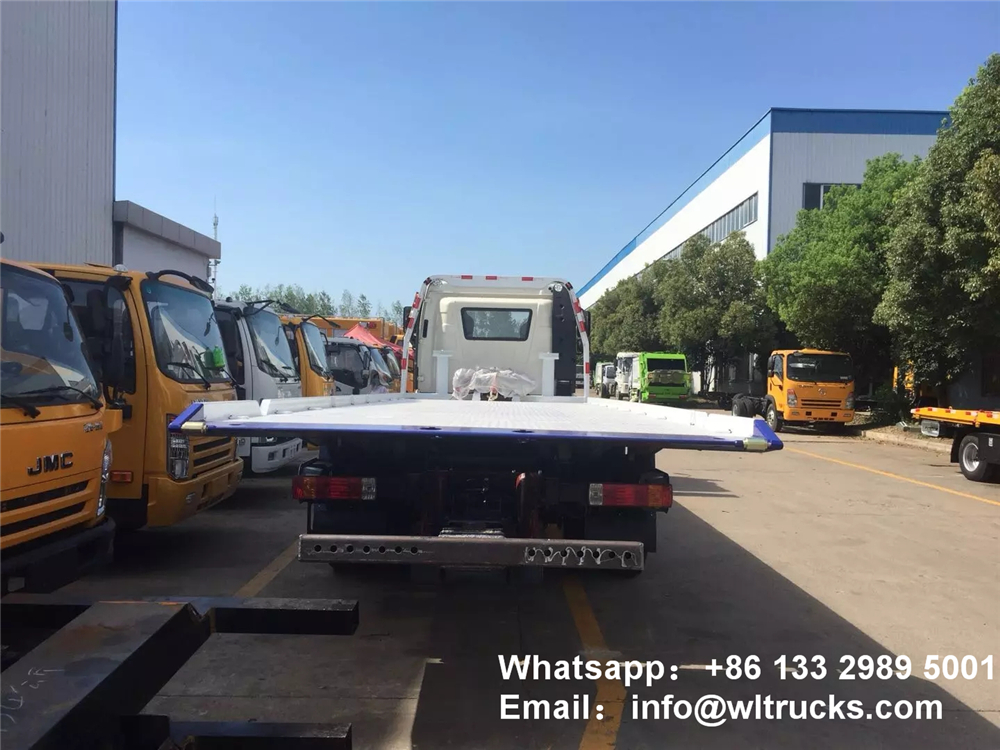

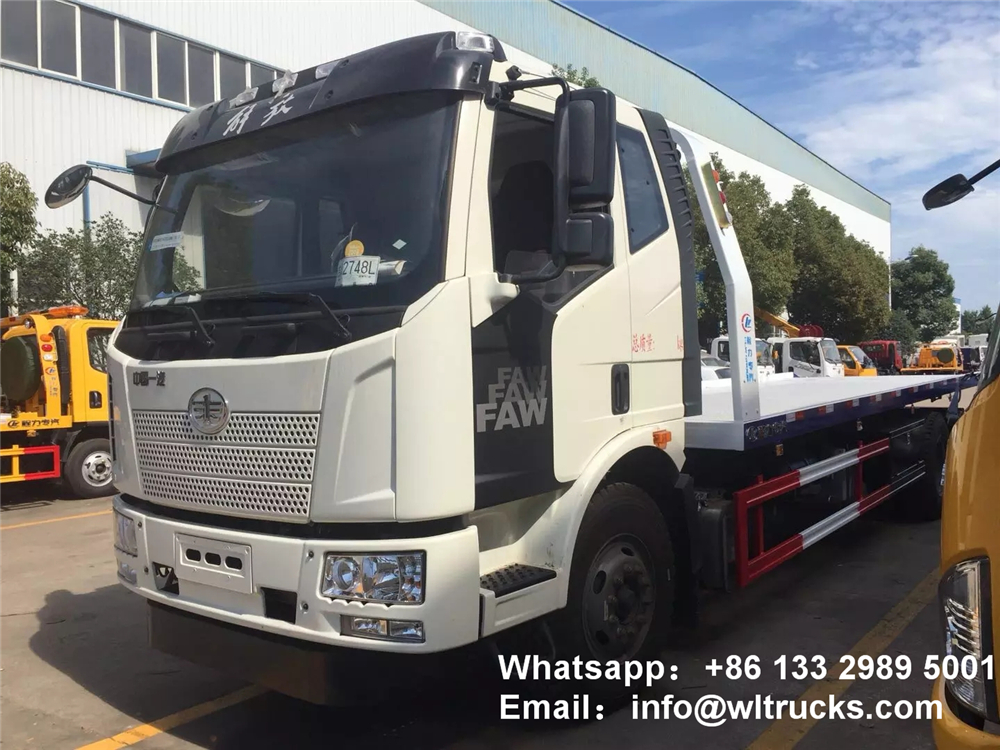

FAW 6 ton to 8 ton hydraulic wrecker tow truck
FAW 6 ton to 8 ton hydraulic wrecker tow truck Chassis configuration：
It adopts Jiefang J6 series chassis, Changchun J6L flat top row semi-cab, Dachai 140 horsepower diesel engine, 6-speed gearbox, wheelbase 4400mm, 7-ton rear axle, 8.25R16 original steel tire, flat stamping with die, original abs , With direction boost, air brake, drive rotation, clutch boost, original air conditioner.
FAW 6 ton to 8 ton hydraulic wrecker tow truck Bodywork configuration：
The truck has a length of 6.2mter to 7 meters and a width of 2.5 meters. The plate can use 4 thick checkered plates or a new disposable stamping plate. 6 tons of tops, with 5 tons of hydraulic winch, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of trailer forks, pair of seven-character forks, pair of square sleeves, one set of tools on board, bundled With 4 sets, two working lights, equipped with yellow LED long-row electronic warning lights.
FAW 6 ton to 8 ton hydraulic wrecker tow truck specification:
|
Vehicle technical parameters
|
|||
|
product name
|
4×2 FAW 6ton to 8 ton integrated tow truck winch
|
Dimensions
|
8.58×2.48×2.73 meters
|
|
Total mass
|
8.49 tons
|
Curb quality
|
6.2 tons
|
|
Tablet size
|
6.22 meters
|
Plate thickness
|
4 thick
|
|
Hoisting specification
|
4 tons
|
Tops
|
4 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
FAW J6
|
Chassis model
|
CA1083P62K1L2E4
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase
|
4.4 meters
|
Tire specifications
|
8.25-16
|
|
Gearbox
|
6 files
|
Rear axle
|
7 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
BF4M2012-14E4
|
China First Automobile Group Corporation
|
4040
|
144 horsepower
|
|
Top basic configuration
|
|||
|
The standard configuration
|
10 tons joint body top, with winch 8 tons x 2 hydraulic winch, 35 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights.
|
||
FAW 6 ton to 8 ton hydraulic wrecker tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
