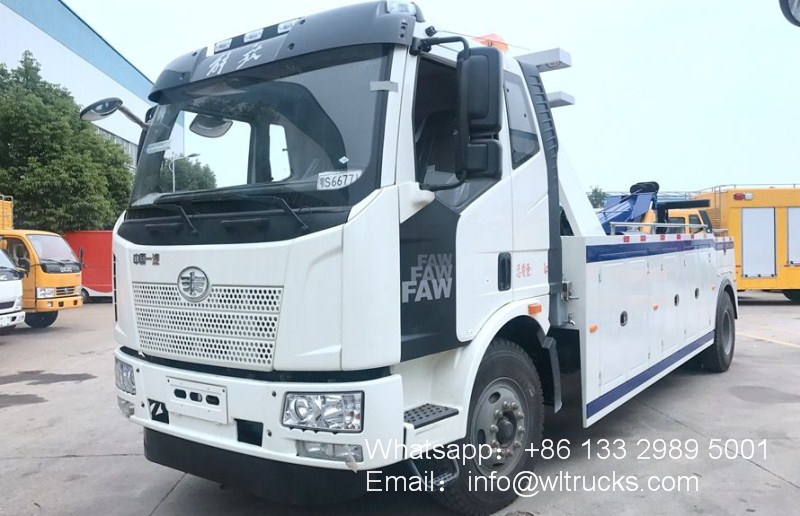

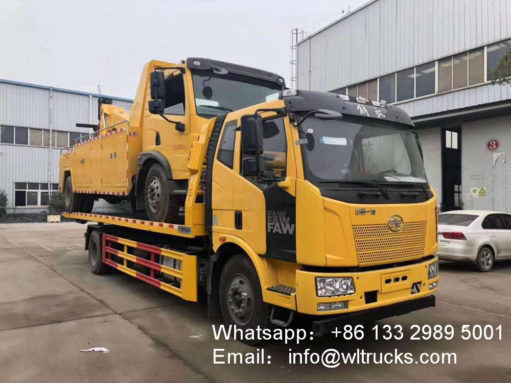

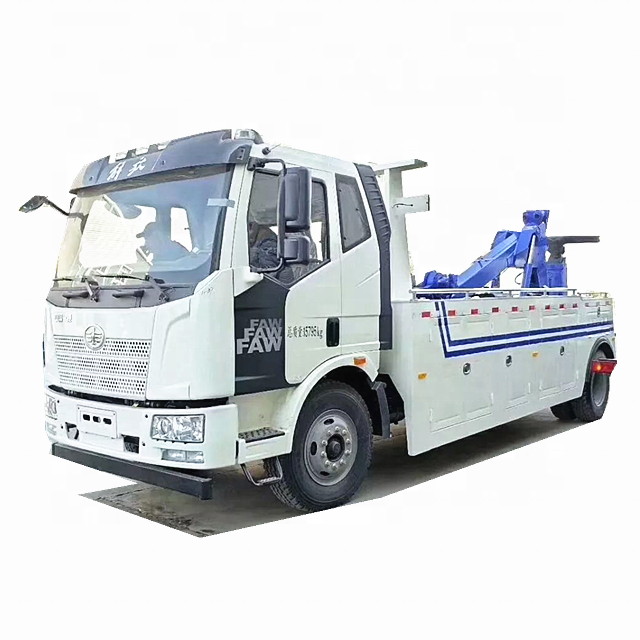

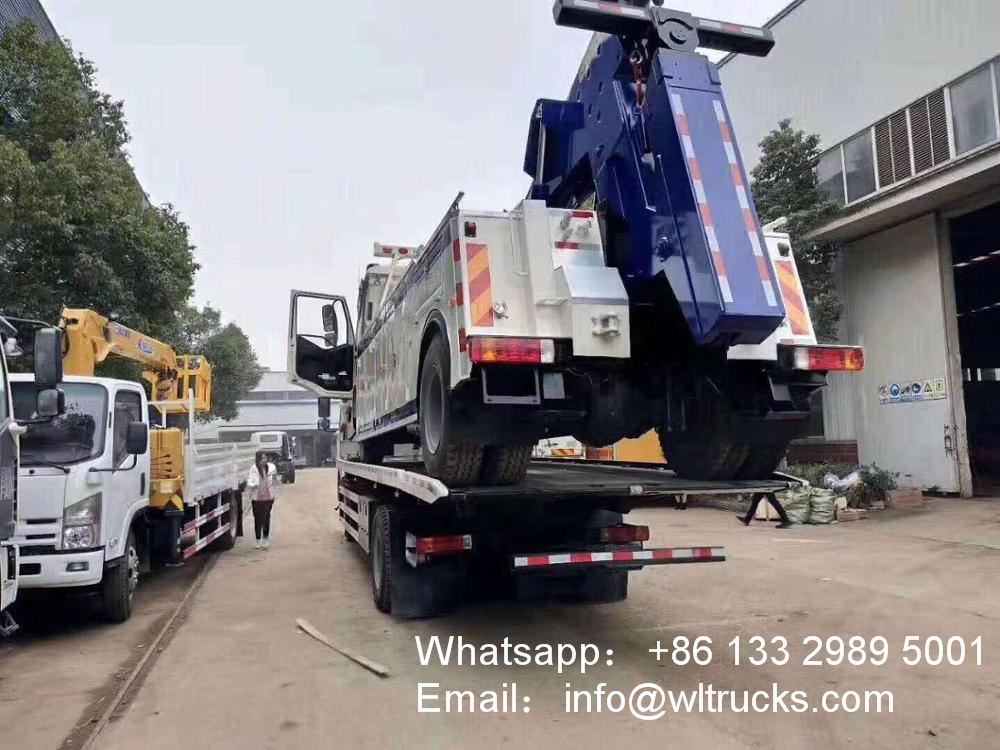

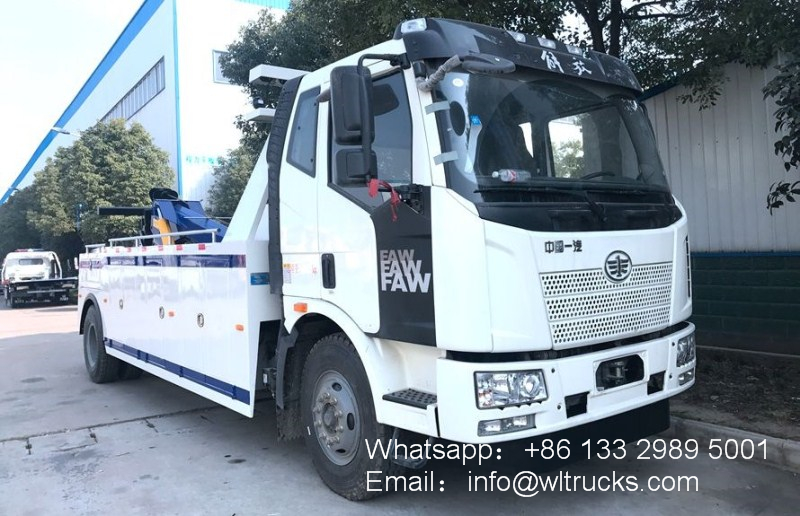

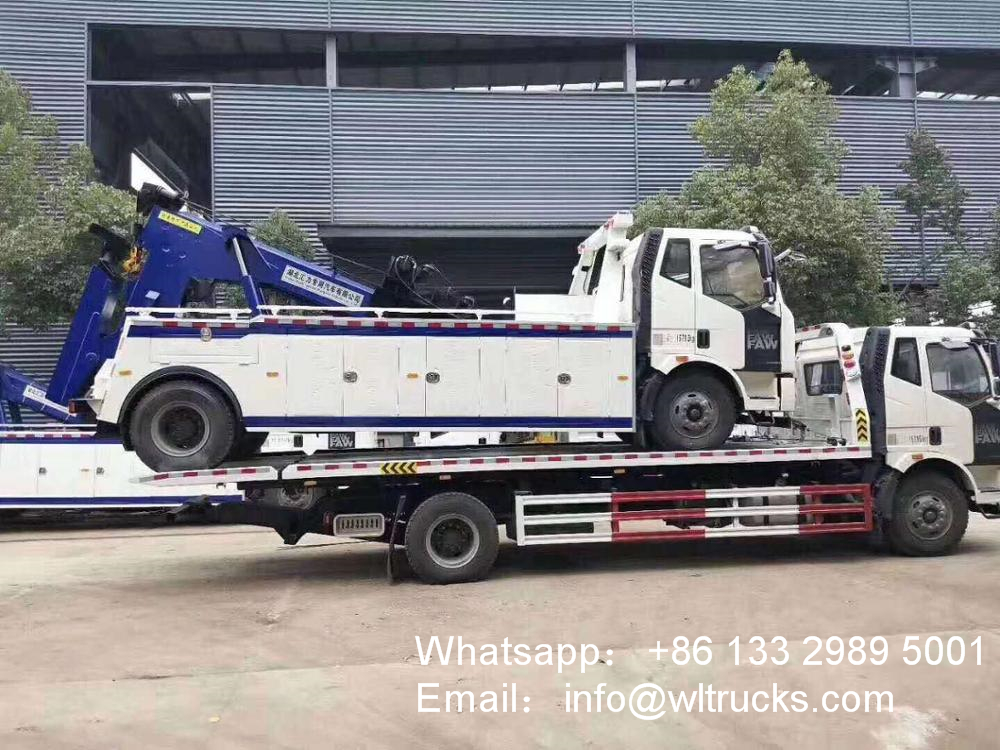

FAW 16 ton Towing wrecker truck
FAW 16 ton Towing wrecker truck Chassis configuration：
Adopt Jiefang J6 series chassis, Changchun J6L flat roof cab, original cooling and heating air conditioner of cab, Dachai Deitz 225 horsepower engine, 6-speed gearbox, wheelbase 5800mm, 10.00R20 original steel tire, air brake, original ABS .
FAW 16 ton Towing wrecker truck Bodywork configuration：

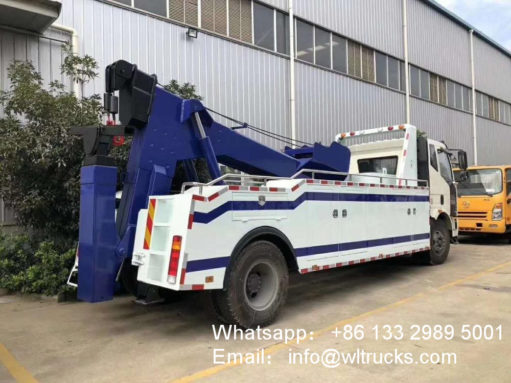

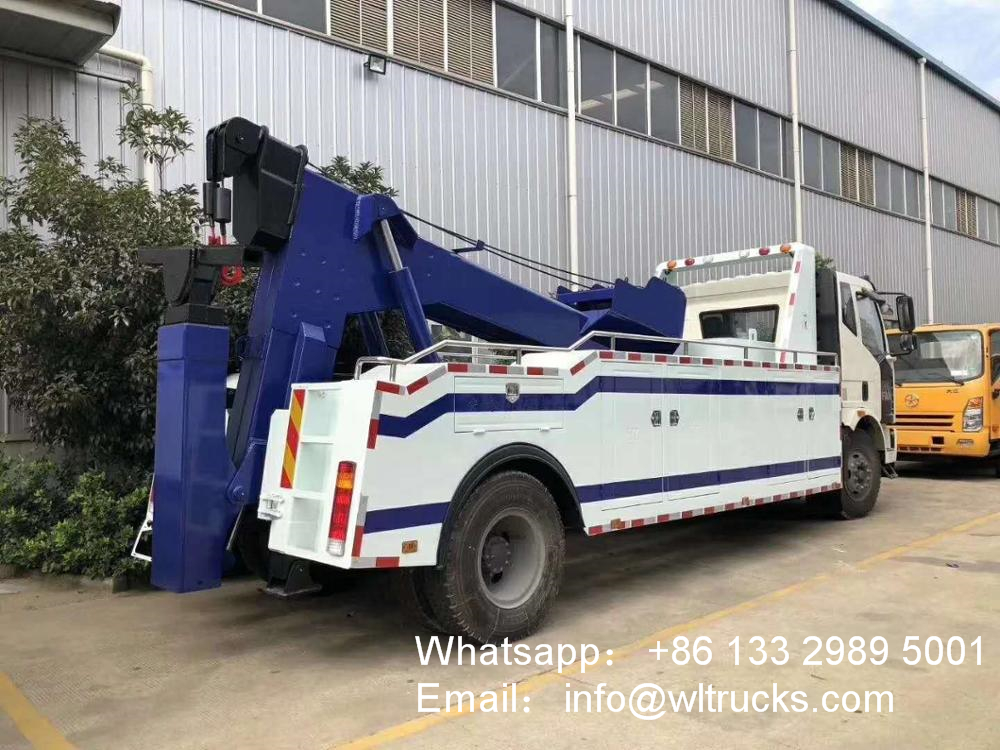

10 tons of united bodywork, two-section six-sided boom, three-section support arm, split carriage, imported hydraulic system, double-sided linkage operation device, front bumper equipped with counterweights, both in performance and endurance are relatively strong.
Two 8-ton electro-hydraulic winches, 35m steel wire rope, 16mm in diameter, equipped with 4 sets of steel forks, one set of trailers, one set of steel plate lugs, one set of tire holding devices, one set of tools on board, auxiliary light assembly 1 set, 1 set of auxiliary trachea assembly, 1 yellow long row LED engineering warning light.
FAW 16 ton Towing wrecker truck specification:
|
Vehicle technical parameters
|
|||
|
product name
|
4×2 FAW 10 tons towing wrecker truck and power wheels tow truck
|
Dimensions
|
8.86×2.5×2.98 meters
|
|
Total mass
|
15.795 tons
|
Curb quality
|
13.64 tons
|
|
Number of prospective adults in the cab
|
3 people
|
Maximum speed
|
101
|
|
Hoisting specification
|
16 tons
|
Tops
|
10 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Liberation J6
|
Chassis model
|
CA5160XXYP62K1L5A4E4
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase
|
5.8 meters
|
Tire specifications
|
10.00R20
|
|
Gearbox
|
8 files
|
Rear axle
|
10 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
BF6M2012-22E4
|
FAW Group
|
6060
|
225
|
|
Top basic configuration
|
|||
|
The standard configuration
|
10 tons joint body top, with winch 8 tons x 2 hydraulic winch, 35 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights.
|
||
FAW 16 ton Towing wrecker truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
