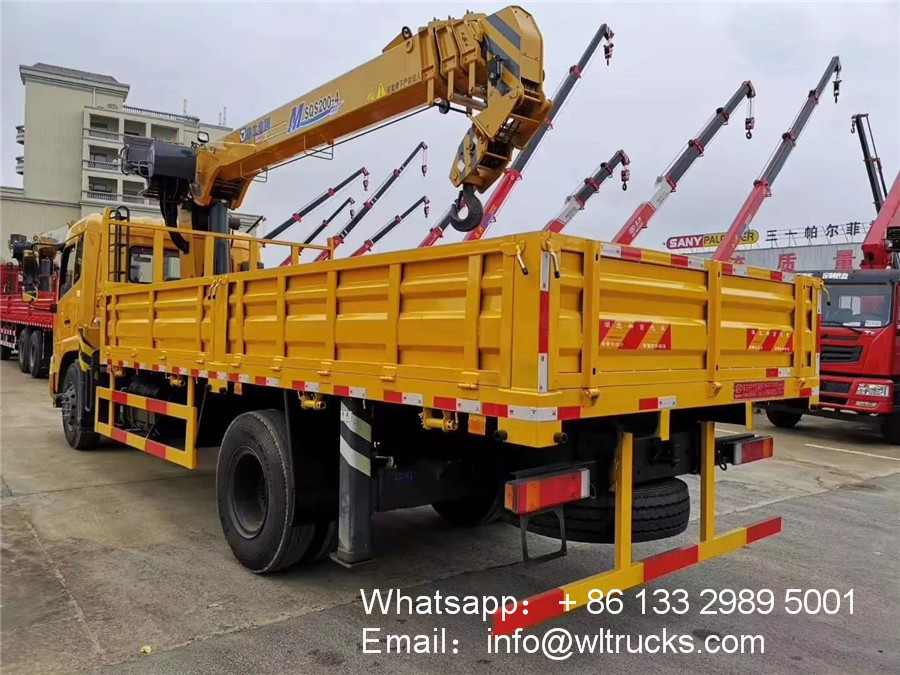

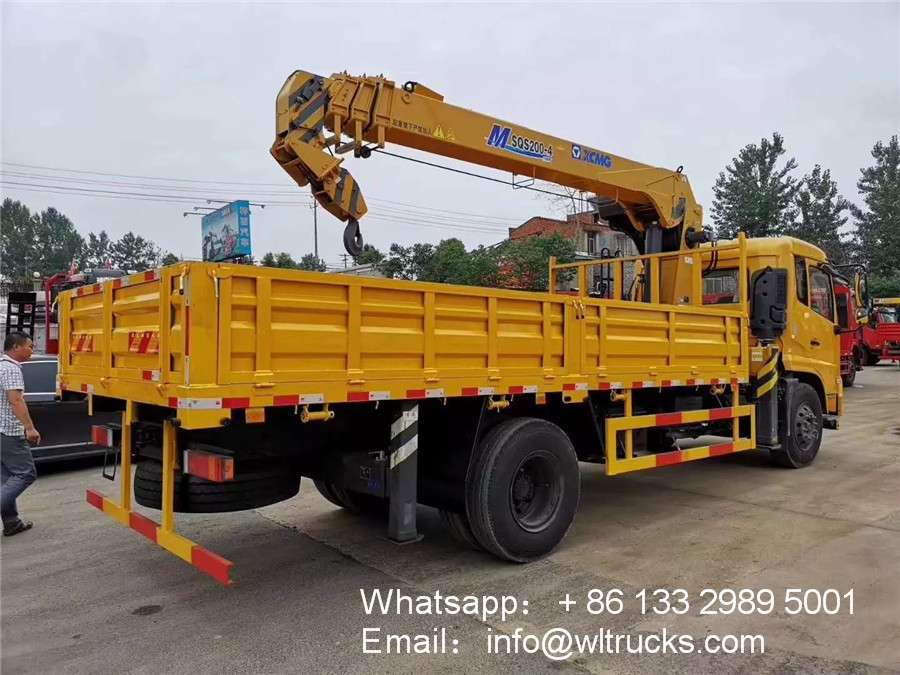

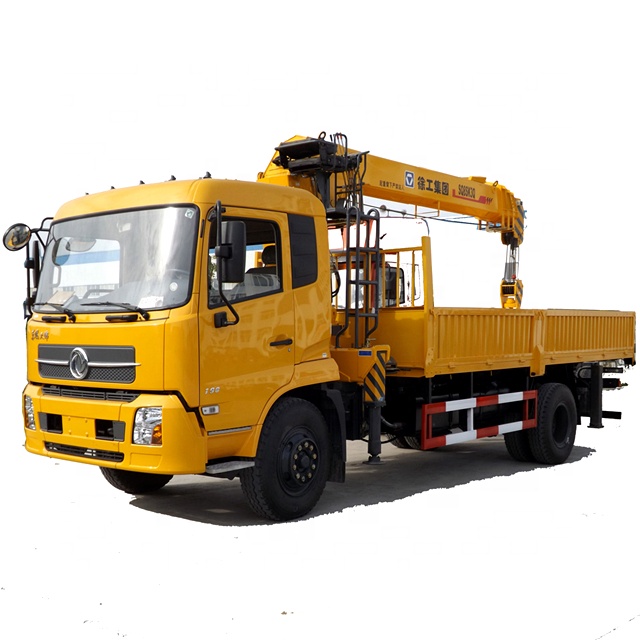

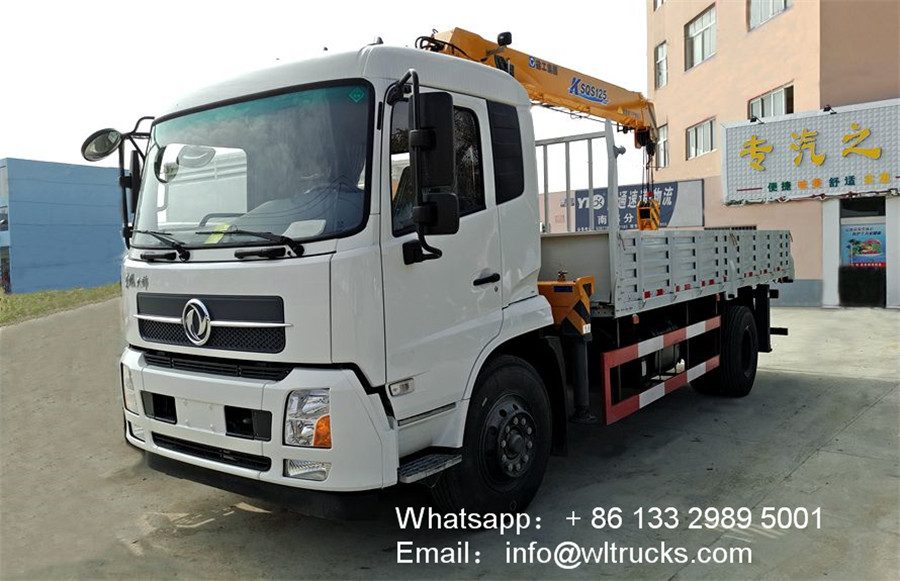

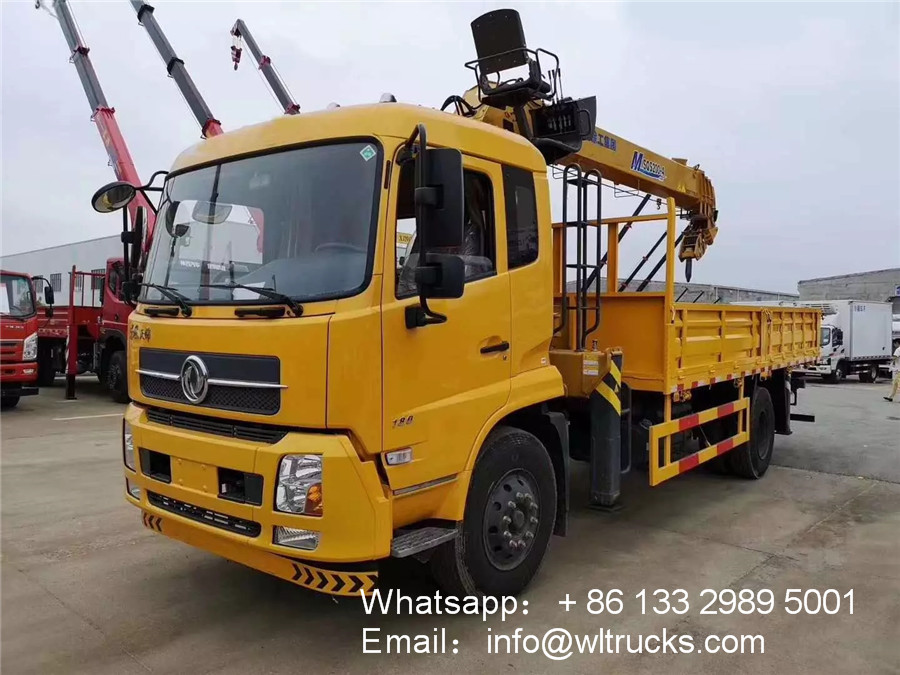

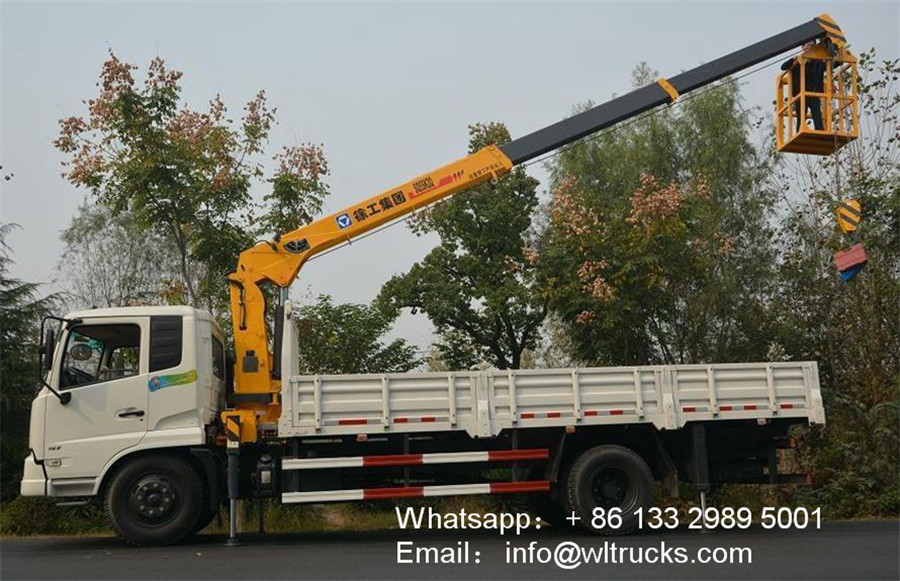

Dongfeng tianjin 6ton to 8ton truck with crane
Dongfeng tianjin 6ton to 8ton truck with crane Adopt Tianjin luxury cab, Cummins 190 horsepower or 210 horsepower engine, 8-speed gearbox, 4.5 tons front axle, 9 tons rear axle, 9.00 tires for the whole vehicle, cargo box length up to 5.75 meters, 6.1 meters Made into manual telescopic or hydraulic telescopic, the bottom of the cargo box is 5mm thick, can be installed with 3-8 tons of cranes, and can be equipped with self-unloading, aerial work and other devices according to customer needs.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Dongfeng tianjin 6ton to 8ton truck with crane specification:
| Product Name | Dongfeng tianjin crane truck |
| Driving Type | 4×2, left hand drive |
| Model | CLW5160JSQD3 |
| Weight | |
| Payload (kg) | 8000-10000kg |
| Kerb weight(kg) | 8870kg |
| Dimension | |
| Wheelbase(mm) | 4500mm |
| Overall Size(mm) | 9000×2500×3500 |
| Box size(mm) | 6000×2300×550,600 |
| Engine | |
| Engine model | B190 33(170HP) Cummins engine |
| Engine type | Watercooled,turbocharged |
| No. of cylinders | straight-6 cylinders 6 |
| Displacement(ml) | 5900ml |
| Max. power | 125kw at 2500rpm |
| Max.Torque | 560N.m at 1300rpm |
| Emission standard | Euro 3 |
| Fuel tank | 160L,Steel fuel tank, with lockable cap |
| Drive Type | |
| Transmission | DF6S900,6 forwards,1 reverse gear,manual operation |
| Steering | With power steering |
| Brake system | Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake |
| Cab | |
| Cabin | one and a half row cab ,forward control type , all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver’s seat, air conditioning system |
| Axles | |
| Front axle | 4.5 tons |
| Rear axle | 9 tons |
| Tire | |
| Tire specification | 9.00 -20 ,6+1 |
| Battery | |
| Voltage(V) | 24 |
| Battery capacity(A.h) | 140×2 |
| Configuration | |
| Crane | 3~8tons crane |
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 5750*2300*600(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Telescopic Boom | |||
| Max lifting weight | 8,000(kg) | |||
| Max lifting height | 14(m) | |||
| Max working range | 12(m) | |||
| Rotation angle | 360 degree full rotation | |||
| Crane Weight | 3315kg | ||
| Installation space | 1150(mm) | ||
| Outrigger | 2 pcs, Front leg | ||
| Operation | Hydraulic control, with Aerial Seat | ||
| Optional Parts | 1. Remote control 2. Rear leg |
||
Dongfeng tianjin 6ton to 8ton truck with crane Working parameter:
