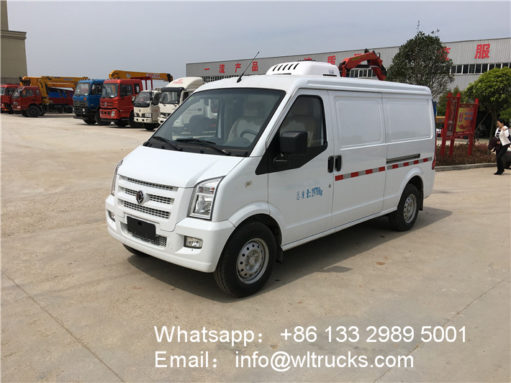

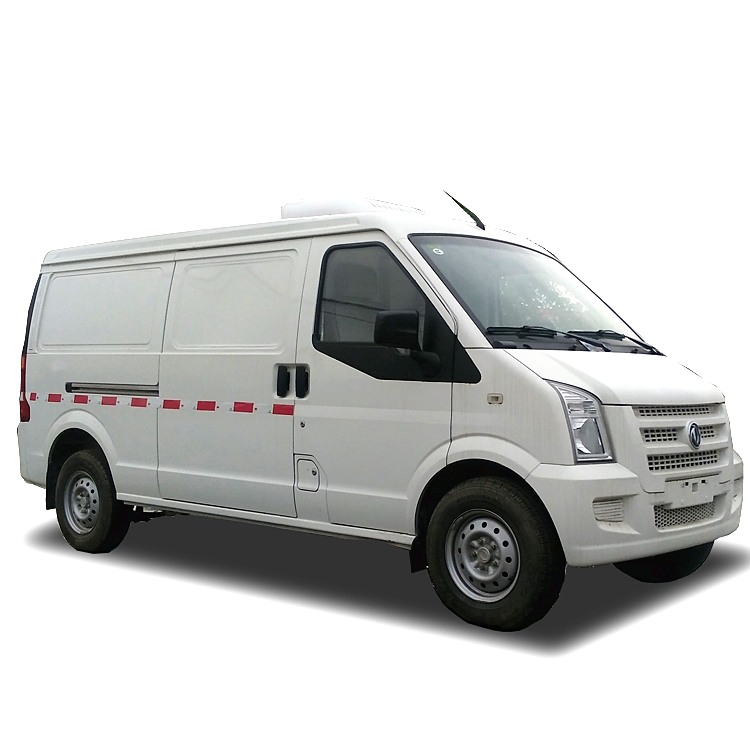

Dongfeng minibus refrigerator truck
Chassis configuration: engine: DK15-10 Chongqing Xiaokang Power, power: 82kw, 110 horsepower, displacement: 1.5L, wheelbase: 3050mm, manual five-speed 185R14LT vacuum tire, cab with air conditioning, with direction assistance, electric glass.
Bodywork configuration: vehicle size: 4500×1680×2240mm, body size: 2250x1520x1500mm=5.1 square, blue card, the box is made of inner and outer glass fiber reinforced plastics, 8CM thick polyurethane insulation layer, stainless steel door lock, with double rear doors -5°-18° refrigeration unit.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Dongfeng minibus refrigerator truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Dongfeng minibus refrigerator truck specification:
|
[The main technical parameters]
|
|||
|
product name
|
Dongfeng Xiaokang bread refrigerated truck
|
Product number
|
CLW5025XLC5 type refrigerated truck
|
|
Total mass (Kg)
|
1970
|
Number of passengers in the cab (person)
|
2,2+3
|
|
Rated load mass (Kg)
|
530,335,400,205
|
Dimensions (mm)
|
4500×1680×2240
|
|
Curb weight (Kg)
|
1310, 1440
|
Cargo size (mm)
|
2250×1520×1500
|
|
Approach angle / departure angle (°)
|
37.5/28
|
Front overhang / rear overhang (mm)
|
570/880
|
|
Number of axes
|
2
|
Wheelbase (mm)
|
3050
|
|
Axial load (Kg)
|
795/1175
|
Maximum speed (Km/h)
|
135
|
|
other
|
Remarks: 1. Special equipment such as refrigeration unit; 2. Optional front fog lamp with original car, optional electric exterior mirror, D-pillar trim, front grille, aluminum wheel, side window optional paste glass and push-pull Two types of glass, optional rim, electronic power steering. The middle side window is equipped with new style push-pull glass, optional rear logo, tire, rim cover, rear view mirror, optional double sliding door, optional ABS, ABS system Controller model: WX28, ABS system controller manufacturer: Zhejiang Wanxiang Precision Co., Ltd., ABS system control mode: active; 3, the top of the compartment can not be opened, the driving area and the warehouse are effectively isolated, the cargo compartment has no windows 4, the engine net power value: 71kW. Optional DK15-09 engine, the maximum net power is 76KW.5, the rated load mass and the number of people corresponding to 530/2, 335 / 2 + 3.
|
||
|
[Chassis technical parameters]
|
|||
|
Chassis model
|
EQ5026XXYF1 vehicle
|
Chassis name
|
Dongfeng
|
|
Dimensions (mm)
|
4500×1680×2240
|
Number of tires
|
4
|
|
Approach angle / departure angle (°)
|
37.5/28
|
Tire specifications
|
185R14LT 6PR, 185/80R14 95S, 175/80R14 92S, 175/70R14LT, 185/65R 14
|
|
Number of leaf springs
|
-/5
|
Front track (mm)
|
1435
|
|
Fuel type
|
gasoline
|
Rear track (mm)
|
1435
|
|
Emission Standards
|
Country five
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (Kw)
|
|
DK13-09
DK15-09 |
Chongqing Chunan Huaihai Power Co., Ltd.
Chongqing Xiaokang Power Co., Ltd. |
1375
498 |
74
80 |
Dongfeng minibus refrigerator truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Dongfeng minibus refrigerator truck New craft:
Dongfeng minibus refrigerator truck Optional configuration:

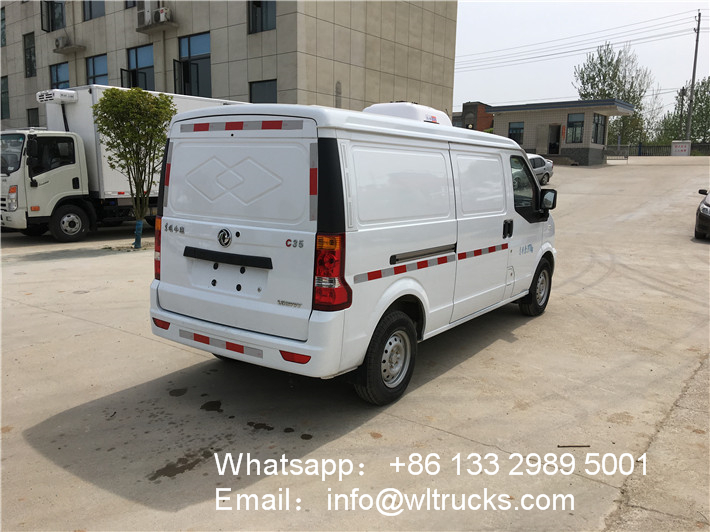

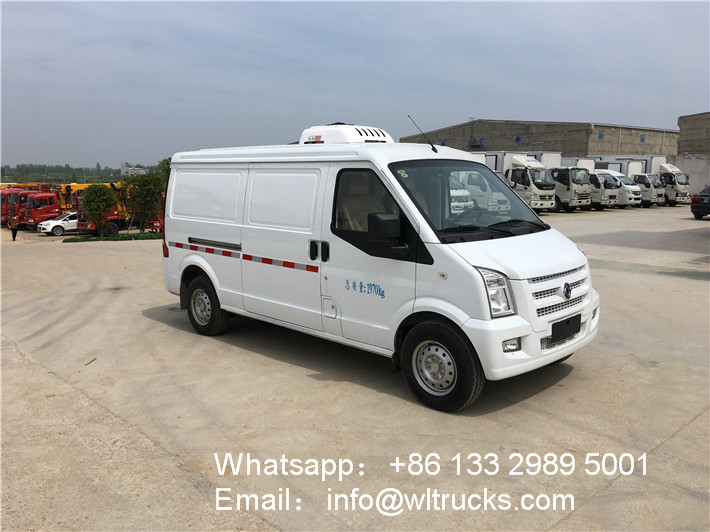

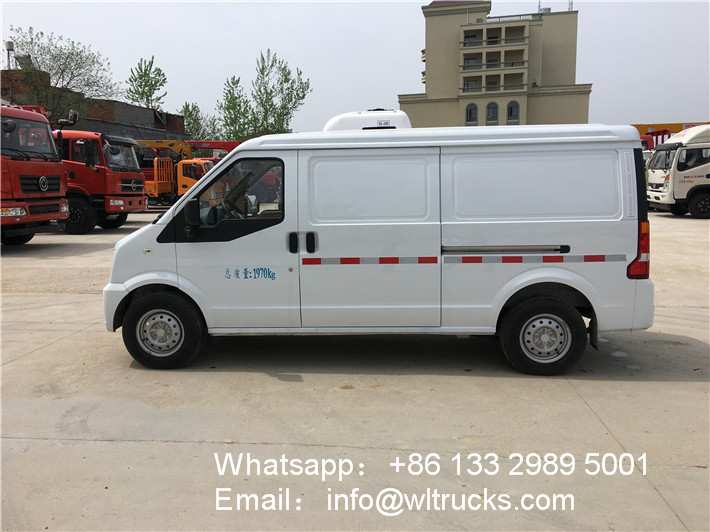

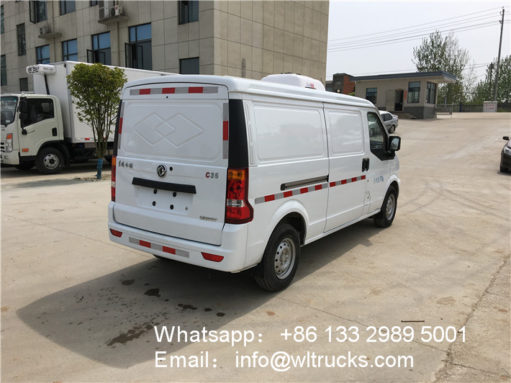

Dongfeng minibus refrigerator truck details:

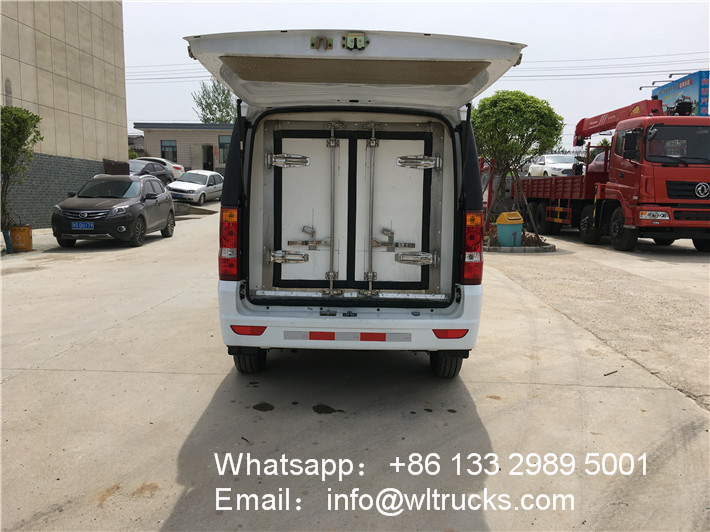

Dongfeng minibus refrigerator truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
