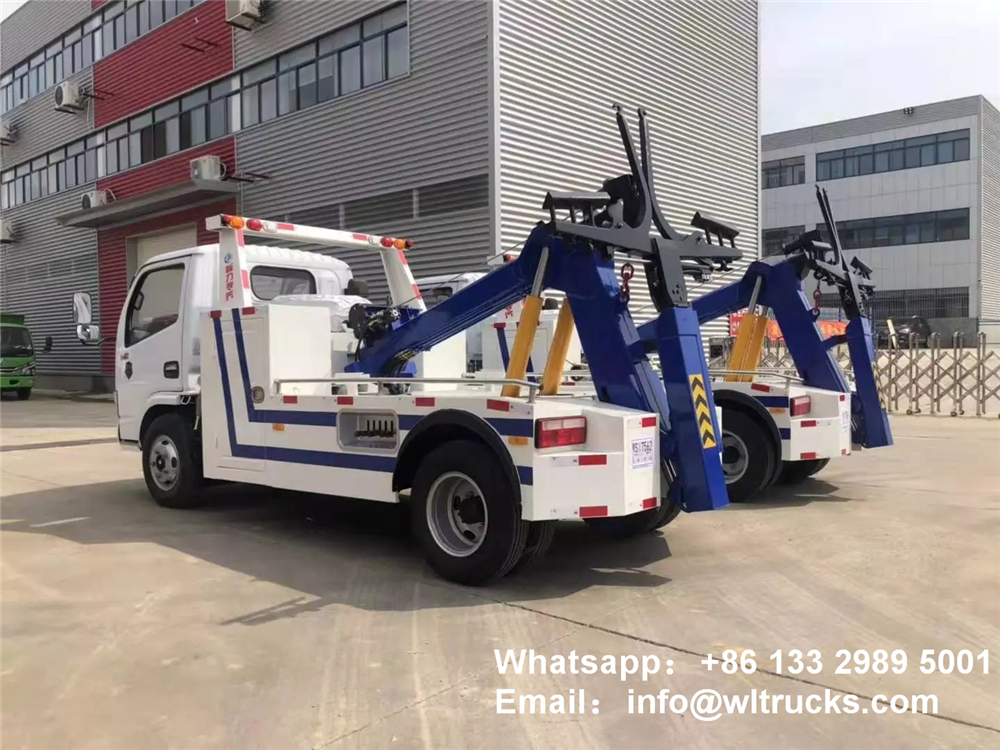

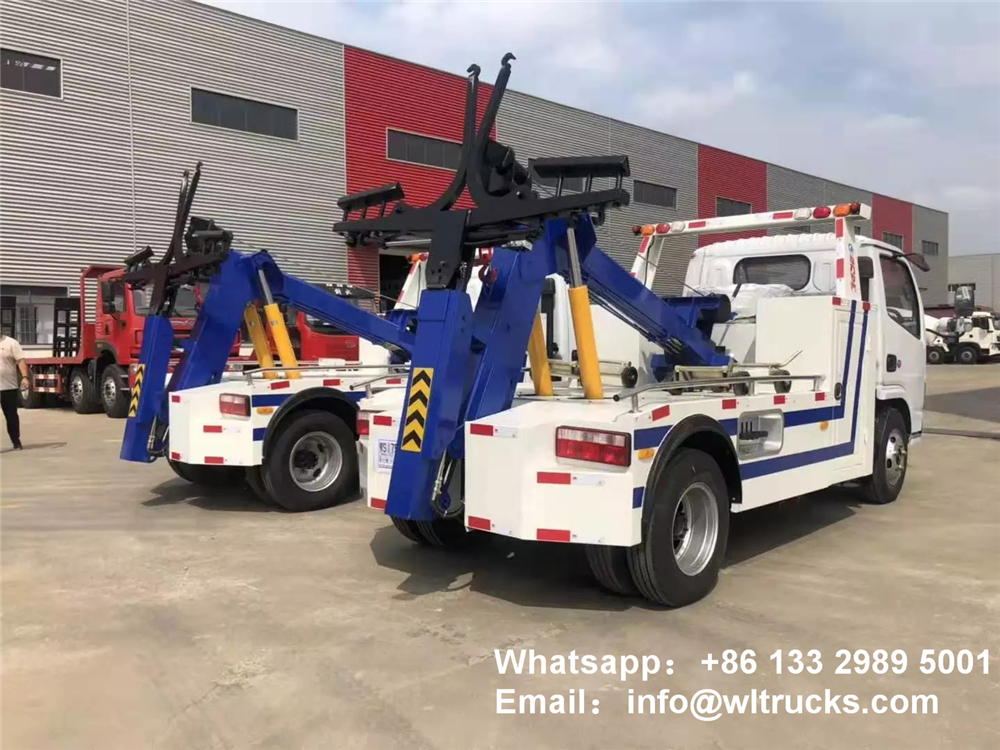

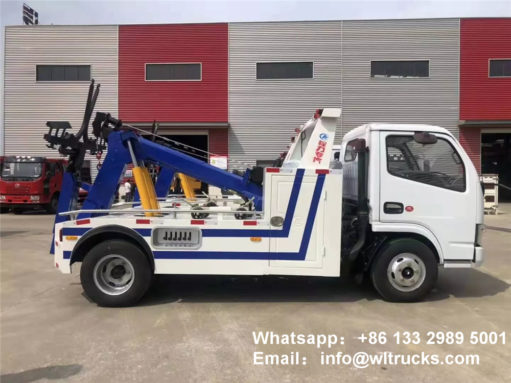

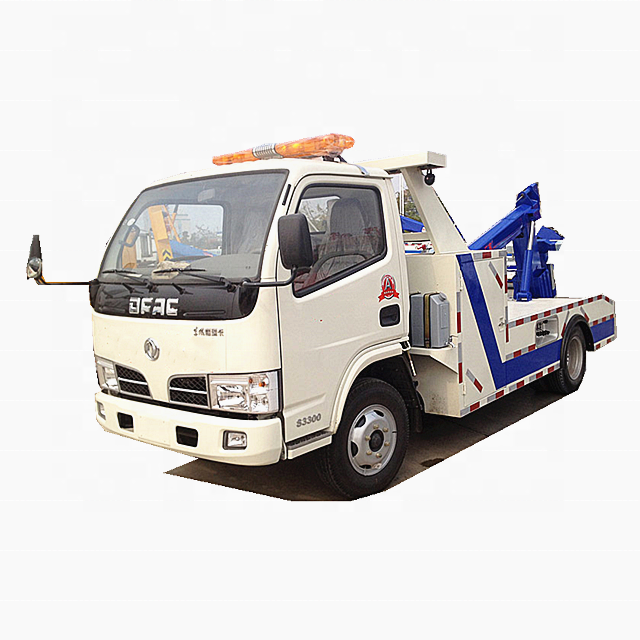

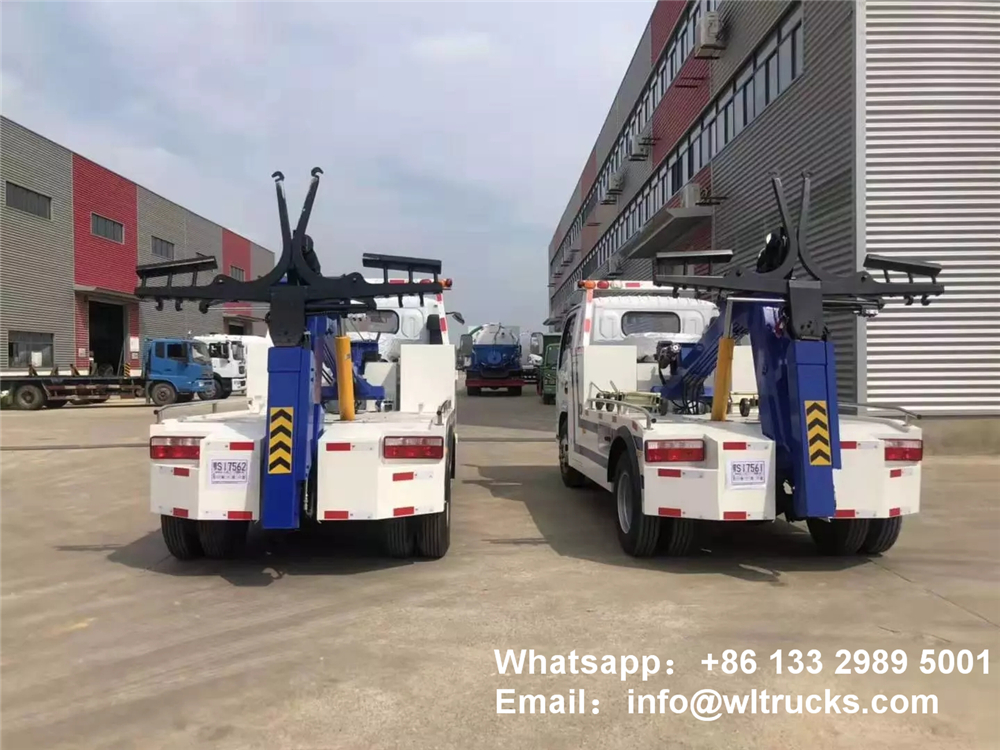

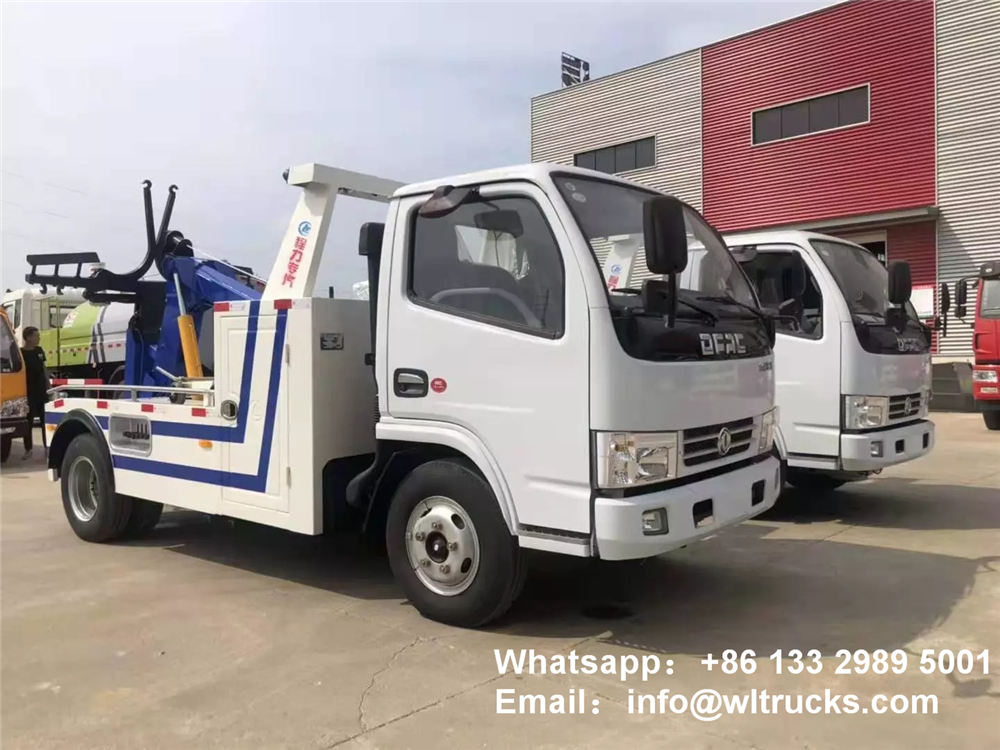

Dongfeng mini Towing wrecker truck
Dongfeng mini Towing wrecker truck Chassis configuration：
Adopt Dongfeng Dolka chassis, single-row cab can be turned forward, 95-horsepower diesel engine, 5-speed gearbox, wheelbase 3300m, 7.00-16 original tires, with direction boost, clutch booster, steam brake.
Dongfeng mini Towing wrecker truck Bodywork configuration：
3-ton conjoined bodywork, equipped with 4-ton hydraulic winch, imported hydraulic system, double-sided linkage operation, 25-meter steel wire rope, one set of tools, 4 straps, 3 rear working lights, 1 auxiliary light assembly 1 set of trachea assembly with 1 yellow long row of police lights.
Dongfeng mini Towing wrecker truck specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions | 5.99 5×1. 98×2.25 meters |
| Total quality | 4.495 tons | Curb quality | 4.1 tons |
| Winding specifications | 4 tons | Tops | 3 tons |
| Chassis technical parameters | |||
| Chassis name | Dongfeng Doric | Chassis model | EQ1041SJ3BDF |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase | 3.3 meters | Tire specifications | 7.00R16 |
| Gearbox | 5 files | Rear axle | 2.5 tons |
| Fuel type | Diesel | brake | Steam brake |
| Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| CY4BK551
YC4FA115-50 |
Dongfeng Chaoyang
Guangxi Yuchai |
3707
2982 |
102
115 |
| Basic upload configuration | |||
| Standard configuration | 3 tons of tops, 3 tons of winches, imported hydraulic system, 25 meters of steel wire rope, pair of auxiliary wheel trolleys, pair of 7-shaped forks, pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronics Engineering police lights, a set of tools. | ||
| Optional configuration | Can be installed with automatic clamping device, drag fork, fork seat, LED long row of flashing warning lights | ||
Dongfeng mini Towing wrecker truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
