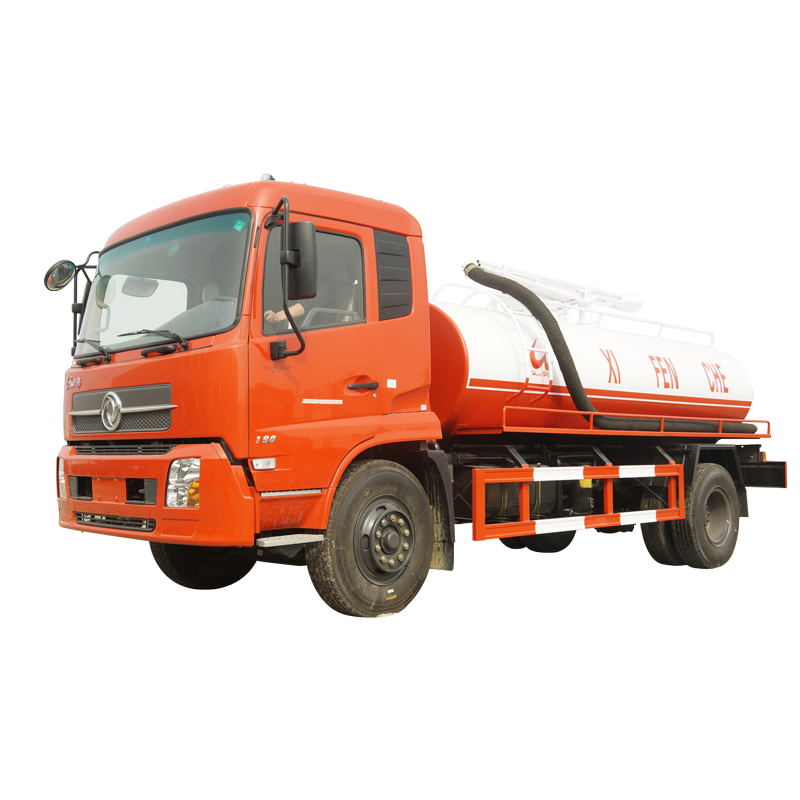

Dongfeng Kinrun 10 ton to 15 ton vacuum Fecal suction truck Specification:
Top configuration: tank volume 12000-15000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-15 water ring vacuum pump, optional 8 tons two oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
4×2 Dongfeng Vacuum Fecal Suction Truck
|
|
|
Gross weight
|
16800 kg
|
|
Curb weight
|
8805 kg
|
|
Dimension
|
8300X2490X3380 mm
|
|
Tank volume
|
12.2CBM
|
|
Wheelbase
|
5000 mm
|
|
Axle number
|
2
|
|
Axle load
|
4.5/9000
|
|
Chassis Specification
|
|
|
Tire number
|
6
|
|
Approach/Departure angle(°)
|
29/21
|
|
Tire speicifcation
|
9.00R20
|
|
Engine
|
ISB180 50 Euro 5
|
|
Power
|
132 kw (180hp)
|
|
Displacement
|
4500 ml
|
|
Emission standard
|
Euro 5
|
|
Sewage Suction Specification
|
|
|
Type
|
Vacuum pump
|
|
Full tank time
|
＜5 min
|
|
Empty tank
|
＜4 min
|
|
Vertical suction depth
|
8 m
|
|
Working pressure
|
8500Pa
|
|
Theoretical pup flow
|
120 L/S
|
|
Inlet and outlet Diameter
|
50 mm
|
|
Drainage pipe length
|
5m
|
|
Tank capacity
|
12 CBM
|
|
Tank size
|
φ4300×1700
|
|
Tank material
|
6mm high carbon steel
|
|
Standard configuration
|
Chassis, sub frame,sewage tank, manhole, vacuum pump,liquid indicator,outlet valve(by gravity),hand-washing device,6m suction
pipe,side supporting rod,oil-water separator,anti-overflow valve,hydraulic cylinder for both side for tank lifting, tank back door can be hydraulically opened |
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

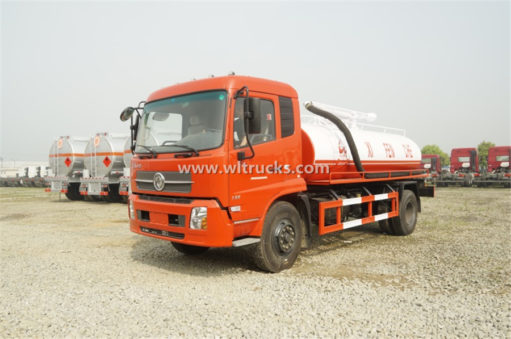

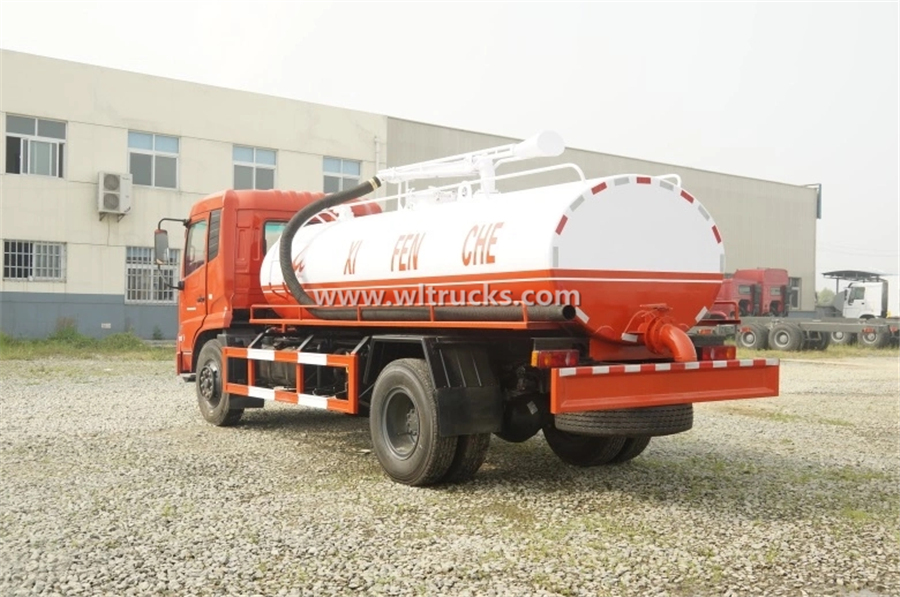

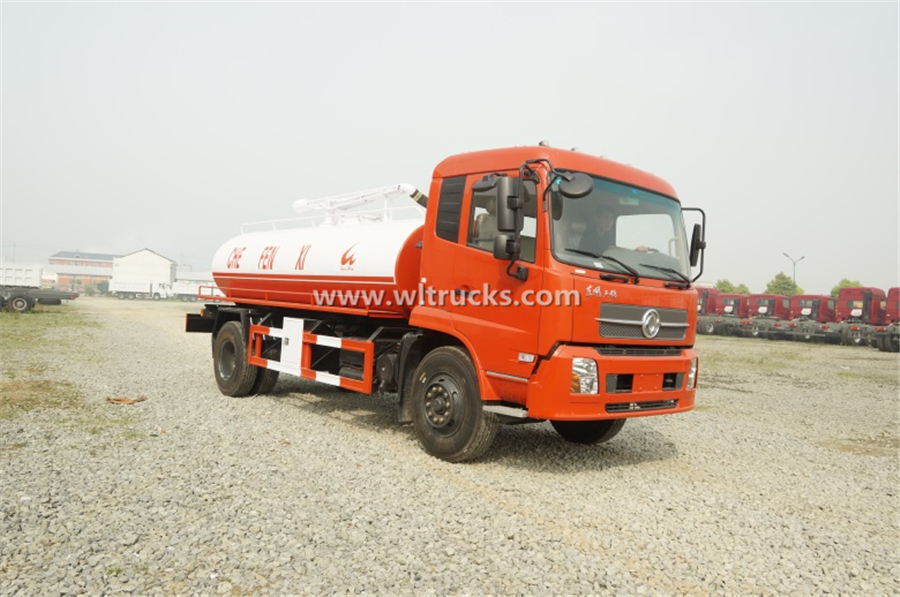

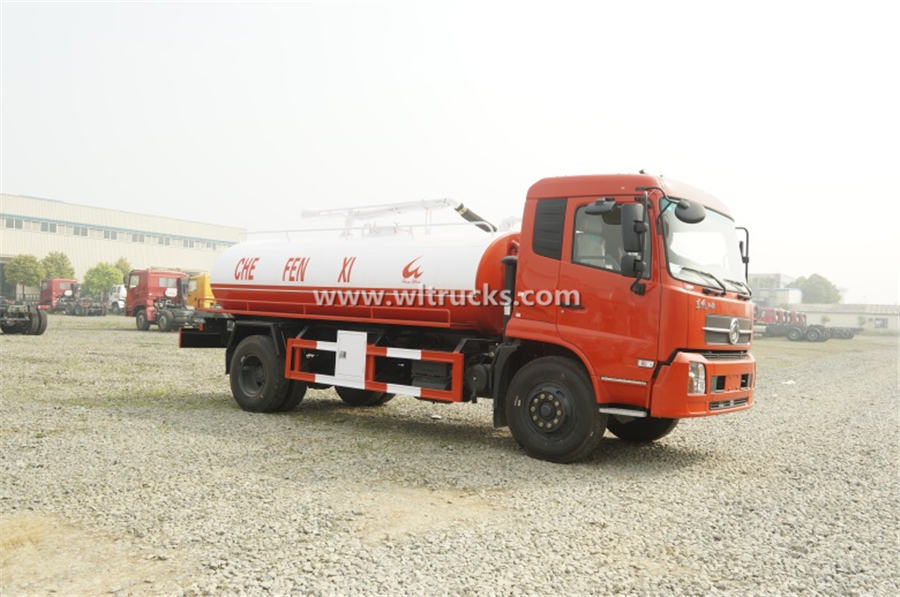

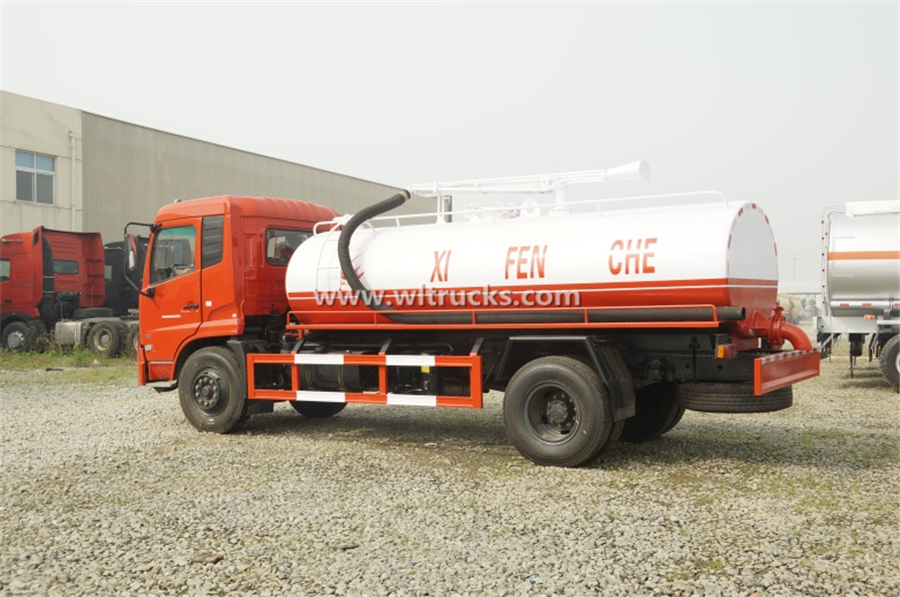

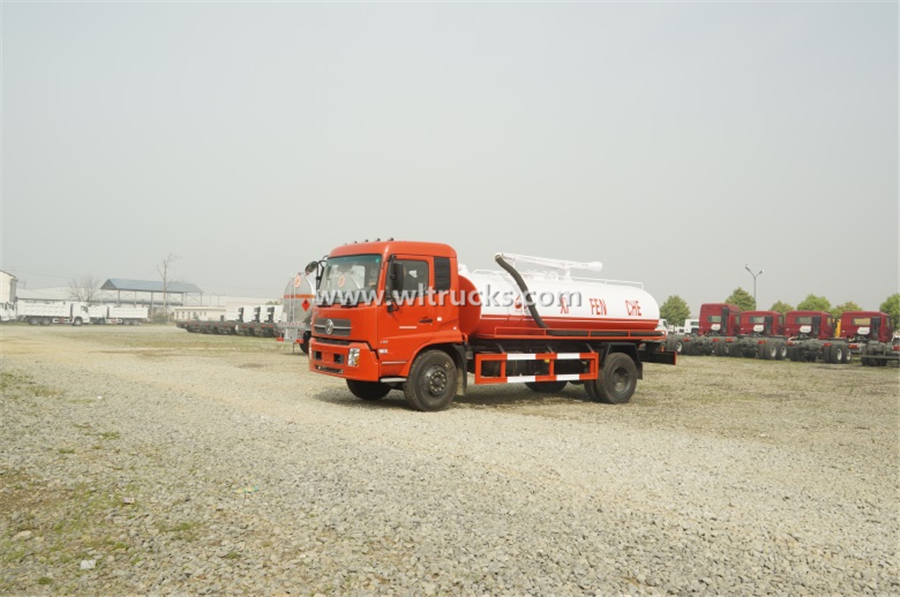

Toilet suction truck Detailed image
