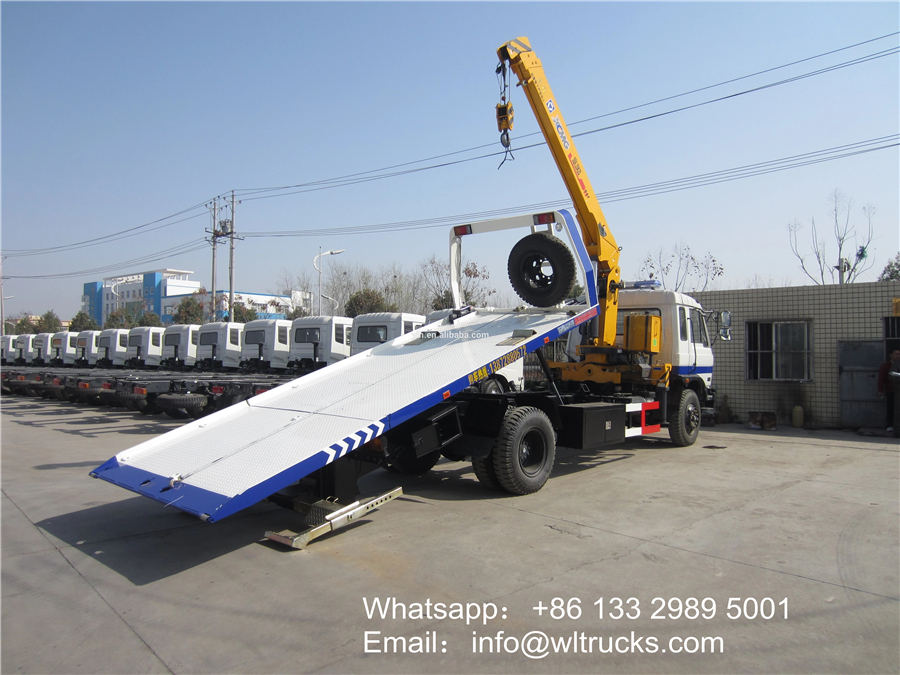

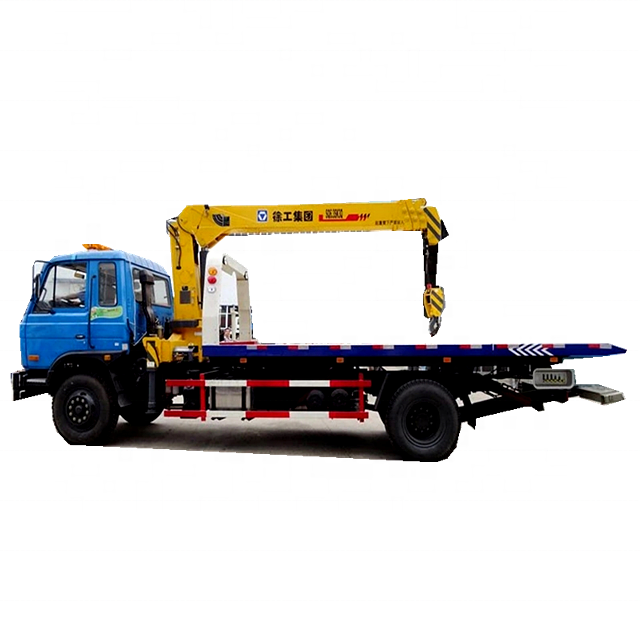

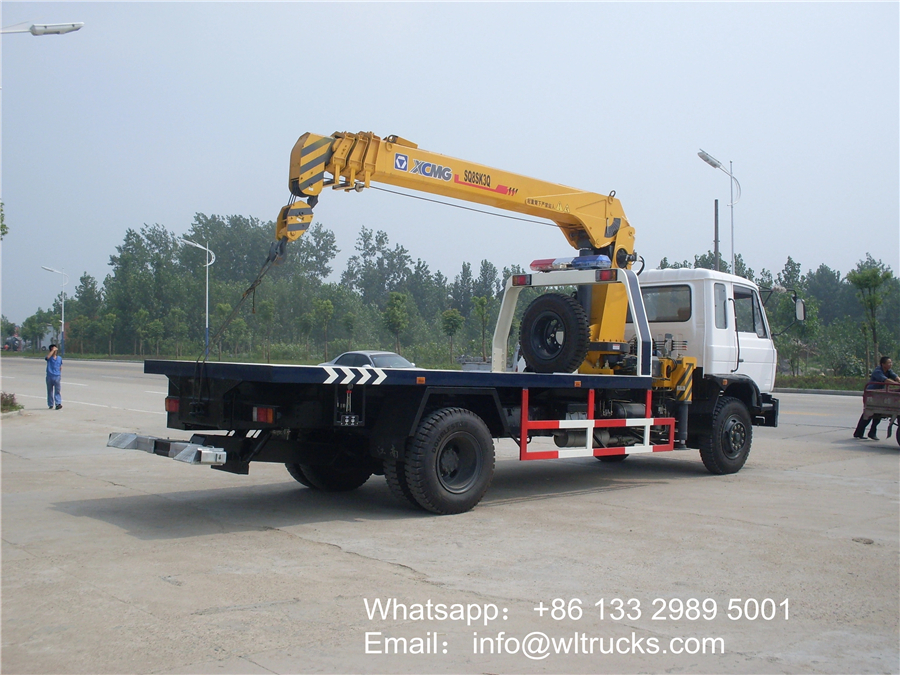

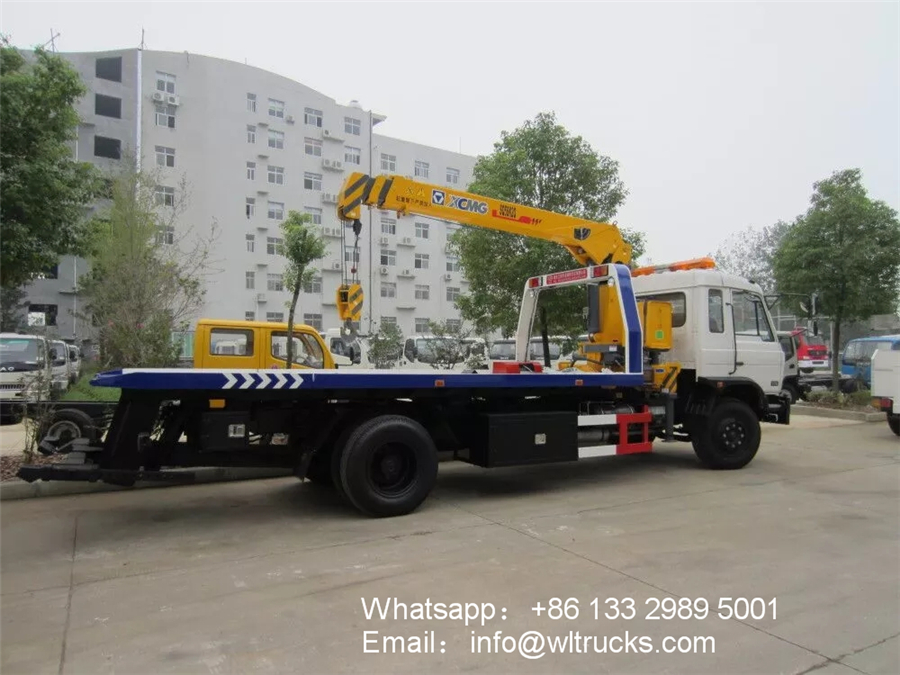

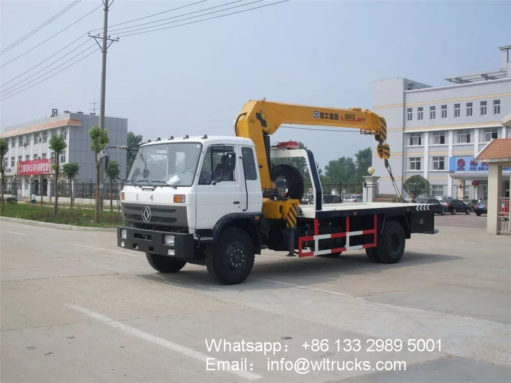

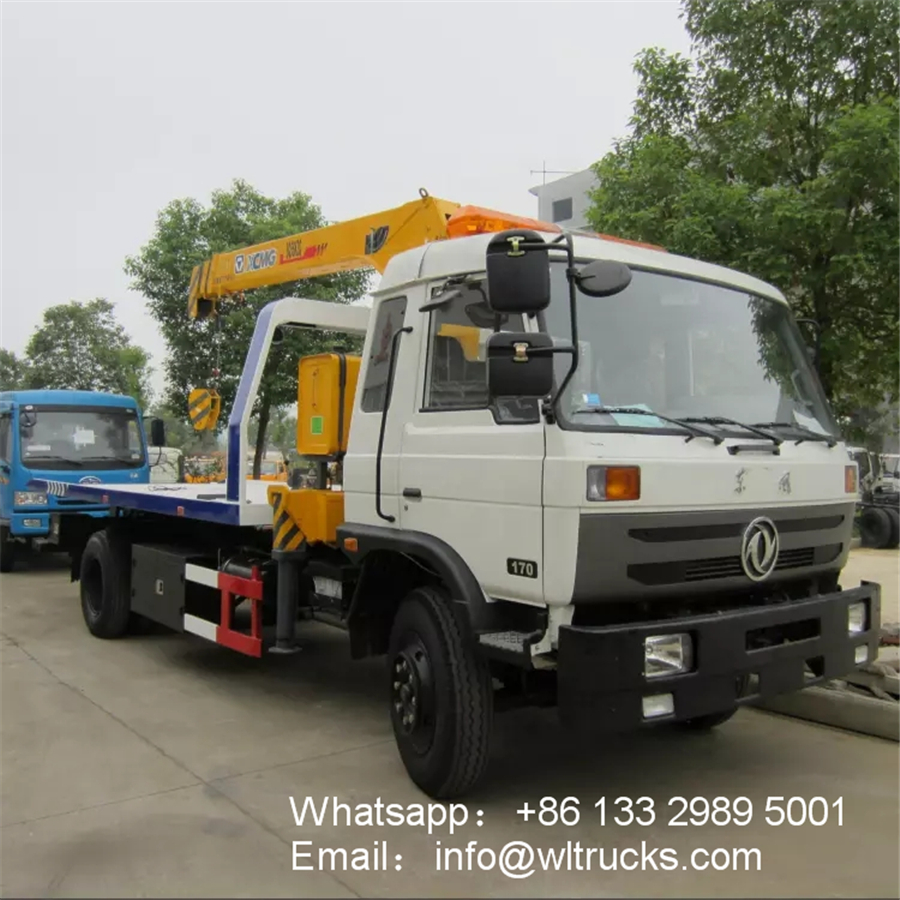

Dongfeng 8ton Crane 360degree Rotation Wrecker Tow Truck
- Chassis:
Dongfeng 8ton Crane 360degree Rotation Wrecker Tow Truck Adopt Dongfeng old model 153 one row and a half cab, Cummins 190 horsepower engine, 8-speed gearbox, wheelbase 4700mm, 10.00 original nylon tire, air brake. - Bodywork:
The plate is 6 meters long and 2.4 meters wide. The flat plate can be a patterned plate or disposable stamping plate. It is equipped with a 5 ton or 6.3 ton crane. The 6 ton support arm plate is equipped with a 6 ton winch. Bodywork, imported hydraulic system, double-sided linkage operation device. With floor hook, equipped with a set of vehicle tools, 2 auxiliary wheel trolleys, a pair of L-shaped tire holding frames, 4 sets of straps, and a long yellow row of LED engineering lights.
Dongfeng 8ton Crane 360degree Rotation Wrecker Tow Truck specification:
| General Technical Specification | |||||
| Overall Dimension | 9200x2480x3500(mm) | ||||
| Gross Vehicle Weight | 159000 (Kg) | ||||
| Curb Weight | 9995 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | Dongfeng | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 140KW/190HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 5900(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Air break | ||||
| Wheel Base | 4700(mm) | ||||
| Front/Rear Axle Loading | 5000/9000(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 10.00R20, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
| Platform Organ | Dimension | 6000*2400(mm) | |||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 6000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 6000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Crane | Max lifting capacity | 8000(kg) | |||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
Dongfeng 8ton Crane 360degree Rotation Wrecker Tow Truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
