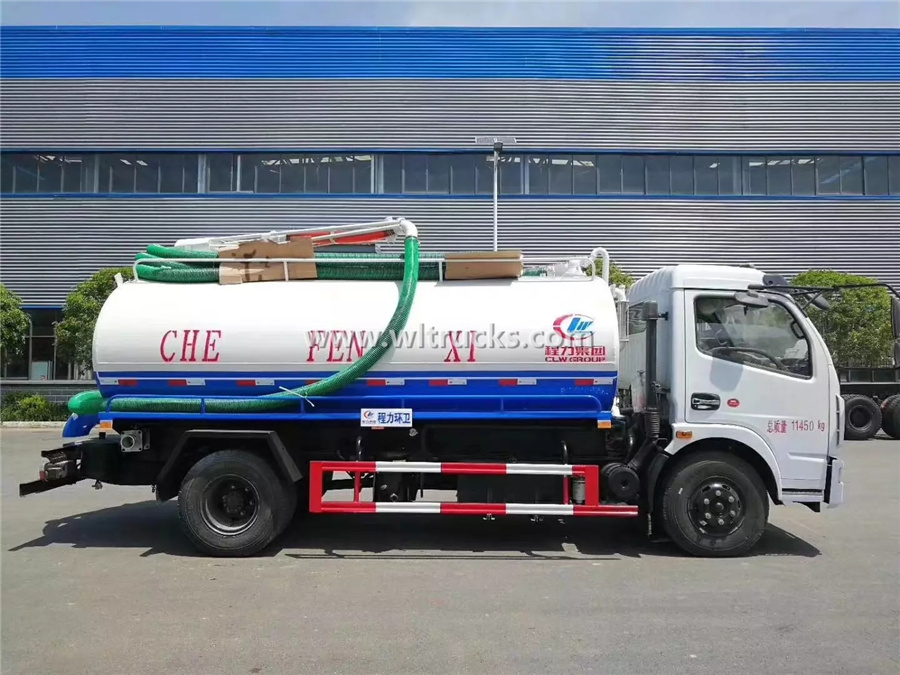

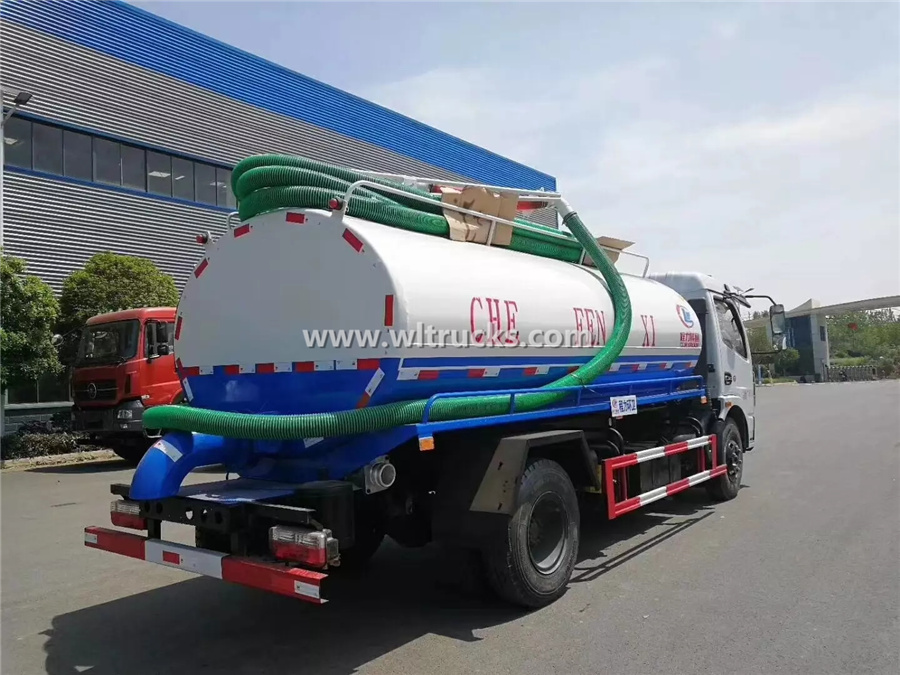

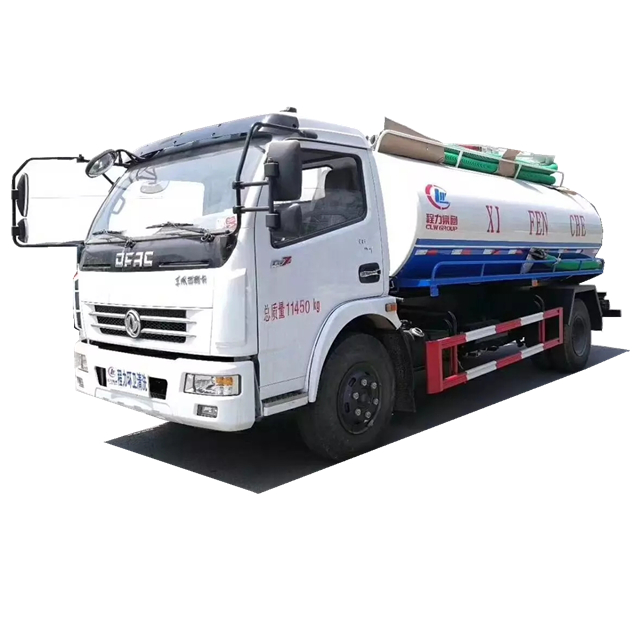

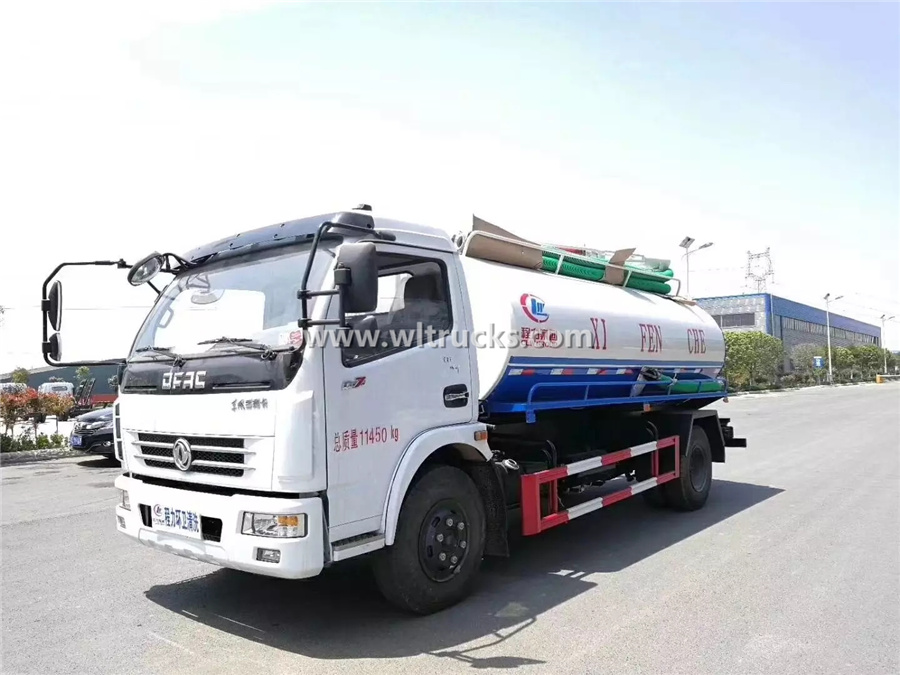

Dongfeng 8m3 vacuum fecal truck Specification:
Top configuration: tank volume 8000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-9 water ring vacuum pump, optional 8 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
Item |
unit |
parameter |
||
|
Vehicle model |
|
Dongfeng 8m3 vacuum fecal truck |
||
|
Chassis model |
|
EQ1080JJD3 |
||
|
Overall dimensions |
mm |
6900×2250×2650 |
||
|
|
Fact cubage |
L |
8000 |
|
|
Mass in working order |
kg |
Appro×6460 |
||
|
Body internal dimensions |
mm |
5200×1750×1250 |
||
|
Wheel base |
3800 |
|||
|
F/R track base |
1605/1545 |
|||
|
Approach/departure angle |
° |
24/11 |
||
|
Exhaust/kw |
ml/kw |
3760/120 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
7.50R16 |
Engine type |
Chaoyang 120hp |
|
|
Traction system |
4×2 |
Transmission |
6-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |
1. Carbon steel fecal tank, 4mm thickness. 2. With a view of the fecal window, a self-flow port, cleaning device. 3. With a 6m suction pipe, with a boom seat on the top of tank. 4. With vacuum suction pump, with water and oil separator, anti-overflow valve. |
|||
|
Engine |
Chaochai |
|||
|
Production cycle |
30-35 days |
|||
|
Warranty |
12 month, from the date of supply |
|||
|
FOB Shanghai |
USD |
|||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |

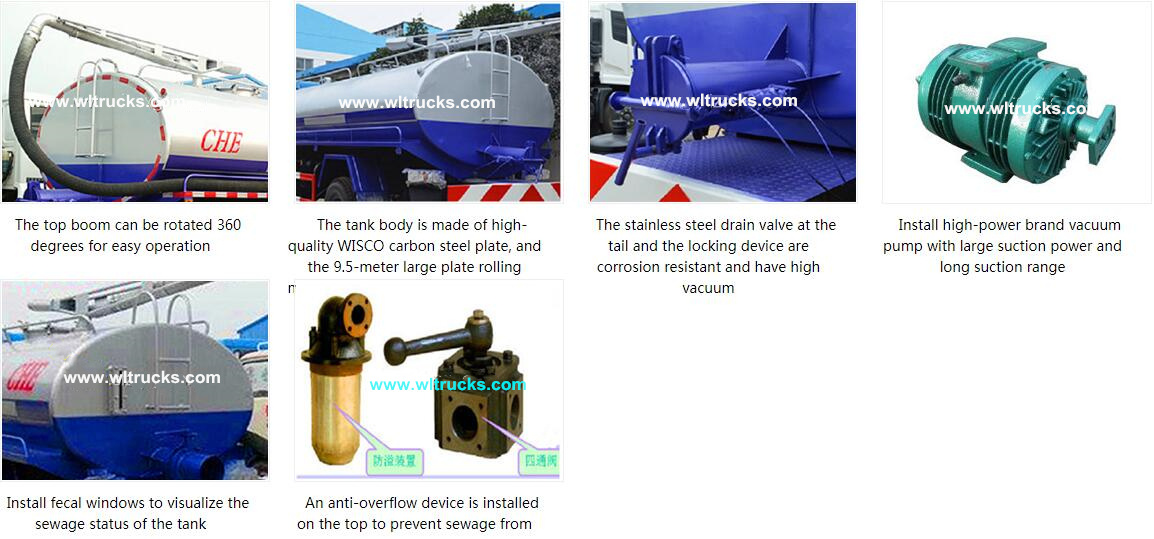

Septic tank truck Working parameter New craft：

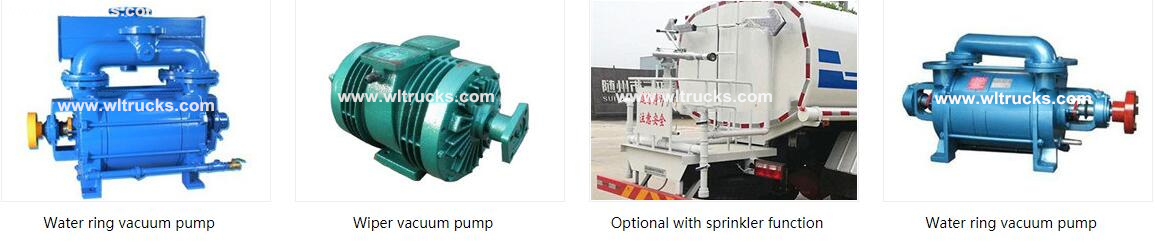

Optional configuration

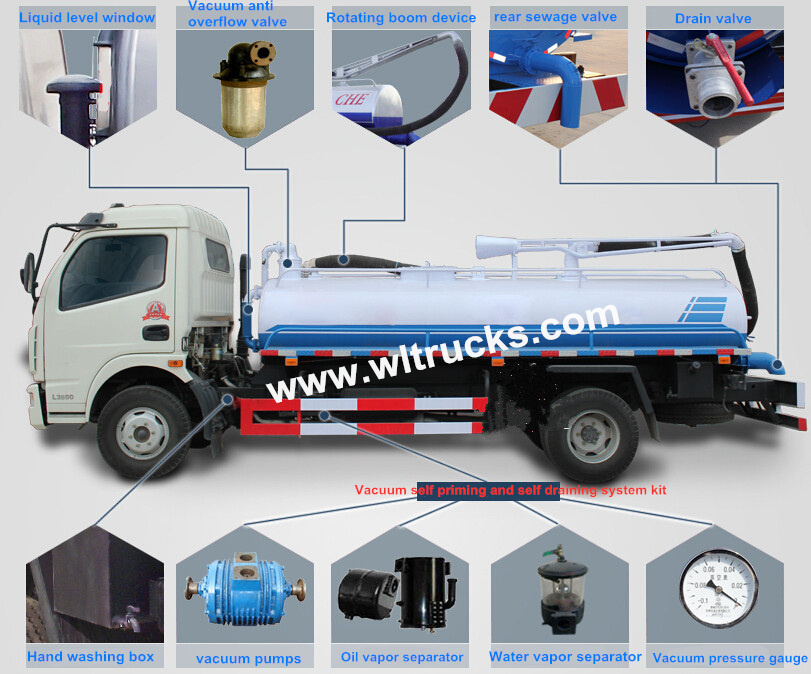

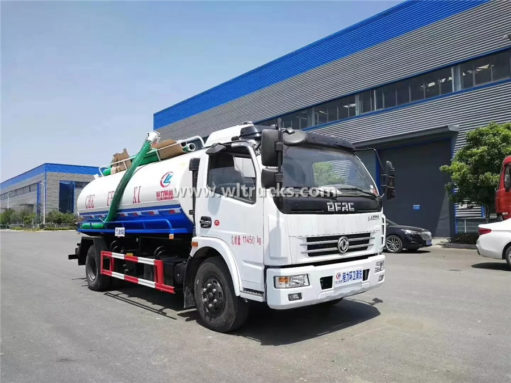

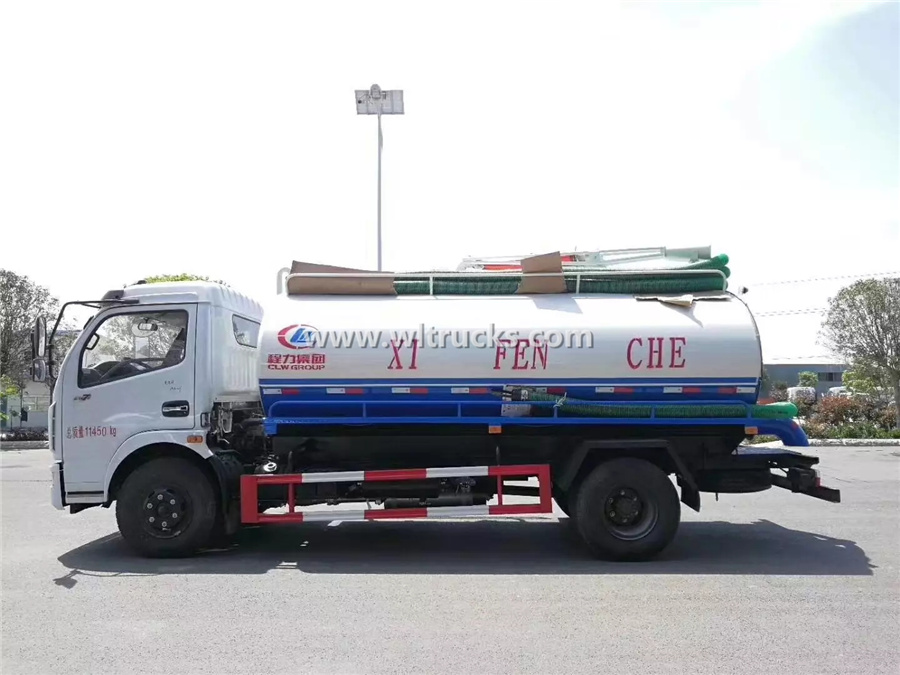

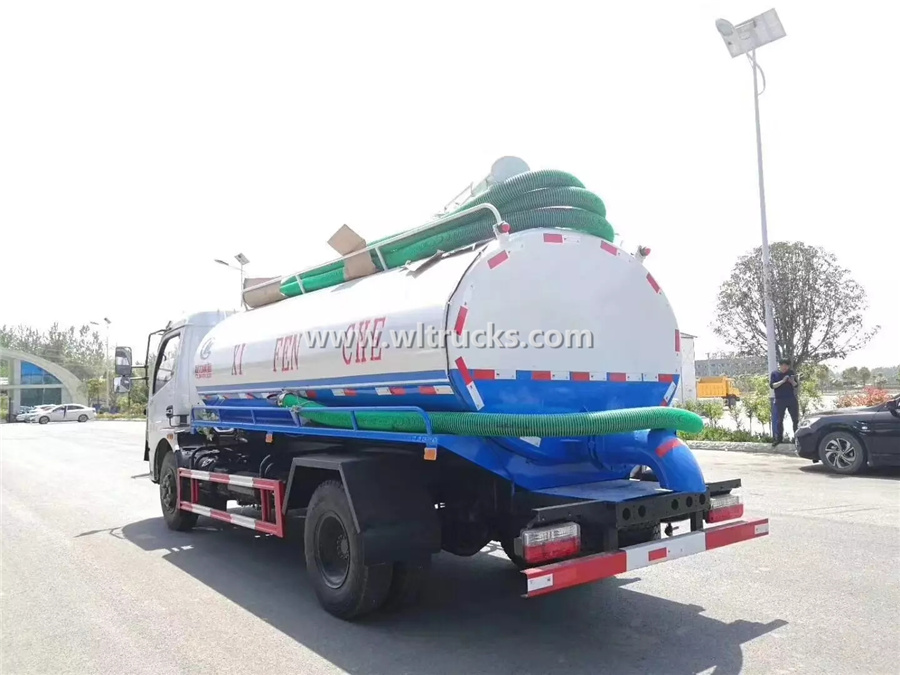

Toilet suction truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.

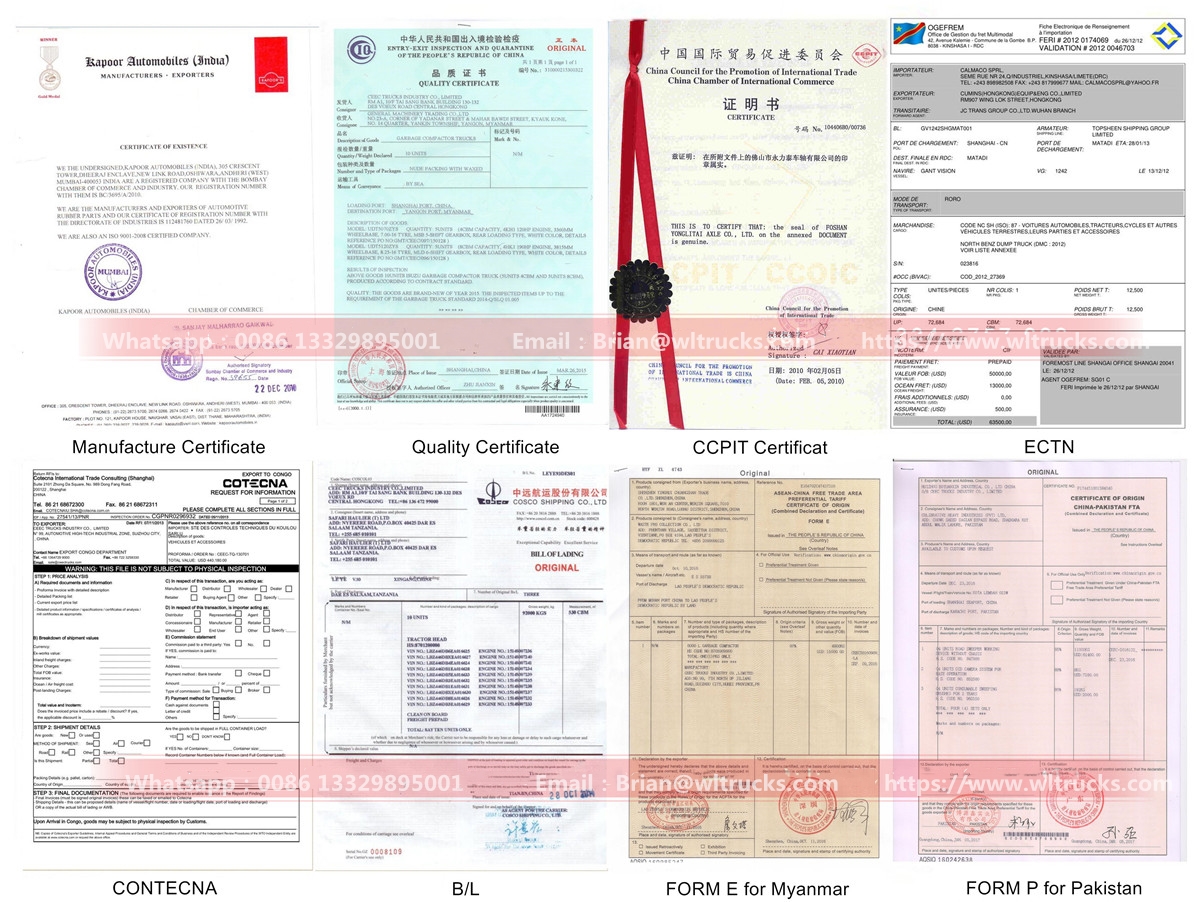

—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely

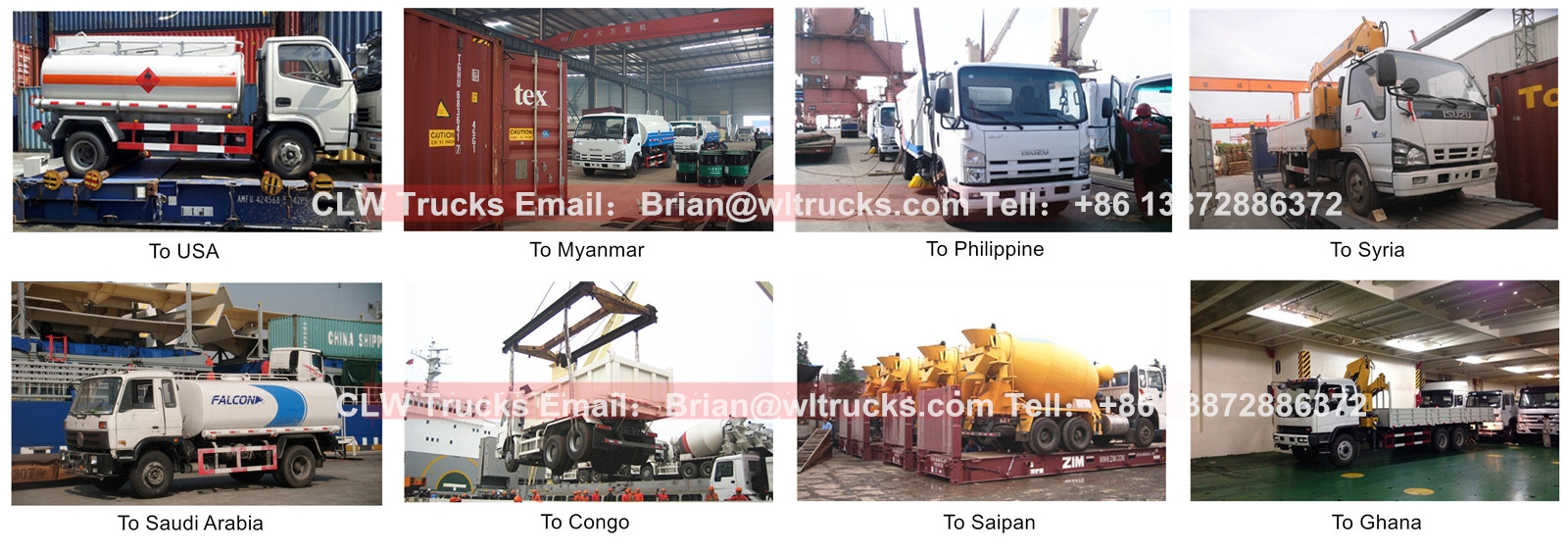

—- Fast shipping to all parts of the world.
