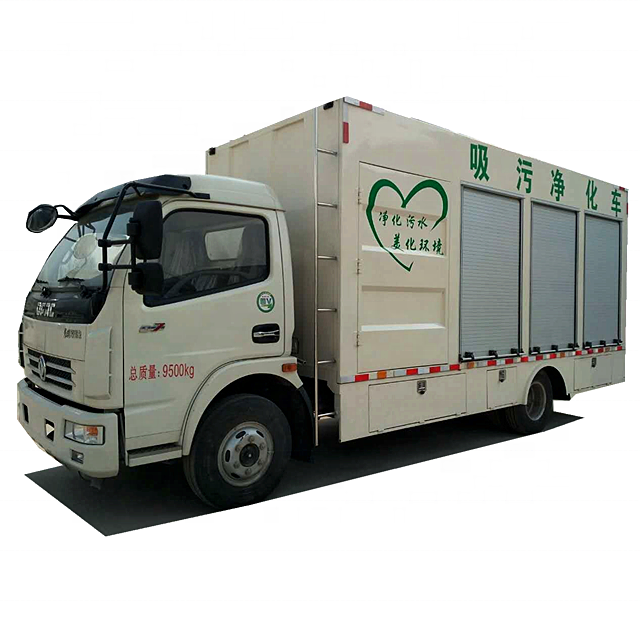

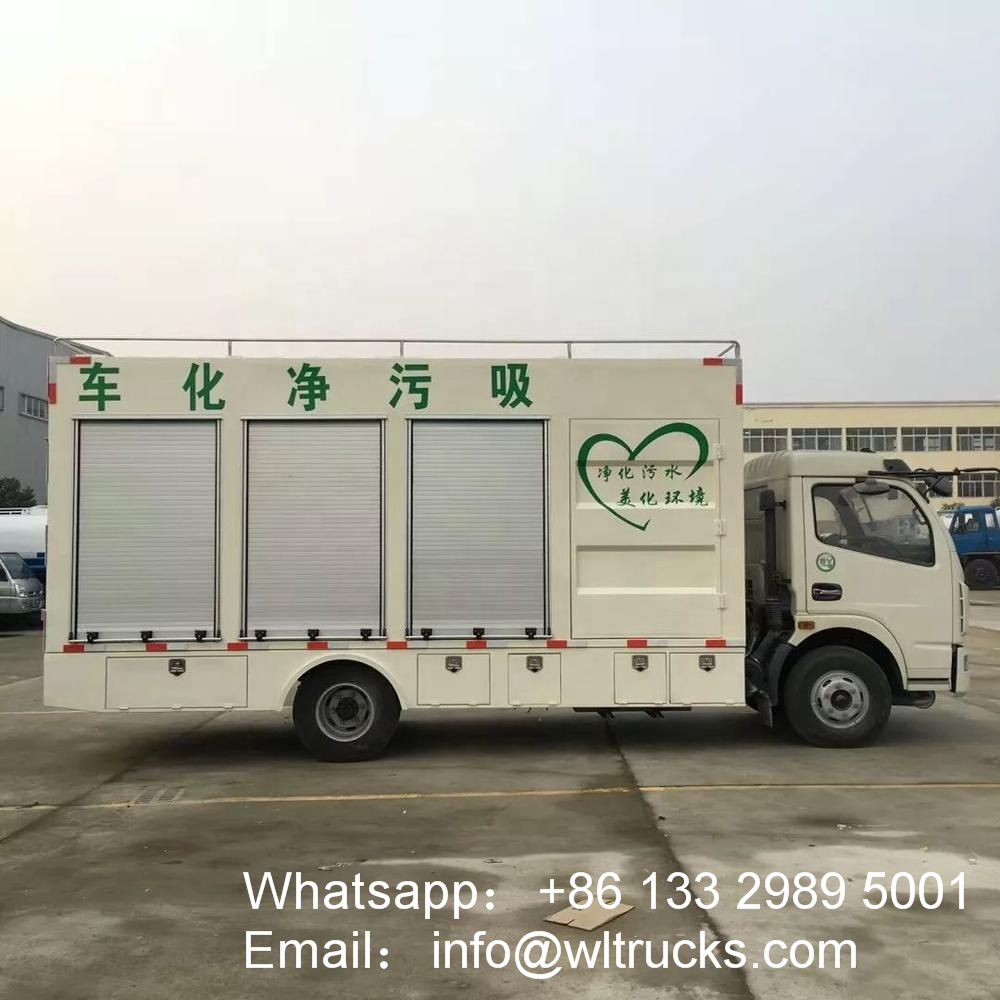

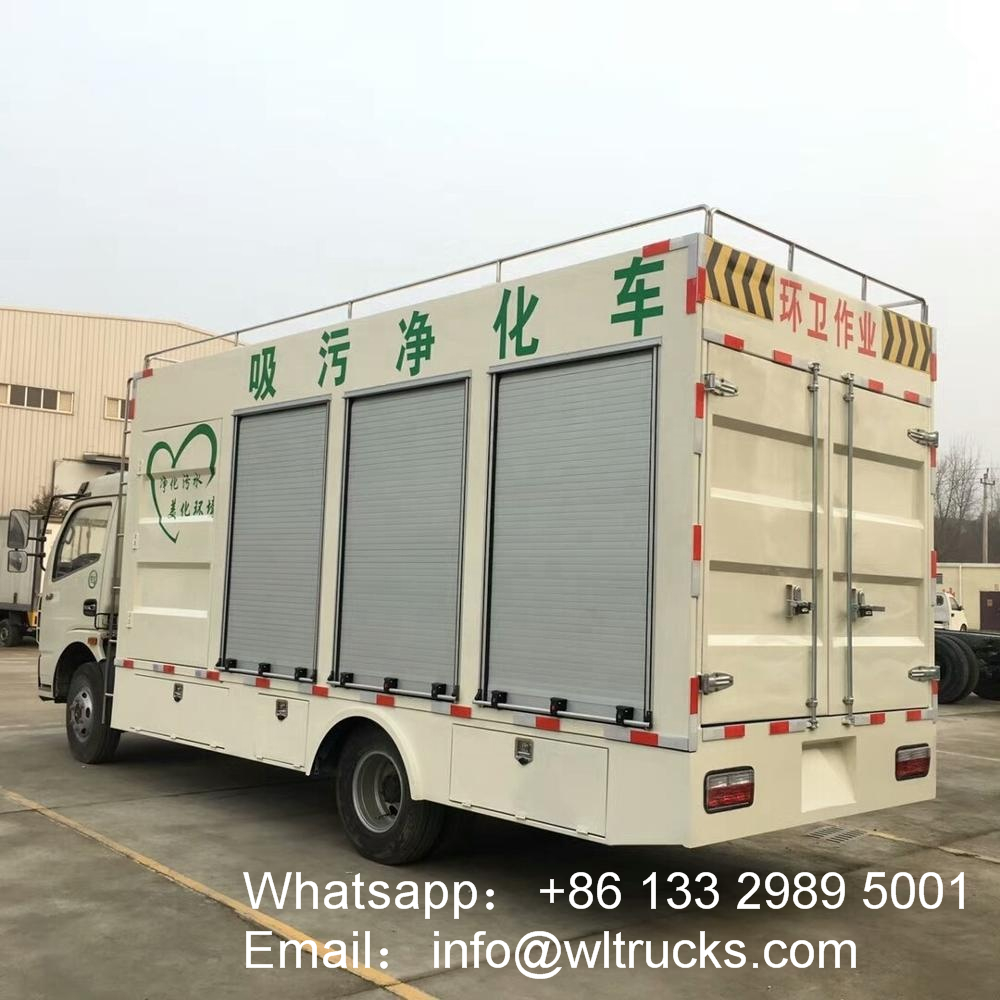

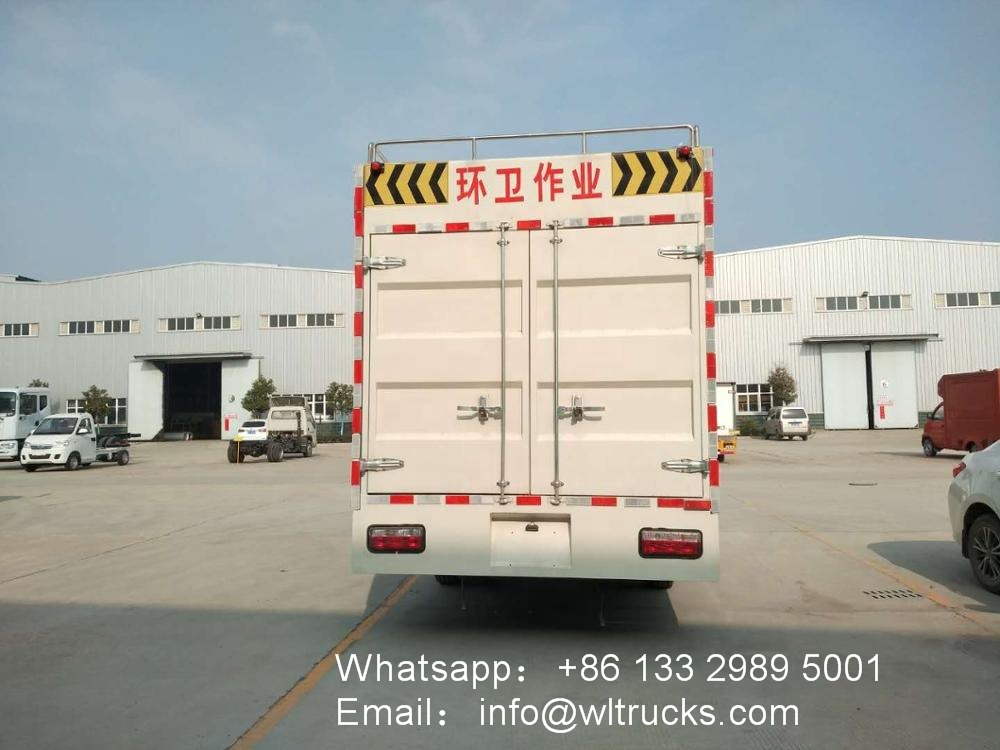

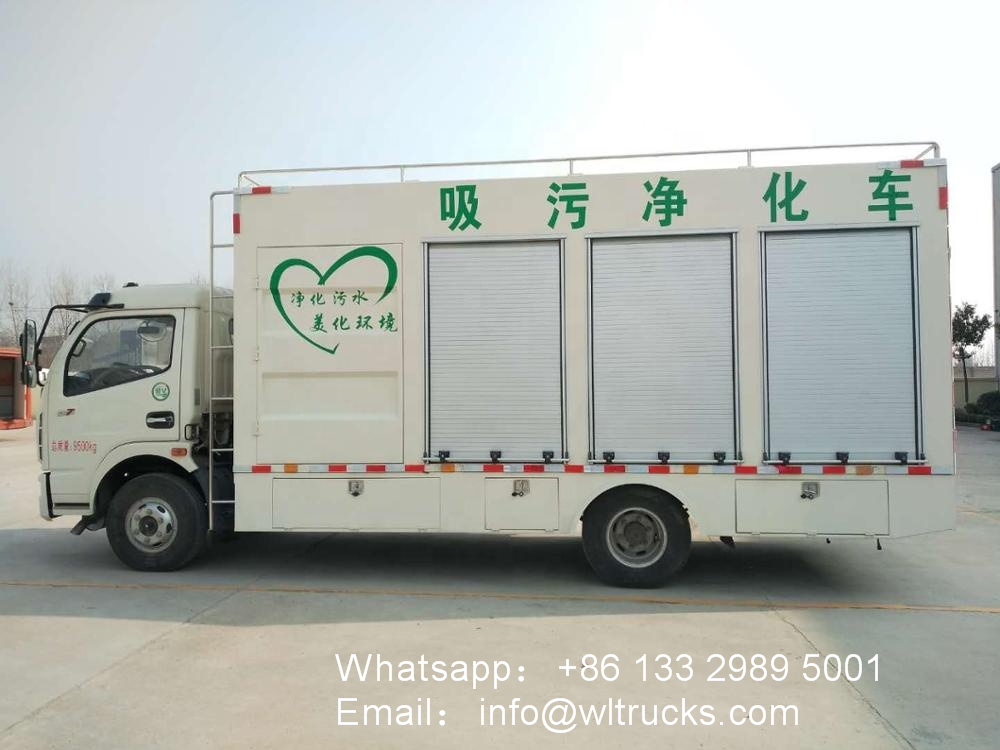

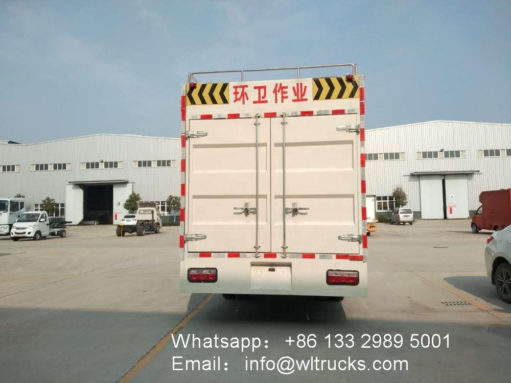

Dongfeng 8000liters Sewage treatment purification truck

Dongfeng 8000liters Sewage treatment purification trucks

Dongfeng 8000liters Sewage treatment purification truck

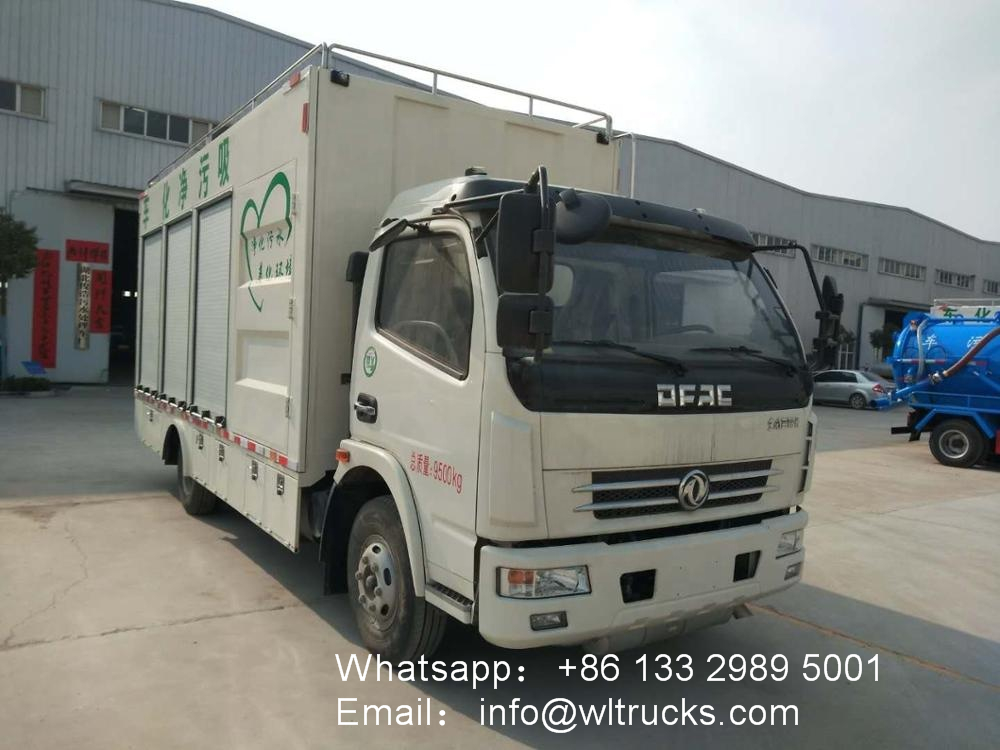

Dongfeng 8000liters Sewage treatment purification truck Chassis configuration: Dongfeng chassis, wheelbase 3.8 meters, Doric D7 white cab, 120-horsepower diesel engine, 6-speed gearbox, 750 nylon tires, air brake, power boost.

Sewage treatment: standard equipped with sewage suction pump, which sucks sewage into the stainless steel drum in the car box to filter solid impurities, sewage is directly discharged into the sewage pipe network, the treatment capacity is 70-80 cubic meters per hour, and continuous operation is 2-4 hours.

Send Inquiry

Description
Dongfeng 8000liters Sewage treatment purification truck video
Reviews (0)

Dongfeng 8000liters Sewage treatment purification truck Specification:

Sewage purification: The sewage with solid impurities removed adds chemicals to react and flocculate into a lump, enters the helical screw machine for separation, the sludge is bagged, and the purified water is discharged into the rainwater pipe network. The standard generator set can also be connected to the mains.

Dongfeng 8000liters Sewage treatment purification truck Dredging function: Standard equipped with domestic Shuangyao / Tongjie or German Pinfo 170/24 high-pressure pump, hydraulic automatic reel + 60 meters 19mm three-layer steel wire high-pressure pipe, 10 high-pressure nozzles with different functions are provided with the vehicle.

Dongfeng 8000liters Sewage treatment purification truck Introduction:

Sewage equipment truck is also called sewer truck, sewage suction truck, vacuum suction truck, vacuum sewage suction truck, sewage suction tanker truck, sewage tanker truck, sewage drainage truck, sewage sucking truck, sewage pump truck,etc.
It mainly used for sucking septic material and sludge from drains,transportation and discharge of sewage from septic tank and sludge from drains.And the sewage truck is also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.Chengli High pressure cleaning Digging pipe dredging truck rear part: fixed slope design, vehicle equipped with special digging device, hydraulic pipe with steel wire, high pressure resistant, imported multi-way valve, equipped with 3.5 square water tank, with high pressure dredging function, original Italy HPP imported high pressure pump pressure: 13MPA, equipped with φ13 high pressure pipe, the excavator can work up to 80 meters, operation mode: full remote control operation, full vehicle operation monitoring, reversing image.

Dongfeng 8000liters Sewage treatment purification truck Product parameters

sewage purification treatment truck sorts and treats the sewage in the septic tank, and does not cause secondary pollution. It also presses the large manure into organic fertilizer, and fully utilizes the sewage, and finally discharges the sewage that meets the standard. The suction cleaning vehicle comes standard with a small flushing pump, which can flush the suction and purification equipment. At the same time, according to the customer’s demand, it can be equipped with a pipe dredging function. It can be equipped with an imported 16 MPa high pressure pump or a domestic 24 MPa high pressure pump. Cubic cleaning tank, 60m high pressure pipe. The suction cleaning vehicle adopts a high-power generator set to provide operating power, and an external power supply can provide operating power. Therefore, the equipment can be sold separately, and the customer can be placed on a common truck after purchase, or directly fixed on the ground for work.

Sewage purification treatment truck can choose different treatment speeds according to customer needs. The standard suction purification vehicle can produce 600-900Kg of faeces per hour. According to the density of septic tanks, the speed of sewage treatment can vary. Generally, it is 10-20M3/h, and the high-efficiency suction cleaning vehicle can discharge 1200-2000Kg of manure cake per hour, that is, ordinary septic tank, which can process 20-40 cubic meters per hour.

BOX Dimensions (length × width × height)	5.2m2.2m2.4m	Return pump flow	10L/min
Curing weight	5.5t	Checkpoint	0.47m
Tank size (length × width × height)	4.8m2.2m0.3m	Slag height	1.6m
Rotating speed	48 rpm	Maximum pumping speed	50 m3/h
Vacuum pump	7.5kw	Maximum processing speed	30 m3/h
Screw shifting machine	5.5kw	Maximum stroke	8m
Hydration dilution pump	1kw	Generator	30kw
Vacuum pump maximum negative pressure	– 8 Pa	Ring test compressor	1.0*2kw
Potion pump	0.15kw	Potion mixer	0.5*3kw
Screw compressor	5.5kw	Mixing mixer	0.5*2kw
Electric gate valve	180w	Powder delivery machine	0.5kw

Basic configuration of sewage evolution treatment vehicle: There are 4 suction pipes of 80, each 7 meters long, 28 meters in total, with a roll of 100 meters of wire, the actual length is 95 meters, of which 5 meters are used for distribution box to motor And the wire winch, the remaining 90 meters is used to connect the external power supply.

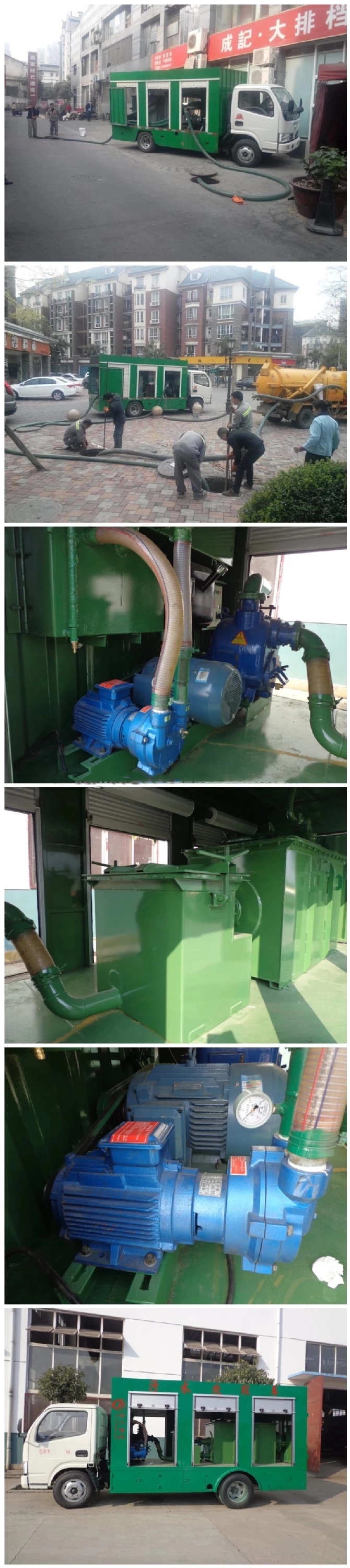

On the basis of the chassis of the second-class truck, the cargo box, vacuum separation box, secondary filter box, power take-off, three-phase motor, power distribution cabinet, water ring vacuum pump, sewage pump, hydraulic motor, stainless steel dosing box , 302 double-disc screw machine, two sewage mixing tanks, sewage tank 2.5 cubic meters, 5.5KW60 rotor pump and other special equipment modified. The car has simple structure, reliable performance and convenient operation, and can be quickly processed in the septic tank. The water ring vacuum pump can be used for continuous and uninterrupted operation. The self-suction height of the car is as high as 7-9 meters, and the suction pipe can be connected more than 20 meters.

Dongfeng 8000liters Sewage treatment purification truck advantages:

1. The truck adopts the Dongfeng Small Dolly card chassis. The model is compact and can easily enter and exit various districts, and can be driven on a blue card. The C certificate can drive and reduce the labor cost;
2, the shape of the car is beautiful and the door is equipped with special shutter doors for fire trucks. It does not occupy space after opening, safe and reliable, both beautiful and practical;
3. The car is different from other suction trucks or suction trucks. The sewage treatment vehicle can be operated continuously. The septic tank can be completed in one operation and does not need to be transported back and forth.
4. The sewage treatment vehicle has high operation efficiency and can save a lot of time for customers. It can process 70-100 cubic meters per hour, and can handle multiple septic tanks in one day. The treated sewage will not block the municipal pipe network and reach the basic sewage discharge standard. ;
5. The sewage treatment vehicle can be connected to external power supply to reduce engine wear and reduce processing cost, and can achieve zero fuel consumption and zero emissions;
6. The sewage treatment vehicle has reasonable design and adopts high-power water ring vacuum pump, which has strong suction capacity. Even if the half pipe is used for pumping manure, the treatment speed can be guaranteed, which is more suitable for the treatment of septic tank than the suction suction truck;
7. The safety of the operation is high. More than 80% of the processing work is done by machinery, the amount of manual work is small, and scientific process control ensures the safety of the job site and the operators;
8. After adding the stacking screw dewatering machine, the discharged sewage can be treated twice, and the feces in the sewage can be dehydrated and compressed to form a cake shape, and the discharged sewage can reach the national basic sewage discharge standard;
9. After installing the high-pressure cleaning pump, professional pipe dredging can be carried out, and one car can be used more, saving the cost of purchasing the car for the customer;
10. The whole vehicle spare parts are purchased from domestic famous brands. After many tests, the performance is good, the work is stable and durable.
