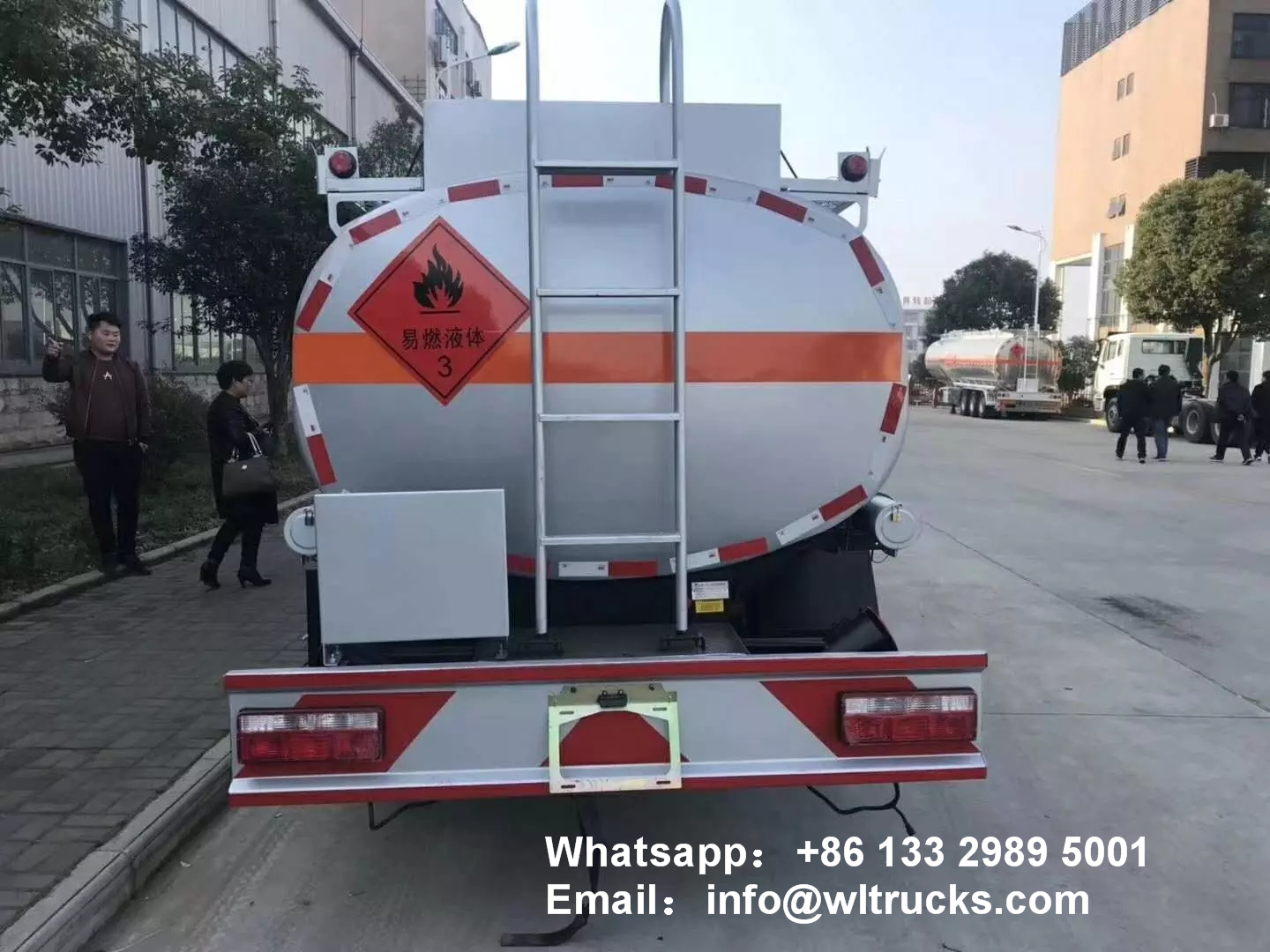

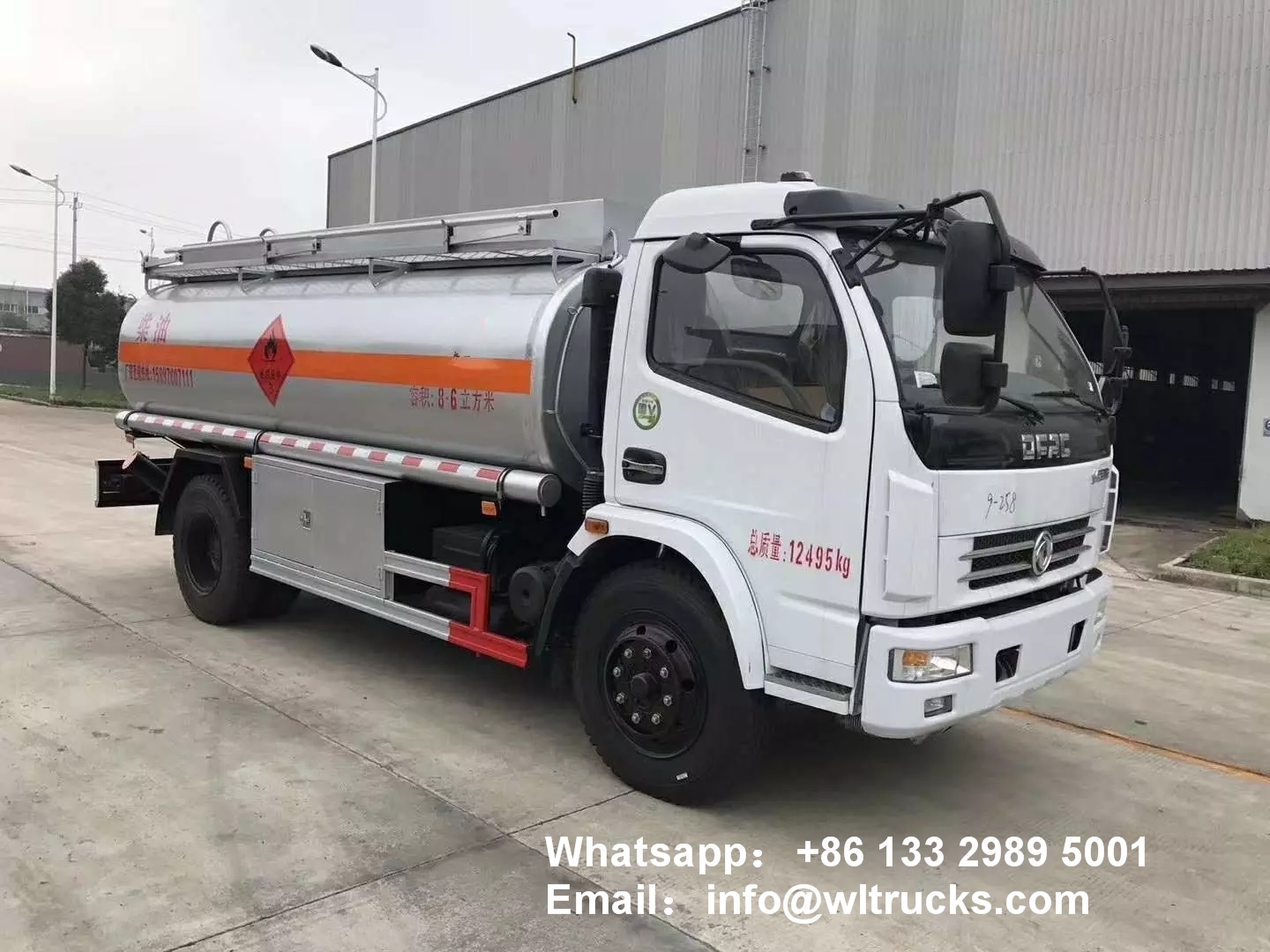

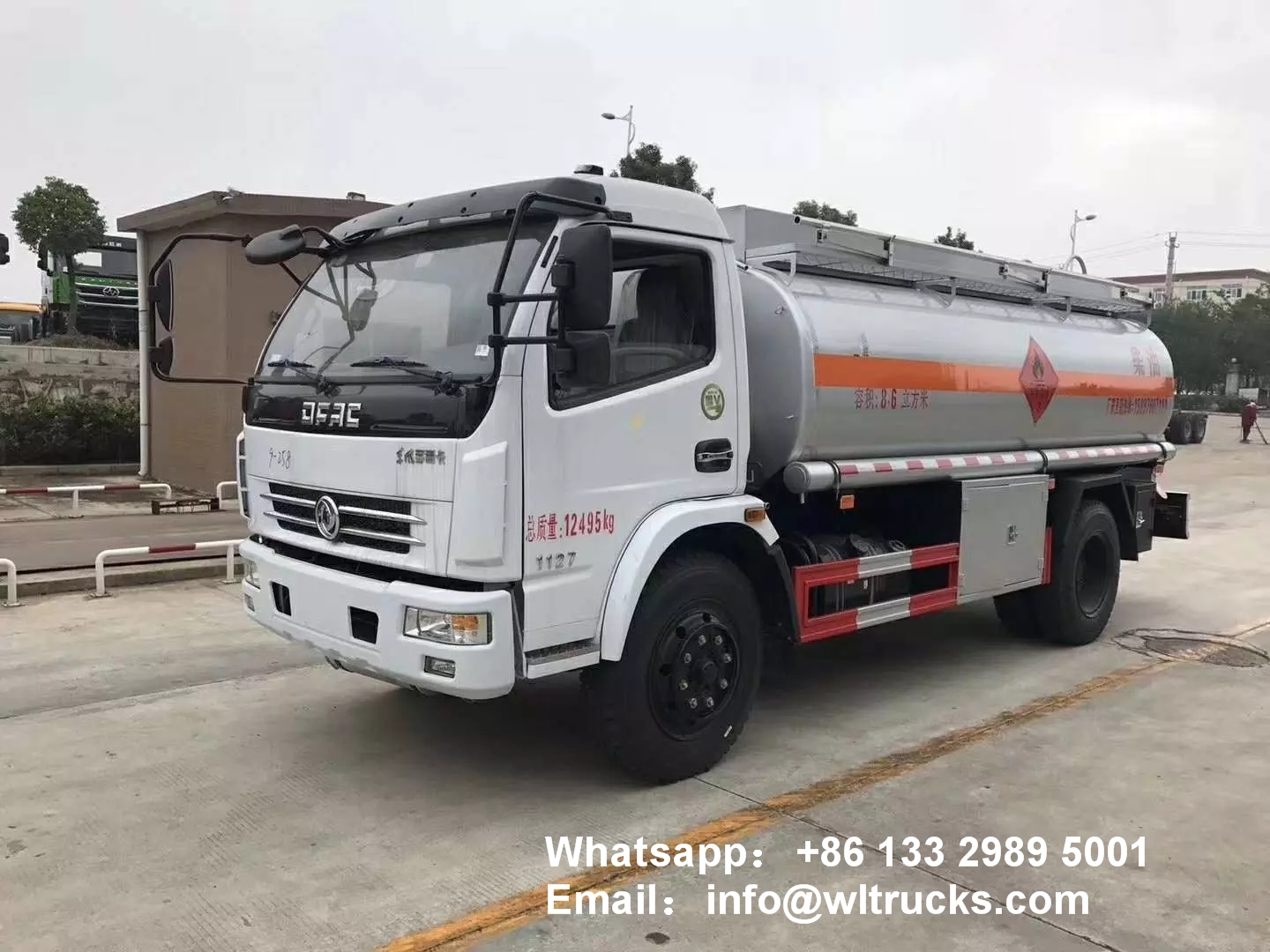

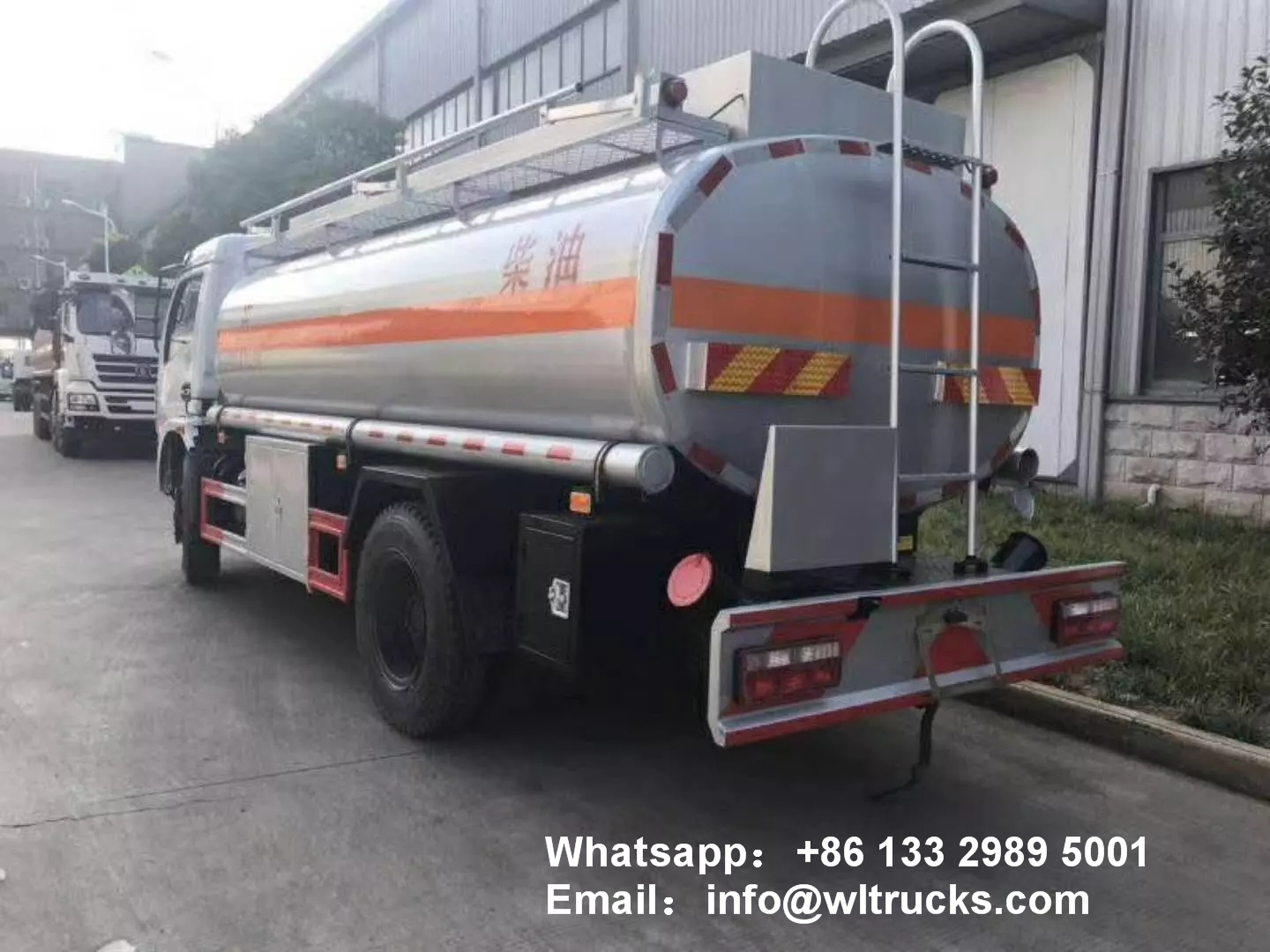

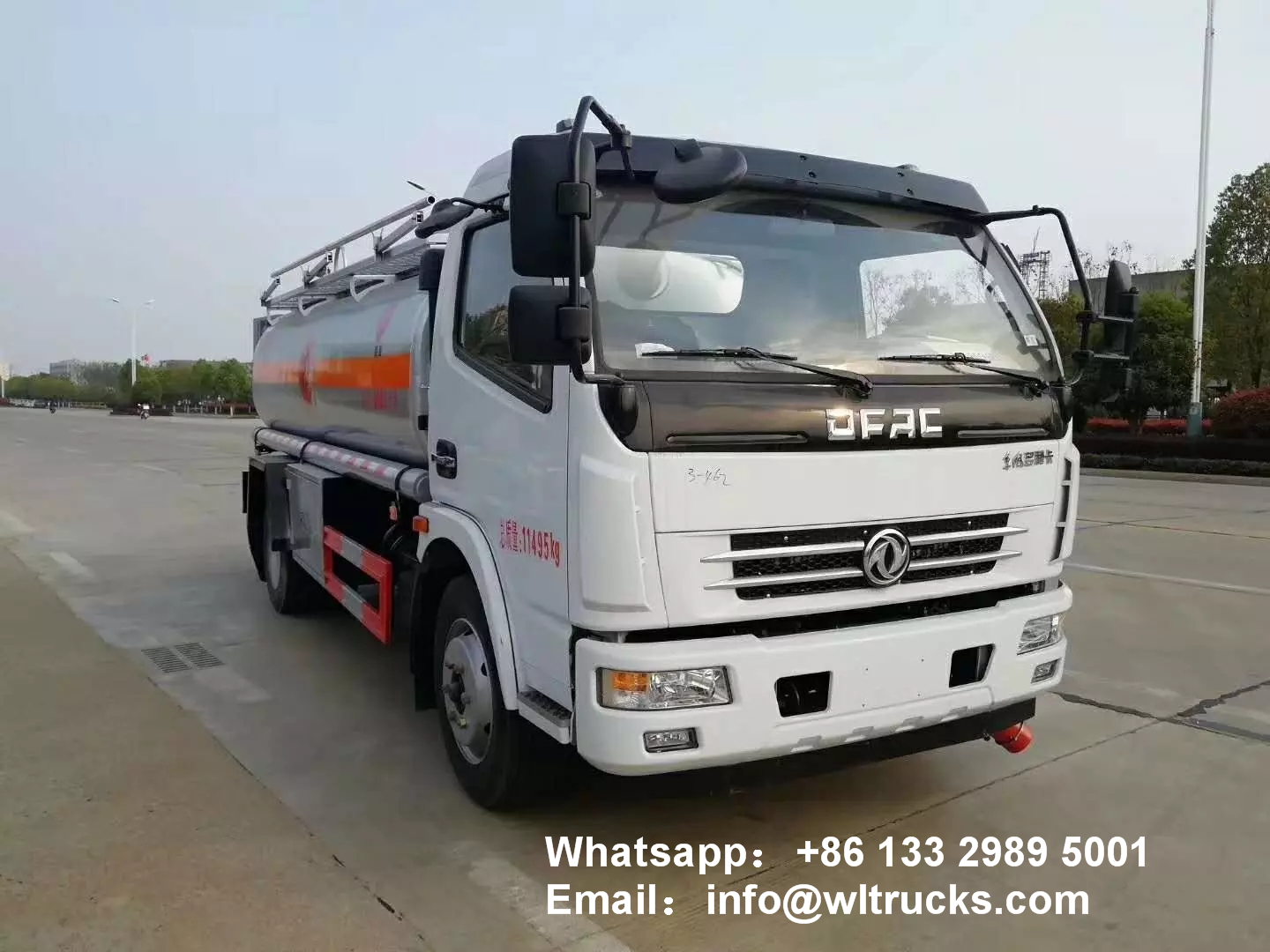

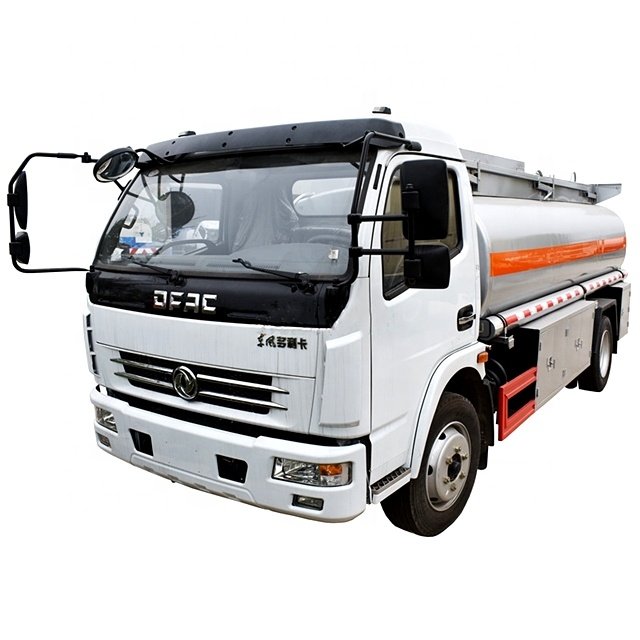

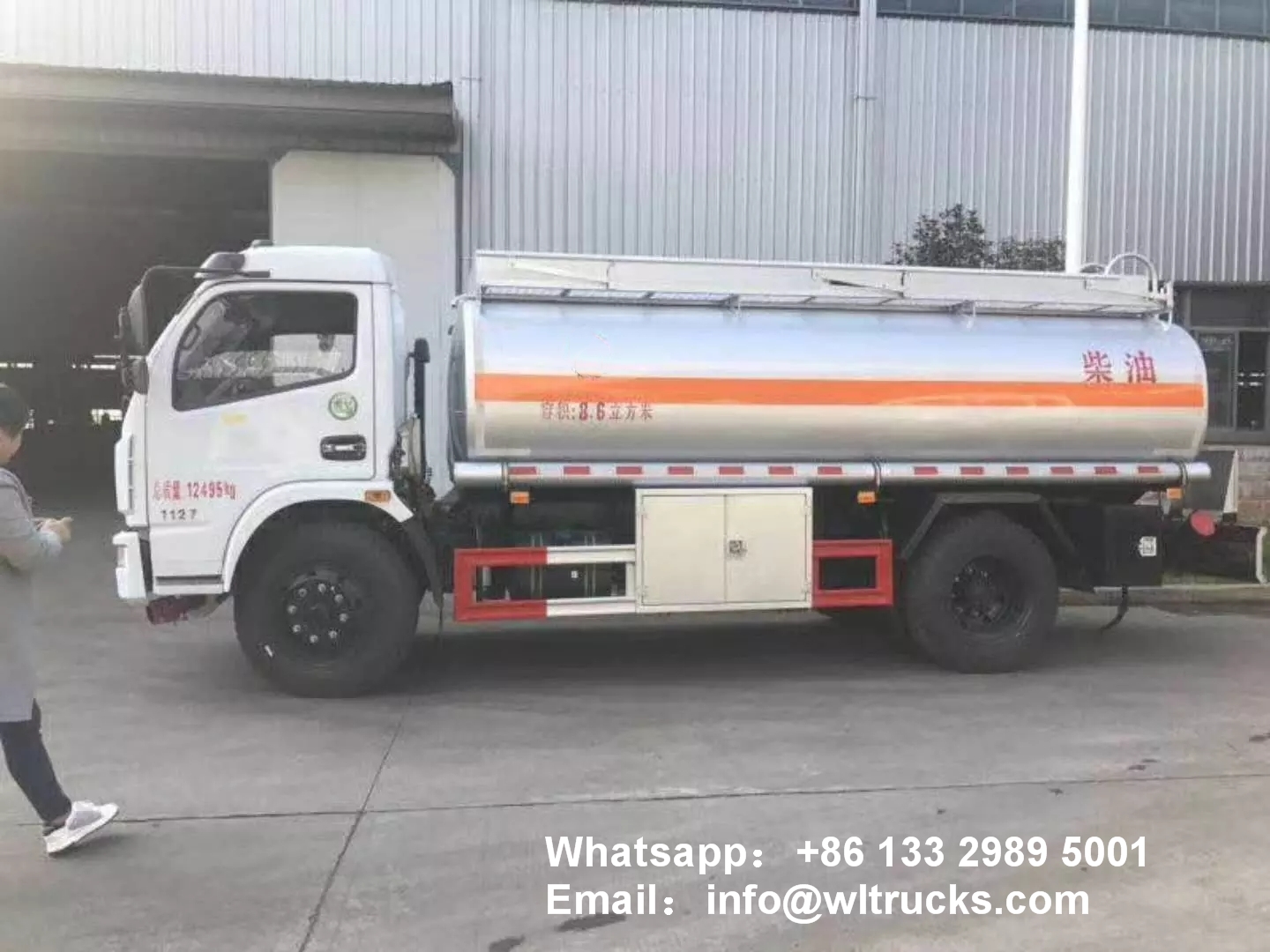

Dongfeng 8000liters fuel dispenser truck
Dongfeng 8000liters fuel dispenser truck can load 6 tons of gasoline and diesel, with a flat-head forward tilting cab. The vehicle is equipped with: Chaochai 120 horsepower, supercharged engine, engine model CY4102-CE4B, Dongfeng 5-speed gearbox, 2.2 tons front axle, 5 tons rear axle, 750 tires, hydraulic power steering and clutch, pneumatic brake, dedicated Car air conditioner, with disc brake, ABS, speed limiter device. With European standard aluminum alloy down button manhole cover, emergency cut-off valve, tank and head thickness 5mm, other requirements can be modified according to user requirements.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| General Technical Parameters | ||||
| Overall Dimension | 6900*2200*2730 (mm) | Gross Vehicle Weight | 11495(kg) | |
| Curb Weight | 4900(kg) | Loading Weight | 6400(kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | DONGFENG | ||
| Cabin | Single, Left Hand Driving | |||
| Engine | Power | 150HP | ||
| Emission standard | EURO V | |||
| Displacement | 3.767L | |||
| Fuel type | Diesel | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 5T rear axle | |||
| Wheel Base | 3650(mm) | |||
| Overhang( Front/Rear) | 1250/1850(mm) | |||
| Angle(Approach/departure) | 16/14(°) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 8.25R20 16PR, 6 Pieces | |||
| Maximum speed | 80(km/h) | |||
| Superstructure | ||||
| Fuel Tanker | Tank Volume | 8,700 Liters / 8.7m3 | ||
| Tank Material | Q235B Carbon Steel | |||
| Tank Shape | Square Round | |||
| Transport oil type | Diesel/Petrol | |||
| Refueling system | Oil Pump | 1pc, Chinese famous brand | ||
| Oil dispenser | 1pc, Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount | |||
| Hose Reel with Filling Gun | 15 Meter (Length can be longer as per request), Corrosion Resistant | |||
| Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
| Optional API standard system | Anti-overflow probe Oil Vapor Recovery System |
|||
