Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Product Description:
Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Chassis configuration: 3.95 to 4.7 meters, Tianjin luxury cab with sleeper, hydraulic flip, Cummins 170 190 horsepower engine, 6-cylinder electronic control, high-pressure common rail, Dongfeng 6-speed gearbox, 4.5 tons front axle, 9 tons rear axle With direction assistance, air brake.
Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Bodywork configuration: Reinforced alloy steel main boom, tensile and anti-deformation, double hydraulic legs to stabilize the car body, with hydraulic safety relief valve, the function of lifting and lowering the garbage hopper and self-unloading of the hopper can be completed by simple operation. The single working time is less than 60 seconds, the bucket and the car are separated, and the cycle operation of one car with multiple buckets can be realized. Comes with a garbage bin.
Optional configuration: You can choose ship-shaped ground bucket, square ground bucket, covered ground bucket, etc.
Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Specifications:
| Cabin | Driving type 4×2 | |
| Single, Left/Right Hand Drive | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7350*2500*3350 |
| Wheel base (mm) | 3950 | |
| Wheel track (front/rear) (mm) | 1980/1860 | |
| Approach/Departure angle(°) | 24/15 | |
| Weight in KGS | Tare Weight | 6660 |
| Loading Capacity | 9145 | |
| Front axles loading capacity | 1×3600 | |
| Rear axles loading capacity | 1×8000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Yuchai |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 160 HP | |
| Emission standard | Euro 5 | |
| Gearbox | FAST, 6 forwards &1 reverse | |
| Steering Gear | Hydraulic steering with power assistance | |
| Fuel tank (L) | 300 L | |
| Tire | 9.00R20 tires with one spare, totally 7 pcs. | |
| Swing arm system with cargo box | ||
|
||
Dongfeng 8000 liter to 10000liter Swing arm rubbish truck structure diagram:
Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Structure diagram：

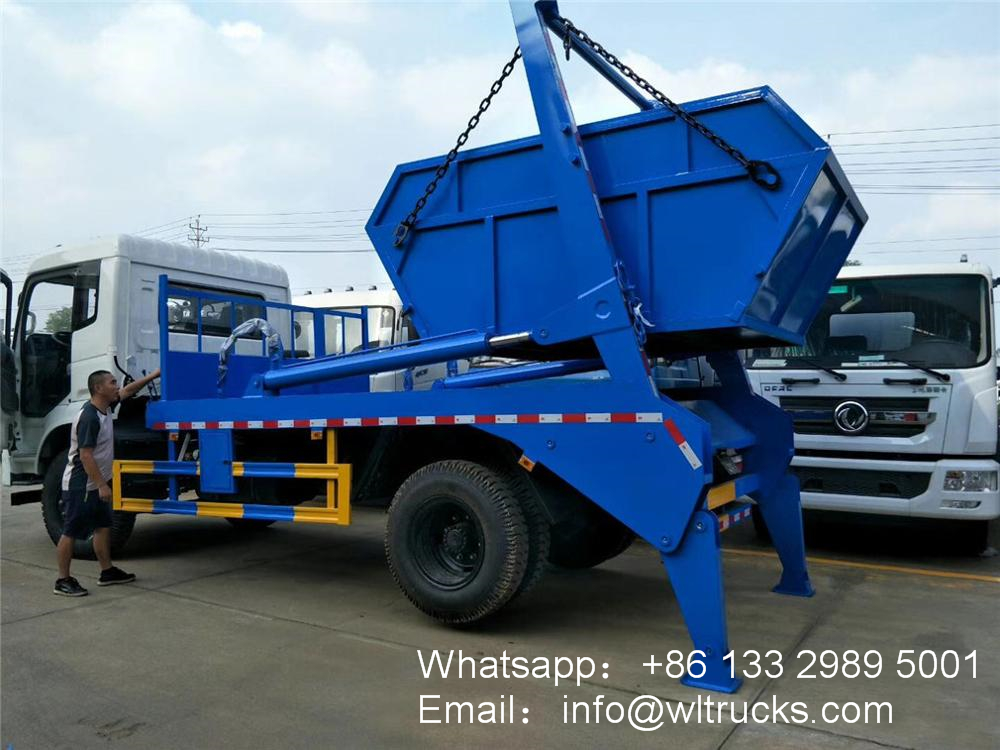

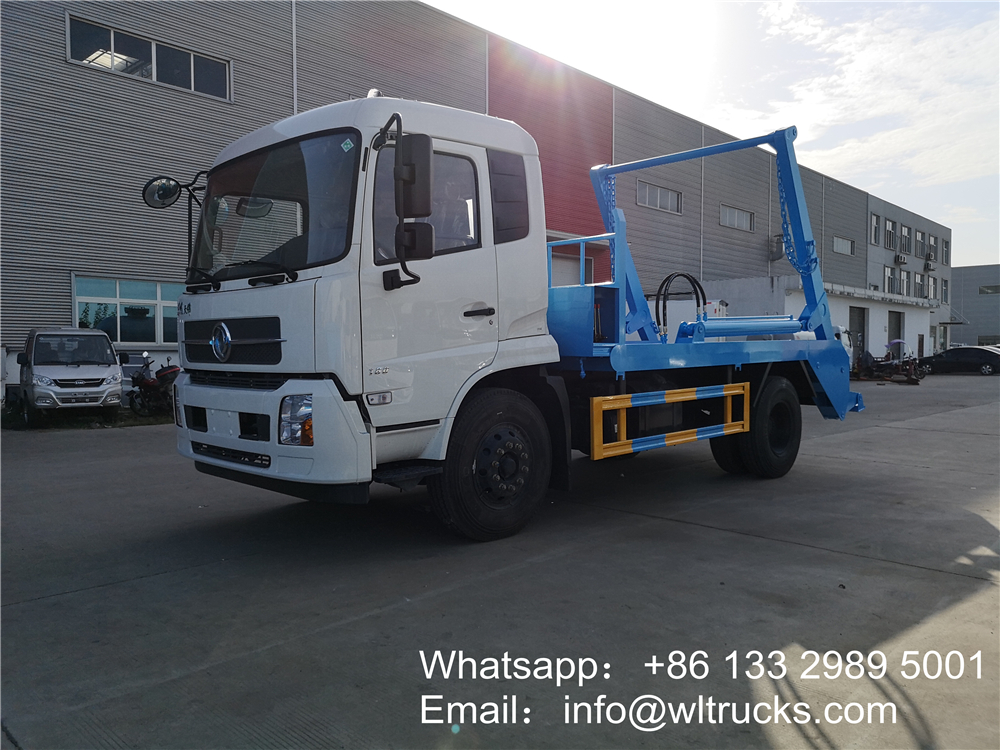

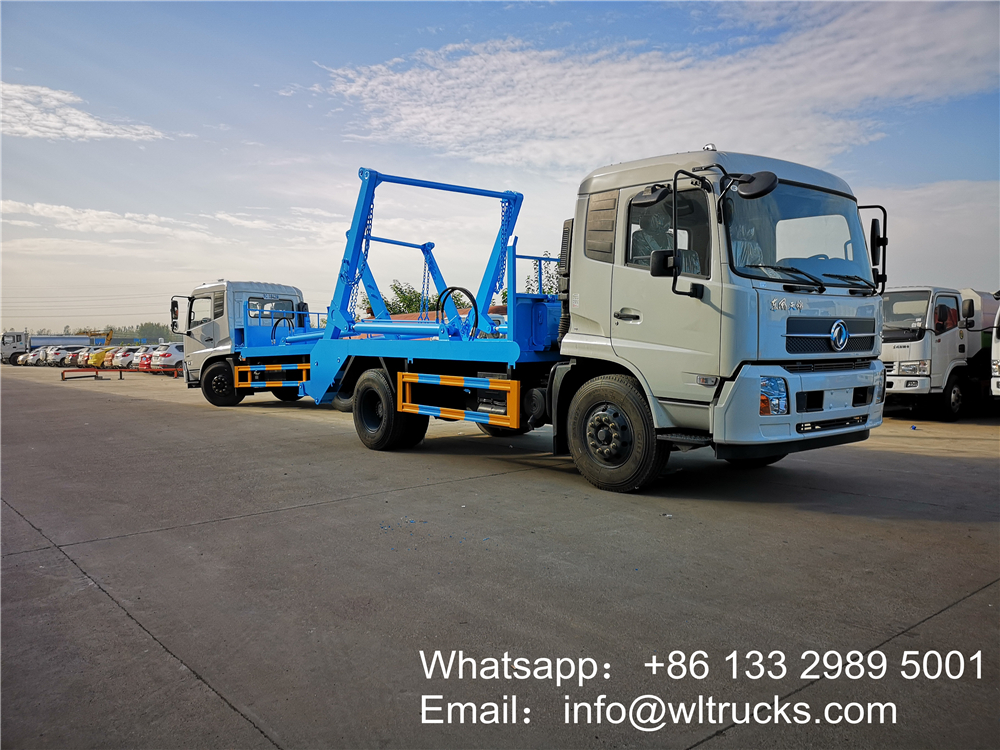

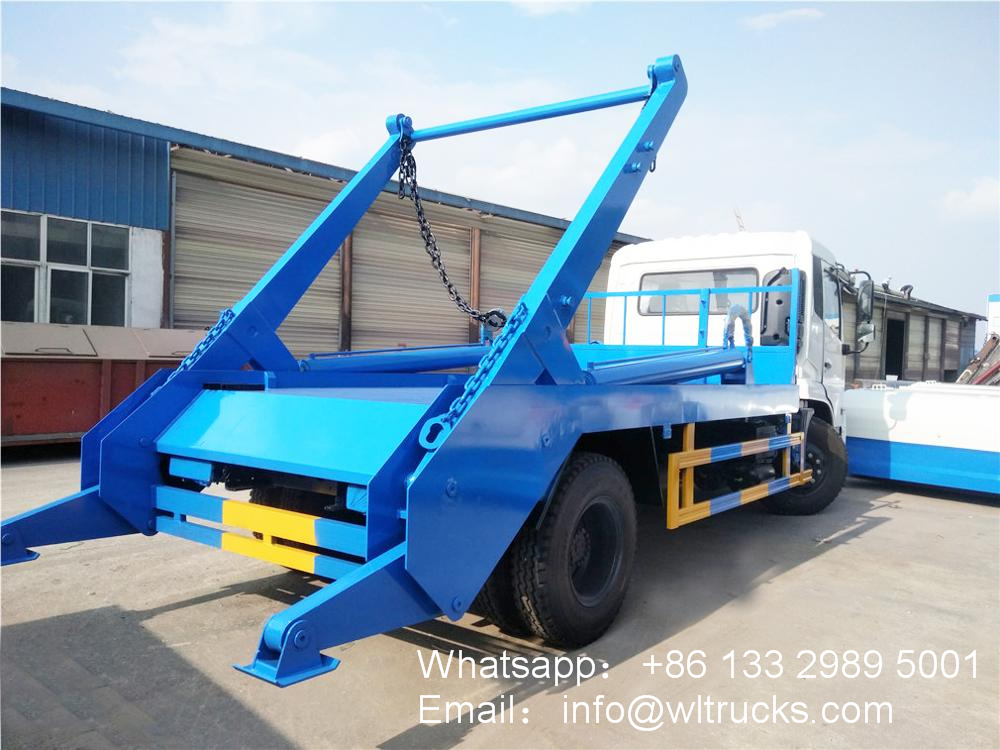

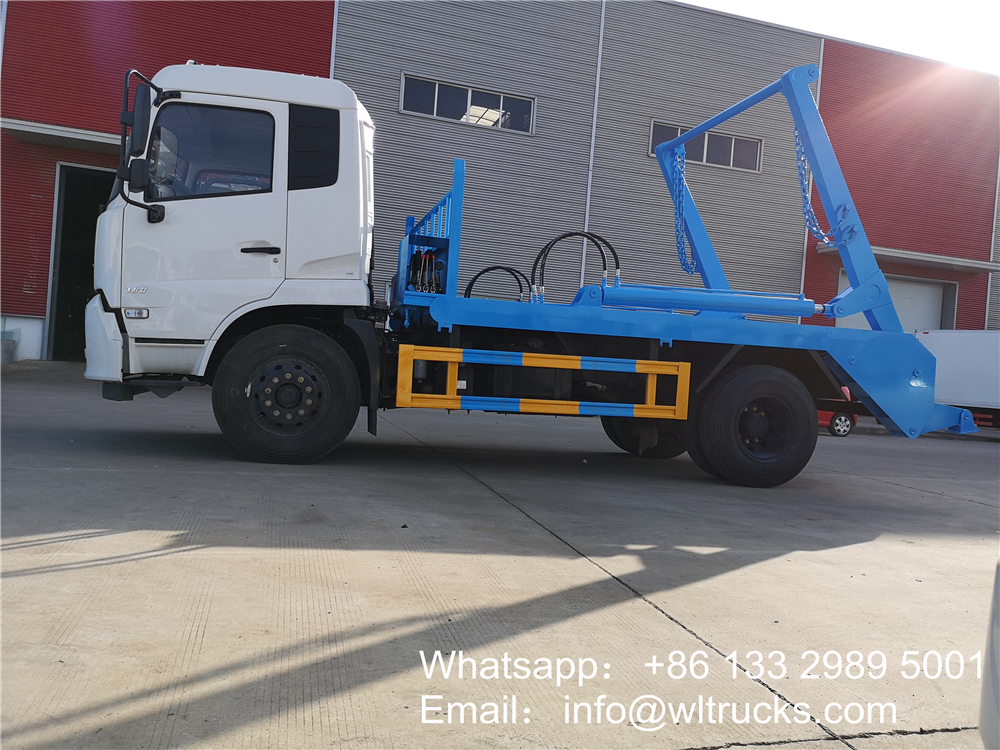

Dongfeng 8000 liter to 10000liter Swing arm rubbish truck Detail drawing:
Customizable garbage truck models
