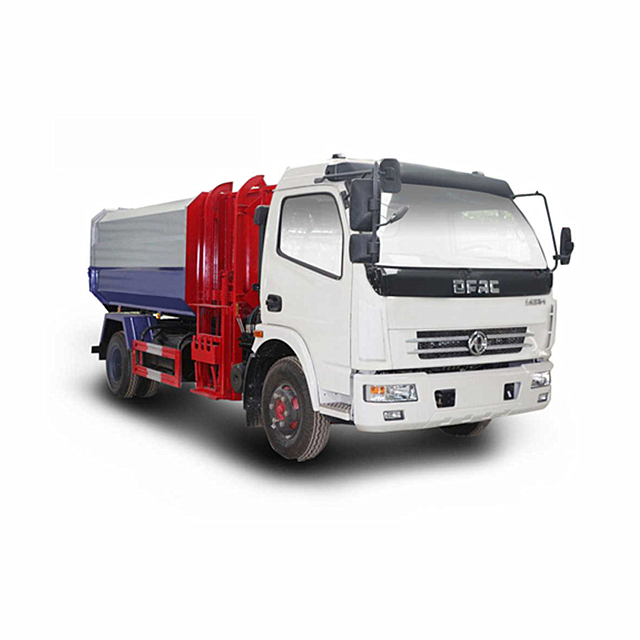

Dongfeng 8000 liter hanging bucket garbage truck Product Description:
Dongfeng 8000 liter hanging bucket garbage truck uses Dongfeng D7 series cab, 3800mm wheelbase, Chaochai 120 horsepower Euro III diesel engine, 6-speed gearbox, 7.50 tires, 5 tons rear axle, air brake, direction assistance.
Dongfeng 8000 liter hanging bucket garbage truck Top-loading configuration: The bucket-type garbage truck uses a chain and hydraulic cylinder linkage device to realize the lifting and turning of the garbage hopper, automatically collect the garbage in multiple garbage hoppers into the car, and dump it to the destination at one time. Self loading and unloading function, hydraulic operation.
The bucket-type garbage truck is a vehicle that can be equipped with dozens of garbage bins. It can realize the joint operation of one vehicle and multiple garbage bins. The circular transportation fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation. Composed of compartment, hydraulic system and operating system.
The lifting oil cylinder (2 pcs) garbage box can be lifted and laid down, the next working cycle time ≤50S. For example, the sanitation department cleans and transports urban garbage. It is applicable to the garbage cans of the national general standards: iron drums, plastic drums, and a large supply of garbage hanging bins.
Dongfeng 8000 liter hanging bucket garbage truck Specifications:
| Dongfeng 8CBM Side Loading Garbage Compactor Truck | |||||
| Overall Dimension | 6900×2120×2500 mm | Gross Vehicle Weight | 8250 kg | ||
| Curb Weight | 4330 kg | Loading Weight | 2900 kg | ||
| Wheel Base | 3800 mm | Front / Rear Axle | 3000 kg / 5250 kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | chaochai | ||||
| Engine horsepower | 143HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 8CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Side Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 – 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Dongfeng 8000 liter hanging bucket garbage truck Working parameter:
| Optional volume | 3-15 cubic | Bucket time | Less than 10 seconds |
| Bucket type | Plastic bucket or iron bucket | Unloading time | Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position | Car right |
Dongfeng 8000 liter hanging bucket garbage truck Operation display:

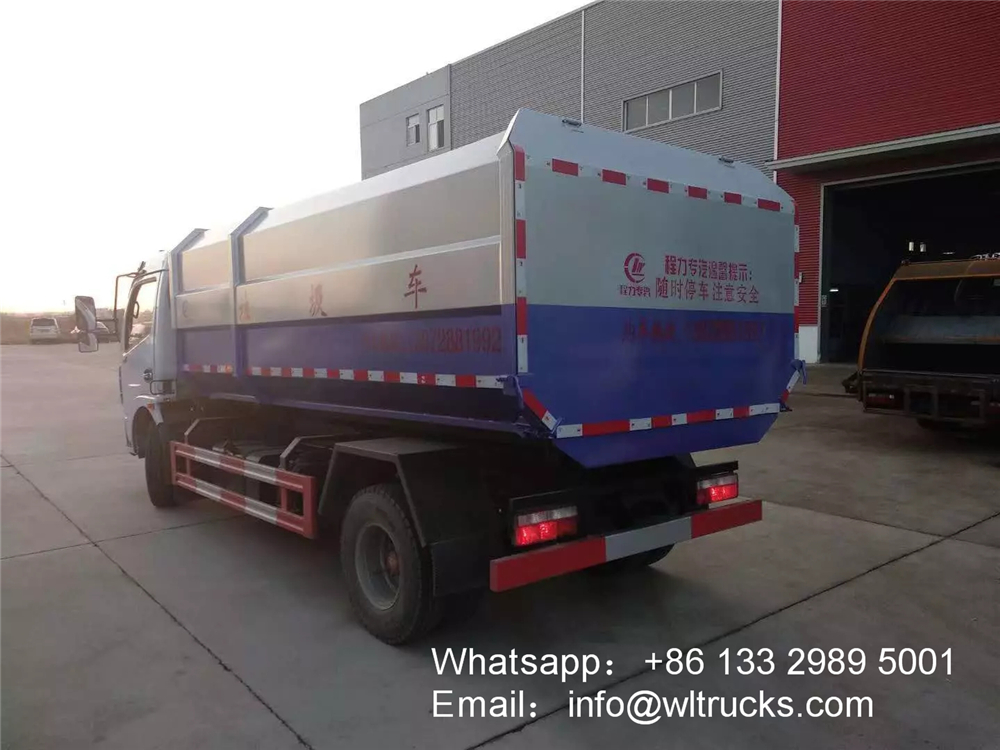

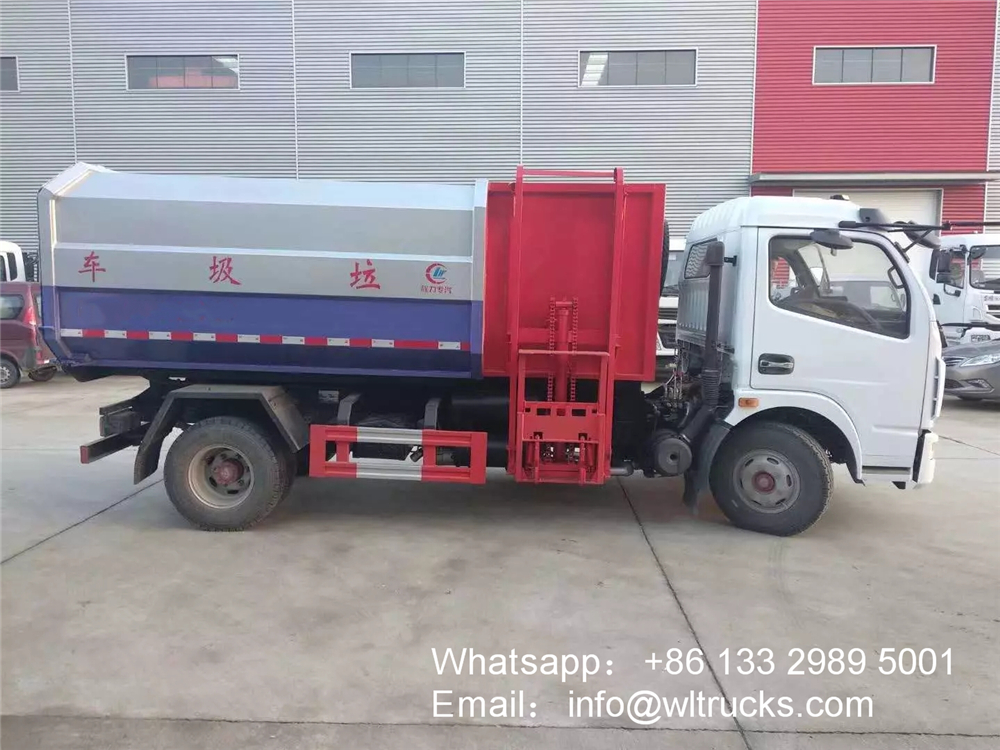

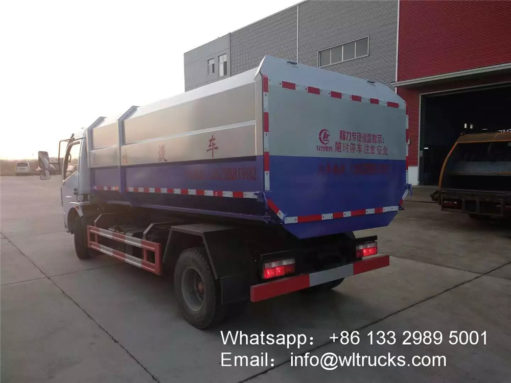

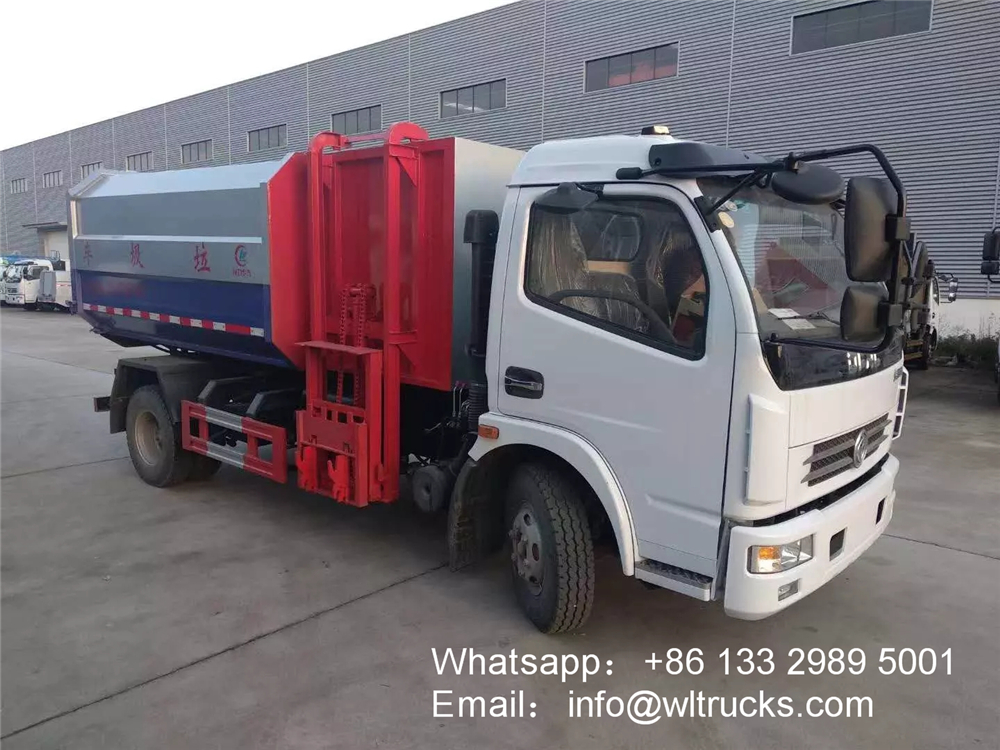

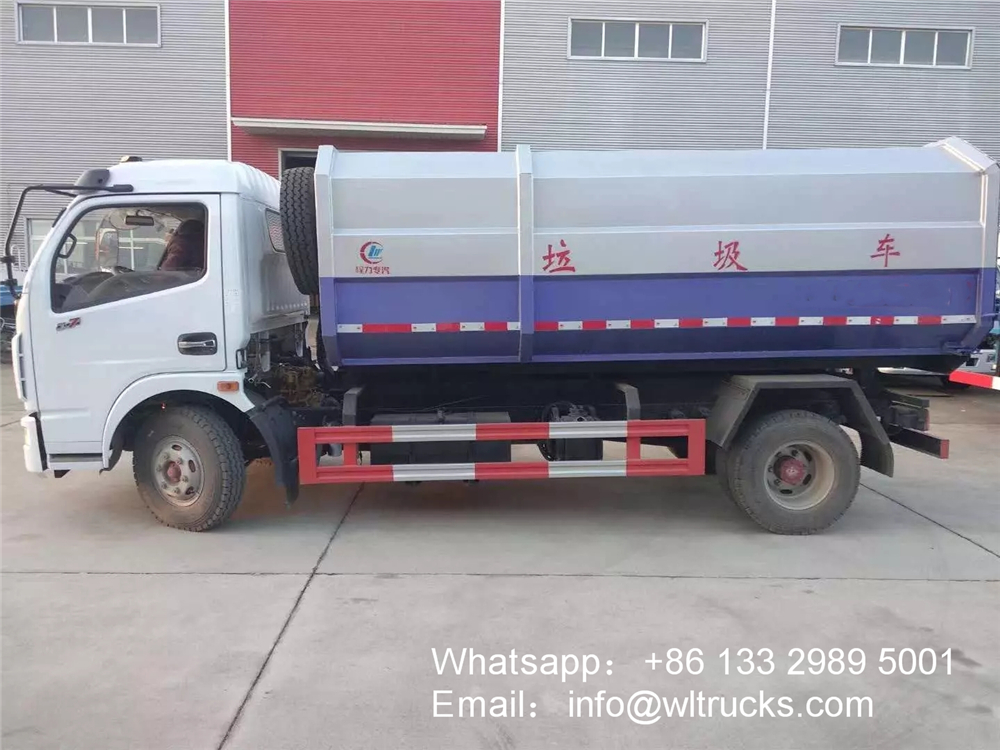

Dongfeng 8000 liter hanging bucket garbage truck detailed images:
Dongfeng 8000 liter hanging bucket garbage truck Structure diagram：
Dongfeng 8000 liter hanging bucket garbage truck Detail drawing:
Customizable garbage truck models
