products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

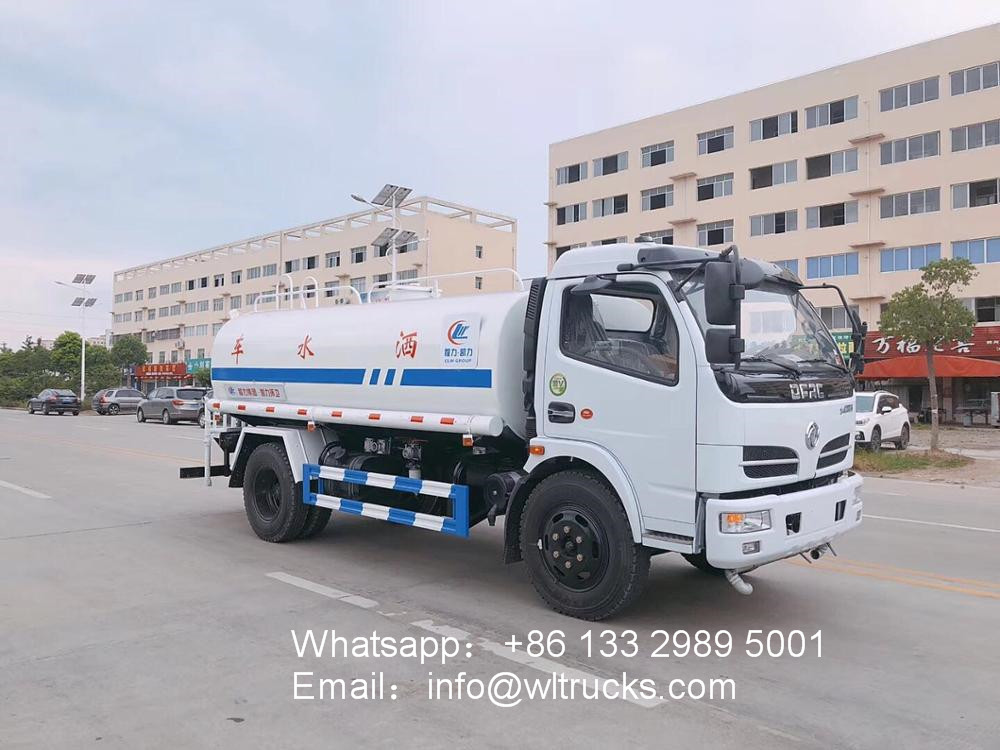

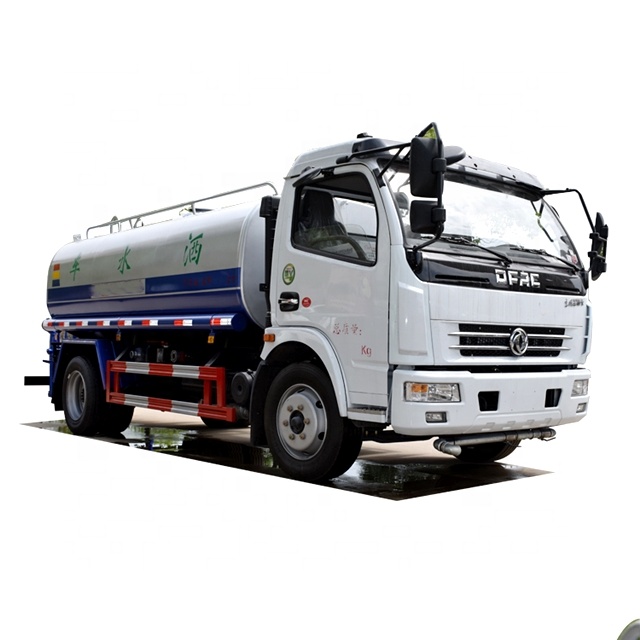

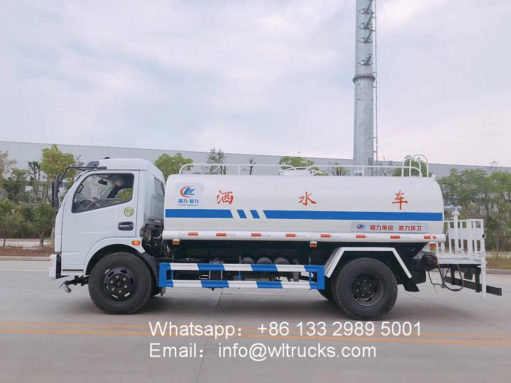

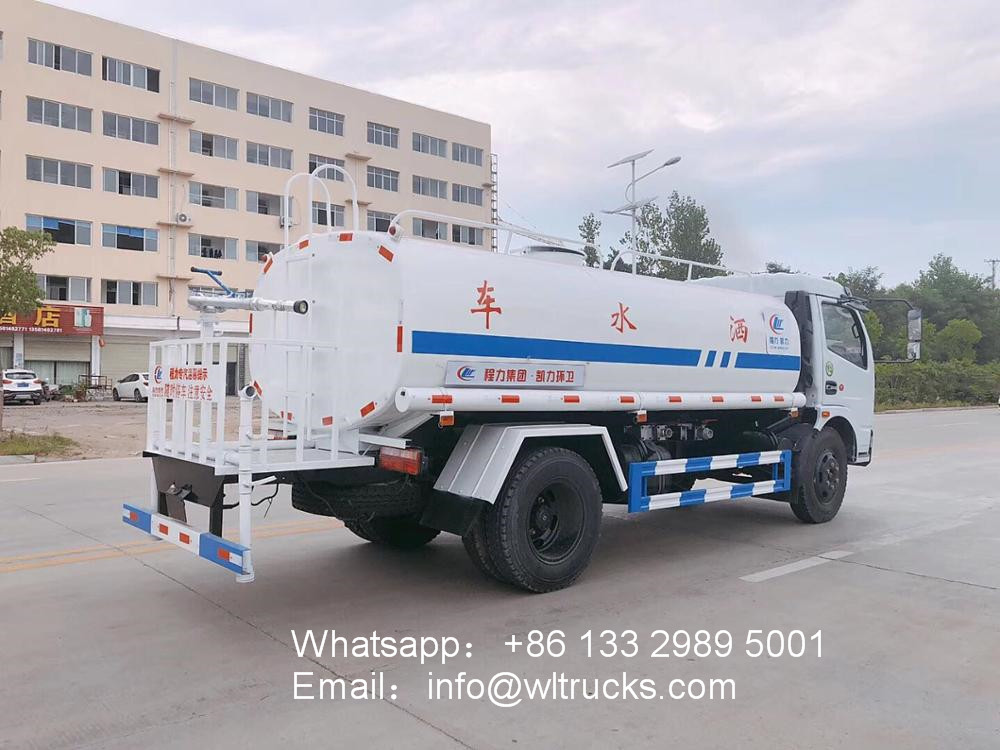

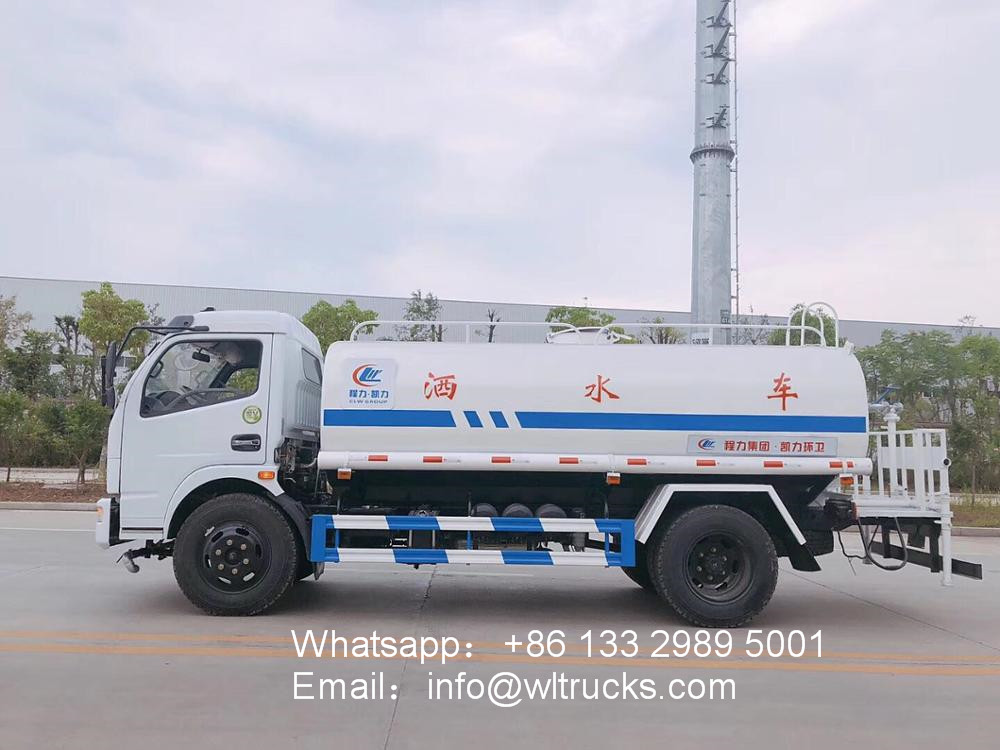

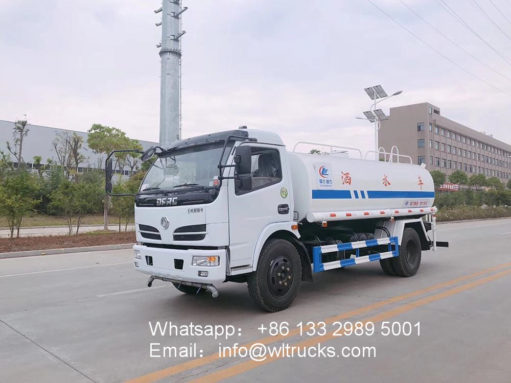

Dongfeng 8 ton water tank truck Specification:
|
Dongfeng 8000 liter water tank truck technical parameters
|
|||
|
Tank volume
|
6-9.2 cubic meters ( tons )
|
Sprinkling width
|
15 meters
|
|
Water cannon head
|
28 meters
|
Vertical suction
|
7 meters
|
|
Pump flow
|
20 cubic meters / hour
|
Pump head
|
90 meters
|
|
Total mass
|
11450 ( kg )
|
Load quality
|
6500 ( kg )
|
|
Curb quality
|
4755 ( kg )
|
Dimensions
|
6.9 × 2.1 × 2.5m
|
|
Tank size
|
4.2 × 1.9 × 1.3m
|
Number of passengers
|
3 (person)
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Dongfeng Dollyka
|
Chassis model
|
EQ1110
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase (mm)
|
3800
|
Tire specifications
|
8.25R20
|
|
Gearbox
|
6 files
|
Front and rear bridge
|
2.7/5 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission Standards
|
GB17691-2005 country V , GB3847-2005
|
||
|
engine model
|
Engine company
|
Displacement (ml)
|
horsepower
|
|
CY4SK251
|
Dongfeng Chaochai
|
3856
|
156
|
|
Top basic configuration
|
|||
|
The standard configuration
|
Dongfeng 8 tons sprinkler tank material is thick 4mm WISCO high quality sheet, sprinkler pump, sprinkler cannon, work platform, power take-off, front punch, rear sprinkle, universal nozzle, gravity valve, filter, distribution valve, nozzle, With self-priming self-discharging function.
|
||
|
Optional configuration
|
The Dongfeng 8 ton sprinkler can be equipped with advanced facilities such as sprinkling medicinal plates, medicine pumps, anti-corrosion rust in the tank, multi-directional inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
|
||
|
Special function description:
|
|
1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

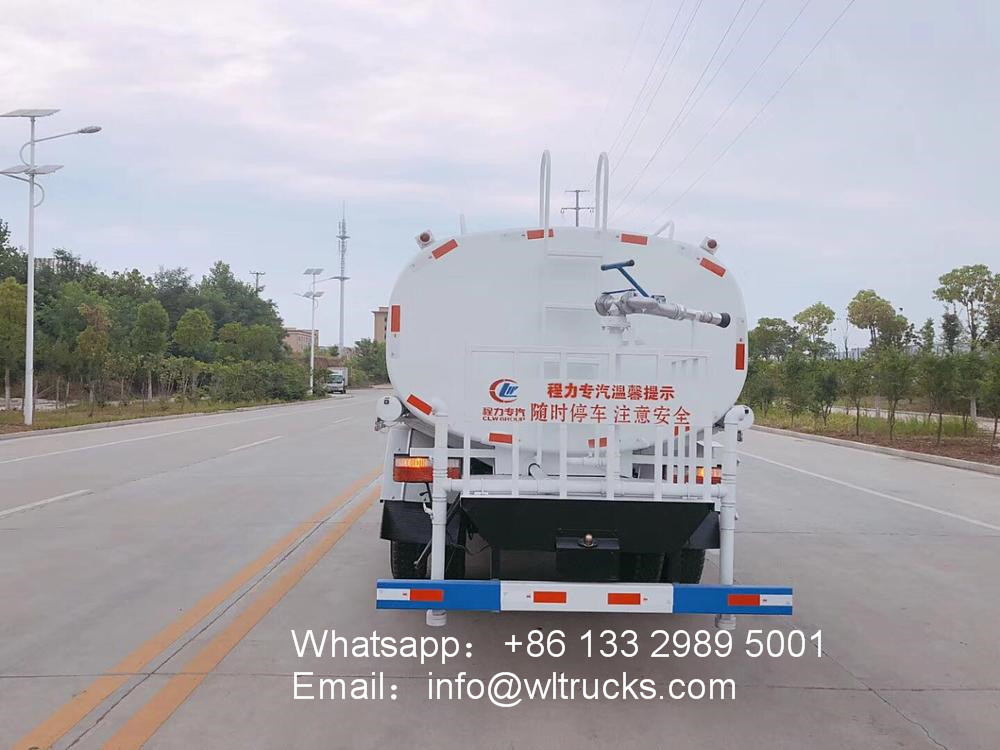

2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m.
4. Equipped with fire coupling, flow valves, filter screen and water level gauge.
5. According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
|
