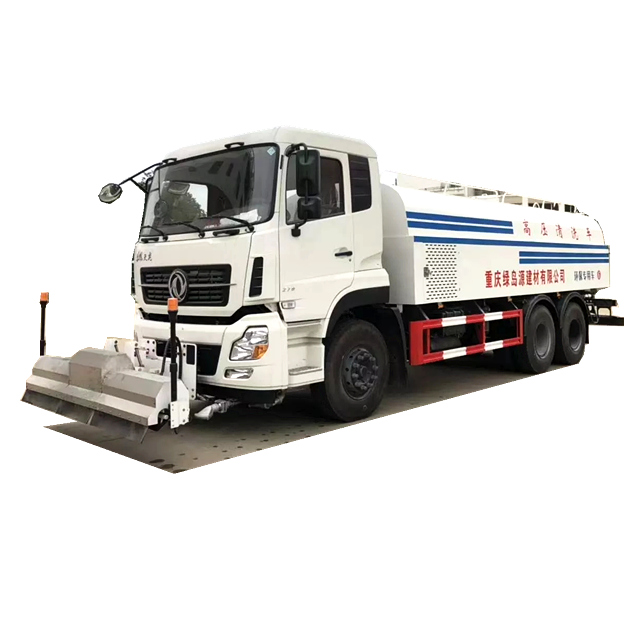

Dongfeng 6×4 16 ton Street high pressure washing truck Adopts 10 wheel Dongfeng wide-body cab, wheelbase 4500+1350mm, Eruo 3 Cummins 210 horsepower engine, 8-speed gearbox, 1000-16 tires.
The tank volume is 16 cubic meters, equipped with Jiangxi isuzu 77 horsepower auxiliary engine, stainless steel high-pressure pipeline, French control switch, Taiwan pneumatic control, tail LED arrow light.
German high-pressure water pump, front-mounted stainless steel telescopic high-pressure flushing frame, flushing width 3.5 meters, cleaning pressure 10MPa, forward flushing width 20 meters, 18 meter high-pressure cleaning gun in the middle, and 2 sets of spraying devices at the rear. Weilong atmospheric pressure water pump, 14 meters in front, sprinkling dust behind, greening water cannon and other conventional watering functions.
Working parameter:
| Serial number | project name | unit | Specifications / Technical parameters |
| 1 | Effective volume of tank | m3 | 6-9 |
| 2 | Sprinkler cleaning width | m | 2.5-3.5 |
| 3 | Working speed | Km/h | 5-20 |
| 4 | Low pressure flushing width | m | ≥21 |
| 5 | High pressure cleaning width | m | 3.5 |
| 6 | Water spray | L/m2 | 0.2-2.0 |
| 7 | High pressure flushing system pressure | MPa | ≥10 |
| 8 | High-pressure flushing water flow | L/min | ≥138 |
| 9 | Spray flow | L/min | ≥129 |
| 10 | Water cannon range | m | ≥35 |
| 11 | Self-priming height | m | 6.5 |
Dongfeng 6×4 16 ton Street high pressure washing truck Specification:
|
Effective volume
|
16 cubic meters
|
||
|
Vehicle model
|
CLW6183GSSD3
|
||
|
Chassis model
|
EQ5060GLJ3
|
||
|
Exterior
|
Vehicle size
|
10500,11240,11850,9950 x 2500 x 3070 (mm)
|
|
|
Tank size
|
5080×2350×1550 (mm)
|
||
|
Engine
|
Engine manufacturer
|
Cummins
|
Yuchai
|
|
Engine model
|
ISB210-30
|
YC240-30
|
|
|
Engine power
|
210
|
240
|
|
|
Engine horsepower
|
154
|
176
|
|
|
Emission Standards
|
Eruo 3
|
||
|
Performance
|
Total mass ( kg)
|
28000
|
|
|
Curing quality ( kg)
|
12000
|
||
|
Rated load mass ( kg)
|
16000
|
||
|
Wheelbase ( mm)
|
4500+1350
|
||
|
Tire specifications
|
10.00-20/10.00R20
|
||
|
Number of tires
|
10+1
|
||
|
Maximum speed ( km/h)
|
90
|
||
washing truck composition structure:

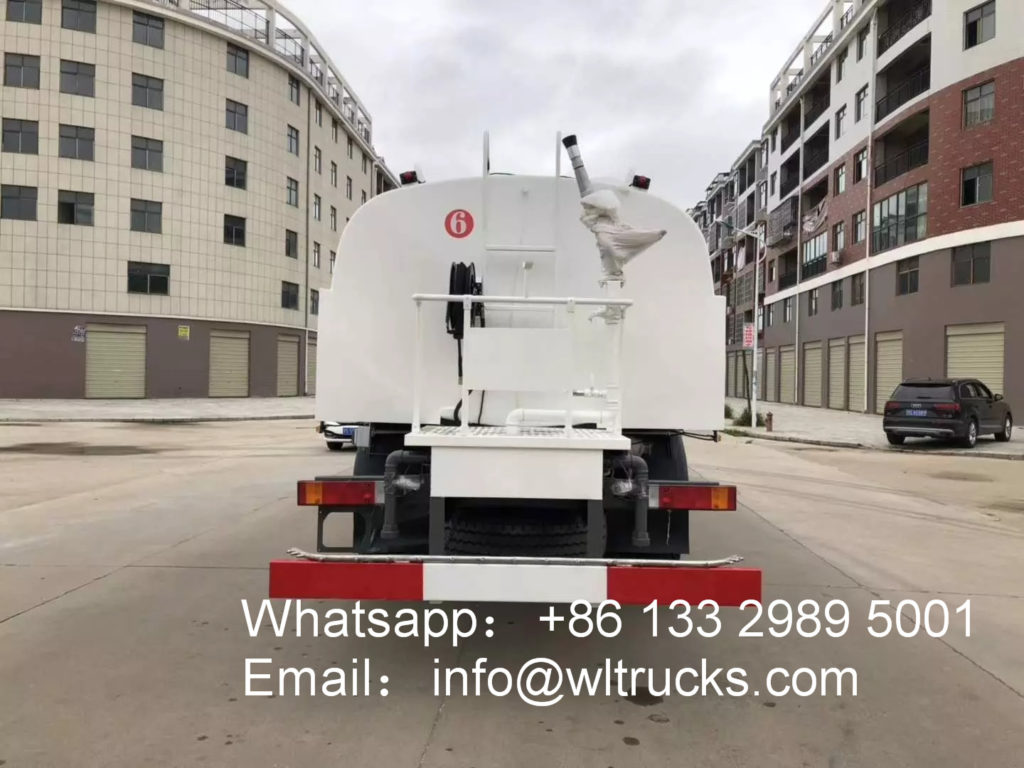

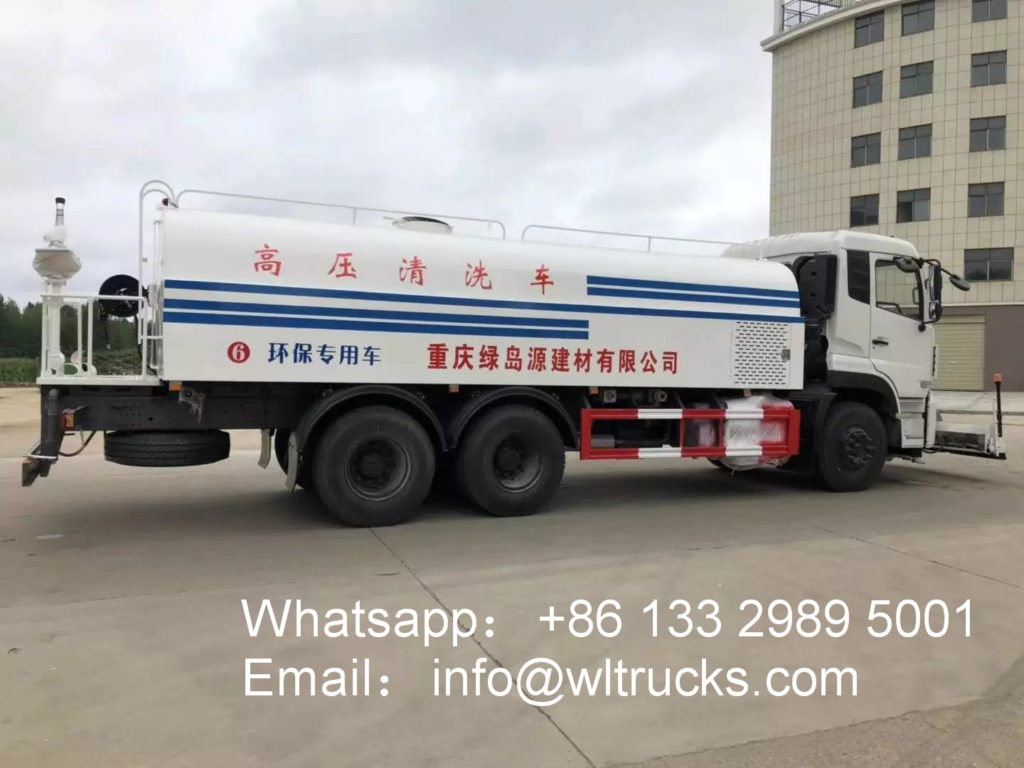

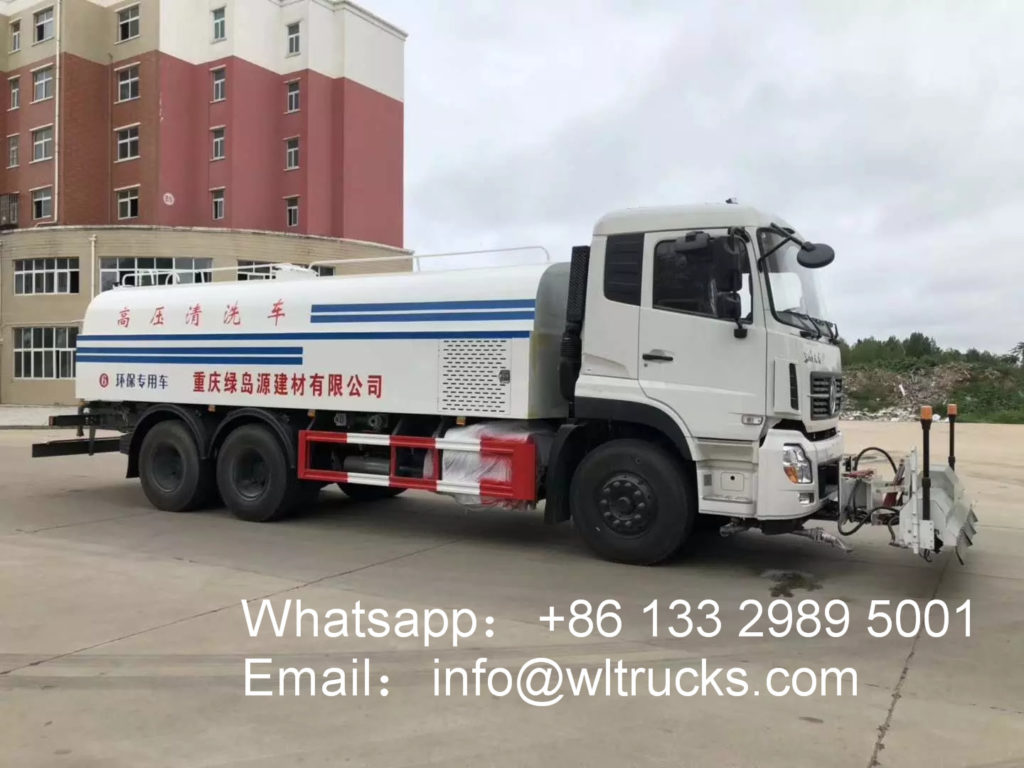

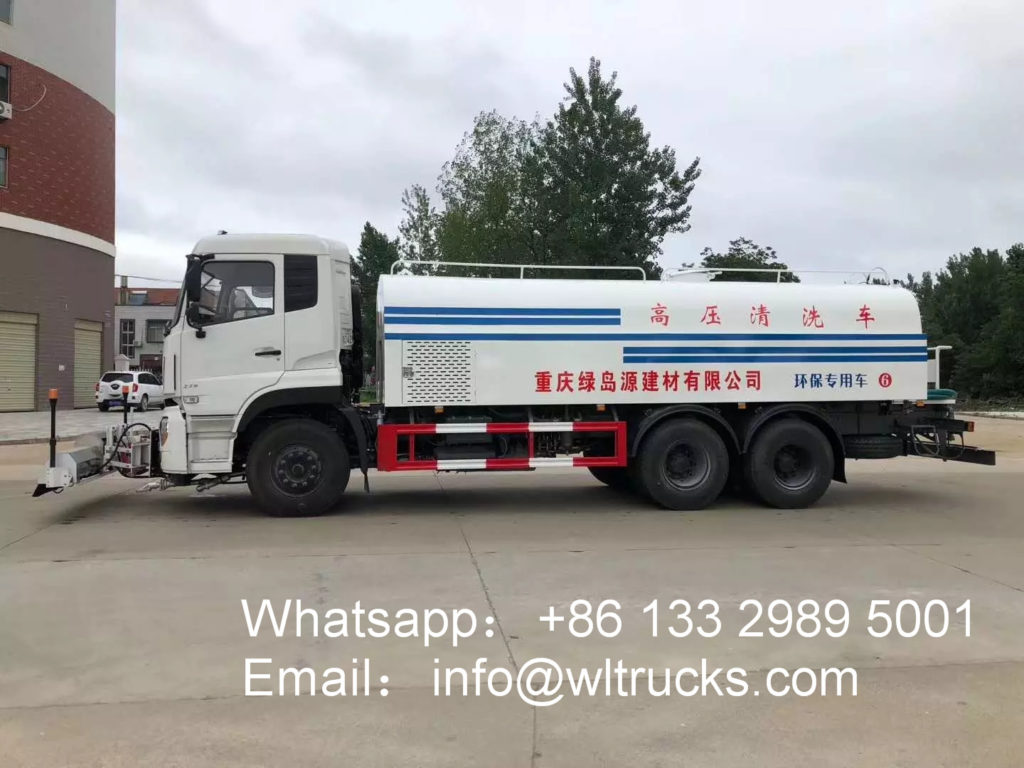

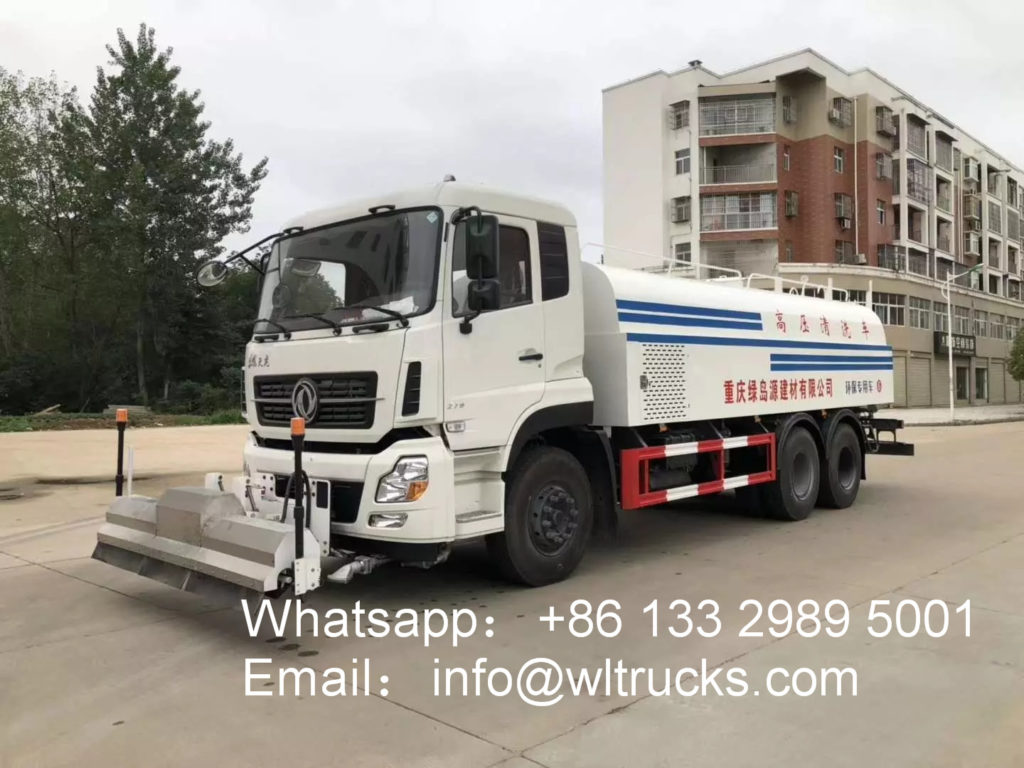

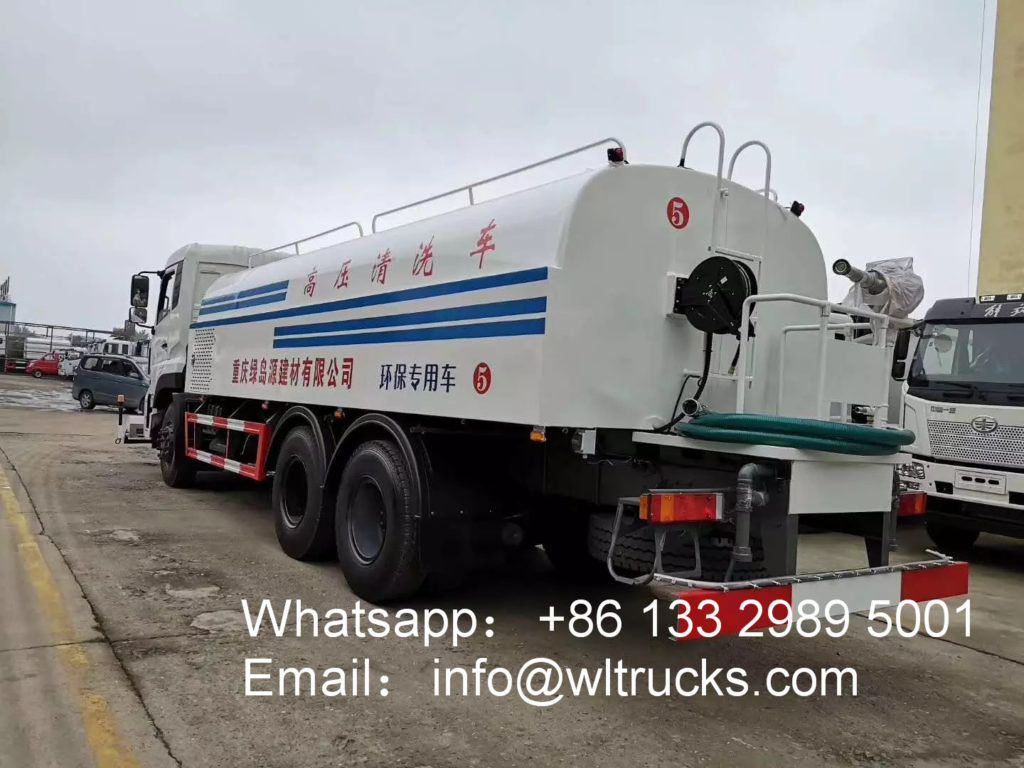

high pressure cleaning truck working photos：
