Dongfeng 6000liter to 8000liters sewage suction trucks Specification:
Dongfeng 6000liter to 8000liters sewage suction trucks Chassis configuration: Wheelbase 3.8 meters, Doric D7 wide body cab, 120-horsepower diesel engine, 750 tires with spare tires, direction boost, air brake.
Dongfeng 6000liter to 8000liters sewage suction trucks Top-loading configuration: The tank volume is 8 cubic meters, equipped with SK-9 water circulation vacuum pump, optional 8-ton oil pump, full suction is less than 7 minutes, air filling and discharge is less than 4 hours, tail hydraulic pressure is fully opened, dual hydraulic cylinders are lifted and unloaded Equipped with 1 self-flow port and 1 suction pipe.
Dongfeng 6000liter to 8000liters sewage suction trucks Product parameters
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Sewage suction truck |
| Drive Type | 4*2 | |
| Gross Vehicle Weight(kg) | 7360 | |
| Curb Weight (kg) | 3590 | |
| Curb Weight (kg) | 3640 | |
| Overall Dimensions L*W*H(mm) | 6900*2300*2800 | |
| Engine Brand | Quanchai | |
| Fuel Type | Diesel | |
| Power | 156HP | |
| Emission Standard | Euro 2/ 3/ 4/ 5 | |
| Displacement(ml) | 3856 | |
| Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | Dongfeng |
| Front/Rear Axle Load(KG) | 2500/5000 | |
| Tire No. | 6 | |
| Tire Specification | 7.00-16/ 7.50R16 | |
| Wheelbase (mm) | 3800 | |
| Axle No. | 2 | |
| Gear Box | 6 speed forward with 1 reverse, manual | |
| Steering Wheel | Left / Right hand drive with power-assisted | |
| Brake | Oil brake | |
| Radiator | Suitable for tropical climate | |
| Sucking System | Sewage tank Volume(L) | 4000 |
| Tank shape | Round | |
| Tank Material | 5mm thick carbon steel | |
| Suction Depth(m) | More than 6 meter | |
| Suction hose length | 8 meters | |
| Tank Tipping angle(°) | More than 45 | |
| Rear door | Open and closed by hydraulic cylinders |
Dongfeng 6000liter to 8000liters sewage suction trucks Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Dongfeng 6000liter to 8000liters sewage suction trucks Working parameter New craft
Dongfeng 6000liter to 8000liters sewage suction trucks Optional configuration

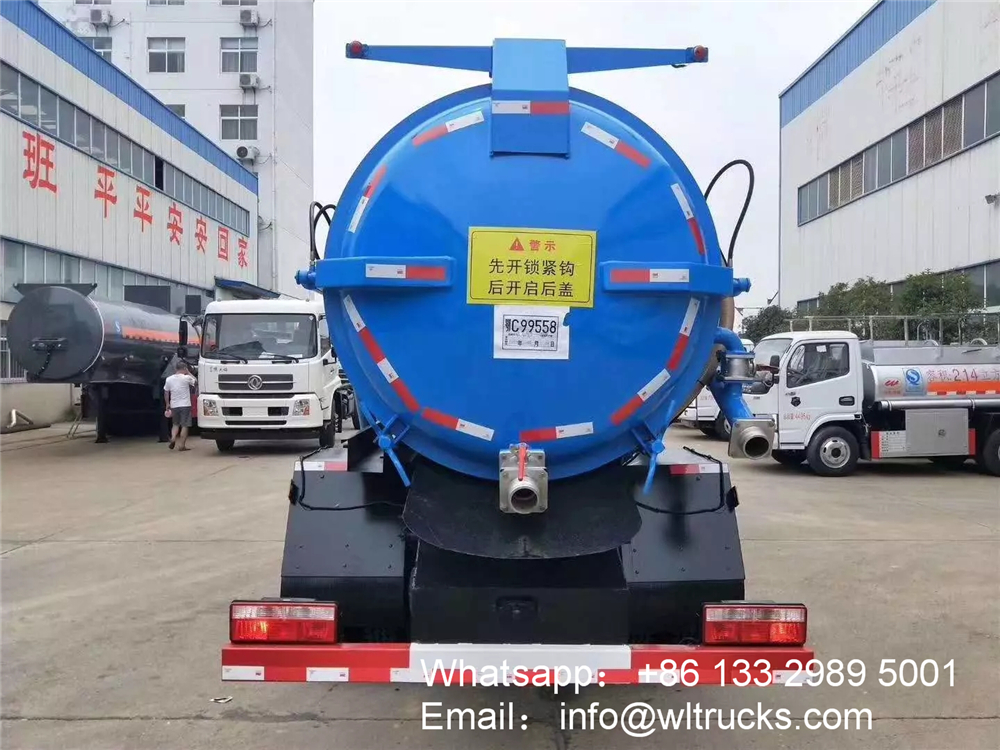

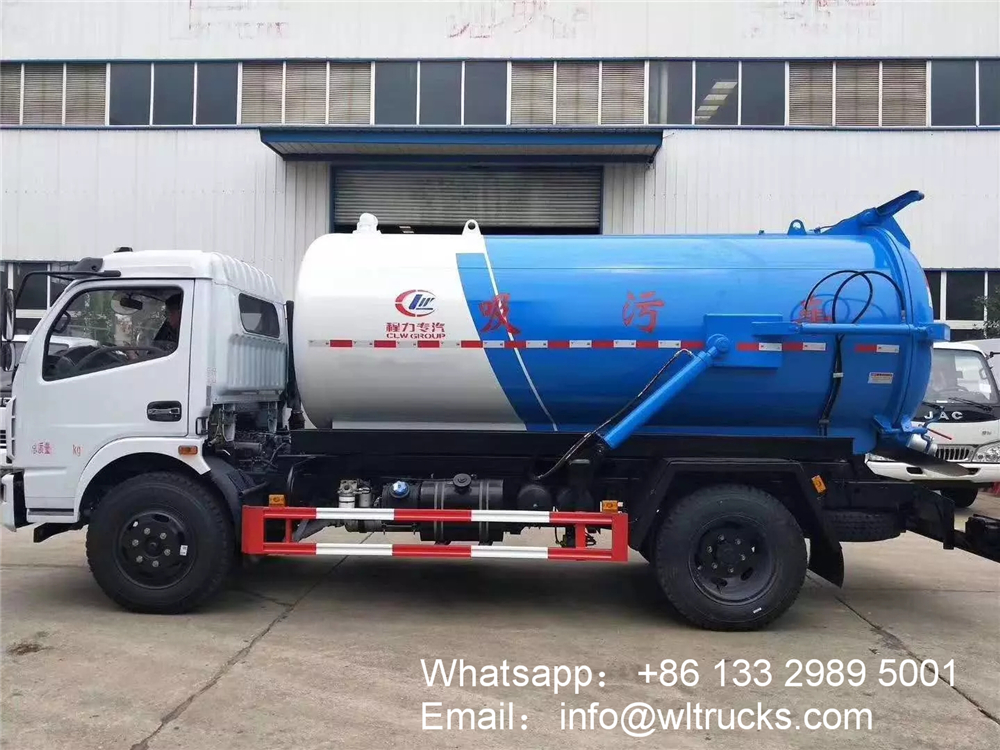

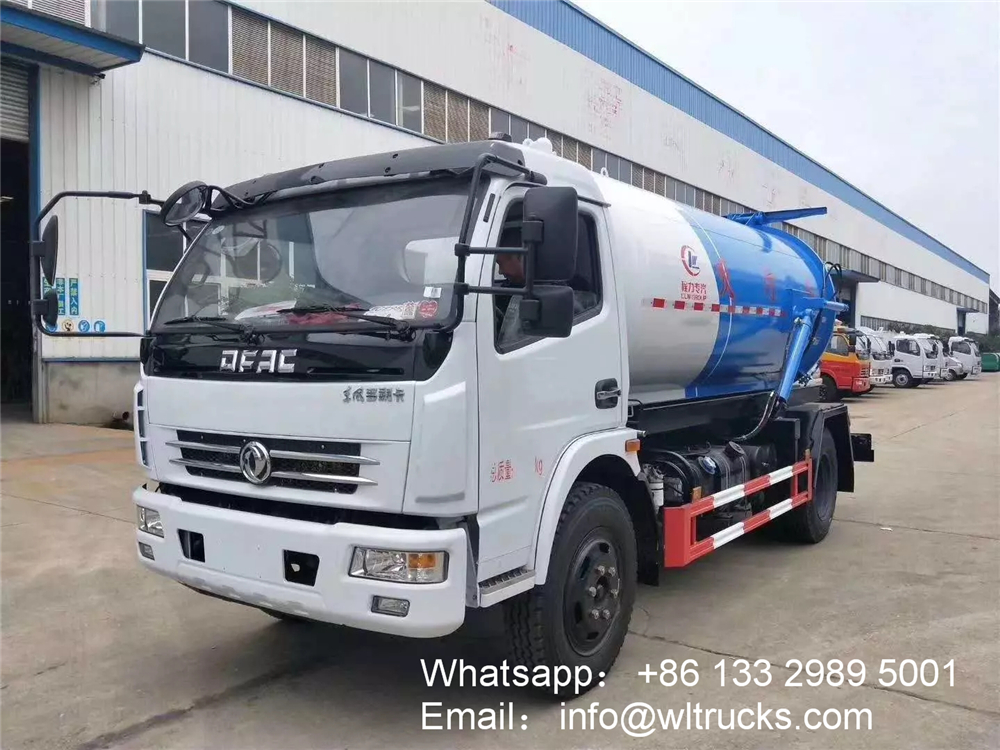

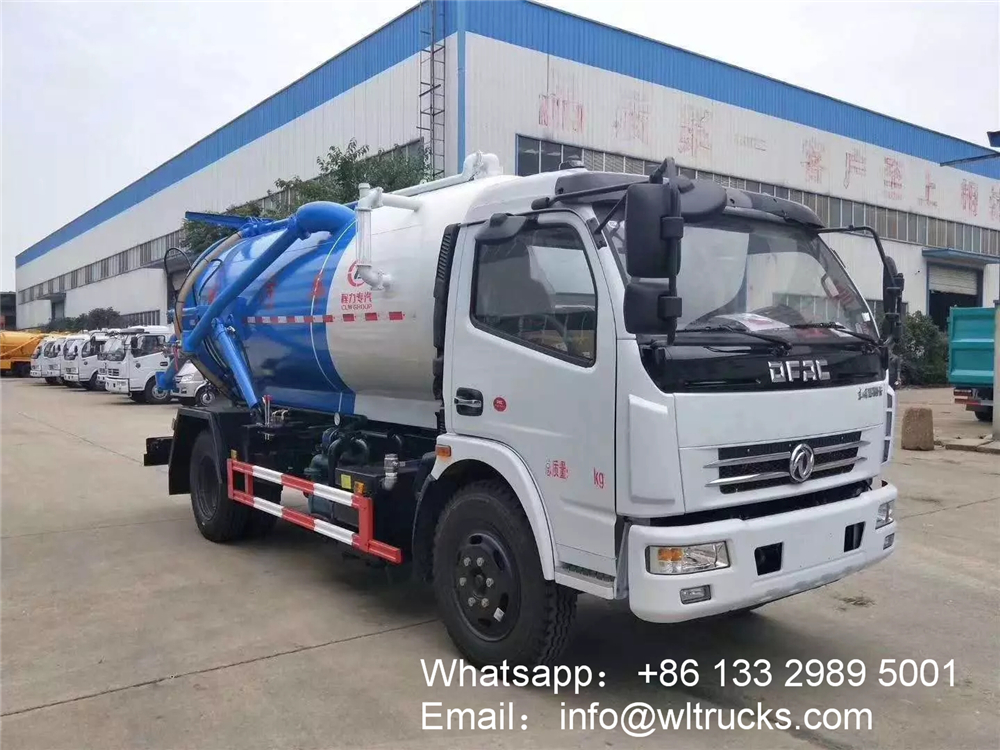

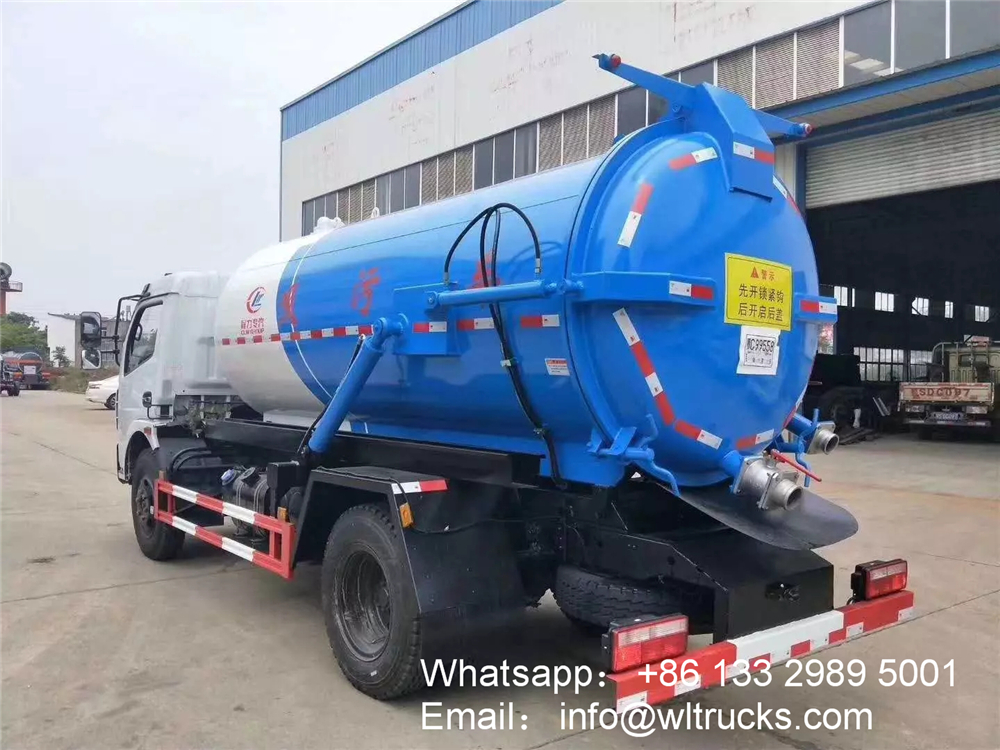

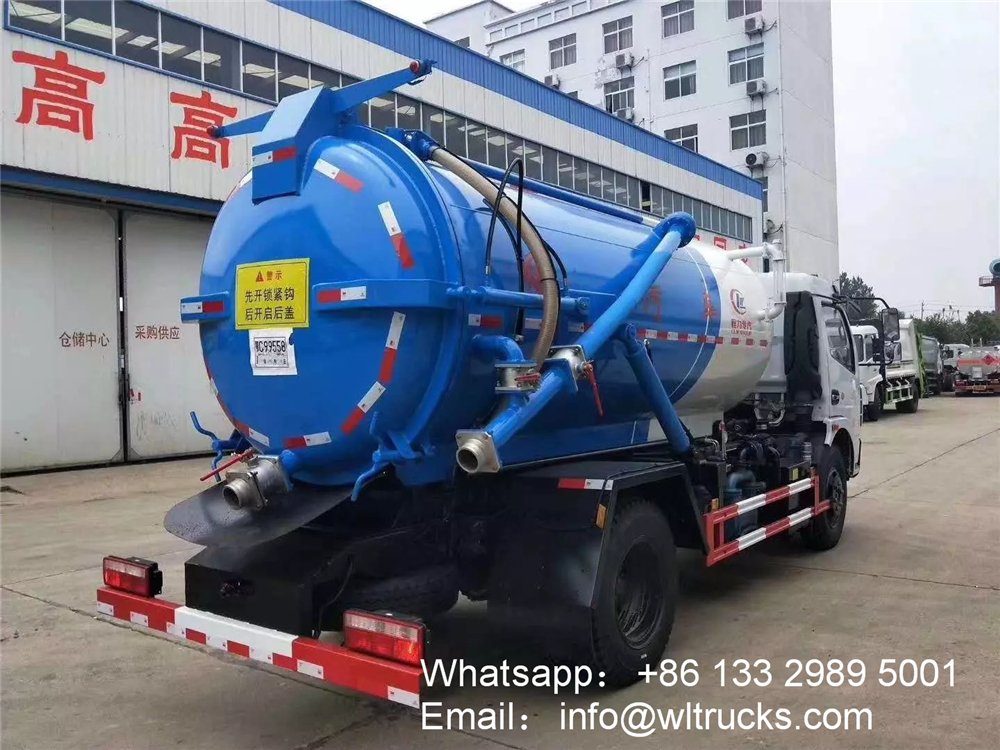

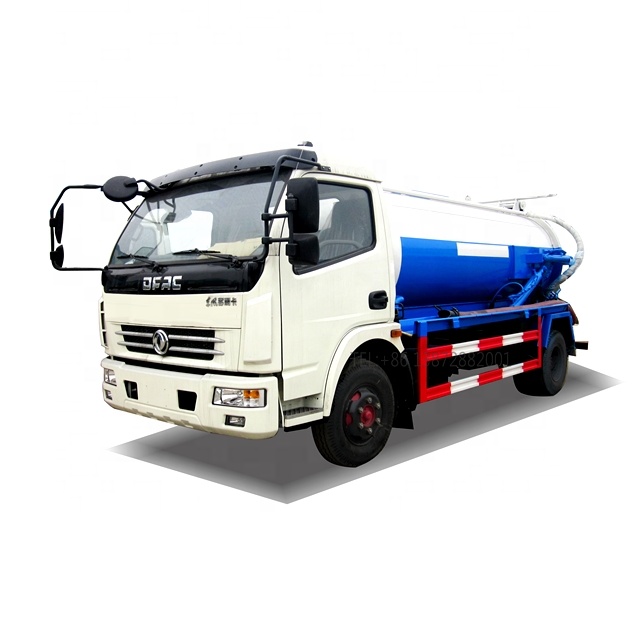

Dongfeng 6000liter to 8000liters sewage suction trucks Detailed image
