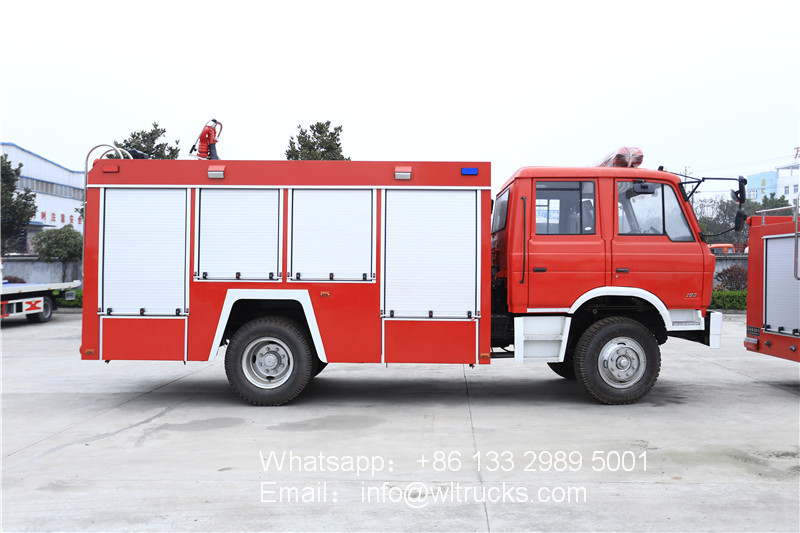

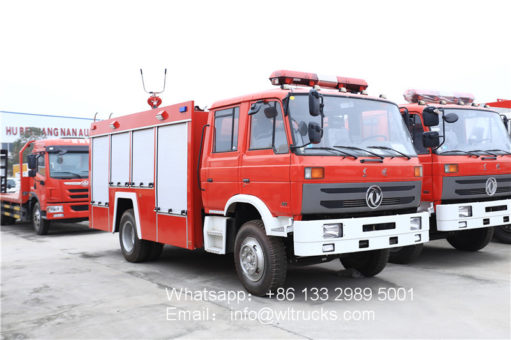

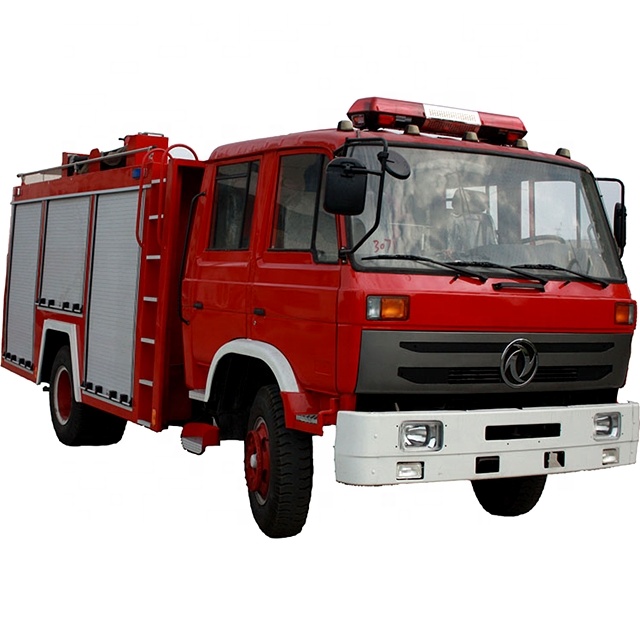

Dongfeng 6 ton Foam fire truck Modified by Dongfeng EQ1168GLJ5 chassis, the vehicle has a compact structure, good power performance, high speed, and a full set of fire protection functions. The upper body of the upper body is made of aluminum alloy profiles imported from European technology. The weight of the whole vehicle is reduced and the maneuverability is reduced. Performance and weight of the whole vehicle are improved.
Product Specifications:
| Vehicle model | CLW5140GXFPM50/E foam fire truck | Chassis model | EQ1168GLJ5 | ||
|---|---|---|---|---|---|
| Quality parameter (kg) | Rated loading quality | 5200 | Dimensions | 7360×2480×3330 | |
| Vehicle quality | 8050 | Tank volume | Water tank 4 cubic meters, foam tank 2 cubic meters | ||
| Maximum total mass | 13700 | Wheelbase | 3950 | ||
|
Engine parameters
|
model | ISB170 50 | Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| power | 125/170 horsepower | Displacement | 5900 | ||
| Cab description |
Flat-head all-metal enclosed cab, the front of the cabin is connected to the cab, double-row seats, four-door, panoramic curved windshield.
|
||||
|---|---|---|---|---|---|
| Tank | The use of high-quality carbon steel materials, welded structure, built-in vertical and horizontal anti-sway plate, after high-tech anti-corrosion treatment. Optional stainless steel material. | ||||
| Pump room | The rear-mounted pump, the left and right sides of the pump room and the left and right sides of the equipment box are equipped with new easy-drawing high-strength aluminum alloy rolling doors. | ||||
| Equipment box | Aluminium alloy profiles produced using imported European technologyBuilt access technology manufacturing tower, the whole structure riveting. | ||||
| Electrical configuration | The front of the top of the cab is a long row of police lights. The rear of the body is equipped with a 24V and 60W fire field lighting. The red and blue strobe lights are equipped on the upper sides of the vehicle, and the safety sign lights are installed below the passenger compartment, equipment box, The pump room is equipped with lighting lamps, plus a 100W alarm, rotary alarm switch, and communication equipment preparation interface. | ||||
|
Special function
|
Water tank capacity (L) | 4000 | Foam tank capacity (L) | 2000 | |
| Fire cannon | model | PL32 dual purpose fire monitor | Range | Water≥55m/1.0MPa foam≥50m/1.0MPa |
|
| Fire pump (atmospheric pressure pump) | model | CB10/40 type | flow | 40L/S | |
| preset pressure | 1.0MPa | Diversion time | ≤35s (7m suction depth) | ||
| Fire pump (medium and low pressure pump) | model | CB20.10/20.40 | Diversion time | ≤35s (7m suction depth) | |
| Low pressure flow | 40L/s/1.0MPa | Medium pressure flow | 20L/s/2.0MPa | ||
| Modified by Dongfeng 145 series chassis. The vehicle is composed of two parts: the firefighter’s cabin and the body. The cabin is the original double row and can take 2+3 people. The car has an internal warehouse structure. The front of the body is a water tank + equipment box, and the rear is a pump. room |
| The carrier tank is made of high-quality carbon steel, which is elastically connected to the chassis and contains 6000 kg of water. It is equipped with a CB10/40-XZ fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd., with a rated flow of 40L/S |
| The roof is equipped with a PL32 vehicle fire monitor produced by Chengdu West Fire Fighting Machinery Co., Ltd. The biggest feature of the car is flexible maneuverability, good handling, easy maintenance and long range. It can be widely used in public security fire brigade, factories and mines, communities, docks and other places to fight general material fires. |
| The fire performance of the whole vehicle meets the requirements of the GB7956-2014 standard; the chassis passes the national mandatory product certification; the engine emissions meet the emission standards of Eruo IV; the whole vehicle passes the inspection of the National Fire Equipment Quality Supervision and Inspection Center ( Report number: Zb201630547) and has been included in the Ministry of Industry and Information Technology’s new product announcement. |
| The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can walk. (Aluminum alloy square tube welding can be used according to user needs) |
| The equipment box is located at the rear of the passenger compartment, with aluminum alloy rolling doors on both sides and lighting lamps inside. Storage boxes are set in the equipment box room according to demand. The pump room is located at the rear of the vehicle, with aluminum alloy rolling doors on both sides and the back, with lights inside, and some common equipment can be placed on both sides of the pump room |

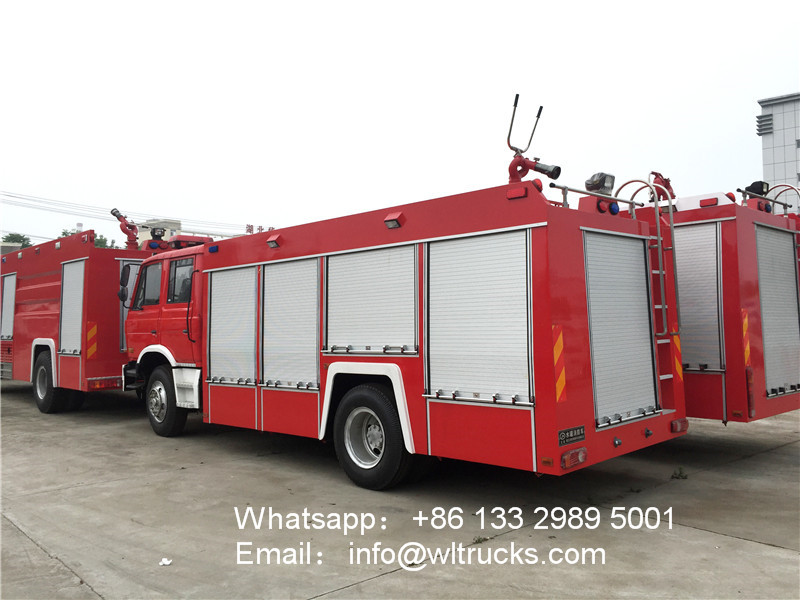

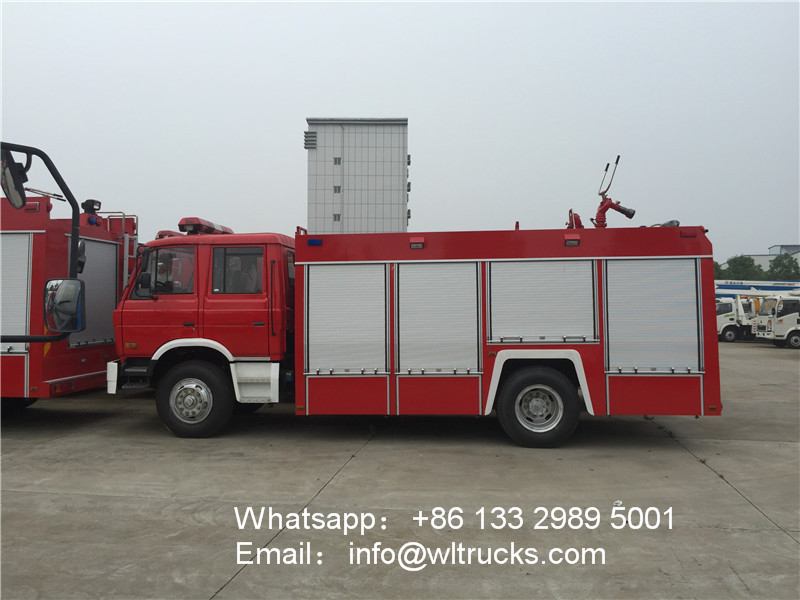

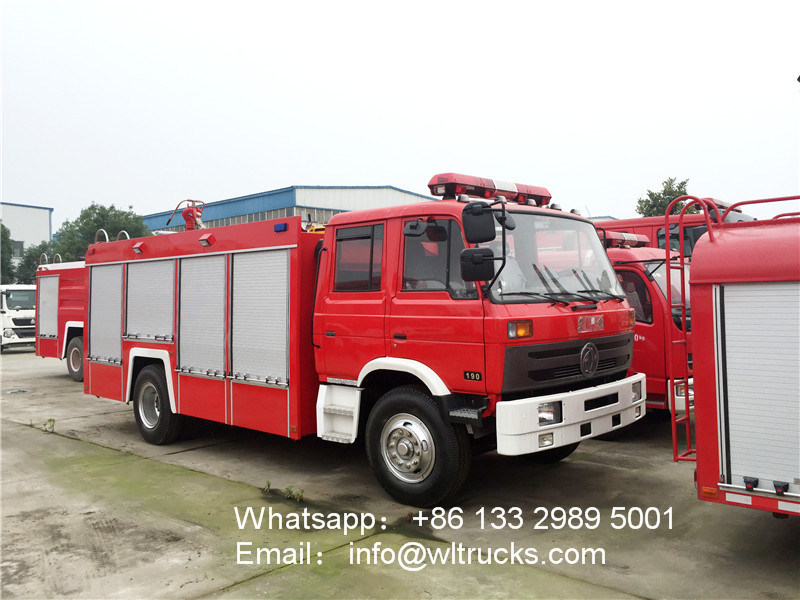

Dongfeng 6 ton Foam fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire extinguisher | 3㎏ | 1 | With | |
| 18 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 19 | Rubber hammer | 1 | Piece | ||
| 20 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
