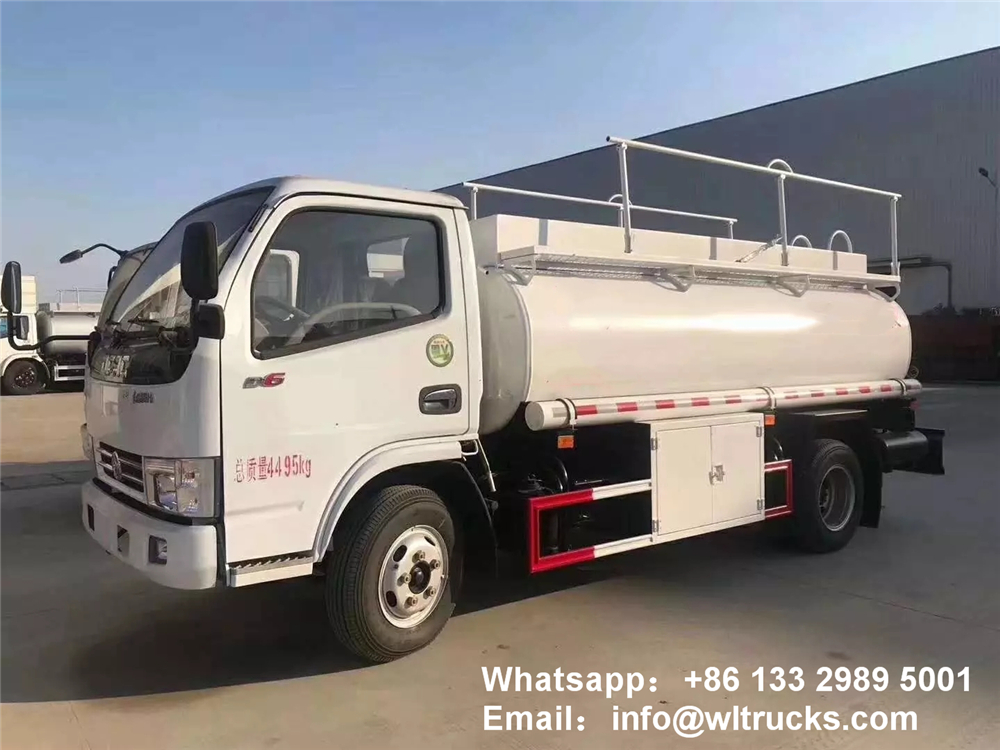

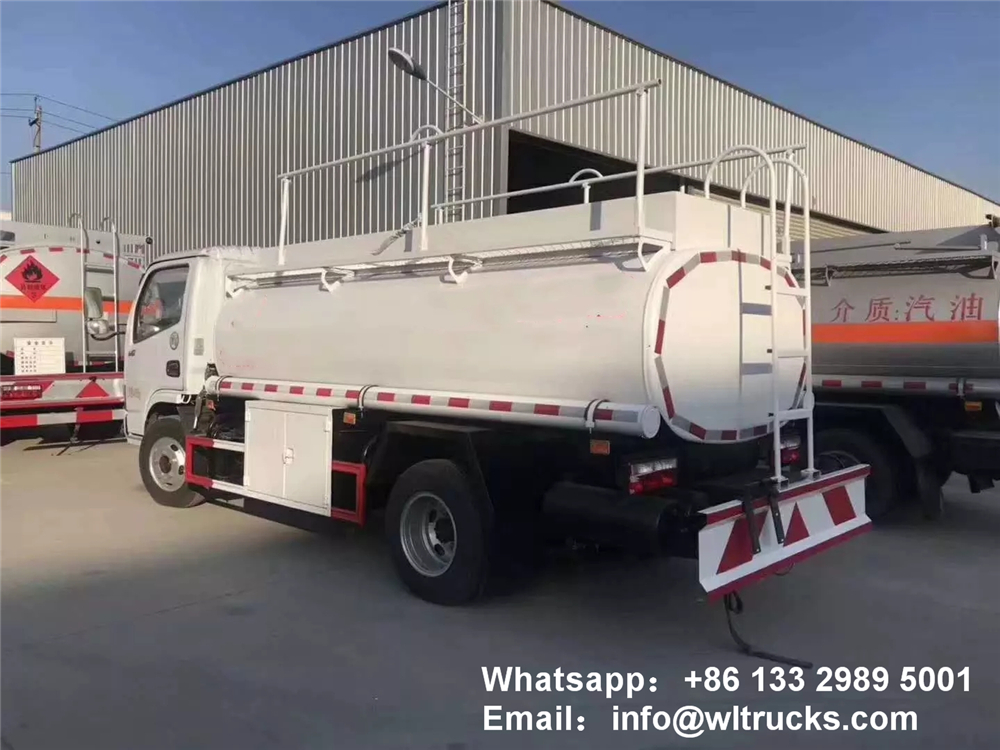

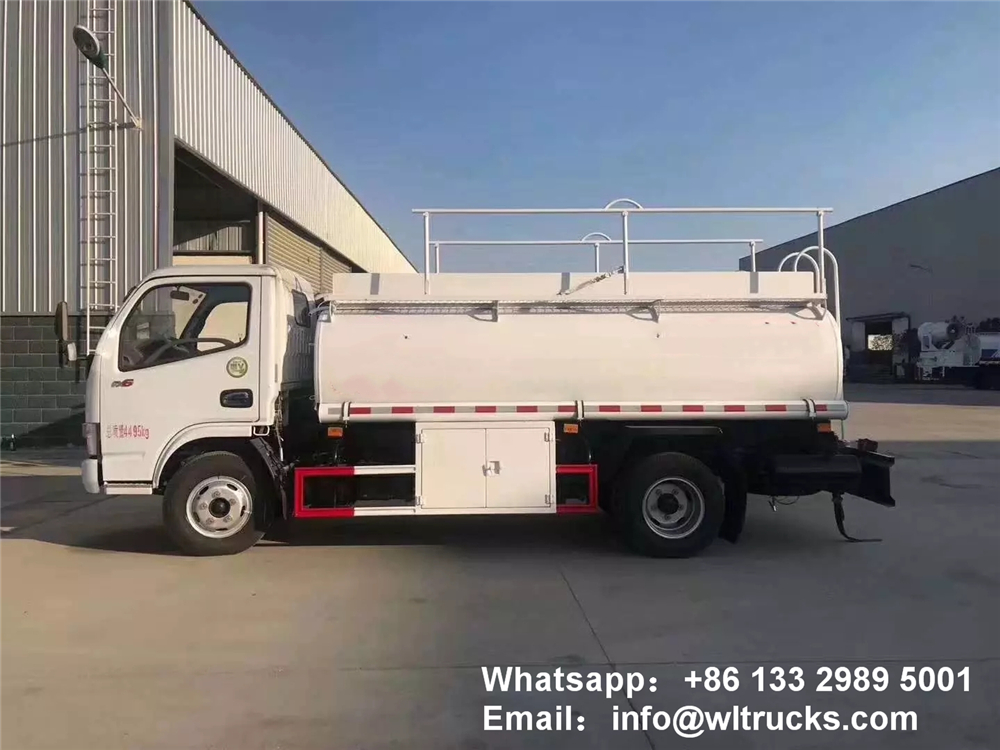

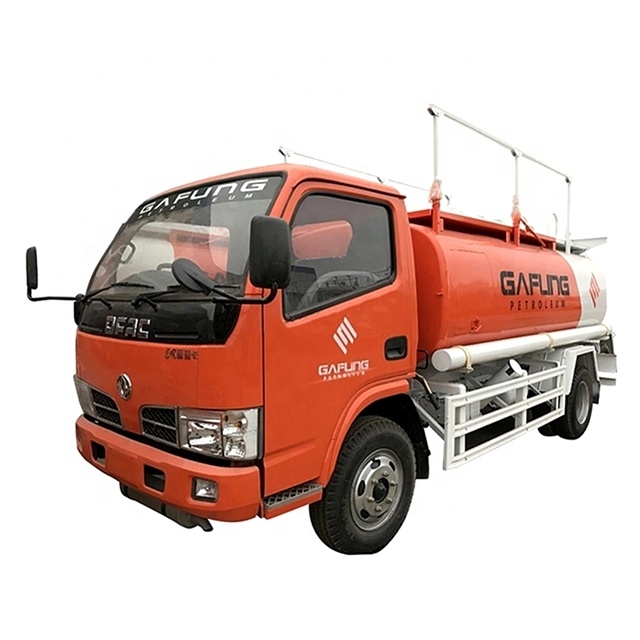

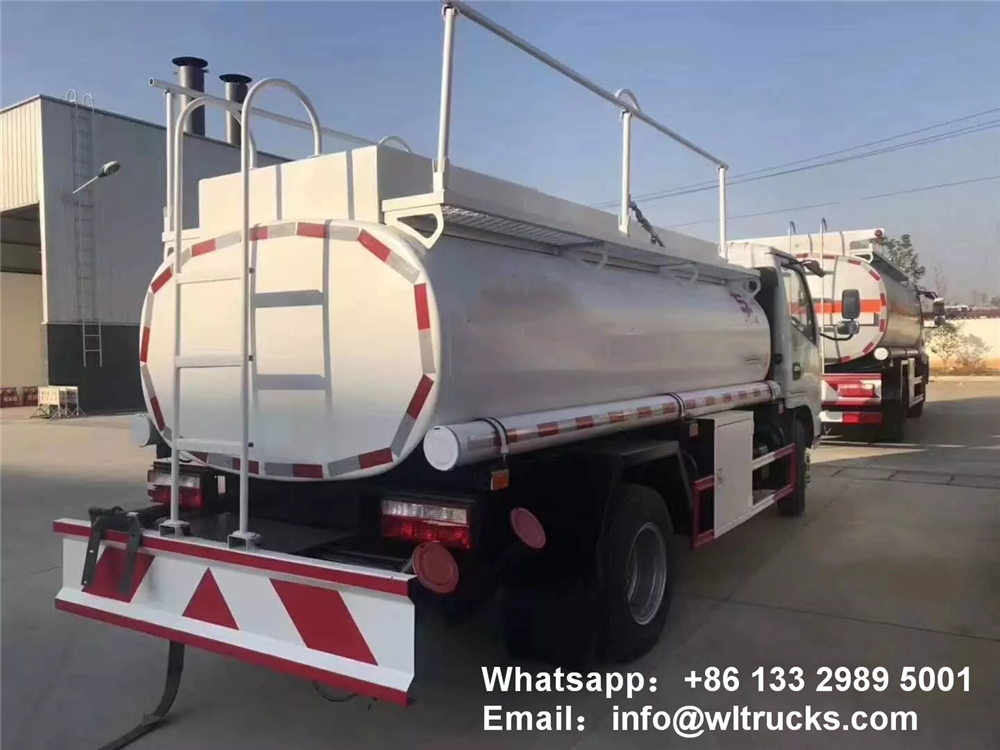

Dongfeng 5m3 fuel tanker truck
Dongfeng 5m3 fuel tanker truck uses Dongfeng Duolika series Euro III chassis, Dongfeng’s new cab, equipped with Chaochai 95-horsepower diesel engine, coupled with Dongfeng 5-speed gearbox, smooth shifting speed, smooth power output, plus The steering wheel with directional boost is very light and easy to use. In terms of comfort configuration, it is equipped with original air conditioner and multimedia system, electric glass, the cab is well sealed, and the comfort of the seat is comparable to that of a car. In terms of safety configuration, it is equipped with 7.00 tires, front exhaust pipe and fire cap , Driving safety is greatly improved.
Dongfeng 5m3 fuel tanker truck tank body is made of special volume plate of WISCO. The thickness of the tank body is 4mm and the thickness of the head is 5mm. According to customer requirements, the tanker can be designed into two types: built-in and under-hanging. When the tanker is hung down, the tank volume is 5.3m3. Single warehouse structure, can be divided into warehouses, equipped with special oil pump can be pumped in and out, 65mm self-flow port, an aluminum alloy European standard tank port, an aluminum alloy subsea valve, an oil discharge valve, a set of oil and gas recovery system, a Overflow alarm system, equipped with Shanghai Bailai small-flow tax-controlled oil dispenser, 15-meter refueling reel with gun, can also be equipped with Zhengxing, Hengshan, Sanjin, Changwen and other brand fuel dispensers, large and small flow options.
| Vehicle technical parameters | |||
| Tank volume | 5.2 cubic meters | Tonnage | 3465 (kg) |
| Dimensions | 5.995×2.05×2.5 (m) | Total quality | 7360 (kg) |
| Tank size | 4×1.7×1.1 (m) | Empty weight | 3765 (kg) |
| Thickness of cylinder | 4.2 (mm) | Tank material | Carbon steel |
| Chassis technical parameters | |||
| Brand | Dongfeng | Chassis model | EQ1070SJ3BDFWX |
| Number of axes | 2 | Wheelbase | 3308 (mm) |
| engine | Chaochai 95 hp | Gearbox | 5 files |
| Tire specifications | 7.00 steel wire tire | Front and rear axle | 3.5 tons rear axle |
| Fuel type | Diesel | Environmental standards | Country V |
| ABS | Standard | Braking System | Air brake |
| Front brake | Disc | Rear brake | Drum |
| Maximum speed | 80Km / h | Passengers | 3 |
| Basic upload configuration | |||
| Standard configuration | Tank thickness 4.2mm, head thickness 4.5mm, single silo structure, equipped with Shandong gear pump (pump in and pump out), 65mm self-flow port, an aluminum alloy European standard tank port, an aluminum alloy subsea valve, a set of oil and gas recovery system , An oil unloading valve, a set of anti-overflow alarm system, Shanghai Bailai small flow tax-controlled oil dispenser, 15 meters refueling reel with gun, a tool box, two fire extinguishers, standard aluminum all gold folding guardrail, Two “burst” characters. | ||
| Optional configuration | The fuel tanker can also be installed with other brands such as Zhengxing and Hengshan, and the flow size can be freely selected. | ||
