Dongfeng 5cbm hook arm garbage truck Product Description:
Dongfeng 5cbm hook arm garbage truck Chassis configuration: wheelbase 3.3 meters, Furica white cab, 95-horsepower diesel engine, 5-speed gearbox, 700 tires with spare tires, direction assistance.
Dongfeng 5cbm hook arm garbage truck Bodywork configuration: can be equipped with 5m3 hook arm box, equipped with long source hydraulic pump, reinforced main hook arm frame structure, power distribution control cab operation, can complete the functions of hooking up the garbage box, landing the box, dumping and other functions , A car with multiple boxes.
Optional configuration: Optional fully sealed trash can, upper open trash can.
Dongfeng 5cbm hook arm garbage truck Specifications:
Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
| Drive type | 4*2, New condition, LHD/RHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 5995×1900×2540 | |
| Wheel base (mm) | 3300 | ||
| F/R Axle-Load | 2000/400 kg | ||
| Curb weight | 2150 kg | ||
| Loading weight | 2215 kg | ||
| GVW | 4495 kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Diesel ENGINE | |
| Type | 4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 95 | ||
| Emission standard | Euro III | ||
| Gearbox | 5 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 7.00-16 Nylon tyre,6pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 4 CBM | ||
| Remarks | 1. Color is optional | ||
| 2.Customized LOGO painting as per customer request | |||
Dongfeng 5cbm hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
Dongfeng 5cbm hook arm garbage truck New craft:
Dongfeng 5cbm hook arm garbage truck Optional configuration:

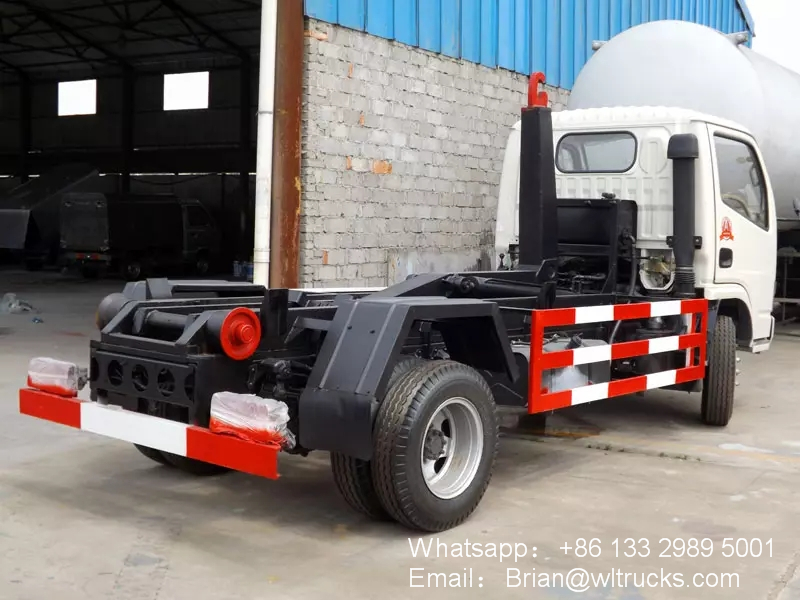

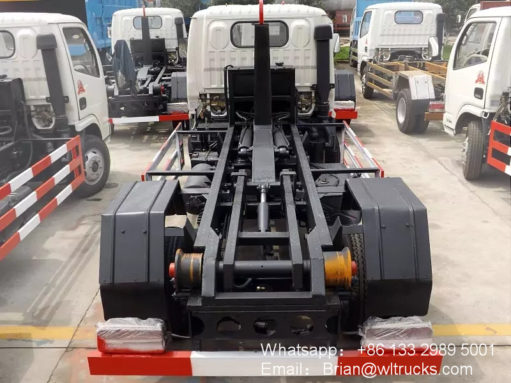

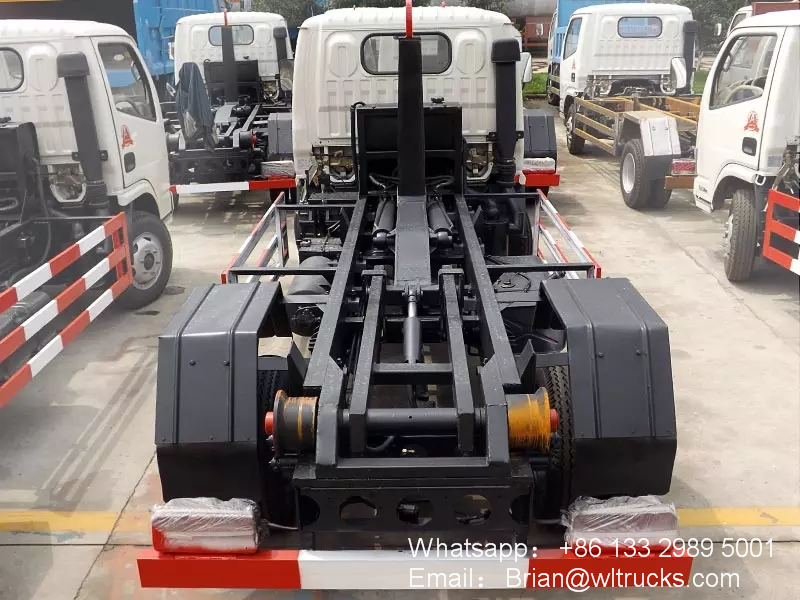

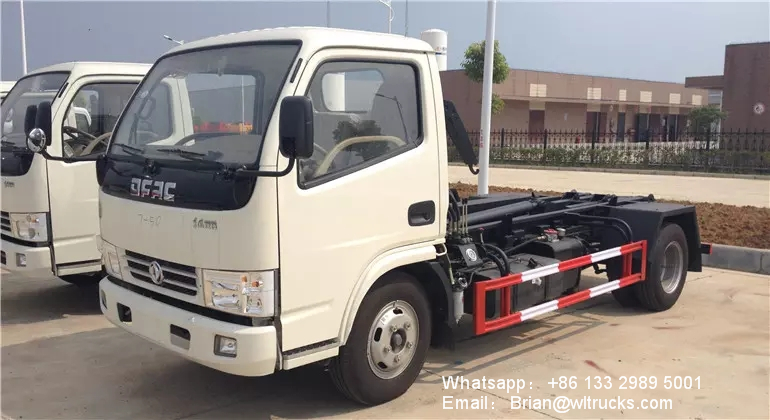

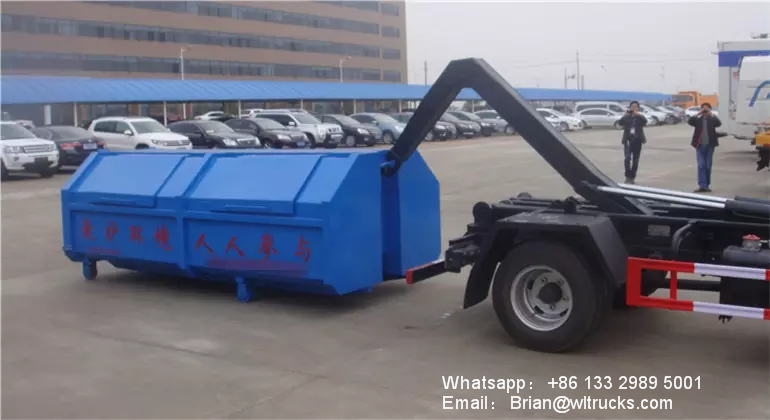

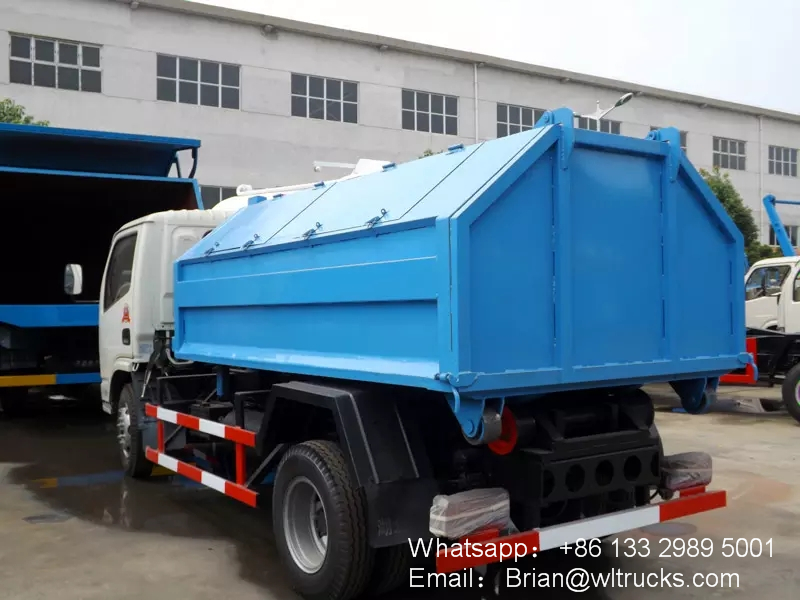

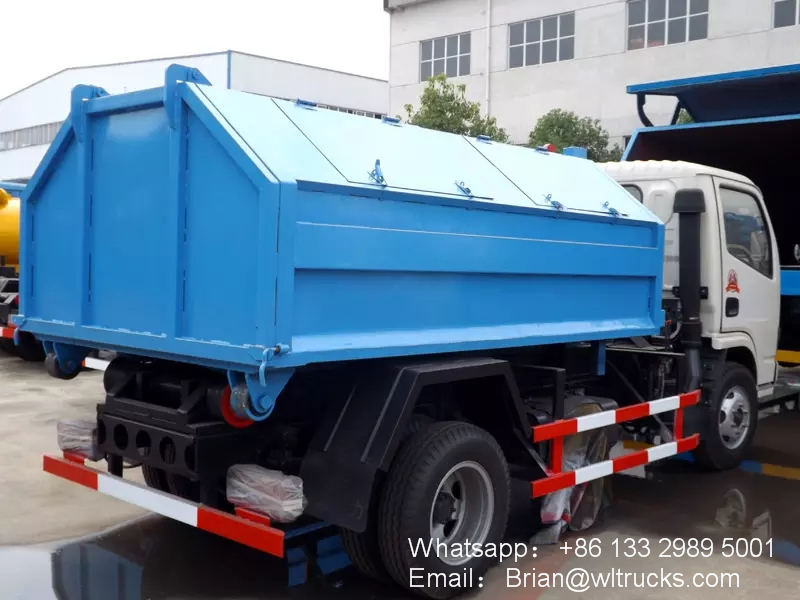

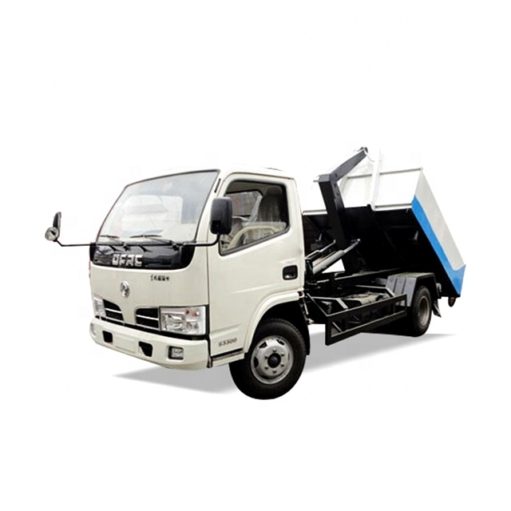

Dongfeng 5cbm hook arm garbage truck detailed images:
Dongfeng 5cbm hook arm garbage truck Structure diagram：
Dongfeng 5cbm hook arm garbage truck Detail drawing:
Customizable garbage truck models
