Dongfeng 5000liter sewer cleaning sewage suction truck Specification:
Vehicle Main Dimensions | Cab type | Single |
Overall dimension(L*W*H)(mm) | 6300*2300*2850mm | |
Wheelbase (mm) | 3300 | |
Axle number | 2 | |
Drive type | 4*2 | |
Steering type | LHD/RHD | |
Max. Drive Speed (km/h) | 100 | |
Curb weight (kg) | 5340 | |
Chassis parameter | Chassis brand | Dongfeng |
Transmission | Manual, 5 forward and 1 reverse | |
Brakes | Air brake | |
Tire | 6.00-15 | |
Engine parameter | Engine Brand | Chaochai |
Fuel type | Diesel | |
Horse Power(hp) | 98hp | |
Emission Standard | Euro III/IV/V | |
Superstructure Parameter and main performance | Cleaning Tank volume(m3) | 1 |
Cleaning Tank material | 4 mm good quality carbon steel; round shape | |
Sewage tank volume(m3) | 4 | |
Sewage tank material | 6 mm good quality carbon steel | |
Pump | Imported Italy high quality vacuum pump or chinese vacuum pump | |
Standard configuration | 60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc | |
Main performance | Suction time ≤ 5min effective suction range ≥ 9m |
|
Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
Optional | watering |
Dredge function | Sewage suction function | ||
High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist |
Dongfeng 5000liter sewer cleaning sewage suction truck Working parameter New craft
Dongfeng 5000liter sewer cleaning sewage suction truck Optional configuration

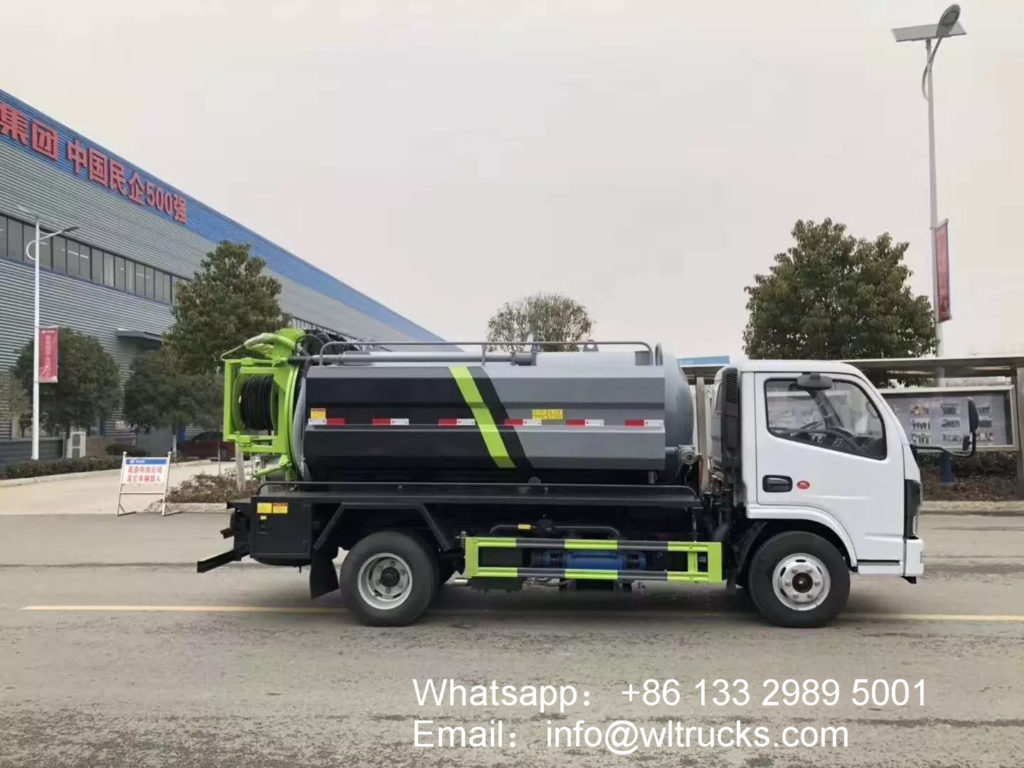

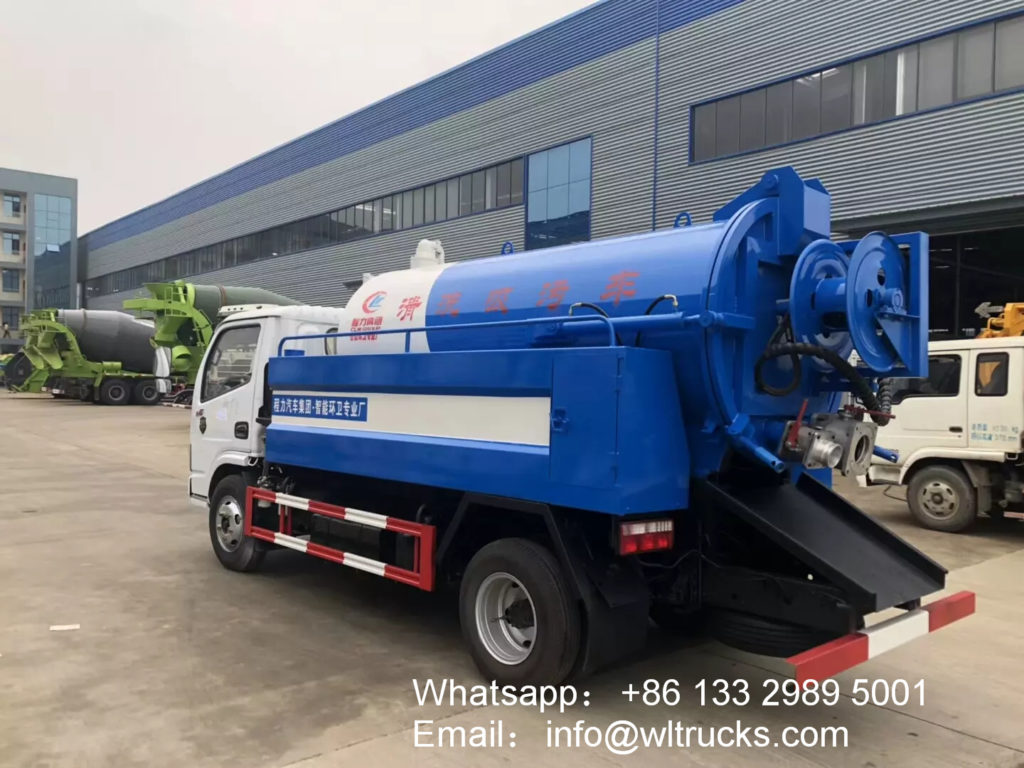

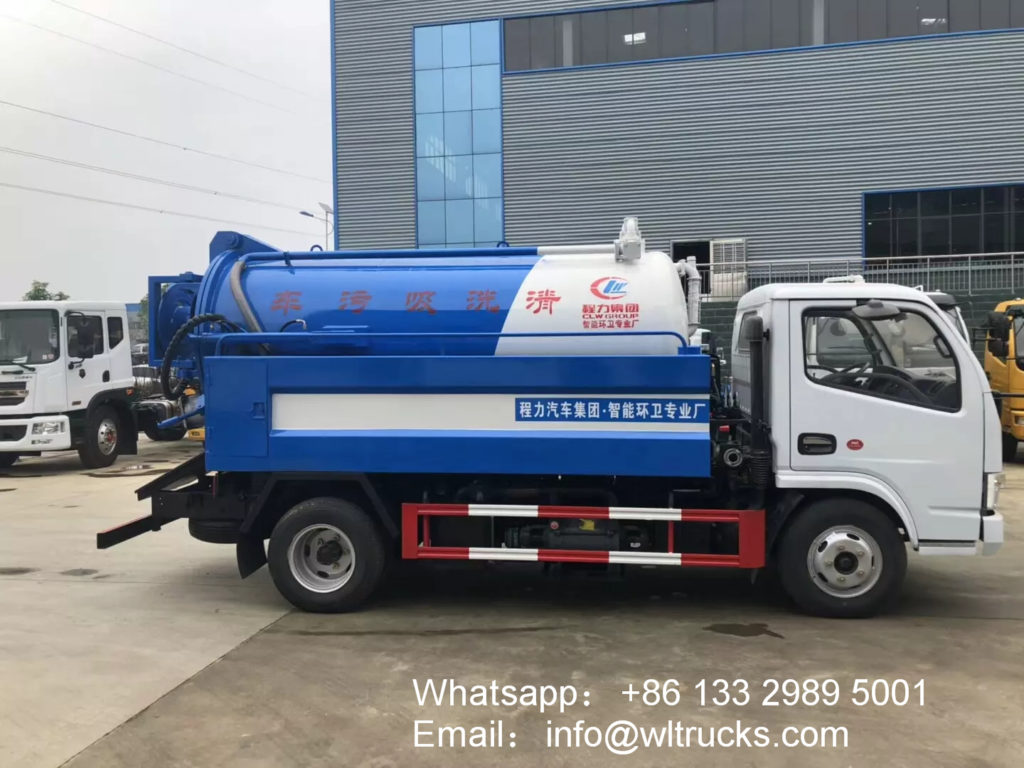

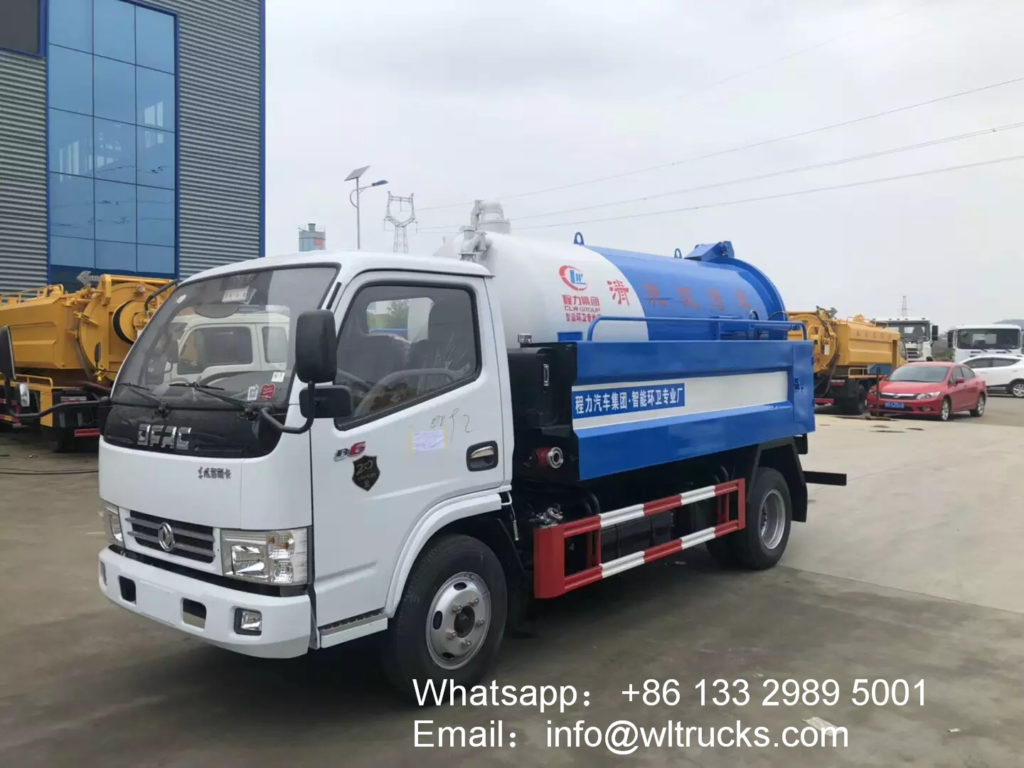

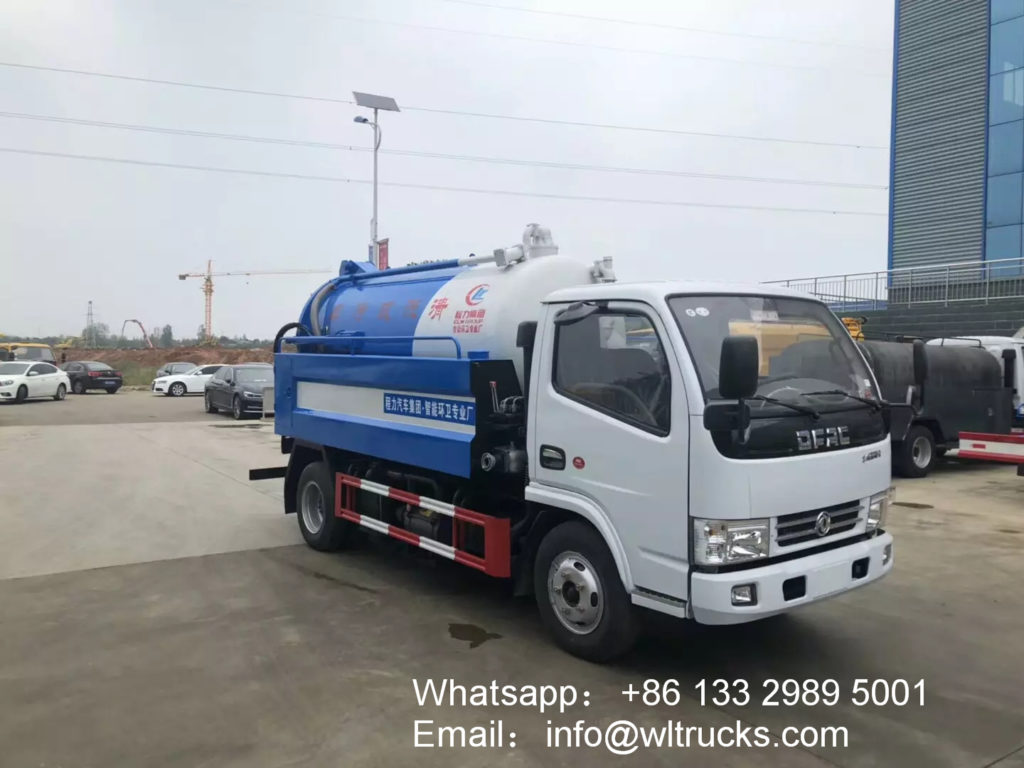

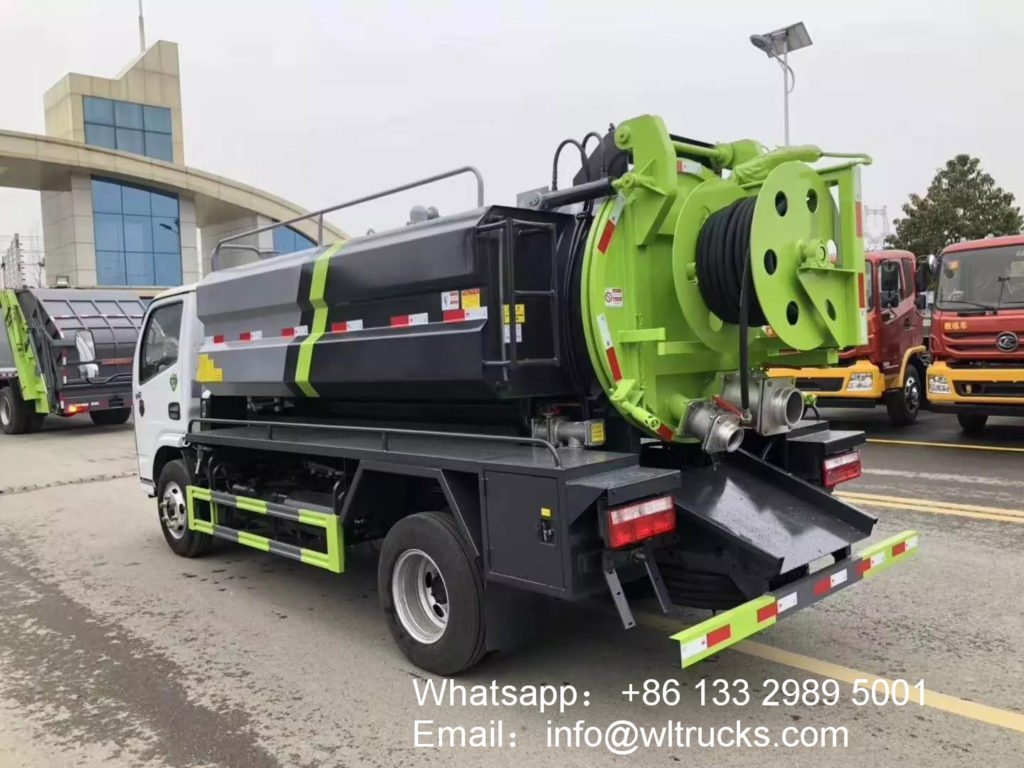

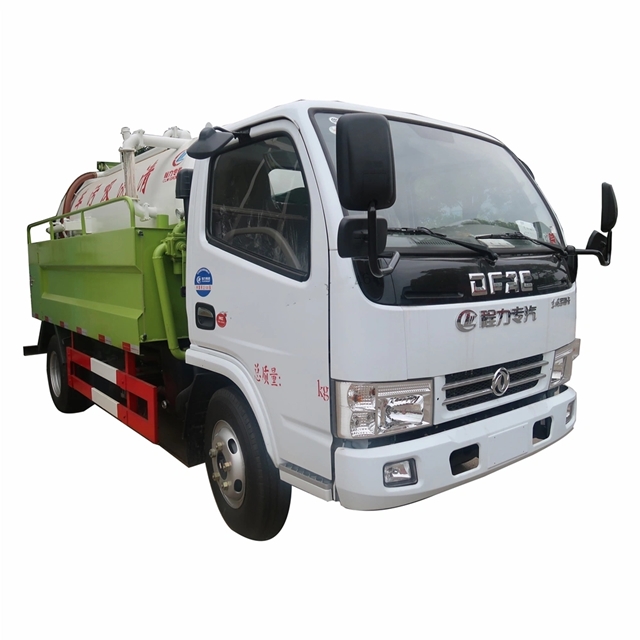

Dongfeng 5000liter sewer cleaning sewage suction truck Detailed image
