Dongfeng Duolika 5 tons road sweeper truck top loading configuration:
Dongfeng Duolika 5 ton road sweeper is modified with Dongfeng Duolika (wheelbase 3308) National Fifth Class chassis, equipped with auxiliary engine, fan, clear water tank, garbage bin, left and right vertical sweeper, rear suction cup, sweeping dust reduction system The hydraulic system, the electronic control system of the special device and the subframe are modified (can be added before sprinkling and then sprinkling).
Dongfeng Duolika 5 tons road sweeper truck Chassis configuration:
Dongfeng Duolika 5 tons road sweeper (wheelbase 3300), cab with forward turn, with original direction assistance, 7.00-16 tires, front and rear axles with air shock absorbers. Equipped with Chaochai 75kw engine, low fuel consumption. The auxiliary engine adopts the powerful Jiangxi Isuzu 57Kw engine.
Dongfeng Duolika 5T Road Sweeper truck Description:
The automatic clutch drives the fan to reduce the impact on the engine when the fan starts and stops. In use, it has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost savings. Adopt the listed company Beibo Taixin high-power wear-resistant and maintenance-free centrifugal fan, no noise, high efficiency, large air volume and long service life
Dongfeng 5 ton road sweeper truck Specification:
| Dongfeng 5CBM Road Sweeper Truck | ||||||||
| Condition | New condition/Right hand drive/4×2 | |||||||
| Chassis | Brand | DONGFENG | ||||||
| Curb weight(kg) | 1500kg | |||||||
| Wheelbase(mm) | 3300 mm | |||||||
| Dimensions(mm) | 6300 x 2000 x 2600 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 2000/4000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 7.00-16 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Chaochai Diesel Engine, 4 Cylinders | ||||||
| Displacement(ml) | 3856 ml / cc | |||||||
| Power(kw)/Horsepower(HP) | 70 kw/95 HP | |||||||
| Emission standard | Euro 4 | |||||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
|||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 4 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 1.5 CBM | |||||||
| Auxiliary engine | Model | JMC Engine 77HP | ||||||
| Power(kw) | 57 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
| Remarks | 1, With water sprayer-bar
2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. |
|||||||

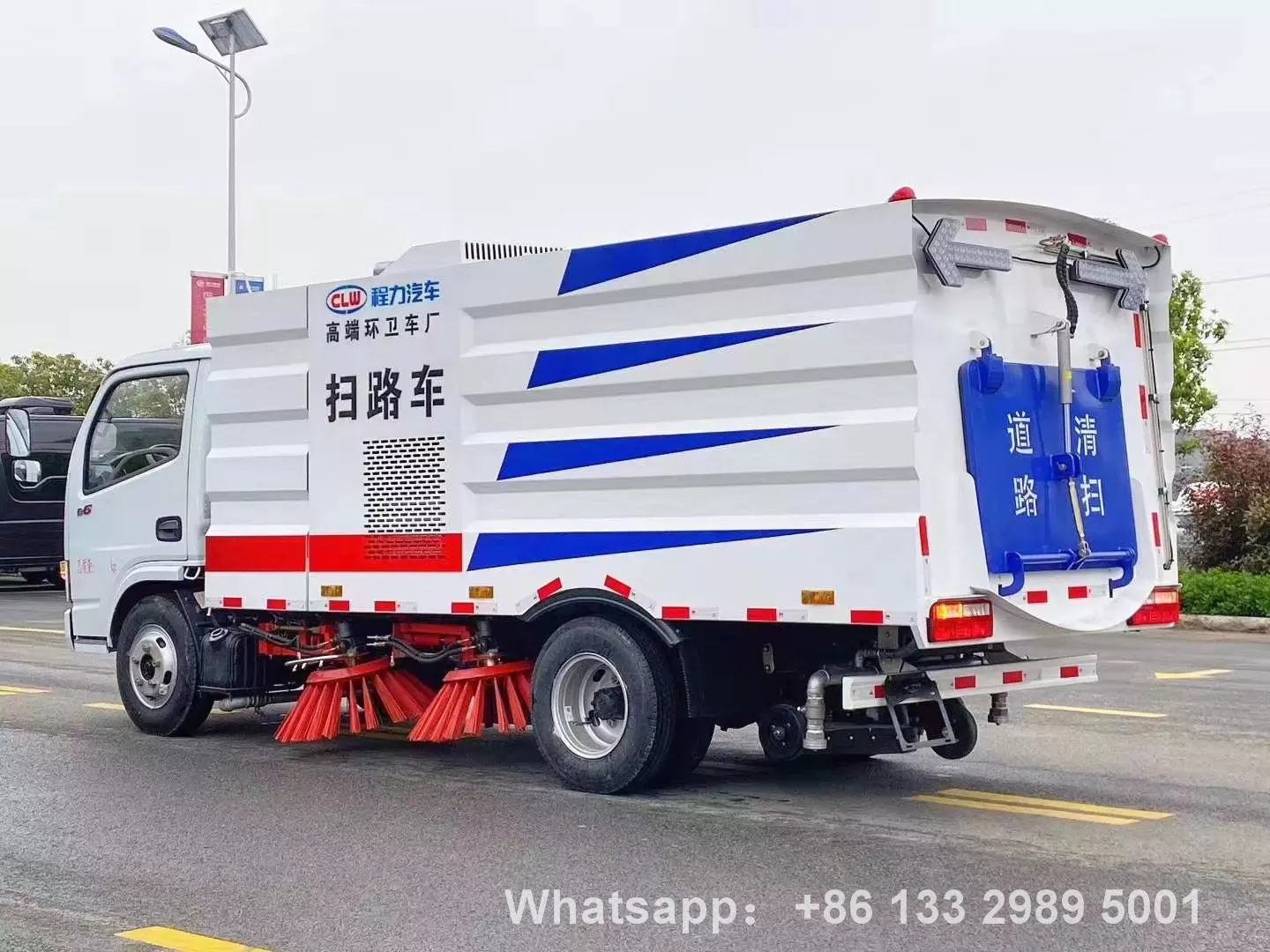

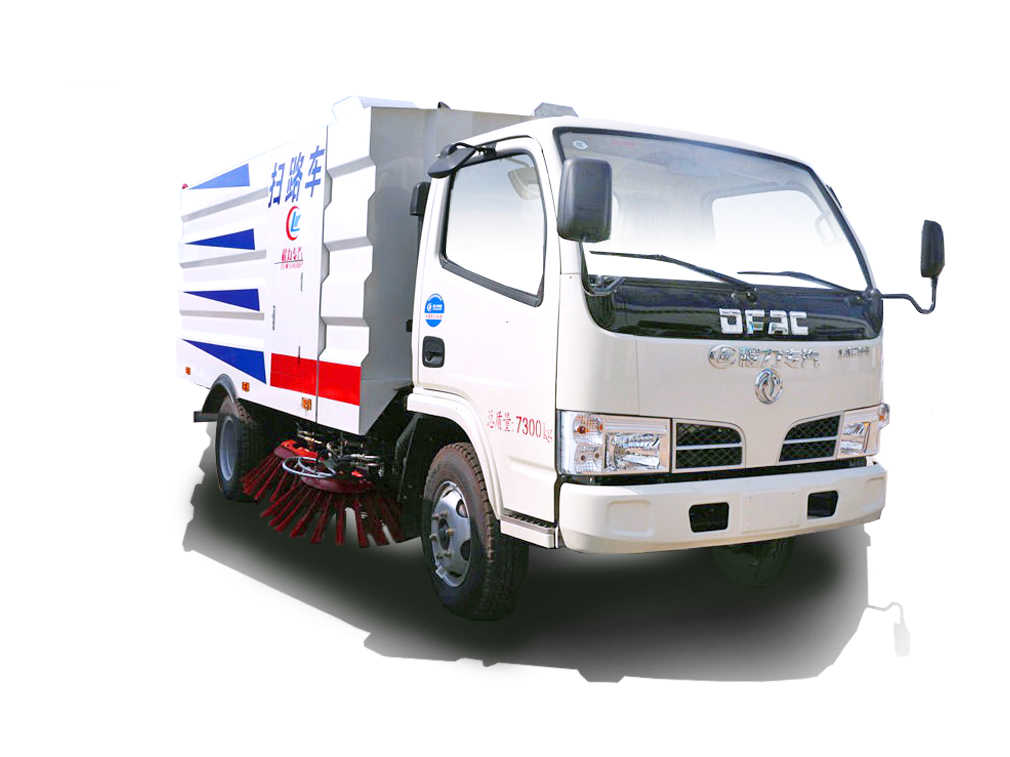

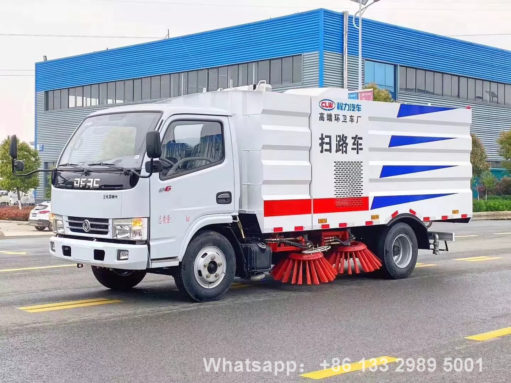

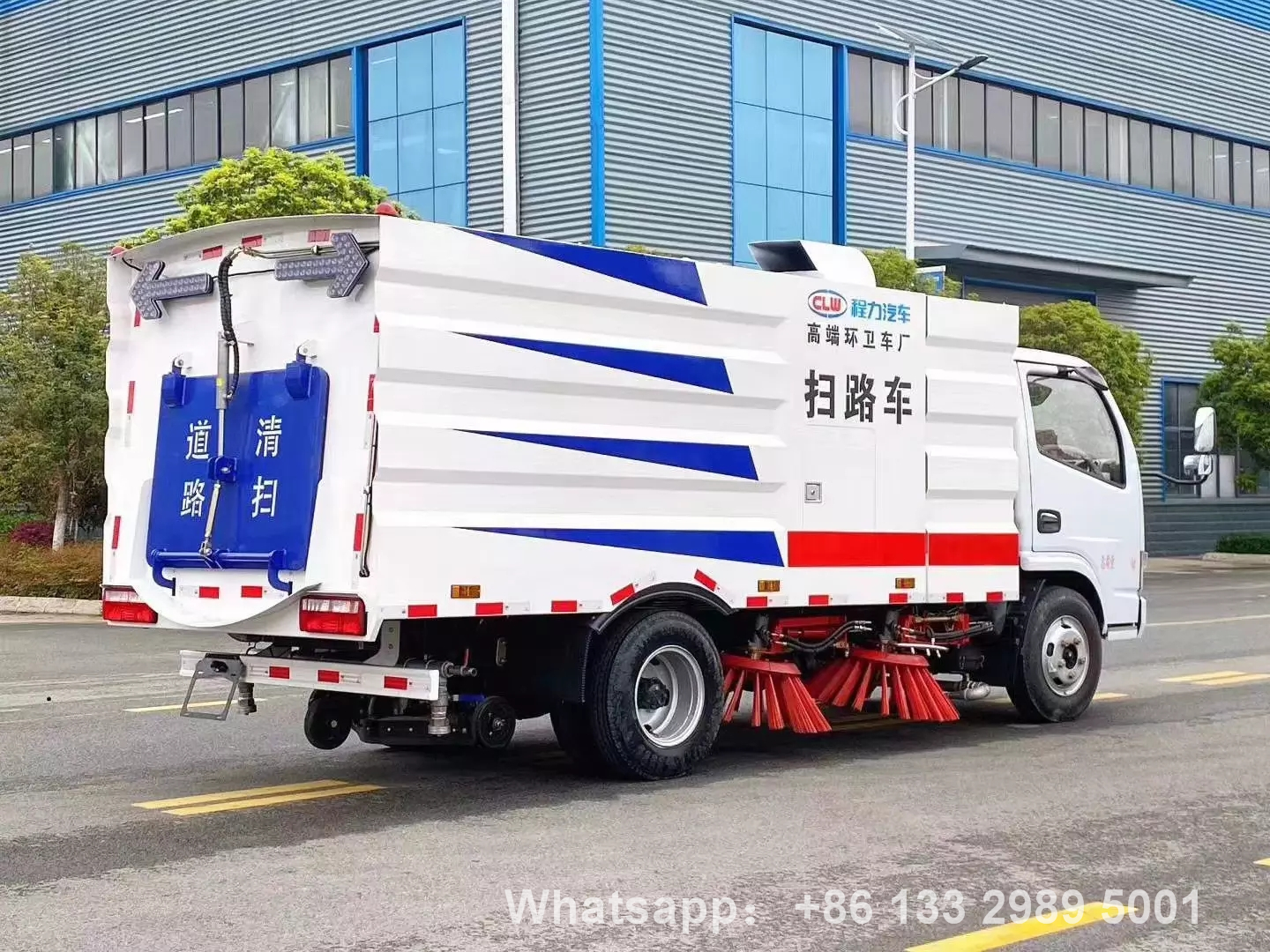

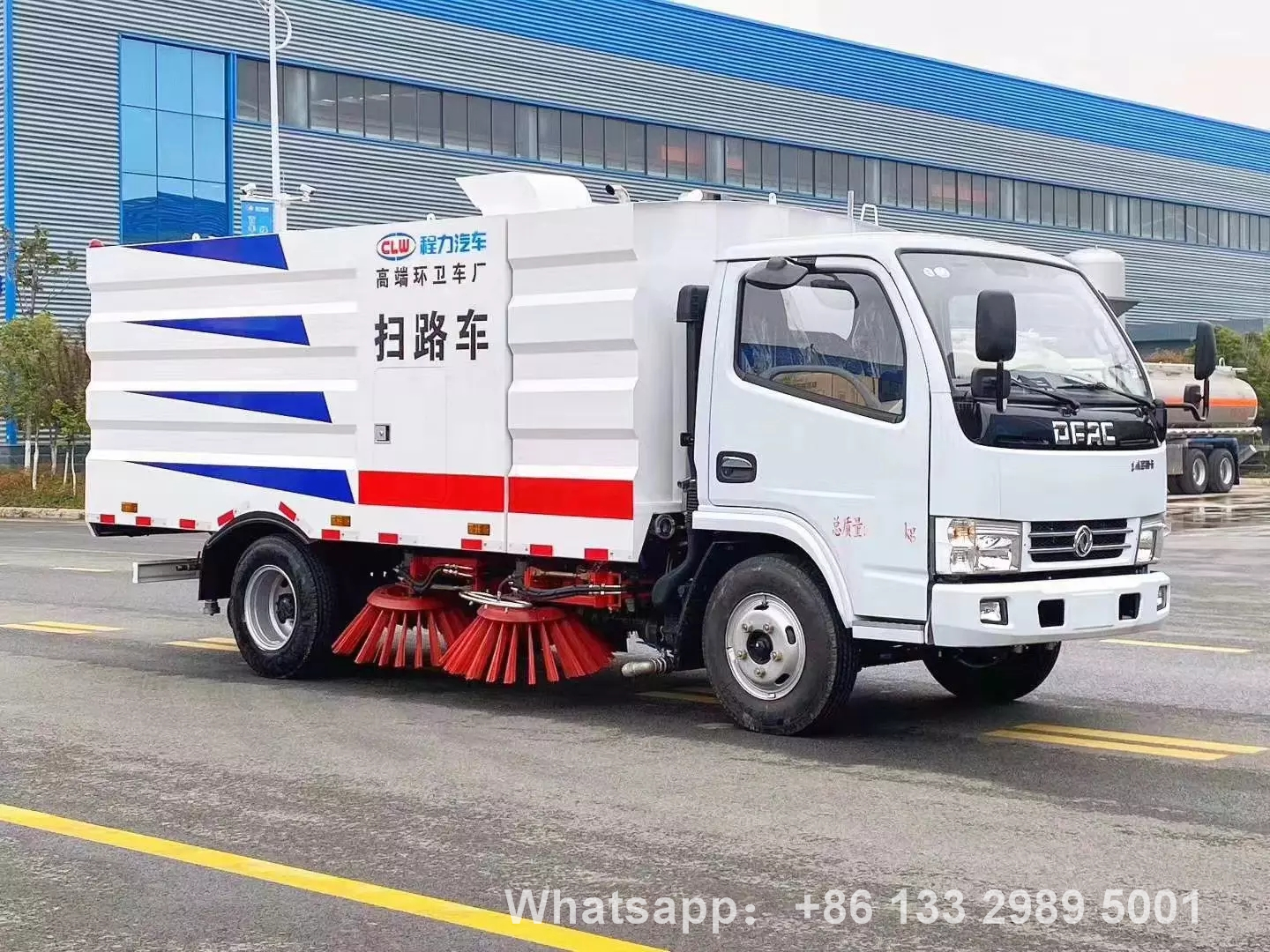

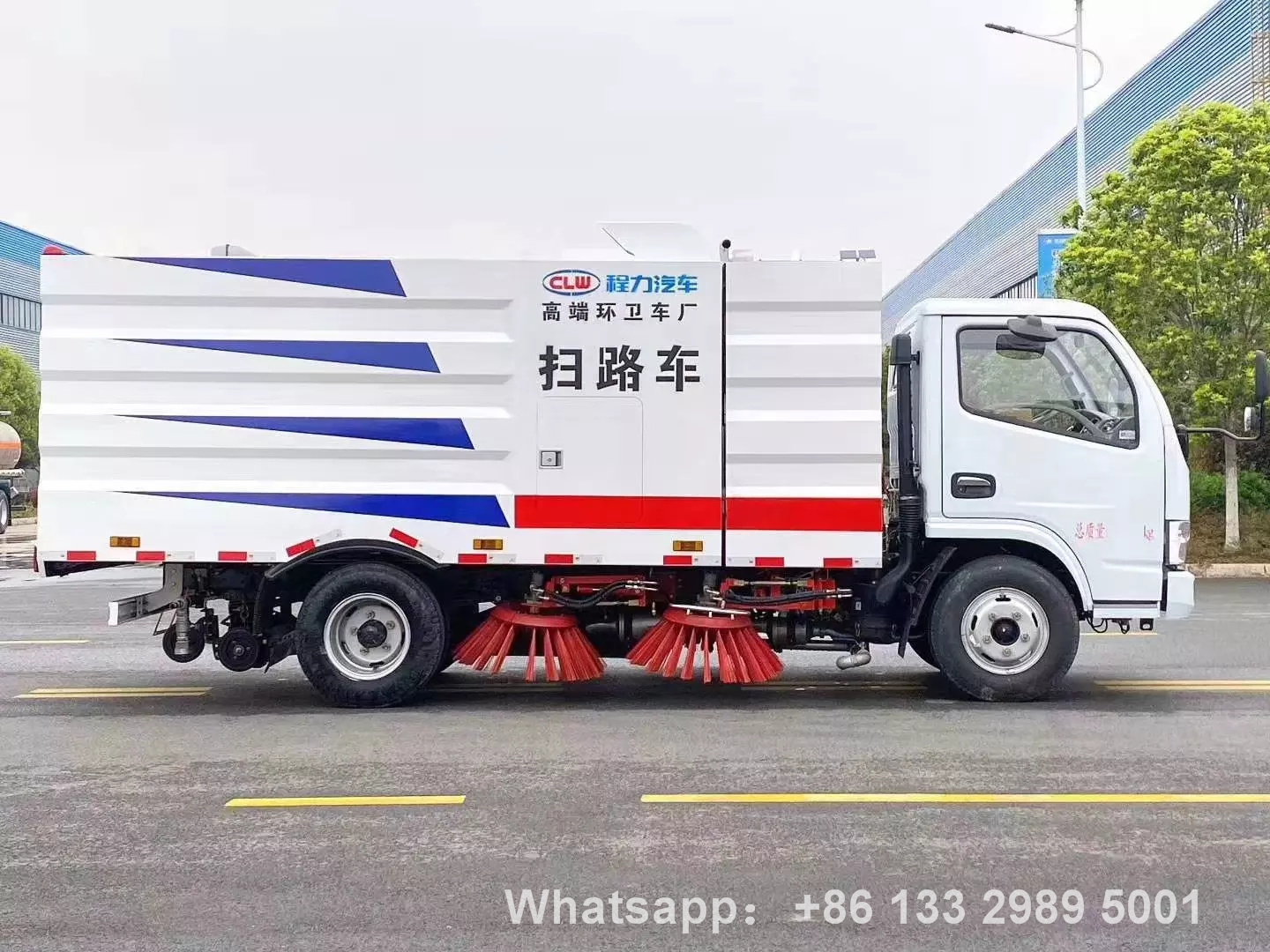

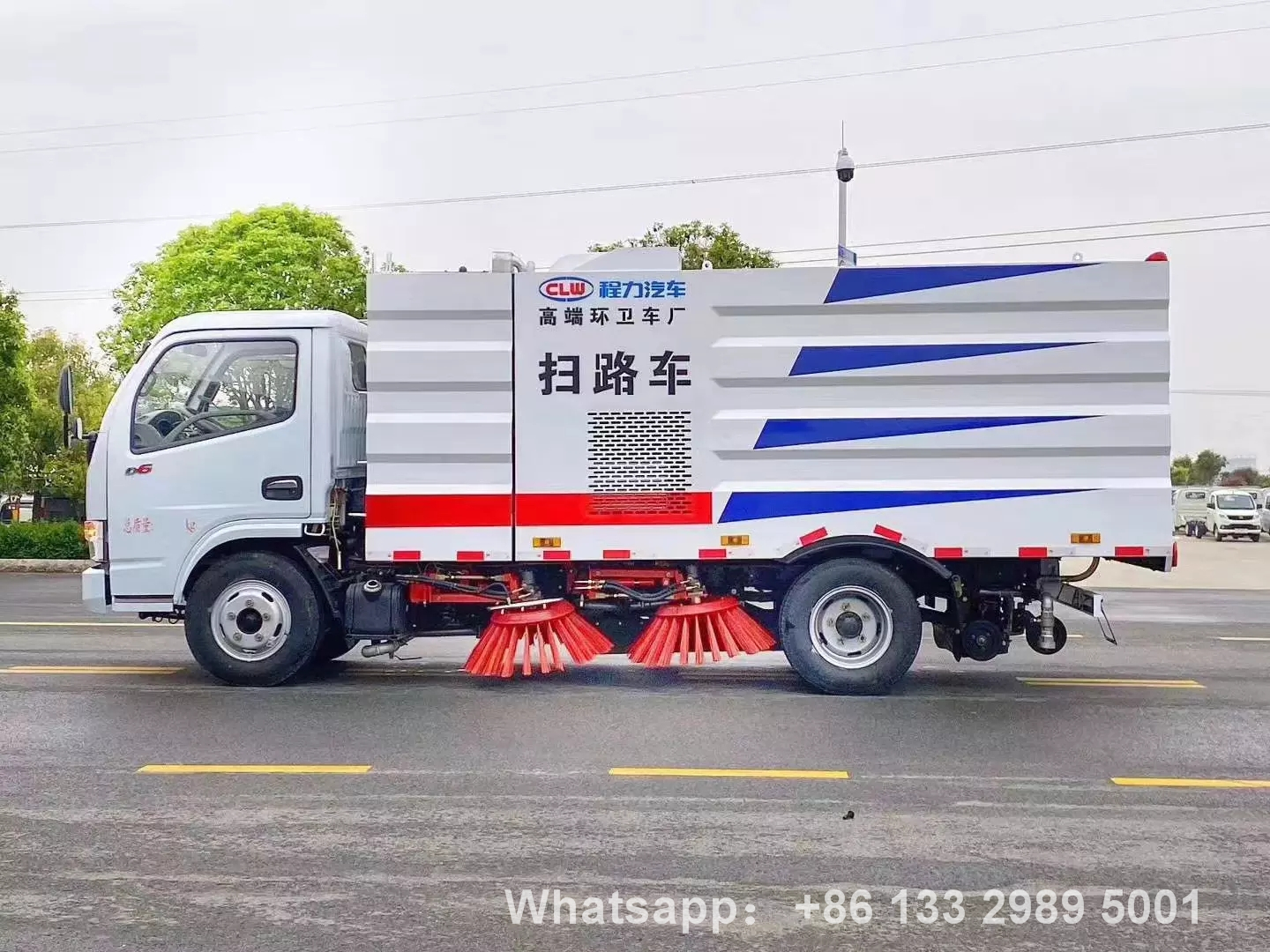

Dongfeng 5 ton road sweeper truck detailed image
