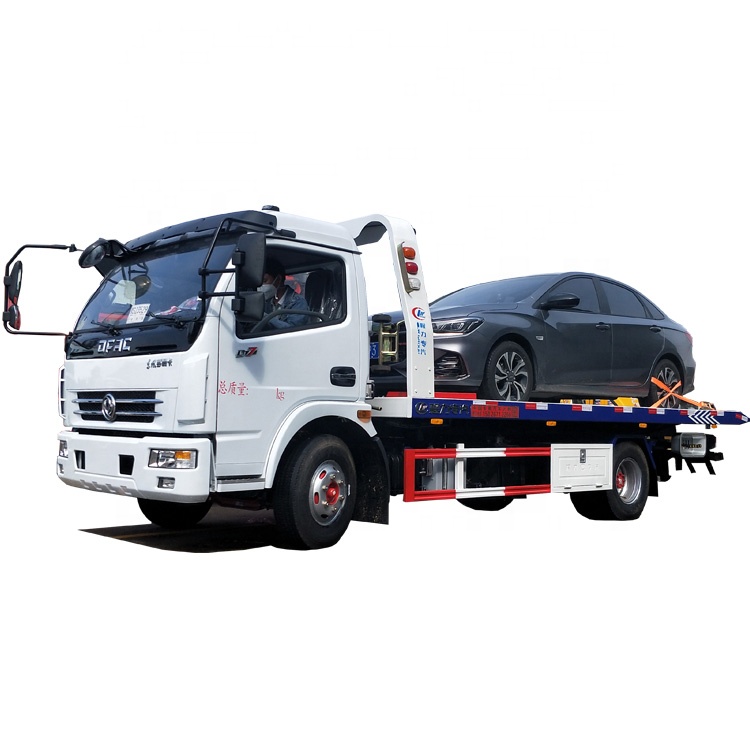

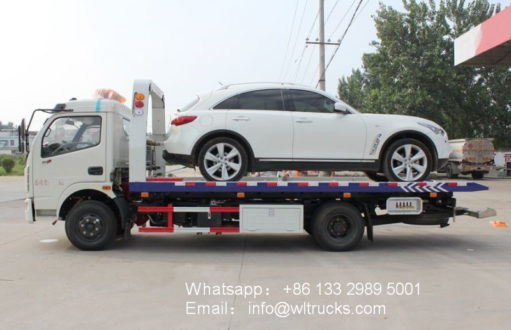

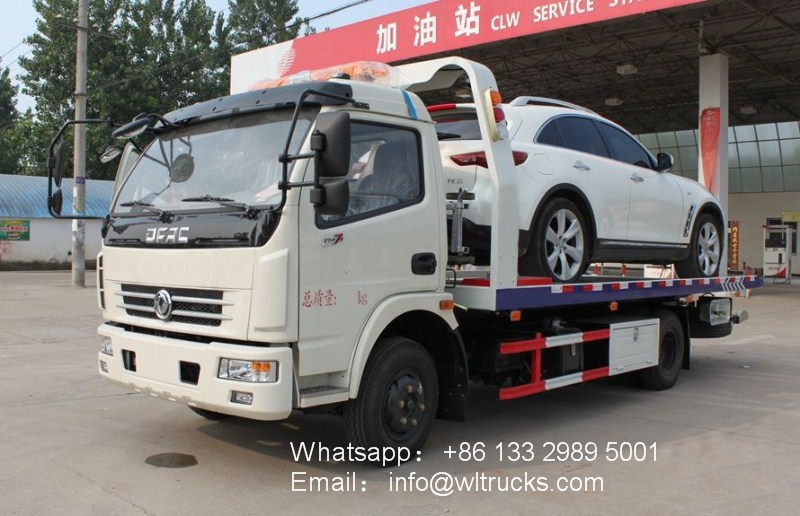

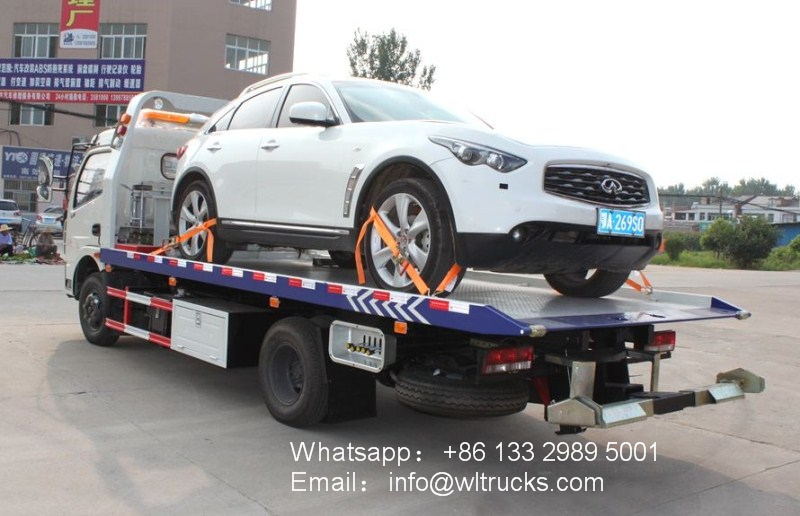

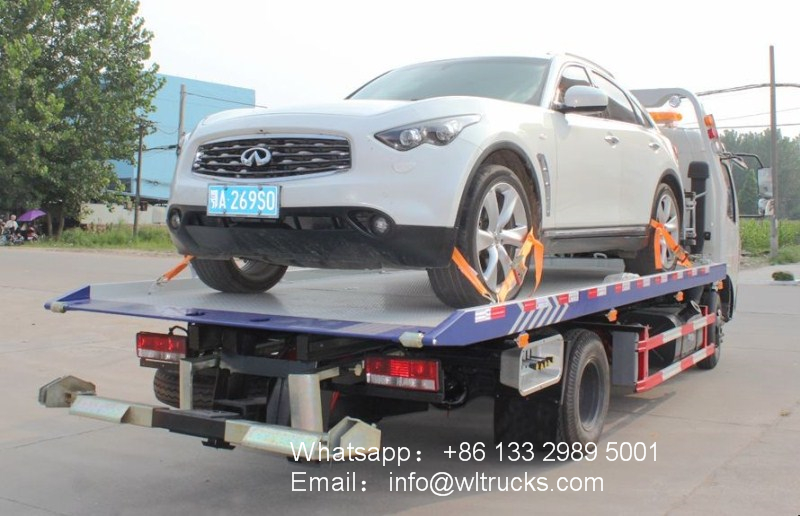

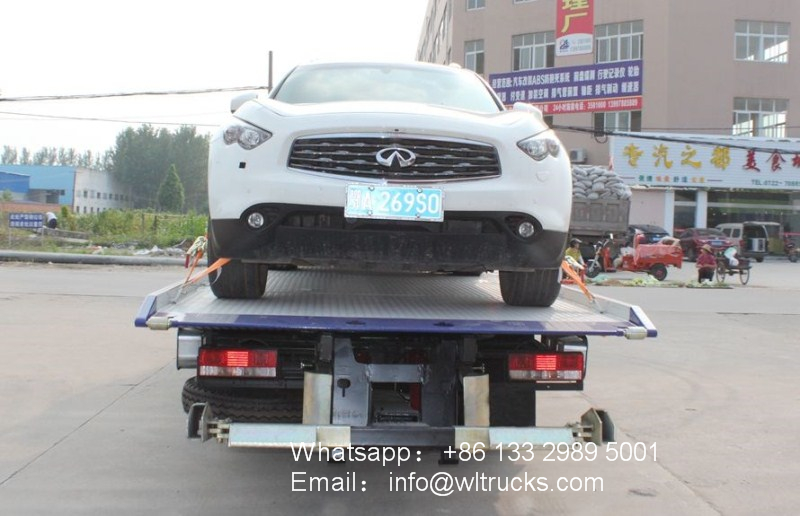

Dongfeng 5 ton flat tow trucks
The truck has a length of 5.6 meters and a width of 2.33 meters. The flat can use a new type of disposable stamping plate or 4 thick old pattern plates. The load capacity of the flat plate is 5 tons. 4 tons of tops, 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of 7-character forks, one set of onboard tools, 4 straps, two work lights, with yellow long Row of LED electronic warning lights.
Dongfeng 5 ton flat tow trucks specification:
|
Vehicle technical parameters
|
|||
|
product name
|
China Dongfeng 5 ton low bed tow truck
|
Dimensions (mm)
|
7470x2350x2440
|
|
Total mass (kg)
|
8275
|
Curb weight (Kg)
|
5110
|
|
Flat size (mm)
|
5600×2330
|
Plate thickness
|
4 thick
|
|
Hoisting specification
|
4 tons
|
Tops
|
4 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Dongfeng Dollyka
|
Chassis model
|
EQ1080SJ8BDC
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase (mm)
|
3800
|
Tire specifications
|
7.50R16 wire tire
|
|
Gearbox
|
5-speed shift
|
Rear axle (kg)
|
5000
|
|
Fuel type
|
Diesel
|
brake
|
Steam brake / gas brake
|
|
Emission basis
|
EURO 3
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
CY4SK251
|
Dongfeng Chaoyang Chaochai Power Co., Ltd.
|
3800
|
120
|
|
Top basic configuration
|
|||
|
The standard configuration
|
4 tons of tops, with 4 tons of winches, 25 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronic engineering lights, A set of car tools.
|
||
|
Optional configuration
|
It can be installed with imported parts, tow forks, towed forks, hand washing boxes, LED long row strobe lights, all falling floors.
|
||
Dongfeng 5 ton flat tow trucks Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
