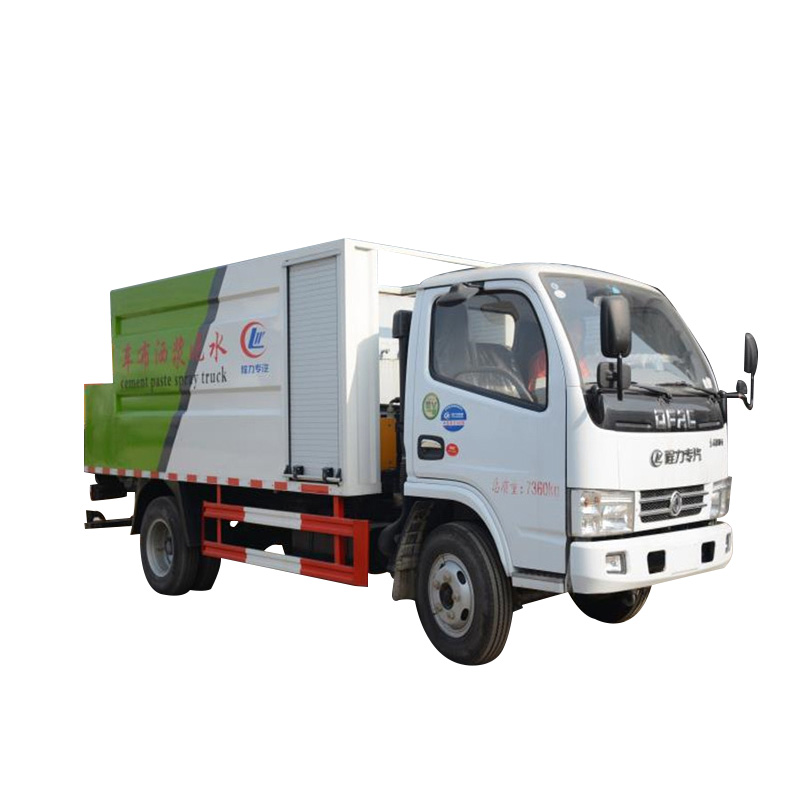

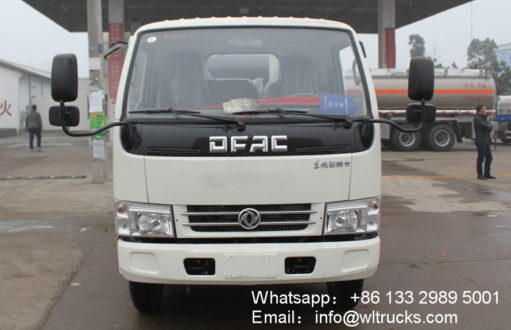

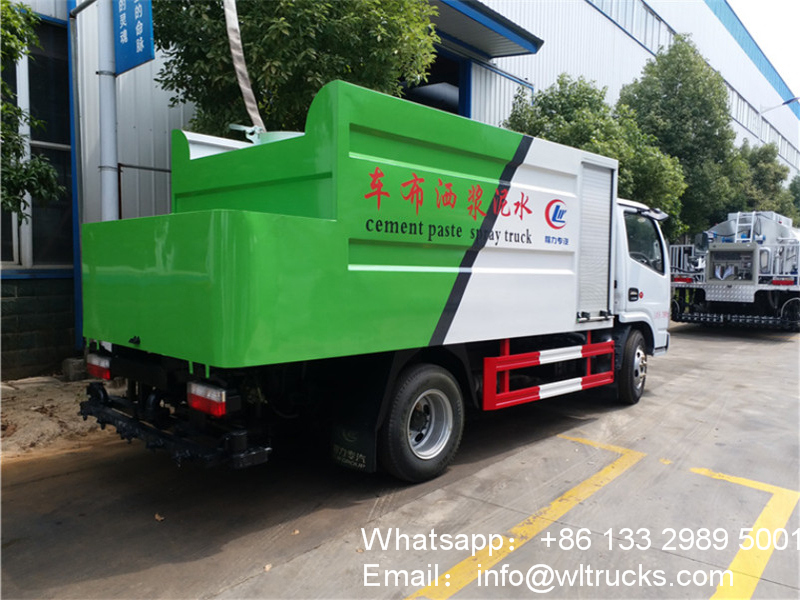

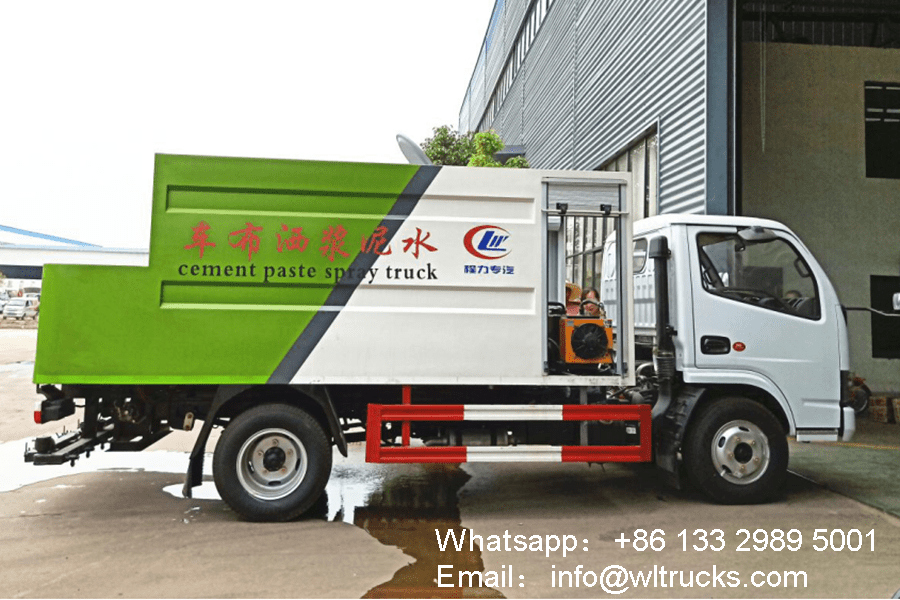

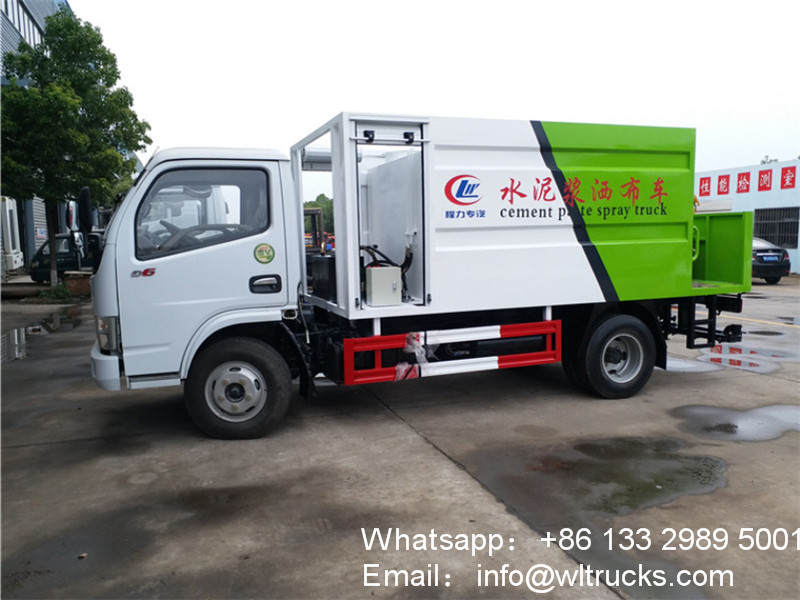

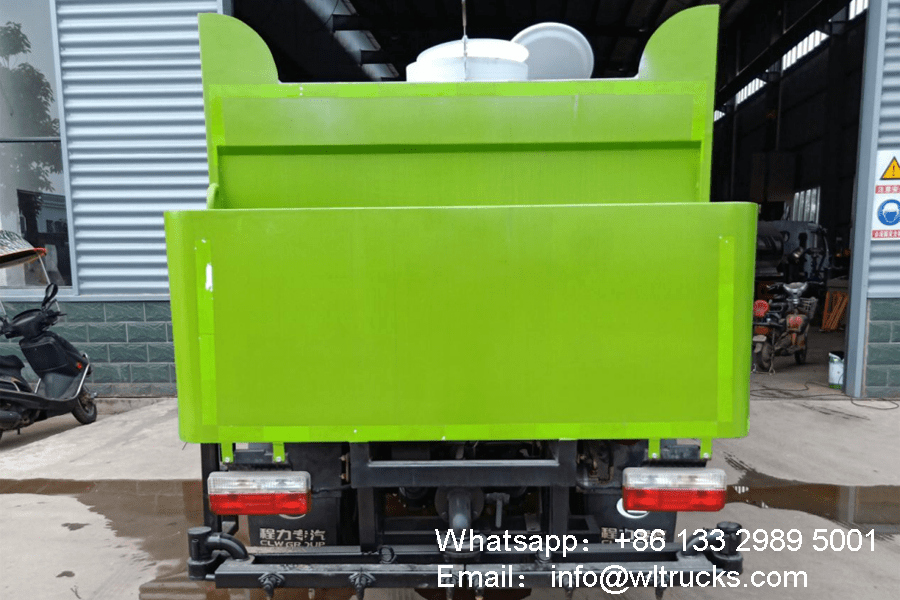

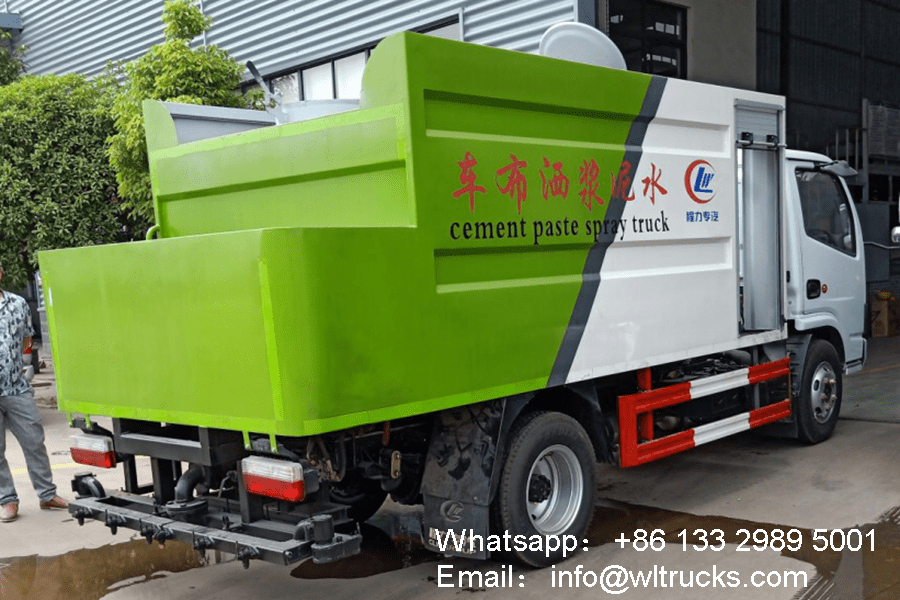

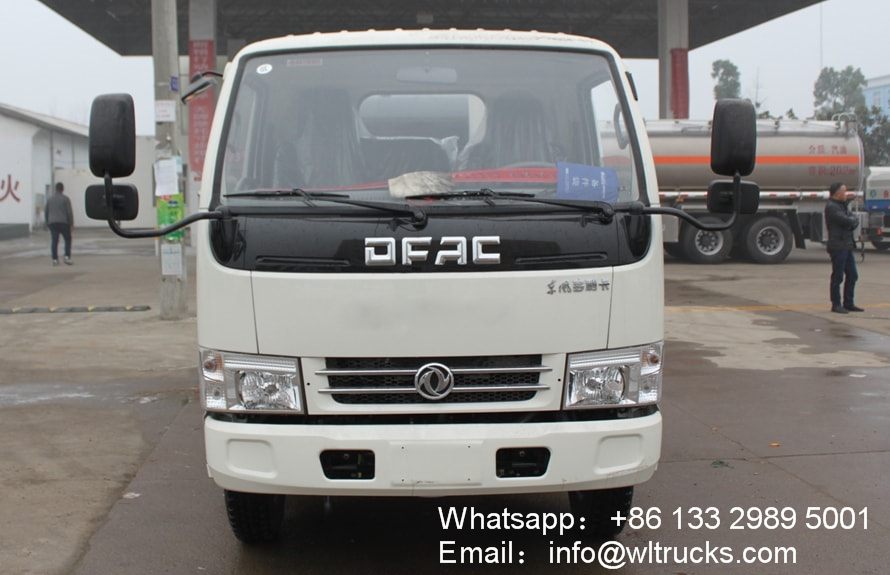

Dongfeng 4m3 Cement paste distributor spreader truck
Dongfeng 4m3 Cement paste distributor spreader truck independently developed by our company is a self-propelled vehicle-mounted equipment composed of an automobile chassis, a mixing tank assembly, a water system, a spray system, an auxiliary frame, and an electrical control system. Construction of grade highways. In the layered construction of the stable layer, the equipment can spread the cement paste between the upper and lower layers, and can also be used as a sprinkler. In the traditional construction, the spraying of cement paste is mainly done by manpower, which has the defects of large manpower input, poor spraying effect, and many hidden safety hazards. The cement cleaning slurry spraying truck adopts high-power mixing and a new spraying device, which can maximize the construction speed and ensure the best construction effect.
Performance introduction:
1. The whole machine has compact structure, reasonable layout and low center of gravity, which can ensure the stability of the equipment;
2. The whole machine adopts humanized design, has enough maintenance space, and can complete the equipment maintenance quickly and conveniently;
3. Adopt double-shaft horizontal stirring, with uniform stirring and high construction efficiency;
4. With a separate working power system, when the equipment runs at a lower working speed, it can still provide strong power;
5. The top can be used as an independent product;
6. The spreading rod can be adjusted up and down at any time to change the spreading width to ensure the spreading effect; the special nozzle structure can spread high-concentration cement paste.
specification:
Configuration Parameter Table of Dongfeng 4 Cube Cement Cleaner Sprinkler
Serial number | name | Specifications |
1 | Vehicle model | CLW5070TJSE5 |
2 | Chassis model | EQ1070SJ3BDF |
3 | engine model | 4B2-115C50 |
4 | Gearbox | Wanliyang 5-speed gearbox |
5 | Wheelbase | 3308mm |
6 | Tire | 7.00R16 steel tire |
7 | Dimensions | 5950×2020×2400mm |
8 | Curb quality | 4280kg |
9 | Total quality | 7360kg |
10 | Water tank | 1200L |
11 | Cement slurry mixing tank | 2500L |
12 | High pressure cleaning water pump | Black Cat brand high pressure water pump |
13 | High pressure cleaning water pump motor | GM5-20 |
14 | Cement pump | CLWT-10010-2 |
15 | Cement pump hydraulic motor | GM5-16 |
16 | Cement slurry mixer | CLWT-10018-6 |
17 | Cement slurry mixer motor | BMR-125 |
18 | Hydraulic pump model | GPC4-32-25 |
19 | Hydraulic valve model | SQDB-L15F |
20 | Regulating valve | 40L |
twenty one | Spreading width of cement slurry | 4 meters |
twenty two | Spreading amount of cement slurry | 1.5Kg/㎡ |
