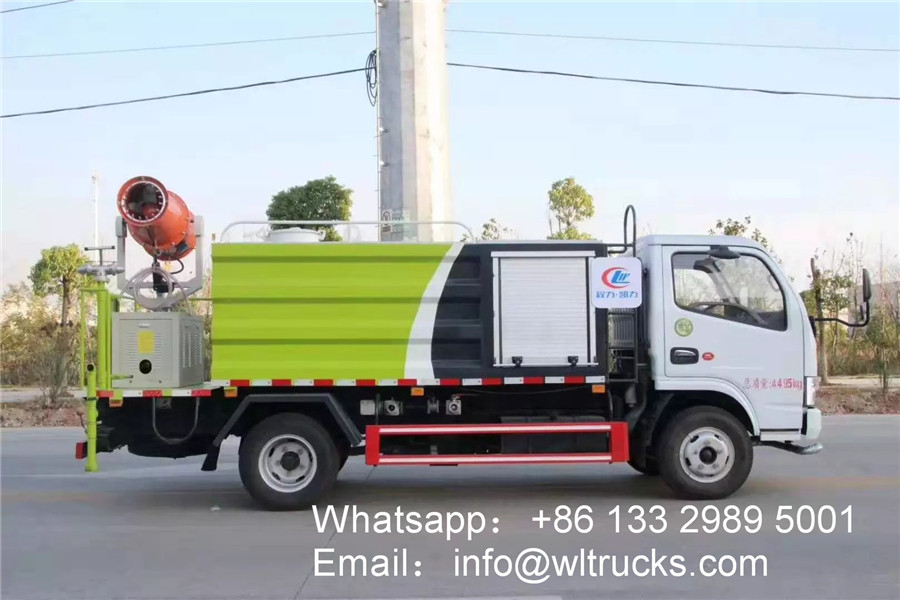

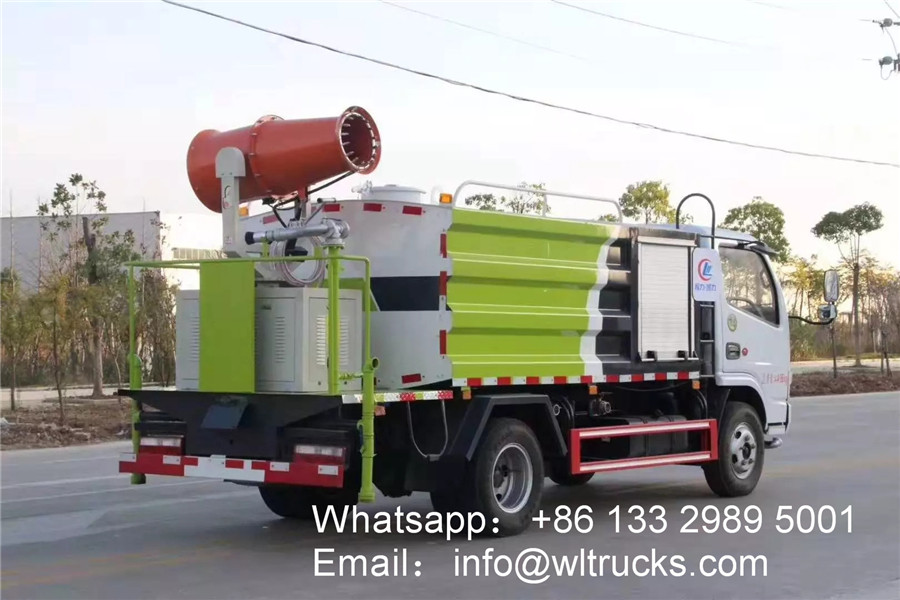

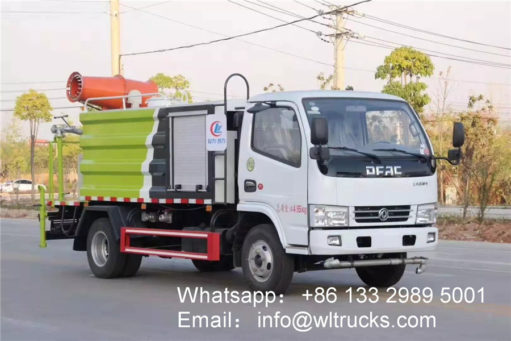

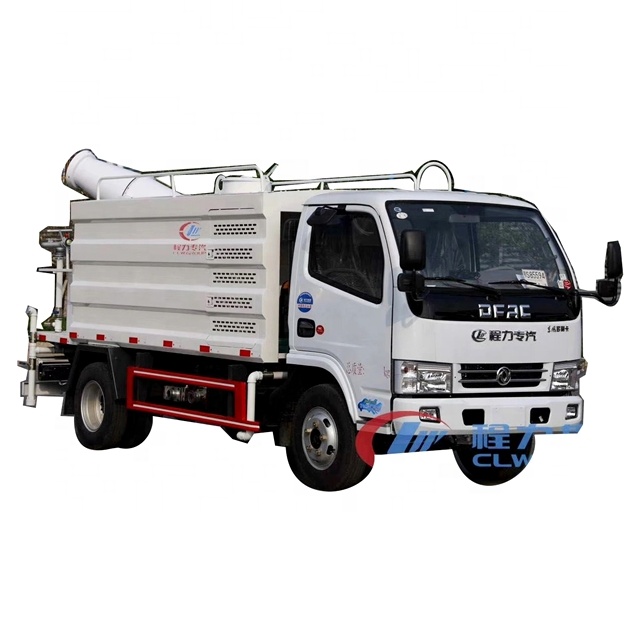

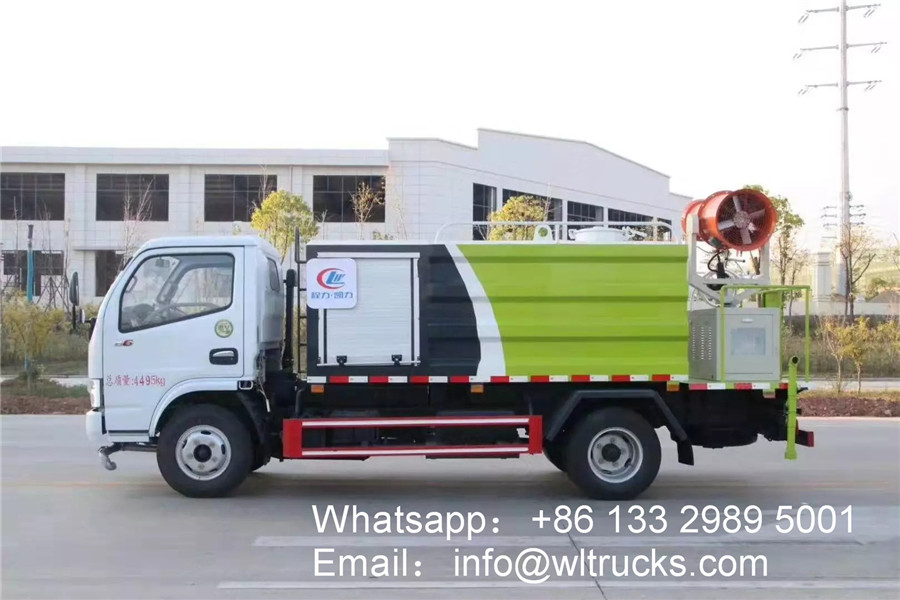

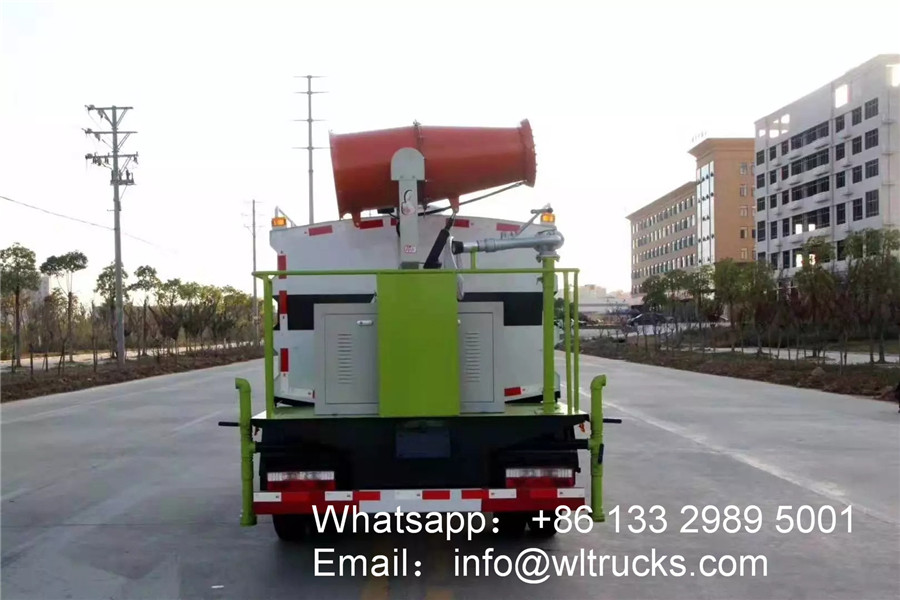

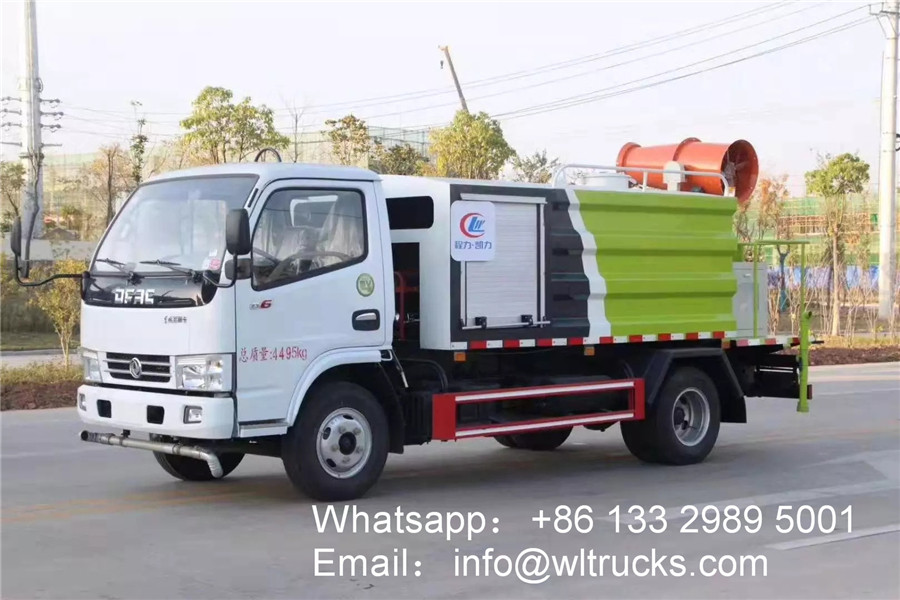

Dongfeng 30m to 40m 4500L Disinfection truck Adopt Dolica D6 white cab, wheelbase 3.3 meters, Ou Sanchao 95 horsepower engine, 5-speed gearbox, 700 steel tires, air brake, ABS.Top-loading configuration: the volume of the new square tank is 4.5 cubic meters, the interior of the tank is anti-corrosion and anti-rust, equipped with a high-power sprinkler pump, a high-power auxiliary engine, and a fog gun unit at the rear (according to customer requirements). Function, perfectly achieve the effect of dual use of one car.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection truck :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
Spray unit | 30m-120m optional | Water pump brand | China pump |
way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing |
Dongfeng 30m to 40m 4500L Disinfection truck Specification:
Condition | New condition/Left/right hand drive/ | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 3360 | ||
Loading weight(kg) | 4950 | ||
Gross weight(kg) | 7360 | ||
Wheelbase(mm) | 3300 mm | ||
Dimensions(mm) | 6000x2100x2400mm | ||
Front Loading Capacity (Ton) | 2 | ||
Rear Loading Capacity (Ton) | 4.5 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: engine exhaust valve brake | |||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 7.00-16 | ||
Transmission | Manual type,5 Forwards and 1 reverse | ||
Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
Engine | Brand | Chaochai | |
Fuel type | Diesel | ||
Horsepower(HP) | 95HP | ||
Cylinder number | 4 | ||
Emission standard | Euro 3 | ||
Upper | |||
Water tank | Capacity(cbm/tons) | 5/5 | |
Tank Dimension(mm) | 3420x1700x1000mm | ||
Tank material | Q235 carbon steel | ||
Thickness(mm) | 5 | ||
Water pump | China local brand | ||
Suction Height | 7M | ||
Function | 1, Front Side Rear Sprinkling width≥14m | ||
2, Water cannon range≥28m | |||
Spray | Maximum range | 30 meters | |
Spray flow | 18 -28 | ||
Generator power | 6.5 KW | ||
Rotation angle | 360 degree | ||
Control system | automatic / manual | ||
Remarks | 1. AM/FM radio | ||
2. 2pcs water hose. | |||
3. Color is optional |
Disinfection truck structure composition:
Disinfect truck New craft:
disinfectant trucks Optional configuration:
Dust suppression truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Dust suppression vehicle Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
