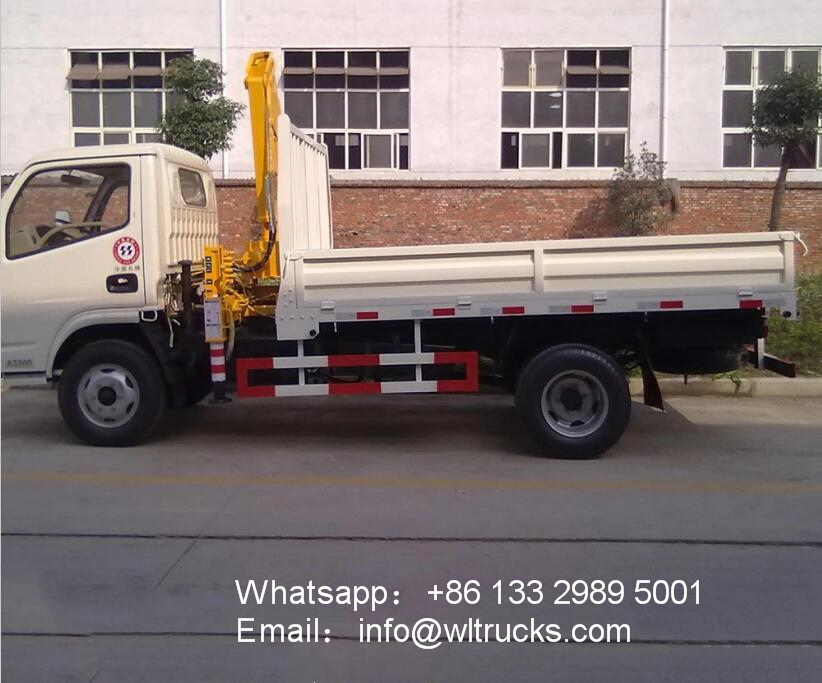

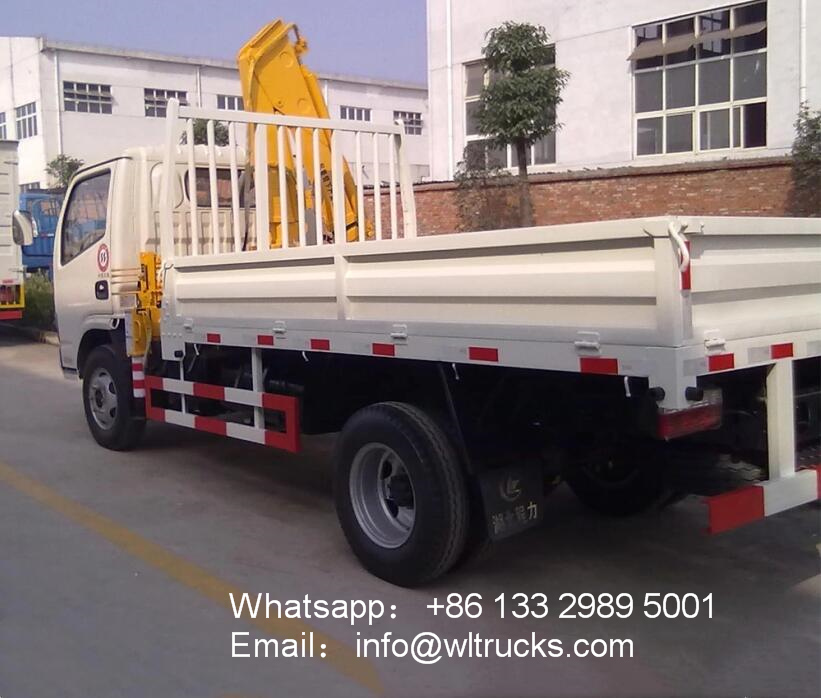

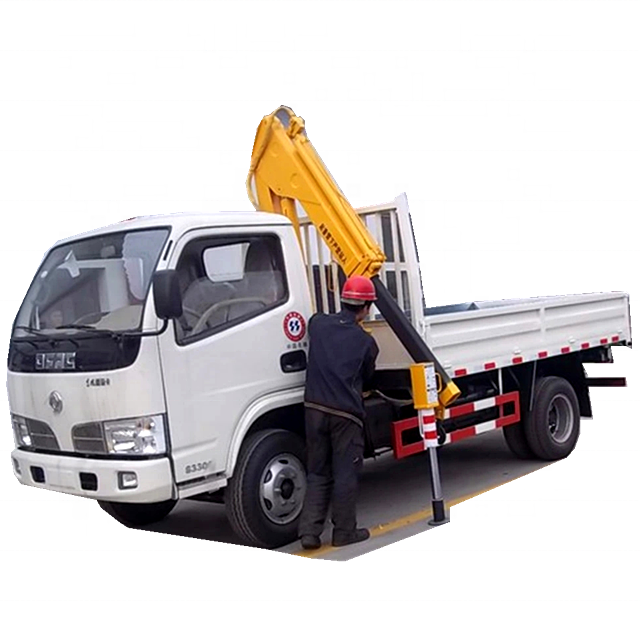

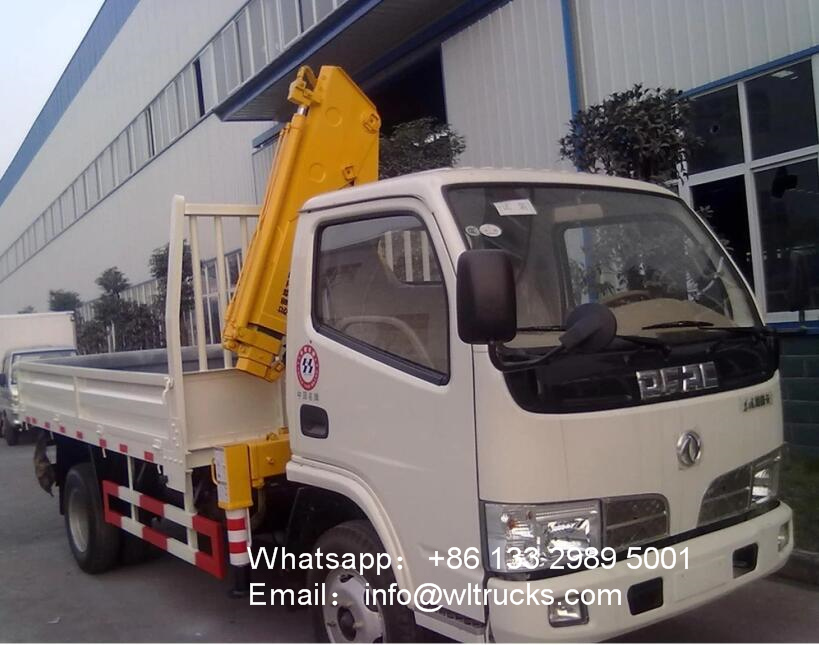

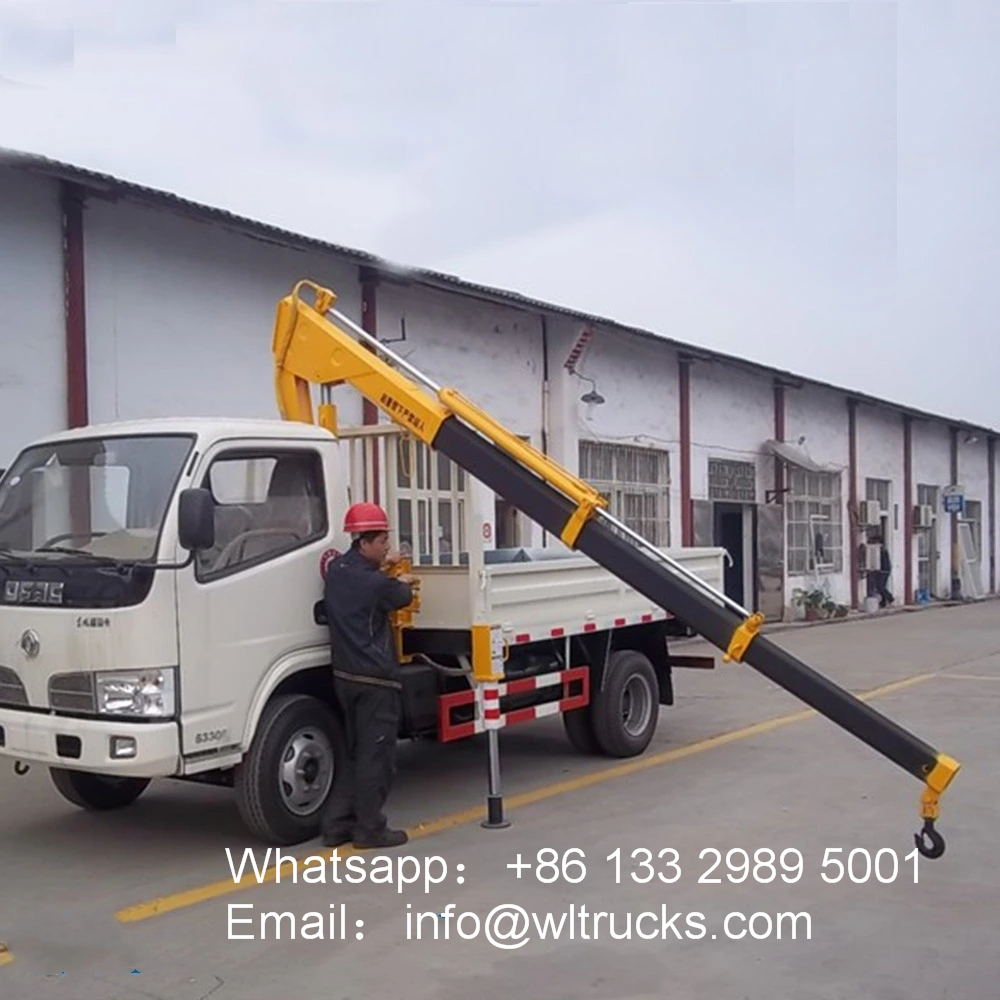

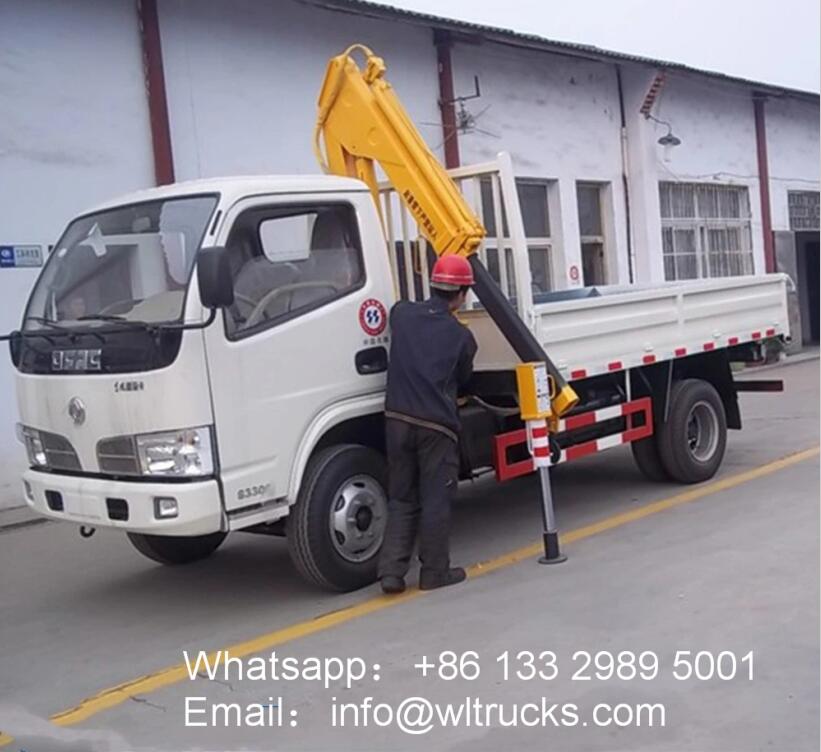

Dongfeng 2ton 3ton folding arm truck mounted crane
Dongfeng 2ton 3ton folding arm truck mounted crane Adopt Dongfeng D6 Dorica cab, Ou Sanchao 95 horsepower, 5-speed gearbox, wheelbase 3300mm, 700-16 tires, standard cargo box can be made into 3.5 meters manual telescopic or hydraulic telescopic cargo box, the rear can be Equipped with ladders, automatic unloading elevators, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Dongfeng 2ton 3ton folding arm truck mounted crane specification:
| Truck Specification | ||
| Chassis model | CL040SCQZ01 | |
| Cab | Dongfeng single row cab, with power steering. Electronic flameout,left hand drive | |
| Driving Type | 4*2 | |
| Max Speed (km/h) | 99 | |
| Overall dimension(mm) | 5950×1980×2890 | |
| Mass in working order( kg) | 4490 | |
| GVW( kg) | 3790 | |
| Wheelbase(mm) | 3300 | |
| F/R track base (mm) | 1032/1618 | |
| Tire | 7.00R16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-30 | |
| Bridge | Front axle | 2T |
| Rear axle | 4T | |
| Engine | Model | YC4F115-30 |
| Horse power | 115 | |
| Displacement | 265 | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Model | SQ2Z1, SQ3.2Z1, SQ3.2Z2 | |
| Match the truck | Above 1 tons loading truck | |
| Assembling space (mm) | 800,850 | |
| Max lifting weight (t) | 2, 3.2 | |
| Max lifting height (m) | 6.8-10.7 | |
| Max working radius (m) | 5.1-7.6 | |
| Number of arms | 1,2,3 | |
Dongfeng 2ton 3ton folding arm truck mounted crane Working parameter:
