Dongfeng 10ton to 15ton hook arm garbage truck Product Description:
Dongfeng 10ton to 15ton hook arm garbage truck Chassis configuration: Dongfeng Tianjin chassis, new D913 cab, Cummins 170-horsepower, 190-horsepower / 210-horsepower engine, Fast 8-speed gearbox, 1000 tires, air brake
Dongfeng 10ton to 15ton hook arm garbage truck Bodywork configuration: Enhanced main arm, 12-15 tons hook capacity, electronically controlled hydraulic operation, remote control operation, hydraulic rear legs.
Dongfeng 10ton to 15ton hook arm garbage truck Specifications:
| Drive type | 4*2, New condition, LHD/RHD | |
| Vehicle Main Dimensions | (L x W x H)mm | 7500×2470×3150 |
| Wheel base (mm) | 4500 | |
| F/R Axle-Load | 4500/9000kg | |
| Approach/departure angle | 20/13 | |
| Curb weight | 7660 kg | |
| GVW | 15800 kg | |
| Max. driving speed(km/h) | 98 | |
| Engine | Model | Cummins |
| Horse Power(HP) | 170 190 | |
| Emission standard | Euro 3 | |
| Gearbox | 6 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 9.00R20, 7 pc including 1 spare tire | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Garbage Compactor Standard confirguration | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Thickness of box | 5mm | |
| Garbage Box Volume | 12cbm | |
| Container Roll on time(s) | 50-60 | |
| Container Roll off time(s) | 40-50 | |
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | |
Dongfeng 10ton to 15ton hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
Dongfeng 10ton to 15ton hook arm garbage truck New craft:
Dongfeng 10ton to 15ton hook arm garbage truck Optional configuration:

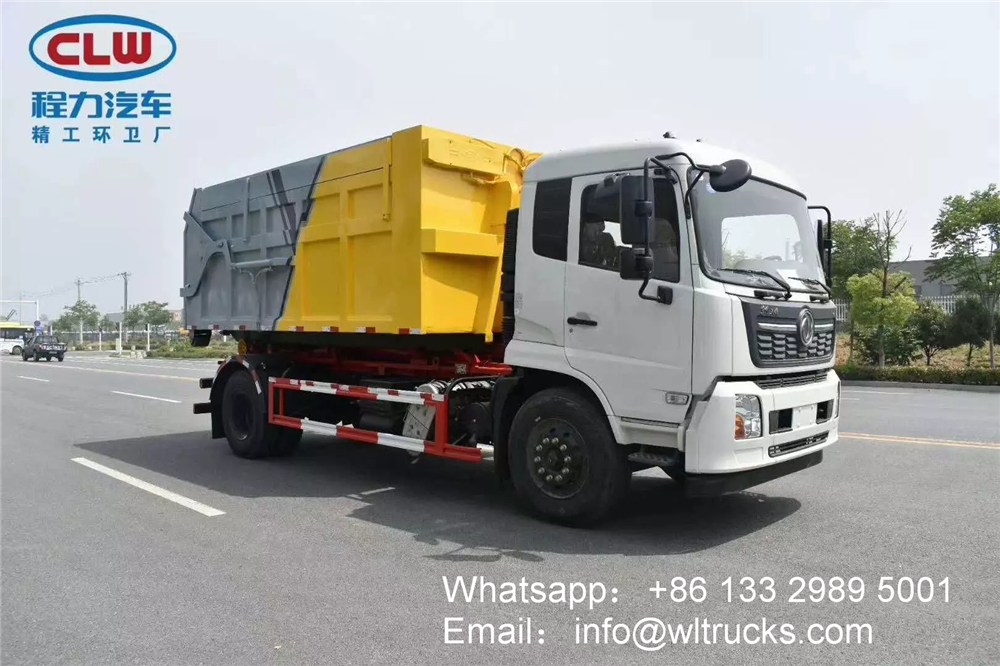

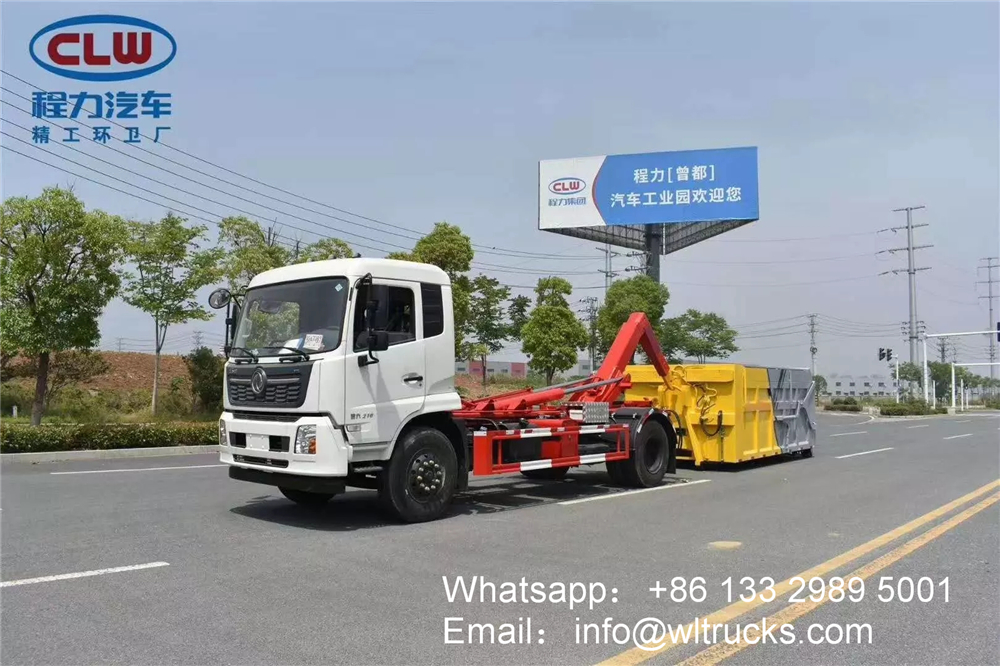

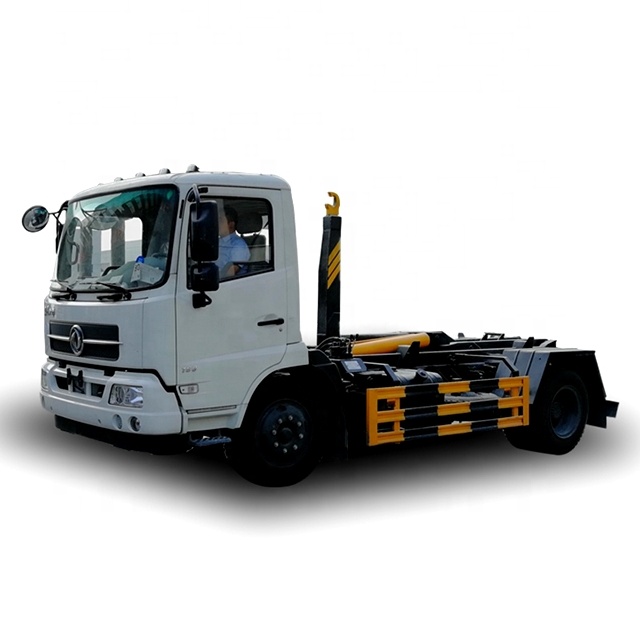

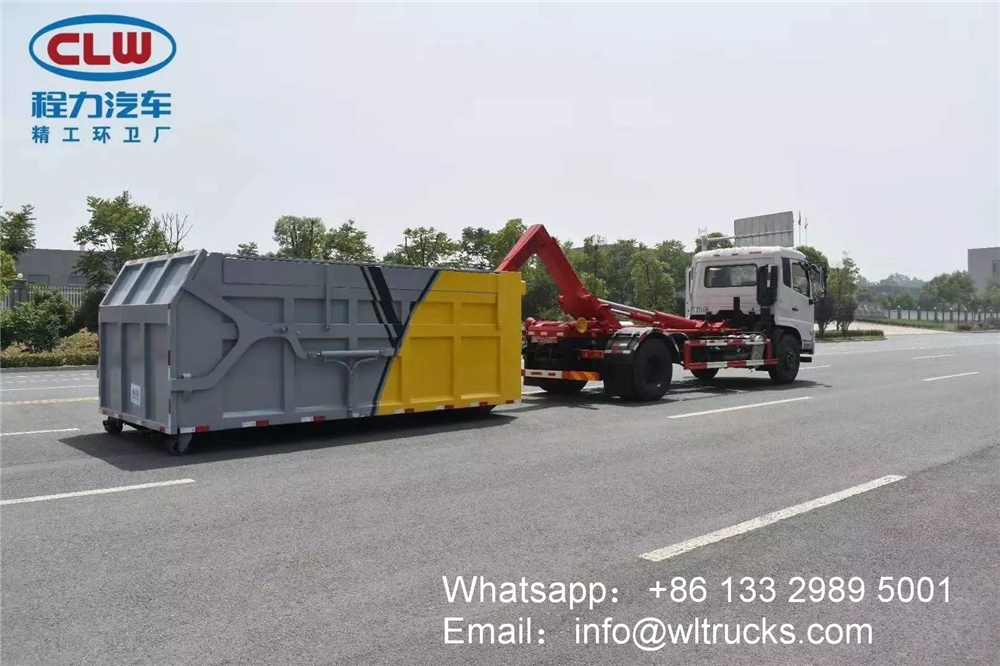

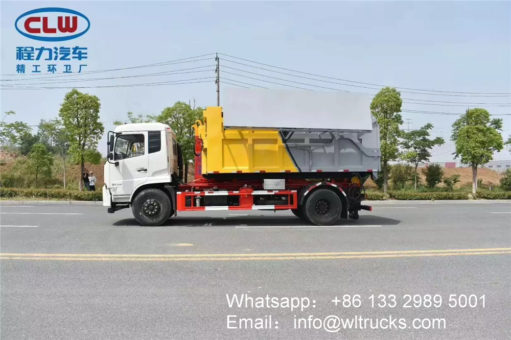

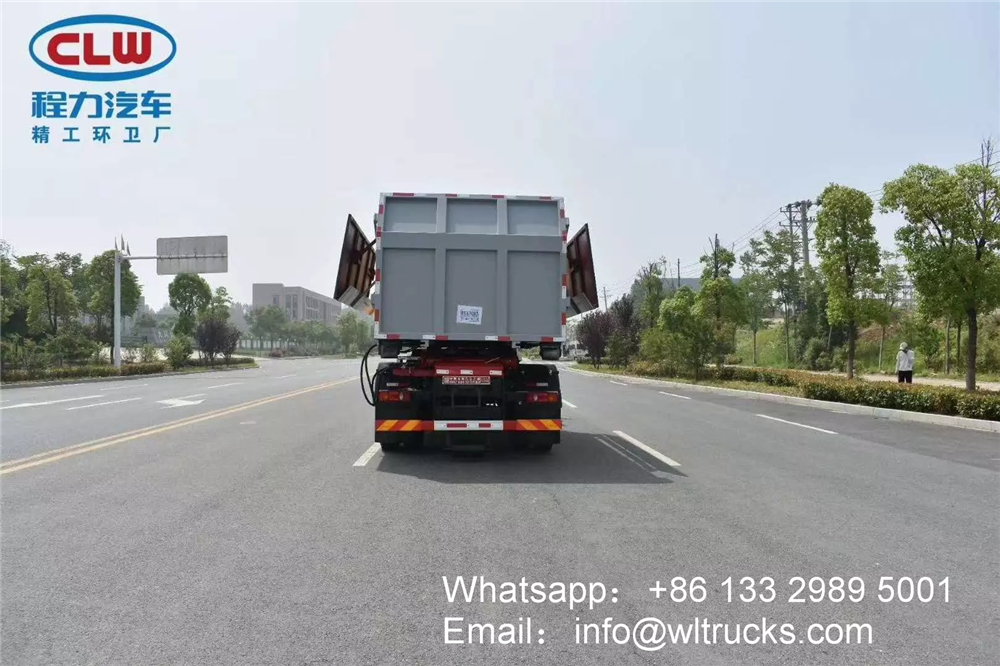

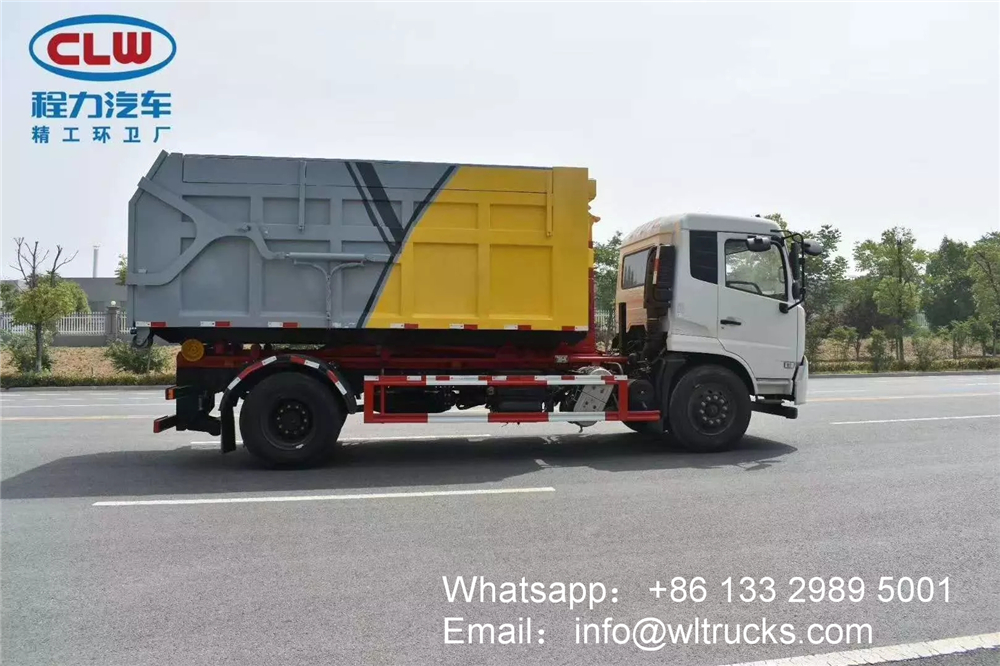

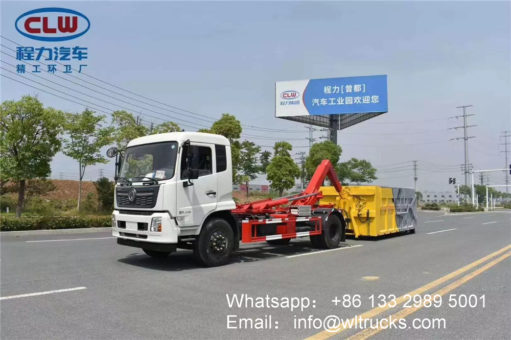

Dongfeng 10ton to 15ton hook arm garbage truck detailed images:
Dongfeng 10ton to 15ton hook arm garbage truck Structure diagram：
Dongfeng 10ton to 15ton hook arm garbage truck Detail drawing:
Customizable garbage truck models
