DongFeng 10m3 vacuum sweeper truck adopts Dongfeng Tianjin Sino-Japanese joint venture DFL1160BX luxury original chassis, row and half with horizontal reclining cab, 4500mm wheelbase, Cummins 190hp Euro III diesel engine, Dongfeng 6-speed gearbox, 9 tons rear axle 9.00 tire with directional boost, clutch booster, and air brake.
DongFeng 10m3 vacuum sweeper truck Bodywork configuration:
2 cubic water tank, 8 cubic stainless steel waste bin, center suction cup, Cummins sub-engine, Schneider control switch, Hypres solenoid valve group, infinitely variable automatic clutch, maintenance-free centrifugal fan, stainless steel waste bin, high precision waste bin Filter system (up to 0.3 microns), imported pulse valve, PLC one-key intelligent control system, tail LED arrow light, manual pump emergency system, fog spray water wetting function at the rear. Optional front snow shovel and snow sweeper are optional.
| Vehicle technical parameters | |||
| Vehicle name : | Dongfeng Tianjin vacuum cleaner | company name: | Chengli Special Purpose Vehicle Co., Ltd. |
| Vehicle model : | CLW5160TXC5 | Catalog number : | ( 17 ) 74 |
| Total quality | 15800 (Kg) | Volume : | 10m 3 |
| Rated contained mass | 5605 (Kg) | Curb quality | 10000 (Kg) |
| Dimensions | 8450 × 2500 × 3100 (mm) | Cargo compartment size | ×× (mm) |
| Rated passenger | ( Person ) | Total mass of quasi-trailer | (kg) |
| Cab : | Front passengers : | 3 ( person ) | |
| Anti-lock brake system : | Have | Load utilization factor | |
| Approach angle / departure angle : | 20/12 ( ° ) | Front suspension / rear suspension : | 1430/2320 (mm) |
| Number of axes : | 2 | Wheelbase : | 4700 (mm) |
| Axle load : | 5600/10200 | Maximum speed : | 98 (km / h) |
| other | 1.The corresponding relationship between the length of the vehicle and the wheelbase is (mm): 8450 / 4700.2, protective material : Q235A carbon steel , connection method : left and right side protection exemption , the rear lower protection and the auxiliary beam are bolted , and the rear protection cross-sectional size ( mm): 50 × 240, rear protection height above ground (mm): 450. | ||
| Chassis technical parameters | |||
| Chassis model | DFL1160BX1V | Chassis enterprise : | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of tires | 6 | Number of springs : | 7/9 + 6,8 / 10 + 8 |
| Tire specifications : | 9.00R20 16PR | Transmission type : | |
| Front track : | 1880,1900,1920 | Rear track : | 1800,1860,1820 |
| Chassis emission standards : | GB3847-2005, GB17691-2005 National V | ||
| Fuel type : | Diesel | Fuel consumption : | |
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 132 |

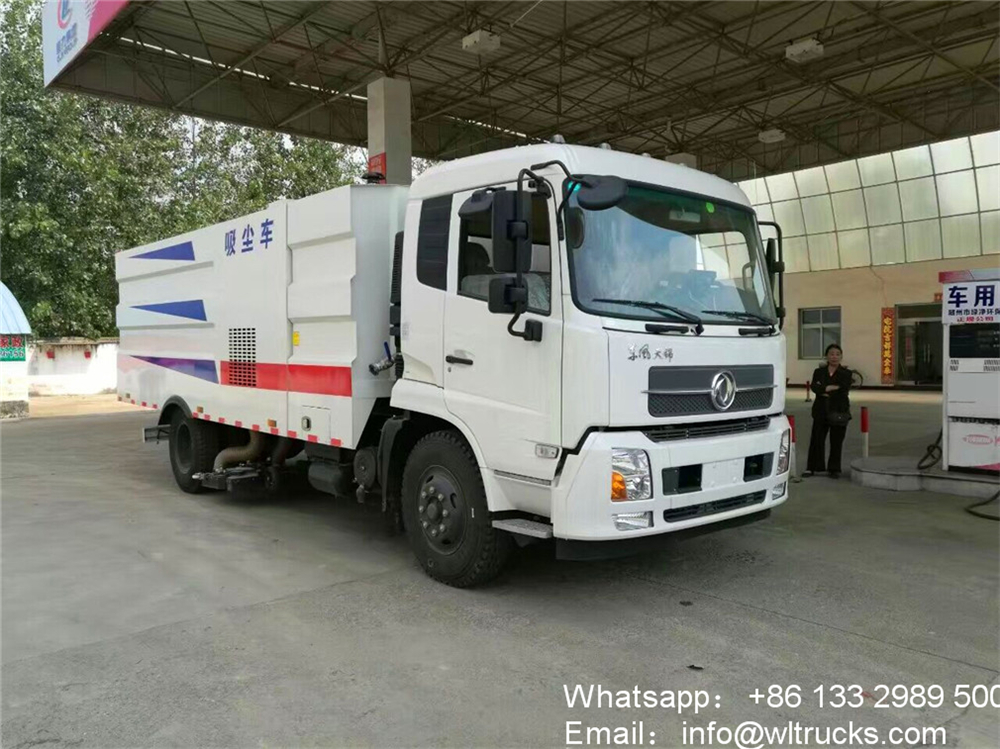

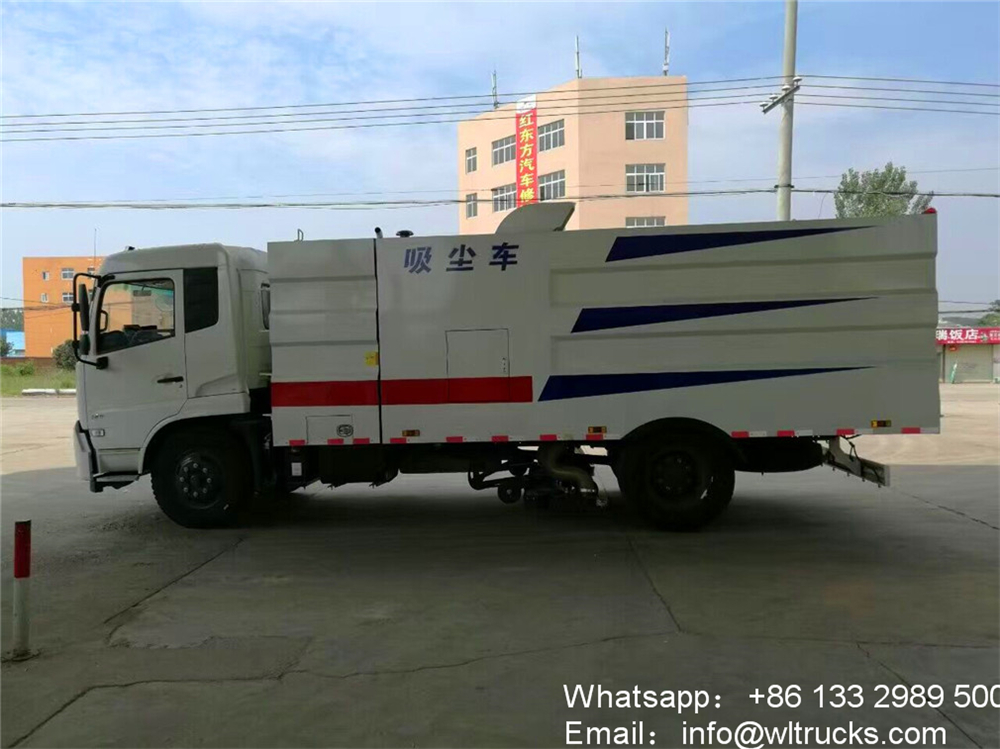

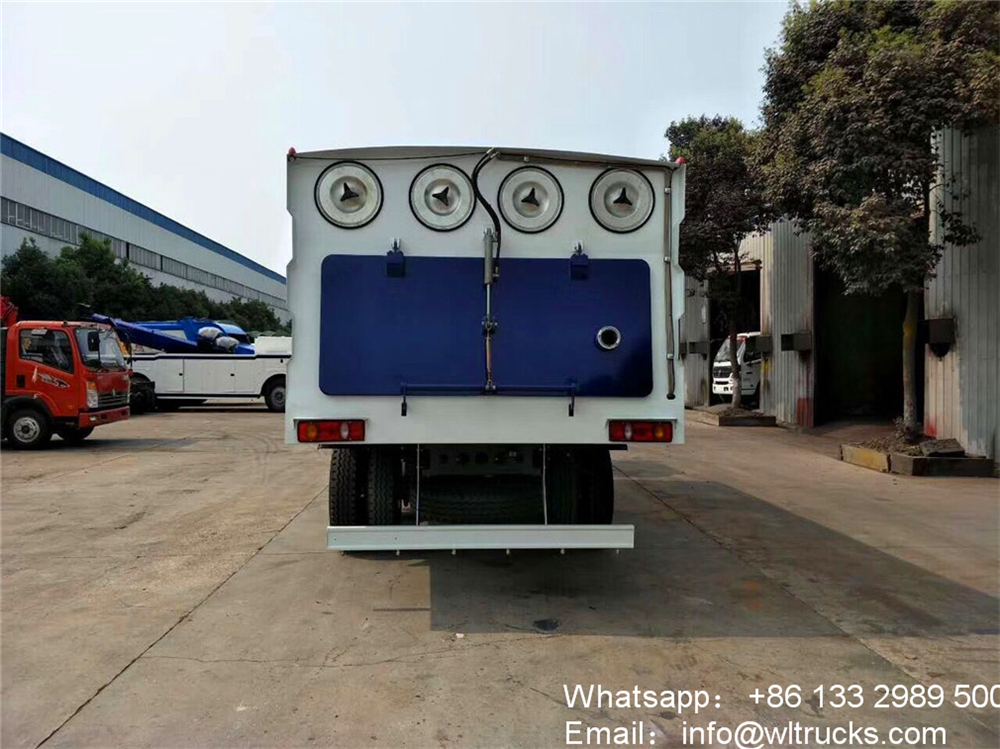

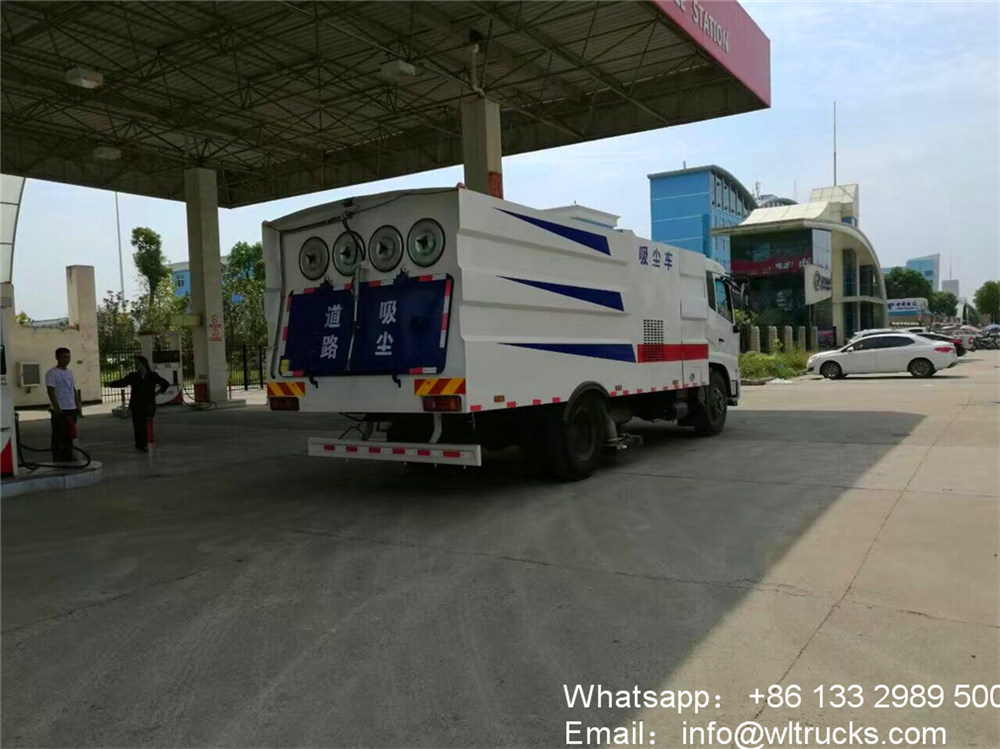

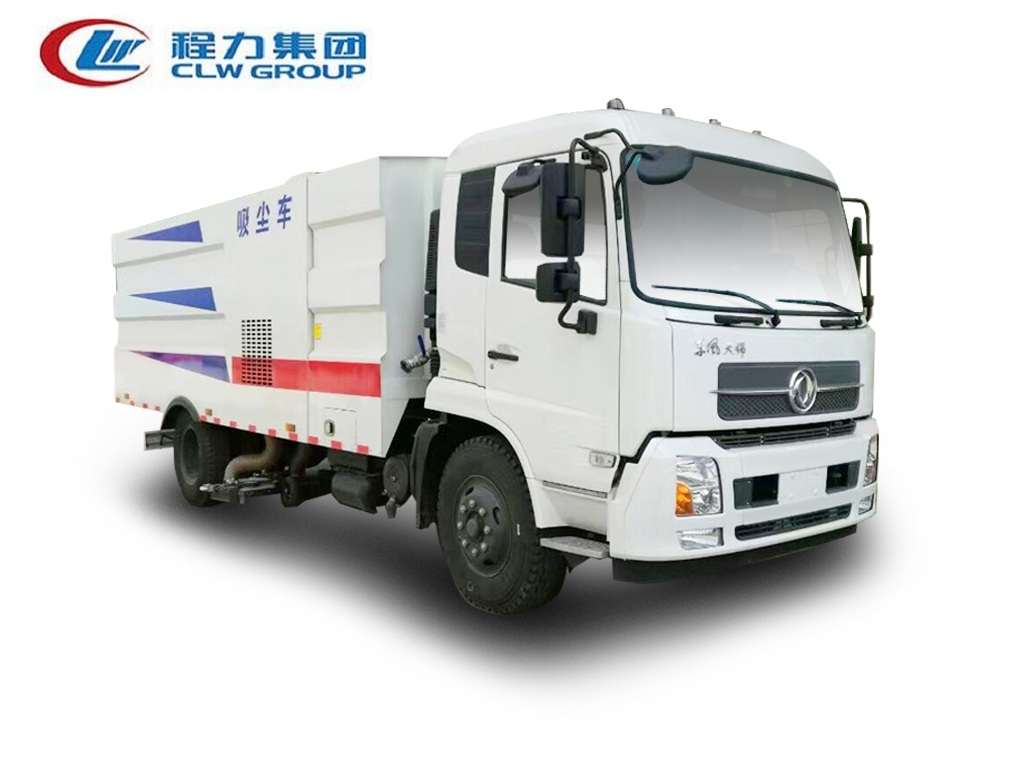

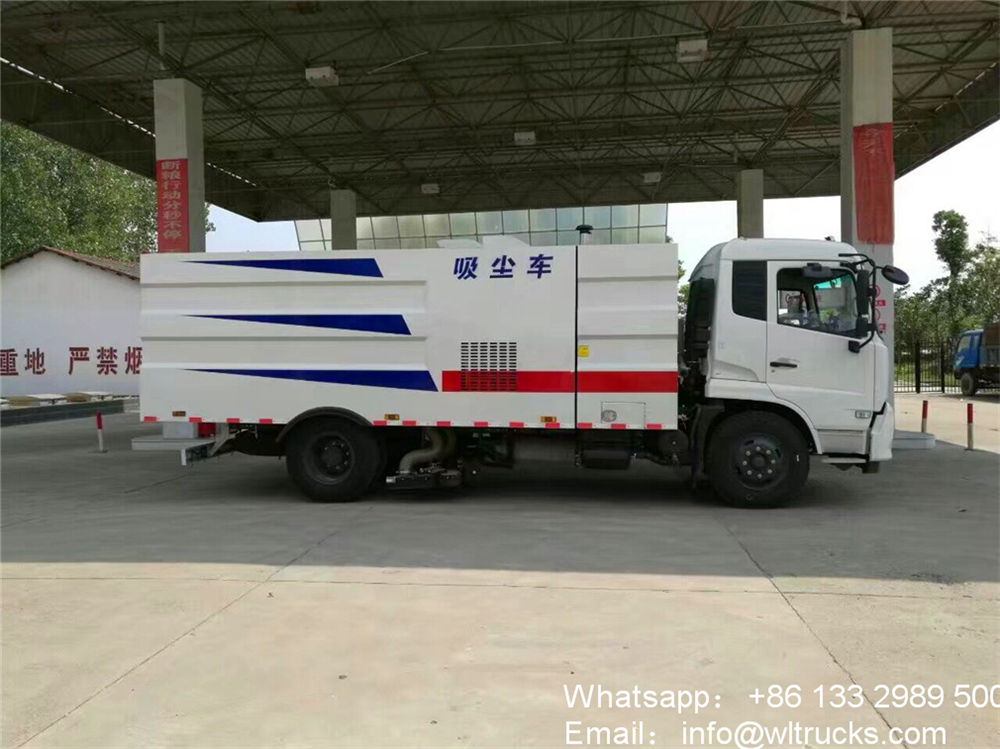

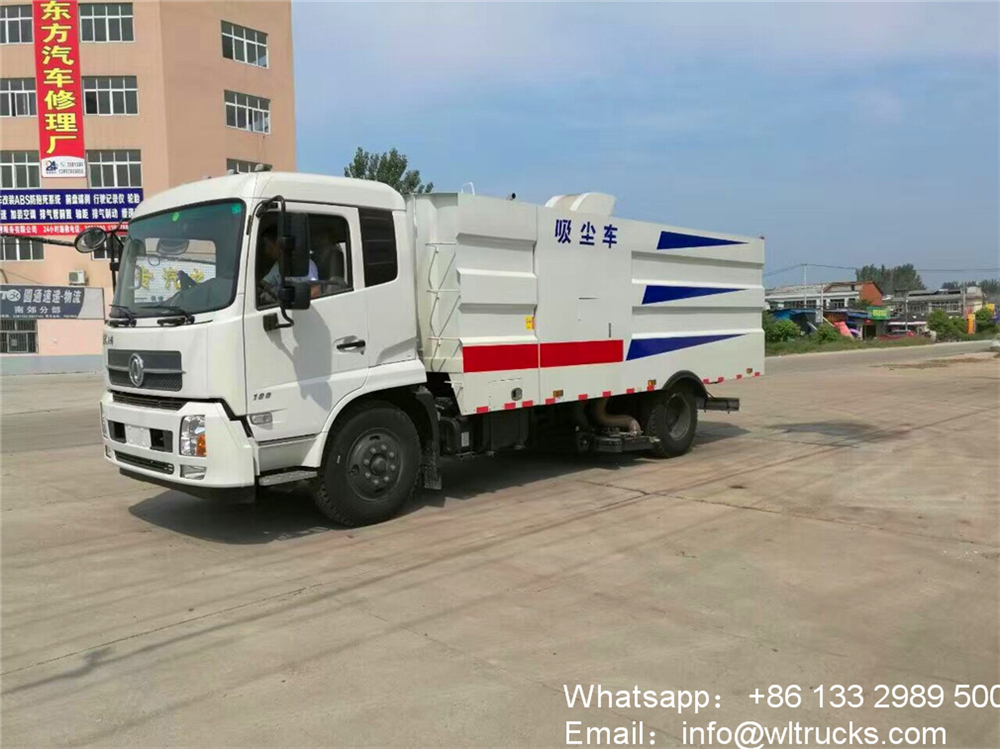

DongFeng 10m3 vacuum sweeper truck detailed image
