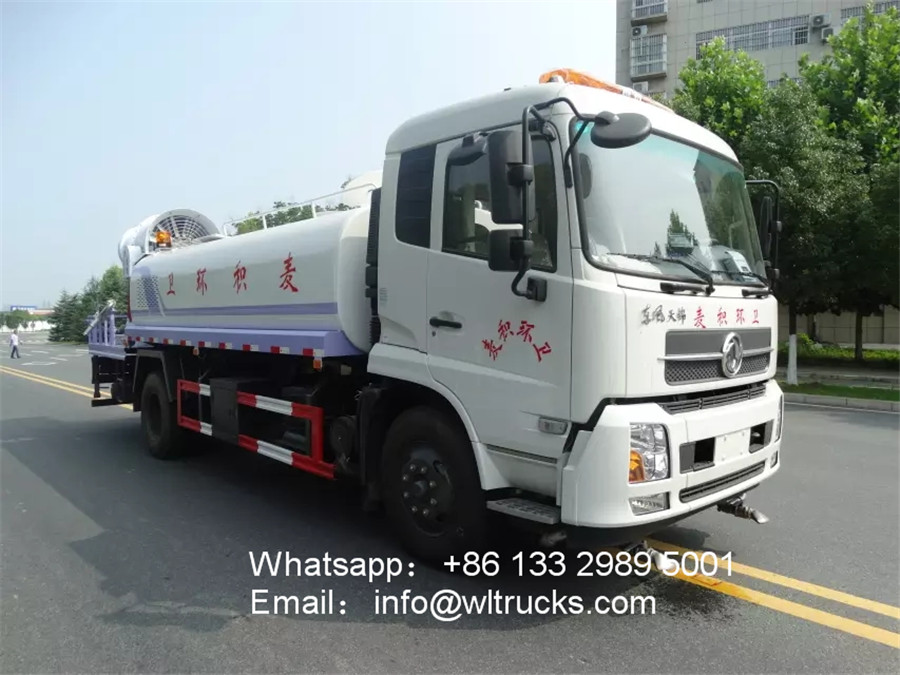

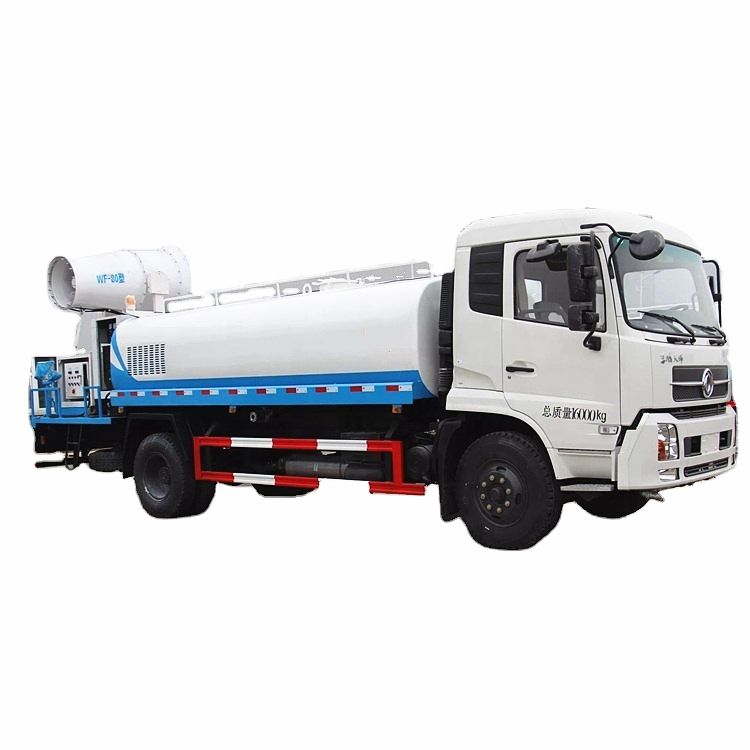

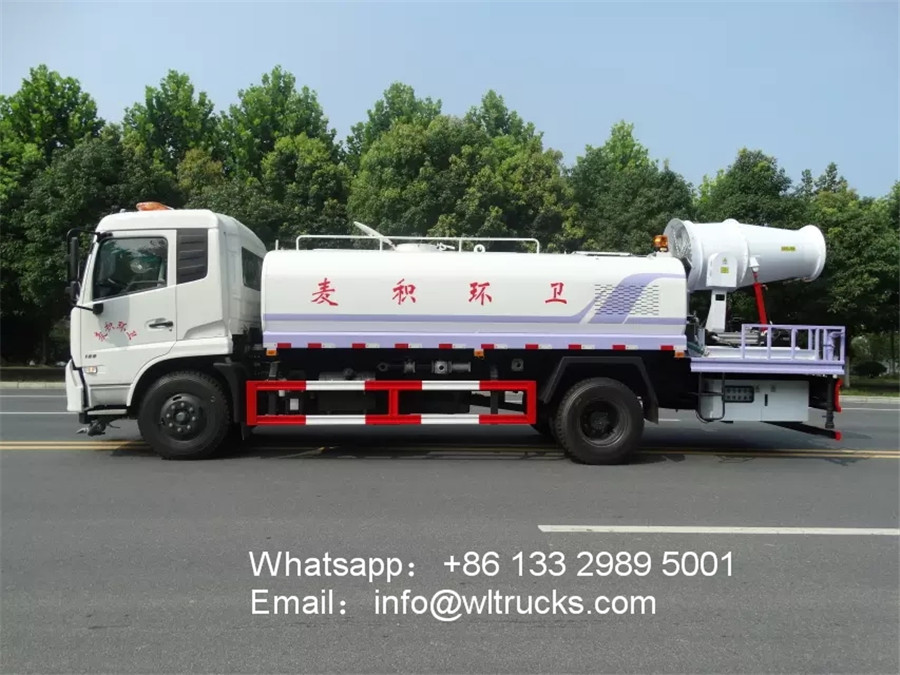

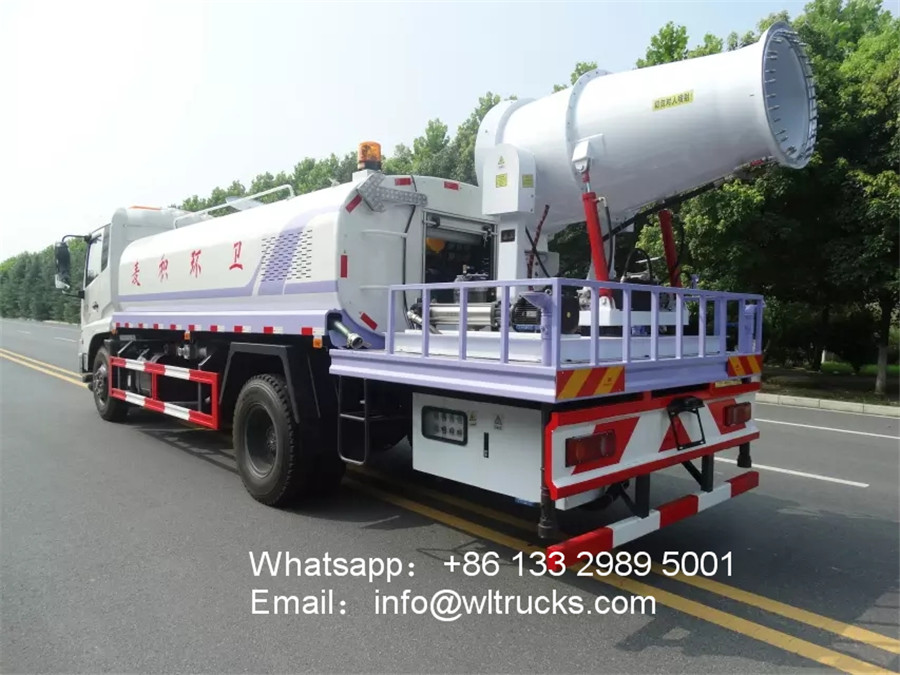

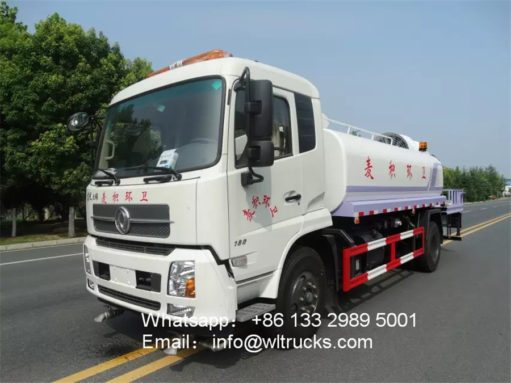

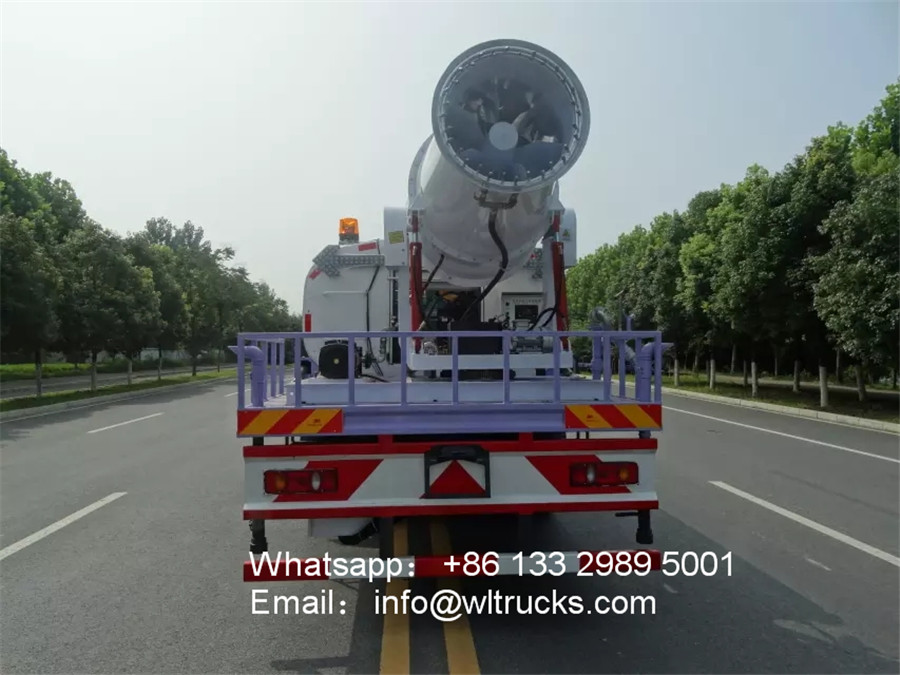

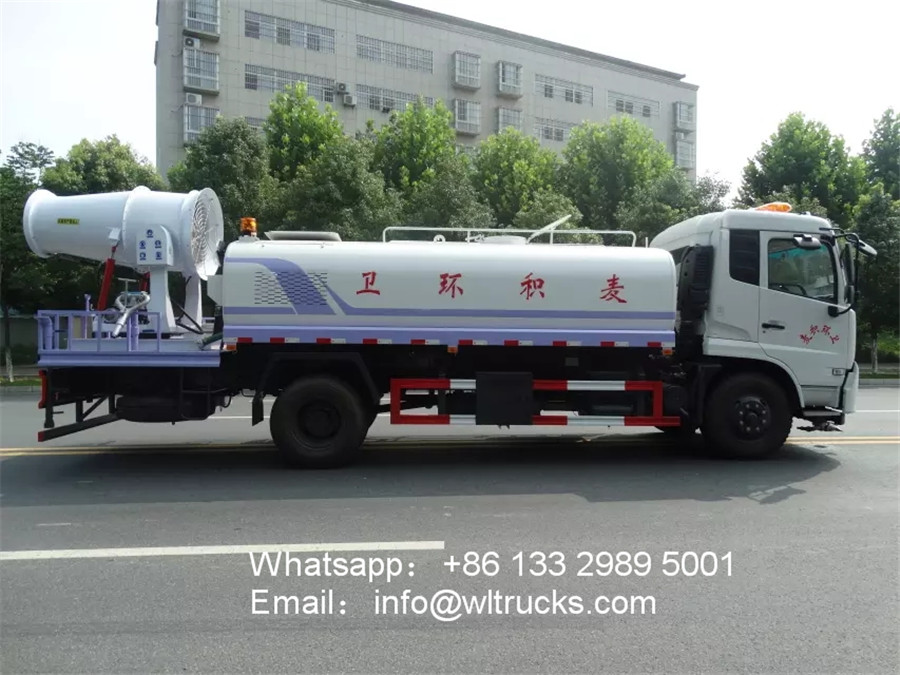

Dongfeng 10000L to 15000L 60m dust suppression truck Adopt Dongfeng Tianjin cab with a wheelbase of 3.9 or 4.5 meters, a spare tire with 1000-20 tires towards the Cummins diesel 170hp or 190hp engine, a eight-speed gearbox, an air brake, and direction assistance.
Top-loading configuration: the effective volume of the tank is 10-15 tons, and the fog gun can be selected from 60 meters. The fog gun comes with a diesel generator set, and the standard remote control device within 100 meters is provided. The 360-degree remote control rotation can reduce the PM10 concentration in the air. Reduced by about 20%.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
Spray unit | 30m-120m optional | Water pump brand | China pump |
way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing |
Dongfeng 10000L to 15000L 60m dust suppression truck Specification:
Vehicle parameters | |||
Vehicle Model | CLW5126GSSE | Vehicle Brand | Chengli |
Overall dimensions | 8500X2460X3000mm | Curb weight | 6185kg |
Engine | 170hp 190hp | Tank volume | 12000L-15000L |
Water tank structure parameters | ||||
Tank dimensions | 5200×2100×1445mm | Tank volume | 12000L | |
Tank material | Carbon steel | Tank thickness | 4/5mm | |
Longest range of water fog spray | >120m | Range of water cannon | ≥28m | |
Water flow rate of low pressure washing | 600~800L/min | Water flow rate of fog spray | 120~260L/min | |
Maximum volume of water tank | 15m³ | Longest working time of fog spray | 60min | |
Low pressure washing width | ≥24m | Nozzle sprinkling width | ≥14m | |
Suction height | ≥7m | Color and Logo | Optional | |
Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. | |||
Selective configuration | Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc. |
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
