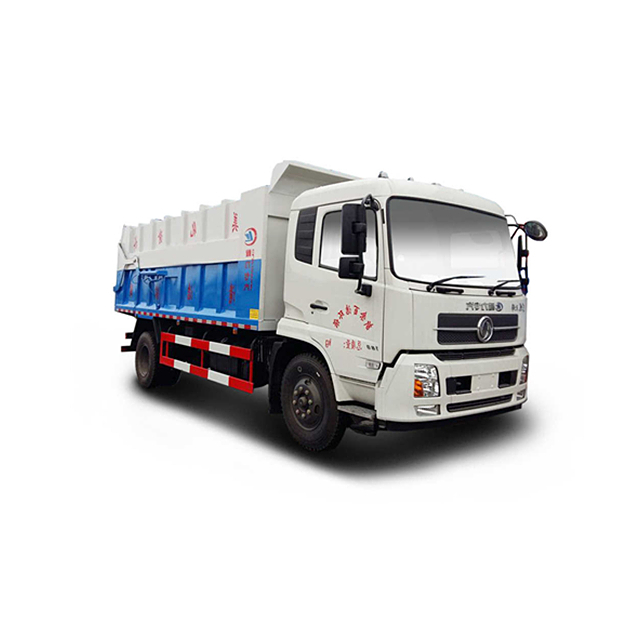

Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Product Description:
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Chassis configuration: Dongfeng original chassis, wheelbase 3950mm to 4700mm, Tianjin luxury cab, Cummins 170, 190, 210 horsepower engine, Dongfeng 6-speed gearbox, 900-20, 1000-20 tires, air brake.
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Top-loading configuration: fully sealed box, double hydraulic cylinders for lifting and self-unloading, tail gate can be docked with compression station, and used to transfer garbage from compression station. The top hydraulic opening cover can be used to load and transport garbage with a forklift.
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Specifications:
|
Product name
|
Dongfeng 16 m3 to 20 m3 compressed docking garbage truck
|
Chassis model
|
DFL1160BX
|
|
Actual volume (cubic)
|
16 – 20 |
Total mass (kg)
|
15800
|
|
Engine horsepower
|
180
|
Rated load mass (Kg)
|
7605
|
|
Engine name
|
Cummins
|
Emission Standards
|
Country V
|
|
Dimensions (MM)
|
7790,7240,7600,7050×2500×3200 |
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
9.00-20 16PR, 10.00-20 16PR, 10.00R20 16PR
|
|
Wheelbase (MM)
|
3950
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1900, 1880, 1810, 1940
|
Rear track
|
1860, 1800, 1800, 1860
|
|
Performance profile
|
Vehicle Used for Garbage IS at The Transfer and unloading the Operations in Urban Garbage compression Stations. At The Operating System CAR IS A Completed by Hydraulic Control System, and the MODE CAN BE at The Control Manual or Electric Control. At The The collection and transportation mode of the garbage truck is the garbage transfer mode of the garbage compression station widely used in China at present, which can realize one-car multi-station, greatly reducing the cost and space of equipment. The box body of the vehicle Is made of high-quality carbon steel plate and fully sealed welded structure, which has the advantages of high strength, light weight and no secondary pollution. This car is our company’s quality inspection-free products. | ||
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck New craft:

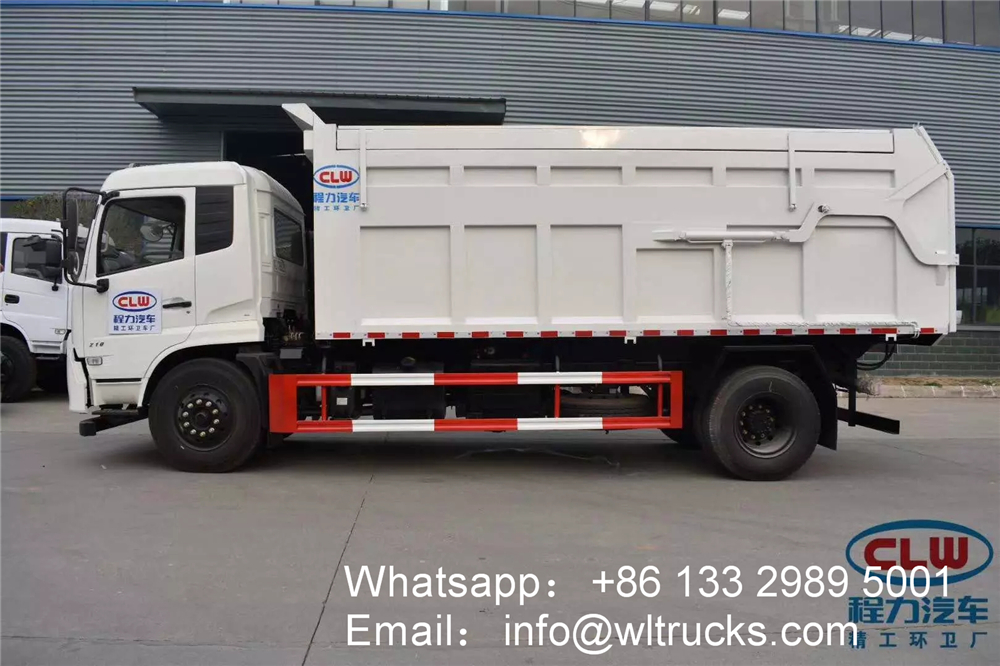

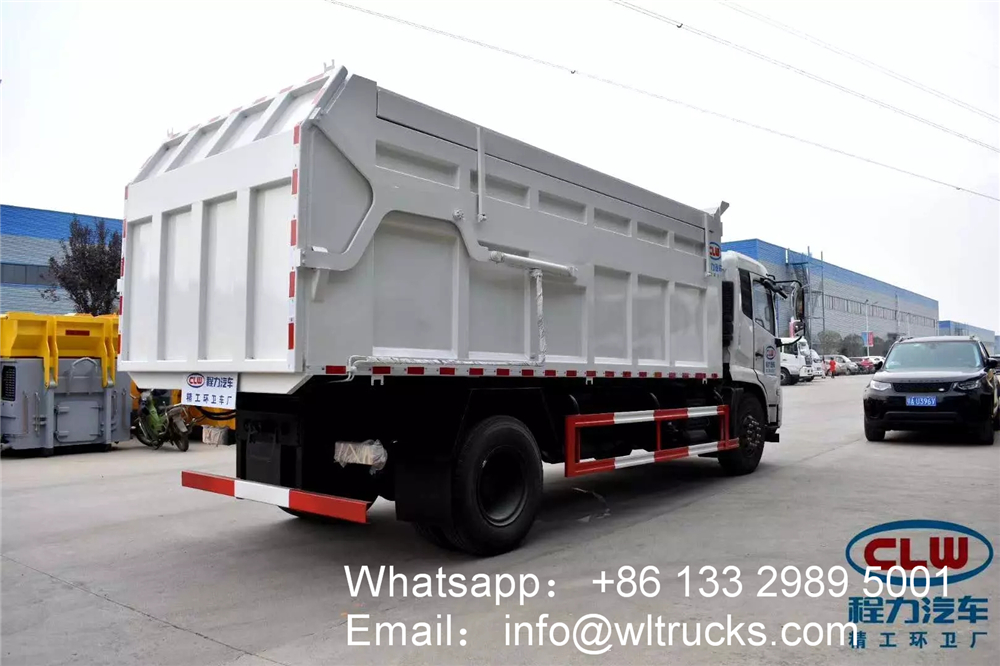

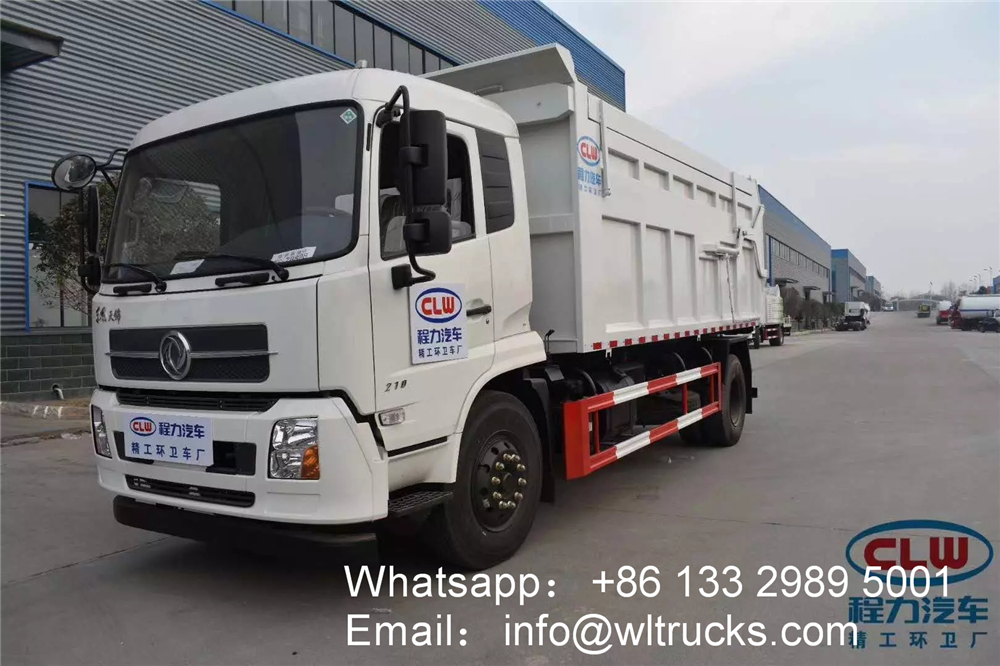

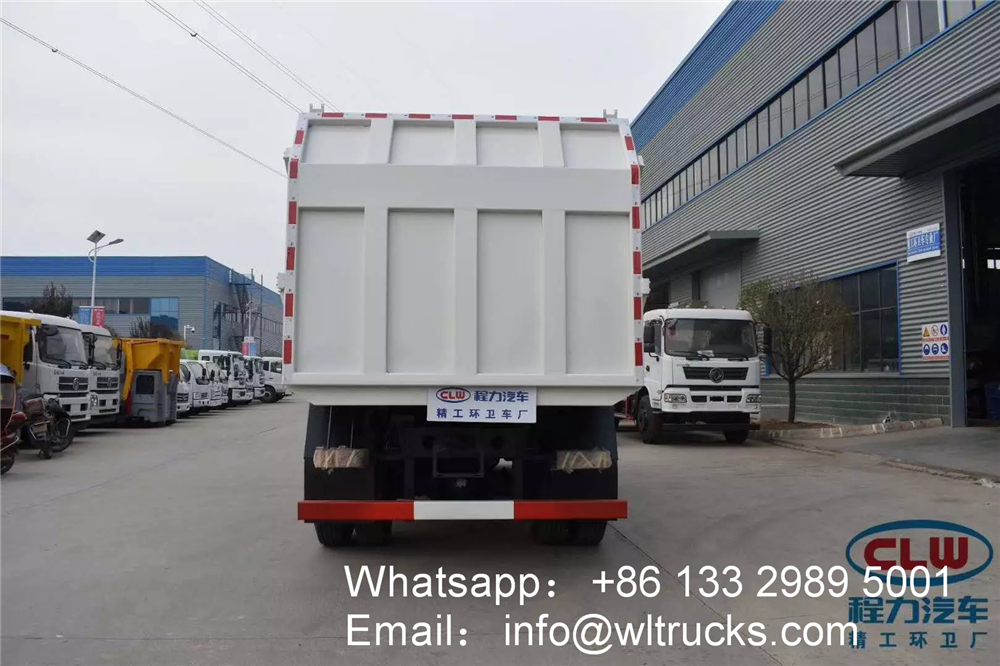

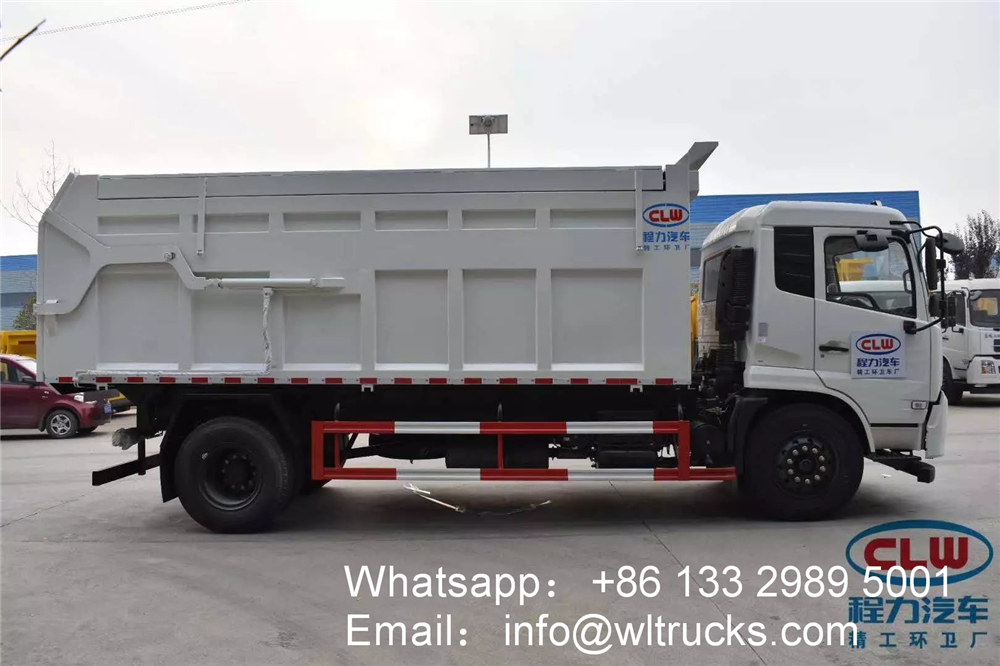

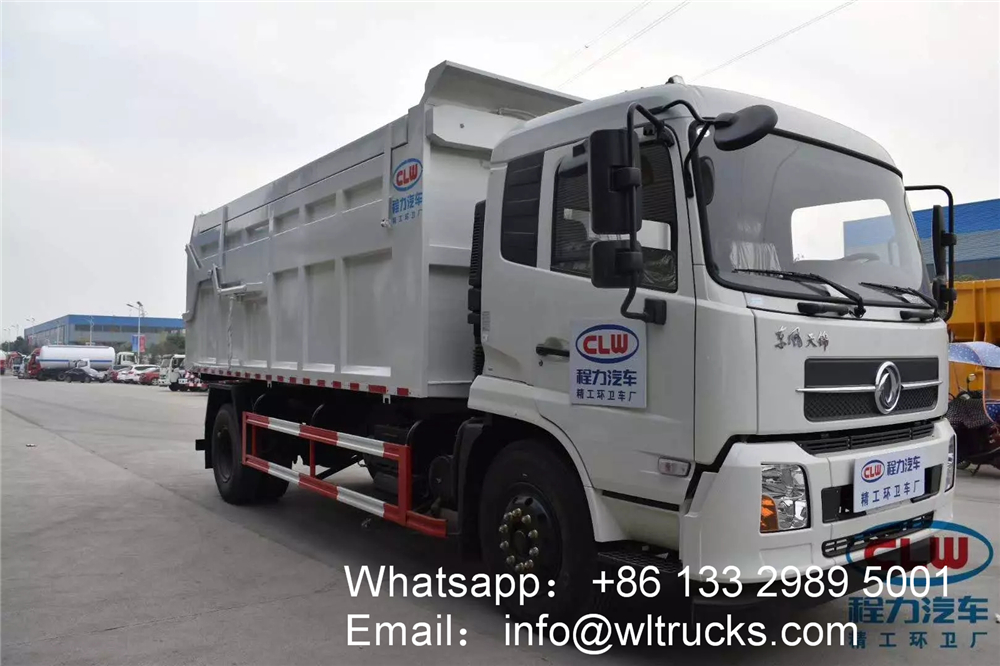

Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Detailed Images:
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Structure diagram：
Dongfeng 10000 liter to 15000liters compactor Docking garbage truck Detail drawing:
Customizable garbage truck models
