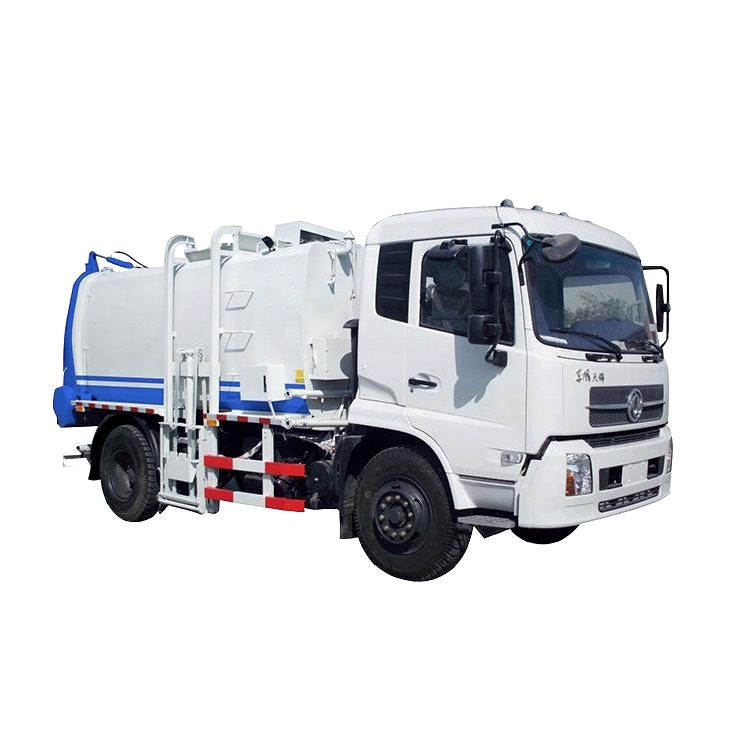

Dongfeng 10000 liter to 12000liter Kitchen garbage truck Product Description:
Dongfeng 10000 liter to 12000liter Kitchen garbage truck Chassis configuration: Dongfeng Tianjin white sleeper cab, Cummins 170, 190-horsepower, 210-horsepower engine, 6-speed gearbox, 900 tires with spare tires, heating and cooling air conditioning, air brake, air brake, directional boost, wheelbase 3950mm, 4500mm 4700mm.
Dongfeng 10000 liter to 12000liter Kitchen garbage truck Bodywork configuration: new style box process, effective volume of 10 to 12 cubic meters, the right side of the body is equipped with a hydraulic bucket lifting mechanism, which can hang the national standard 240 liter trash can, hydraulic bucket dumping operation is completed, and the tail door is a hydraulic opening and locking device , It can ensure that the drip is not leaking. The inside of the box is equipped with a hydraulic push plate, which can be loaded with garbage to push and discharge, with a solid-liquid separation device, a standard hydraulic motor with a high-pressure plunger pump, and a mobile high-pressure cleaning gun.
Optional enclosed auger unloading device, optional stainless steel box, optional heating device in the tank.
Dongfeng 10000 liter to 12000liter Kitchen garbage truck Specifications:
| 【The main technical parameters】 | |||
| product name | Dining kitchen garbage truck / swill truck | Dimensions (mm) | 6950, 7650 × 2480, 2500 × 3200, 3300 |
| Total mass (Kg) | 15800 | Front / rear suspension (mm) | 1430/1720, 1430/1570 |
| Rated load mass (Kg) | 7300,6800 | Wheelbase (mm) | 3800, 3950, 4500 |
| Curb weight (Kg) | 8305,8805 | Maximum speed (Km / h) | 98 |
| Number of people allowed in the cab ( person ) | 3 | Number of axes | 2 |
| Approach angle / departure angle (°) | 20/15 | Axle load (Kg) | 5600/10200 |
| other | The cab is optional with the chassis. The upper walkway of the tank body, the rear sewage outlet, and the rear arrow light are optional. The wheelbase of 3800, 3950 and 4500mm is selected. The side rear protection is welded with Q235 material, and the rear protection cross-section size (mm): 50 × 120, rear protection height above ground (mm): 550. | ||
| 【Chassis technical parameters】 | |||
| Chassis model | DFL1160BX1V | manufacturer | Dongfeng Commercial Vehicle |
| Number of leaf springs | 7/9 + 6 | Number of tires | 6 |
| Fuel type | Diesel | Tire specifications | 9.00-20 |
| Front track (mm) | 1880 | Rear track (mm) | 1800 |
| Emission Standards | GB3847-2005, GB17691-2005 National V | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) |
| ISD210 50 ISD190 50 ISD180 50 EQH180-52 EQH180-53 ISB180 50 ISD270 50 ISB210 50 ISB190 50 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. , Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
6700 6700 4500 4752 4752 5900 6700 5900 5900 |
155 144 132 132 132 132 198 155 140 |
Dongfeng 10000 liter to 12000liter Kitchen garbage truck Working parameter:
| 【Vehicle technical parameters】 | |||
| Tank volume (m3) | 3-12 cubic meters optional | Tank material | Carbon steel Q235, stainless steel 304 |
| Structure inside the tank | Dry-wet solid-liquid separation | Thickness of tank (mm) | 4-6mm |
| Unloading method | Self-unloading, pushing plate, twisting dragon | Feeding method | Hydraulic bucket flip |
| Tailgate leakproof | Thickened rubber + hydraulic lock | Bucket method | Chain lifting, lever lifting |
| Control position | Cab, right side of body | Hydraulic pressure (MPa) | 16 |
| control method | Manual + electric control, PLC automatic control | Hydraulic pump brand | Long source and large flow |
| Cleaning device | Hydraulic pump + plunger high pressure pump + 7 meter cleaning gun | Multi-way valve brand | Jiangsu Electromagnetic |
| safety devices | Rear door lock and rear cover switch interlock to prevent misoperation | Hydraulic cylinder brand | Yantai future |
| Optional configuration | Optional PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc. Optional barrel weighing function, can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring and other functions. If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements. |
||

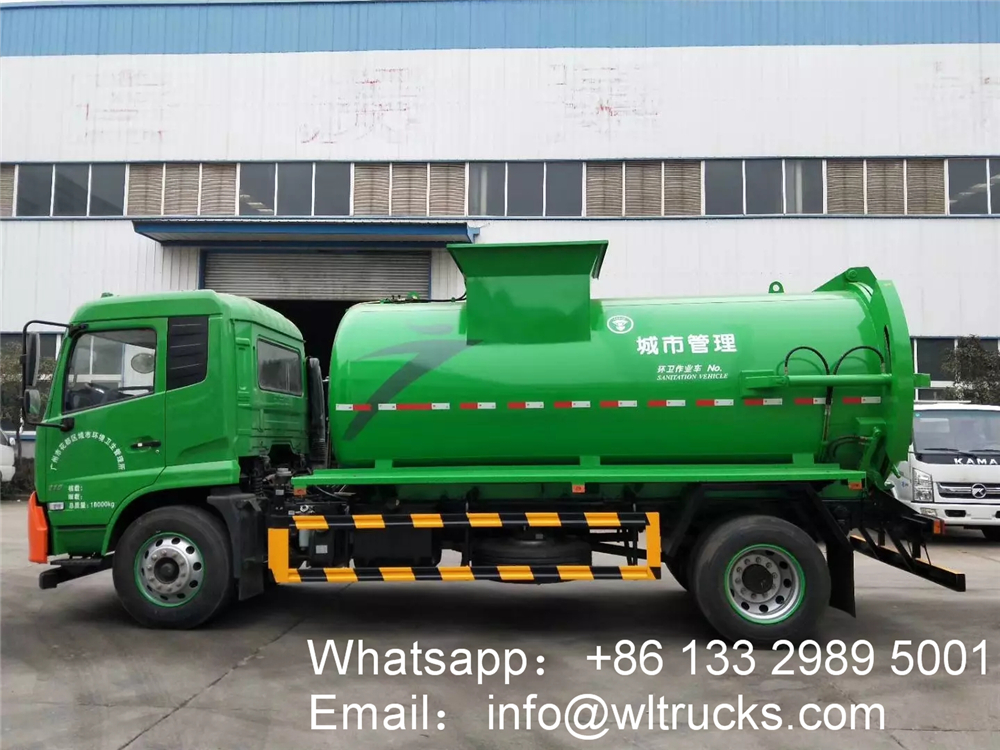

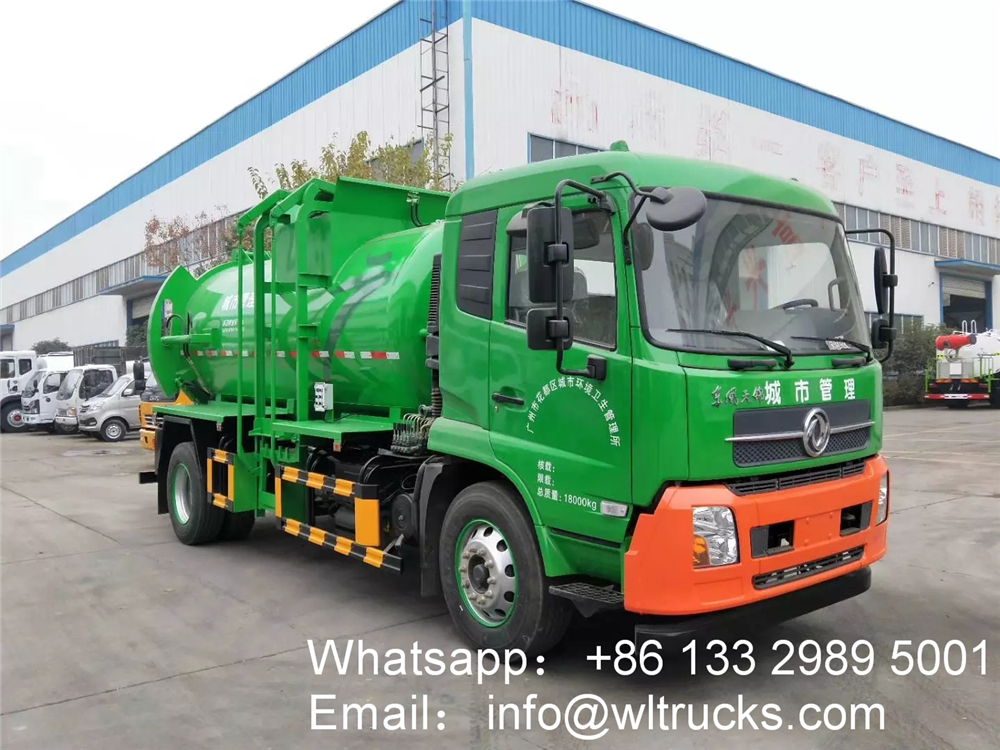

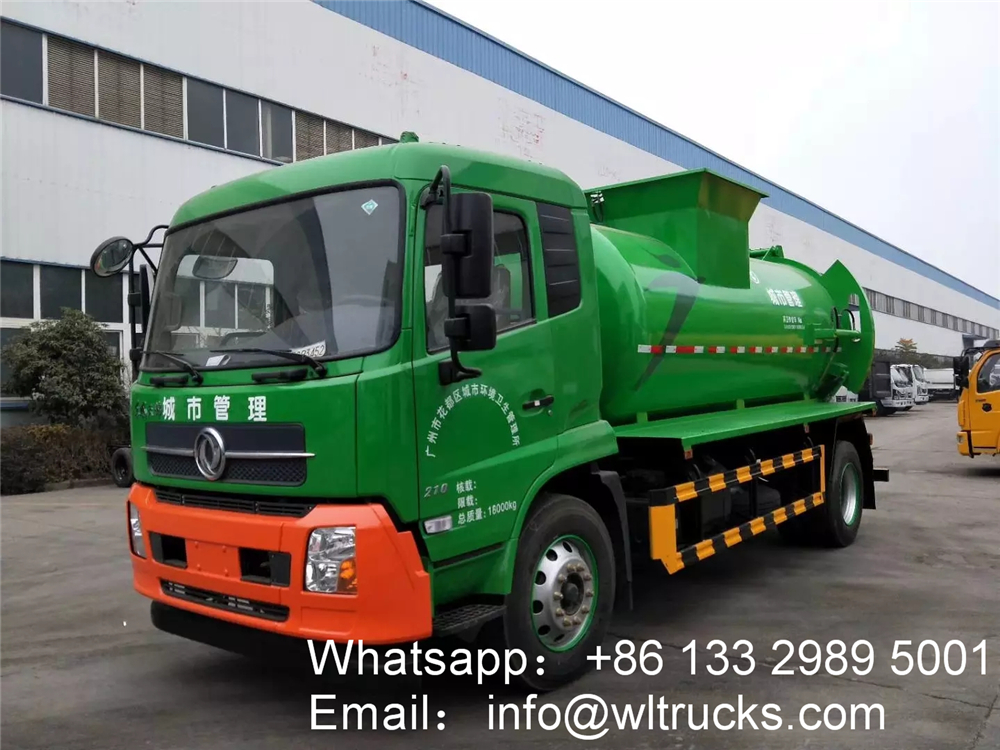

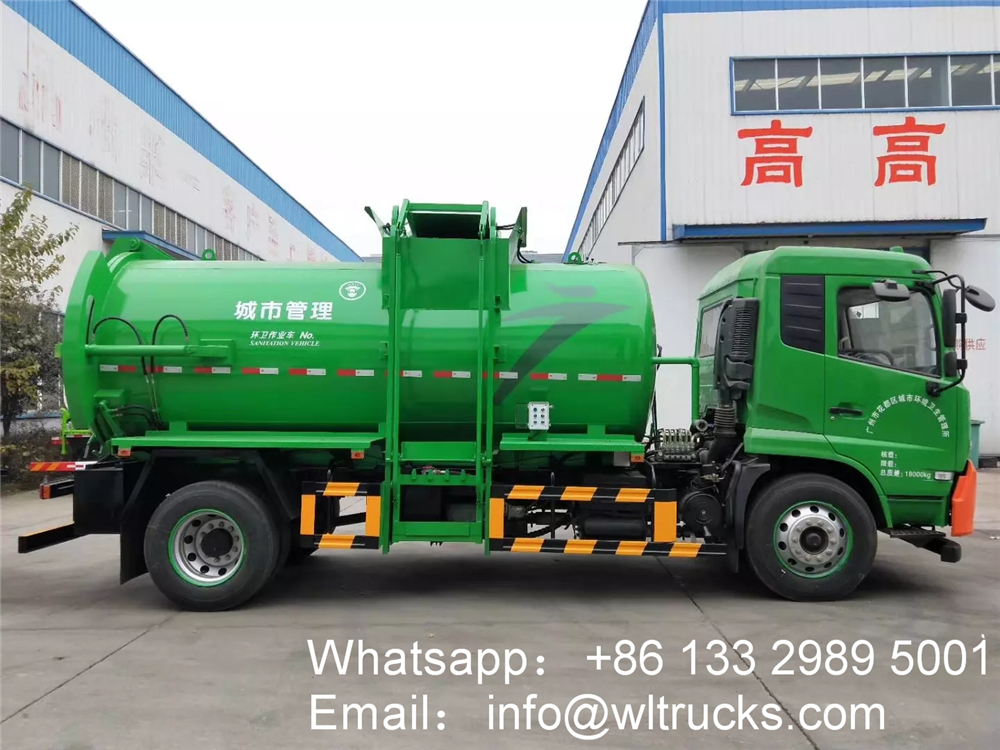

Dongfeng 10000 liter to 12000liter Kitchen garbage truck Operation display:
Kitchen garbage Truck Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a tool box and a hand washing device are installed.
Dongfeng 10000 liter to 12000liter Kitchen garbage truck New craft:
Dongfeng 10000 liter to 12000liter Kitchen garbage truck Optional configuration：

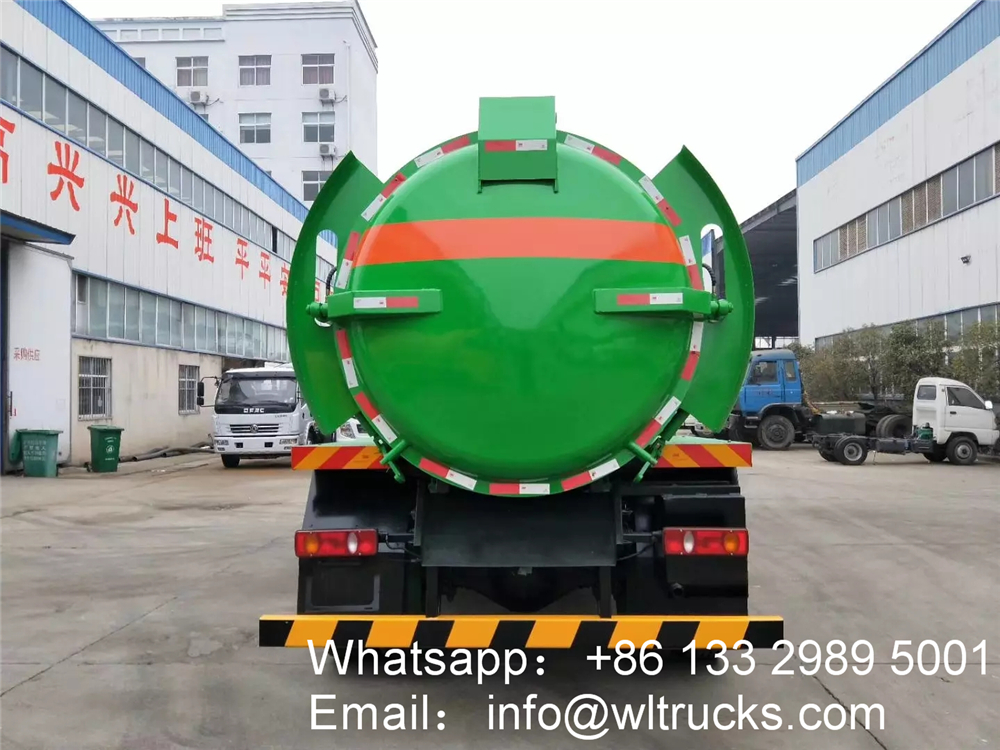

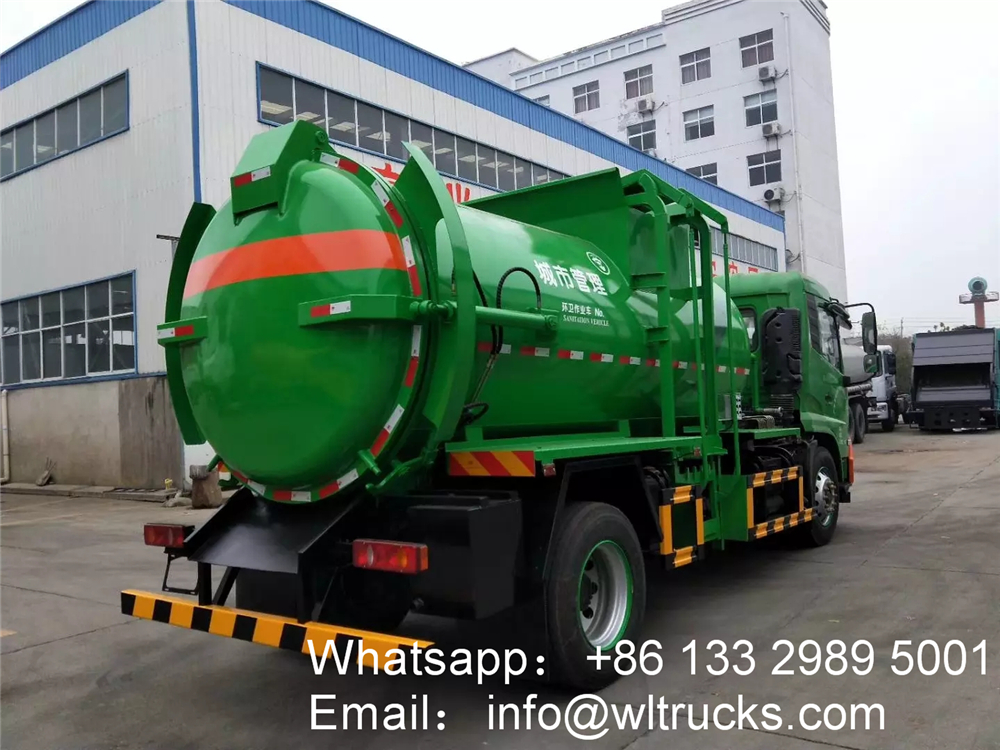

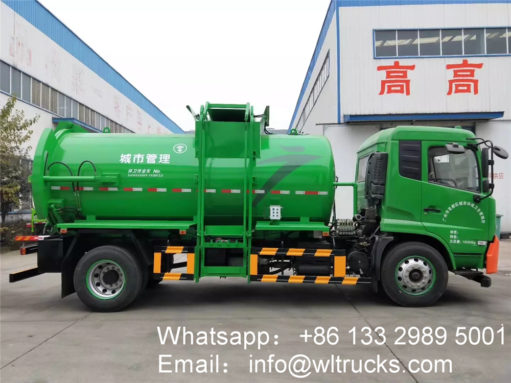

Dongfeng 10000 liter to 12000liter Kitchen garbage truck Detail drawing:
