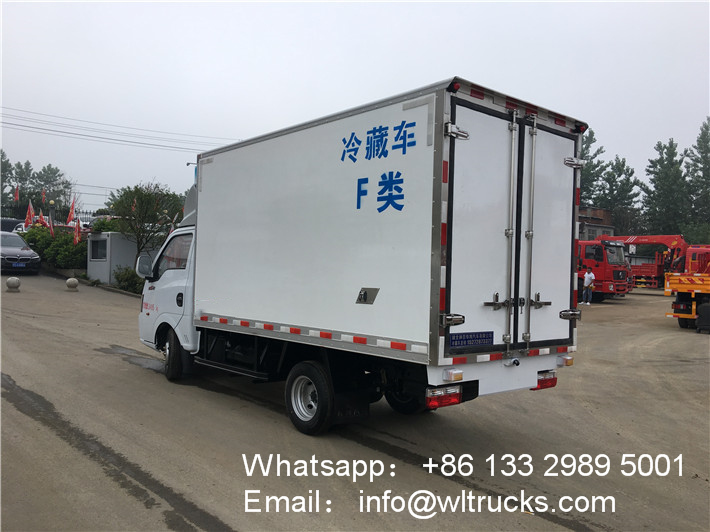

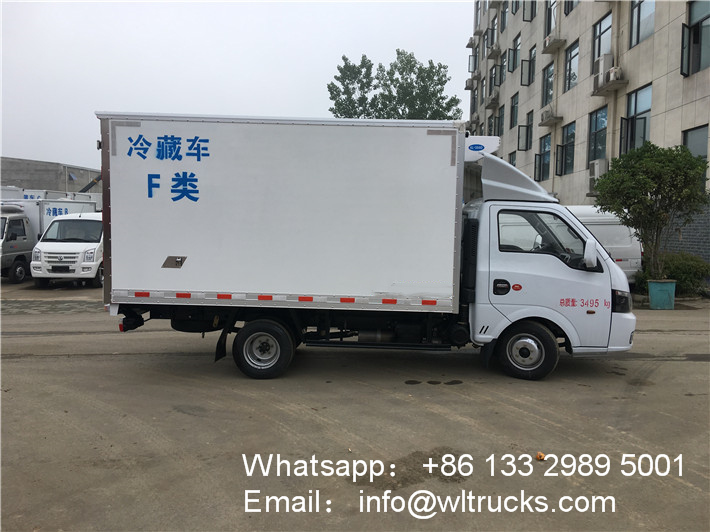

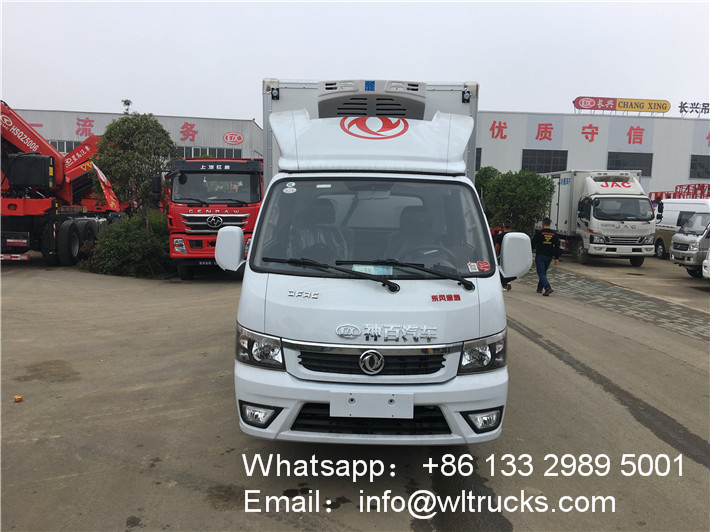

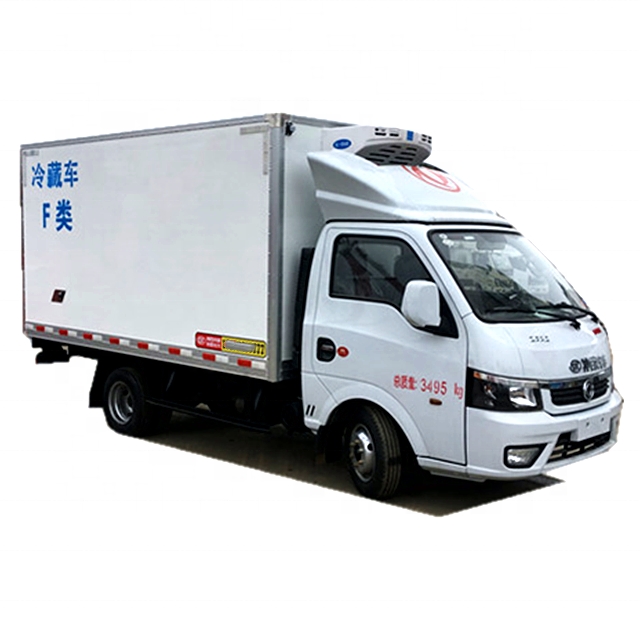

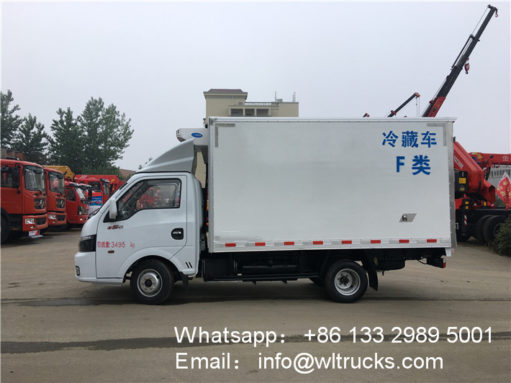

Dongfeng 1.5 ton refrigerator freezer truck
Model: EQ5031XLC15QDAC, vehicle size: 5635 × 1765 × 2770 (mm), box size: 3500 × 1600 × 1750 (mm).Using Liuqi Wuling 1.5L / 110 horsepower, strong power, tires are 175R14 steel tires (rear two wheels), exhaust brake, ABS, power steering, 5-speed gearbox, central control lock, electric doors and windows, cruise control, Front disc brake, original air conditioner, Bluetooth connection. FRP inside and outside the box, 8cm high-density insulation board, anti-skid aluminum plate on the bottom plate, stainless steel door lock, -5 degree refrigeration unit.
Dongfeng 1.5 ton refrigerator freezer truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Dongfeng 1.5 ton refrigerator freezer truck specification:
|
Main technical parameters of Dongfeng Tuyi refrigerated truck
|
|||
|
Vehicle name
|
Dongfeng Tuyi Refrigerated Car
|
Vehicle model
|
EQ5031XLC15QDAC refrigerated truck
|
|
Chassis model
|
EQ1031SJ15QD
|
Number of passengers
|
2
|
|
Dimensions (mm)
|
5635×1765×2770
|
Car size
|
3500×1600×1750
|
|
Total mass (kg)
|
3495
|
Rated quality / upper household tonnage (kg)
|
1205
|
|
Curing quality (kg)
|
2160
|
Top speed (km/h)
|
110
|
|
Fuel type
|
gasoline
|
Emission Standards
|
Country five
|
|
Fuel
|
no
|
Environmental protection
|
no
|
|
Wheelbase (mm)
|
2800
|
Number of axes
|
2
|
|
Number of tires:
|
6
|
Tire specifications
|
175R14 6PR, 6.00-13 8PR
|
|
Dongfeng Tuyi Refrigerated Car Engine Parameters
|
|||
|
engine model
|
Engine manufacturer
|
Displacement (ML)
|
Power (ML)
|
|
LJ4A15Q
|
Liuzhou Wuling Liuji Power Co., Ltd.
|
1499
|
79.5
|
Dongfeng 1.5 ton refrigerator freezer truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Dongfeng 1.5 ton refrigerator freezer truck New craft:
Dongfeng 1.5 ton refrigerator freezer truck Optional configuration:
Dongfeng 1.5 ton refrigerator freezer truck Bodywork details:

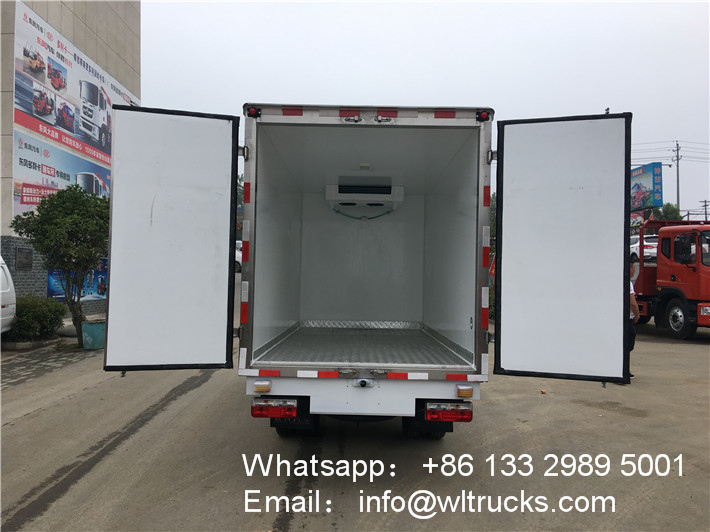

Dongfeng 1.5 ton refrigerator freezer truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
