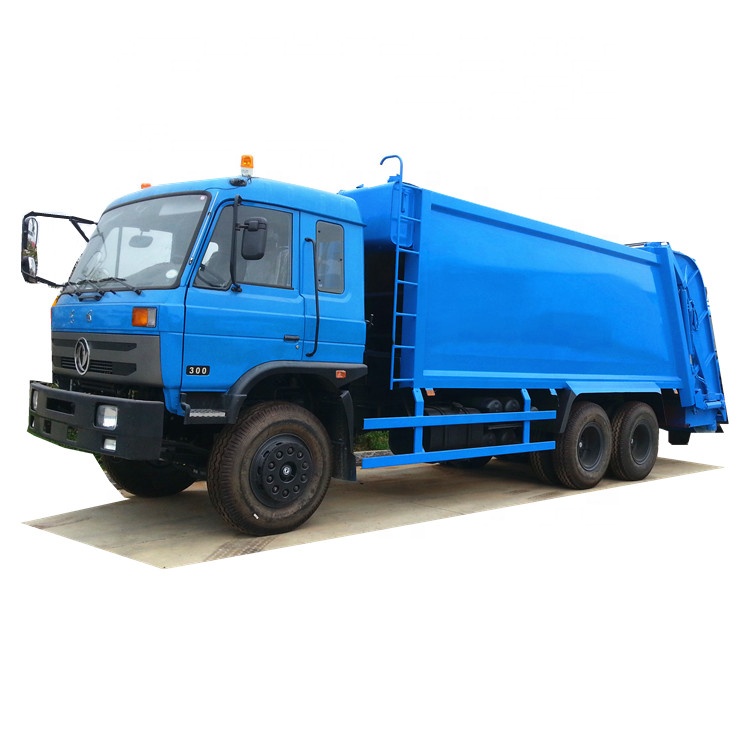

DFAC 16000liter to 18000liters garbage compactor truckProduct Description:
DFAC 16000liter to 18000liters garbage compactor truck is equipped with Cummins 210 horsepower, 1000 tires, Fast 8-speed gearbox, dual 63-32 pump, single cycle for 20 seconds, Zhongmei 2 + 3 dual pump confluence reversing multi-way valve, A compression valve in Changsha, a starlight hydraulic cylinder, high-temperature, high-pressure engineering tubing, Tianheng Kaicheng electronic control system, Siemens PLC, the upper body adopts 6Q345 high-strength plates with 5 bottom sides, and is equipped with a fully sealed bucket, swing arm and triangle bucket , Hanging buckets.
DFAC 16000liter to 18000liters garbage compactor truck Specifications:
|
Main Technology Parameter |
|
|
Product Name |
Dongfeng 16m3 garbage compactor truck |
|
Driving Type |
6×4,left /right hand drive |
|
Color & Logo |
Accept customization |
|
Weights |
|
|
G.V.W(kg) |
25000 |
|
Curb weight(kg) |
10000 (Approx.) |
|
Dimensions |
|
|
Wheelbase(mm) |
4500+1350 |
|
Overall Dimension(mm) |
9800×2500×3150(Approx.) |
|
Garbage collection capacity |
16 m3 |
|
Engine |
|
|
Engine type |
4 stroke ,Water cooled, direct injection, turbo charger |
|
No. of cylinders |
6 cylinders |
|
Displacement(L) |
9.26L |
|
Max. output (hp/kw) |
280/205 |
|
Emission standard |
Euro 3 (Euro 4 /5 optional) |
|
Drive Line |
|
|
Transmission |
FAST 9 speeds ,9 forwards,1 reverse gear,manual operation |
|
Steering |
Power steering |
|
Brake |
Air brake |
|
ABS |
With |
|
Cab |
|
|
Cabin |
One and half cab,three passengers (2+ driver) all welded steel cab |
|
Standard configuration |
Air conditioner ,heater, central lock ,power window .USB,AM/FM radio, two sun reflectors |
|
Axle |
|
|
Front axle |
5 tons |
|
Rear axle |
20 tons |
|
Tire specification |
|
|
Tire specification |
10.00-20 steel wire tire,10 tires+1 spare tire |
|
16m3 garbage compactor truck |
|
| Box volume | 16m3 18m3 |
| Box material | Side 5mm,bottom 5mm |
| Sewage tanker | 200L |
| Compaction ratio | By volume not less than 5:1 |
| Work cycle time | Not more than 35 seconds |
| Hydraulic system pressure | 16Mpa |
DFAC 16000liter to 18000liters garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
DFAC 16000liter to 18000liters garbage compactor truck New craft:

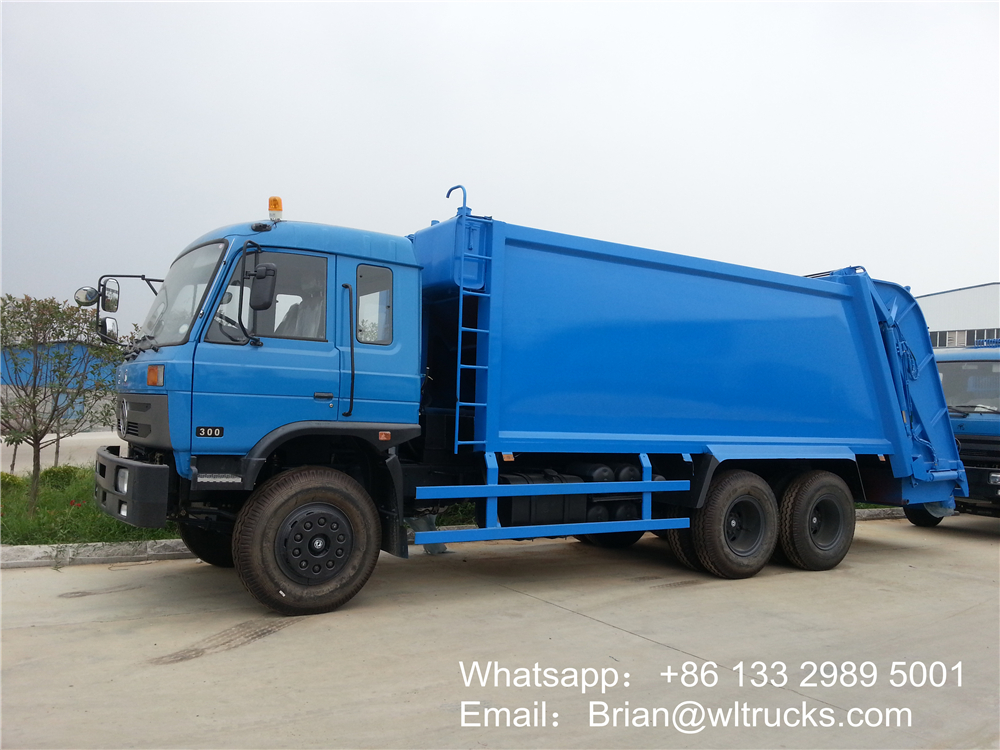

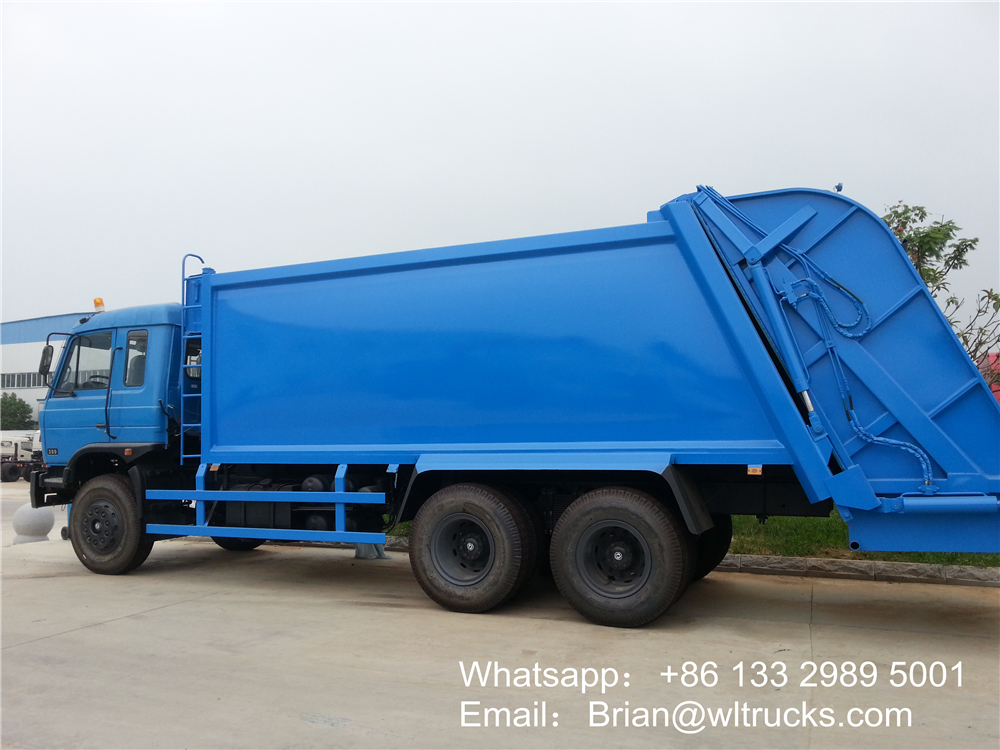

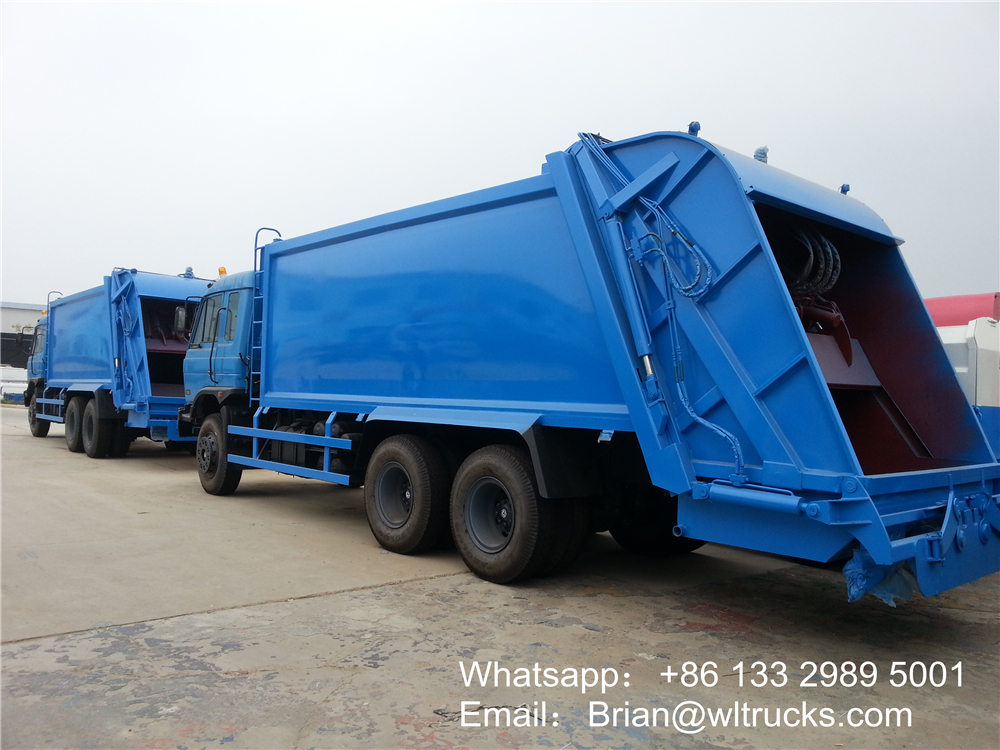

DFAC 16000liter to 18000liters garbage compactor truck Detailed Images:
DFAC 16000liter to 18000liters garbage compactor truck Structure diagram：
DFAC 16000liter to 18000liters garbage compactor truck Detail drawing:
Customizable garbage truck models
