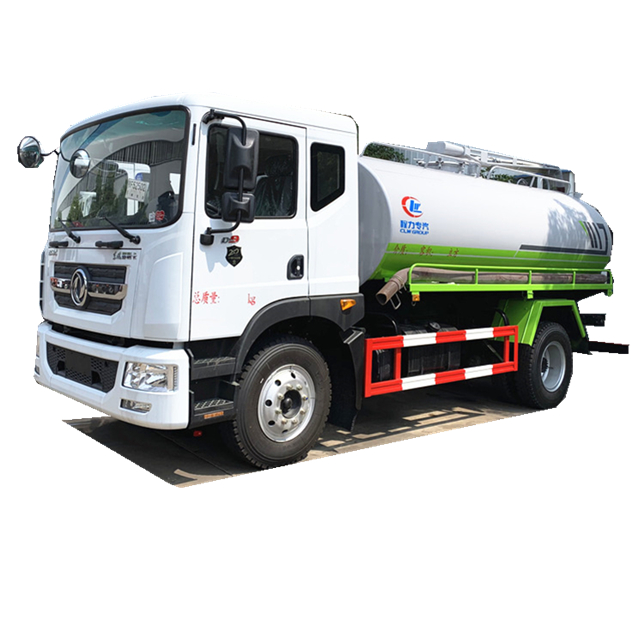

DFAC 12000L to 15000L Fecal suction truck Specification:
Top configuration: tank volume 12000-15000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-15 water ring vacuum pump, optional 8 tons two oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
Item |
unit |
parameter |
||
|
Vehicle model |
|
CLW5161GXEE5 Fecal Suction Truck |
||
|
Chassis model |
|
EQ1161LJ9BDE |
||
|
Overall dimensions |
mm |
7350×2480×3250 |
||
|
|
Fact cubage |
L |
10000-12000 |
|
|
Mass in working order |
kg |
Appro×7305 |
||
|
Body internal dimensions |
mm |
4450×2300×1550 |
||
|
Wheel base |
3950 |
|||
|
F/R track base |
1858/1806 |
|||
|
Approach/departure angle |
° |
19/14 |
||
|
Exhaust/kw |
ml/kw |
5900/132 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
9.00R20 |
Engine type |
ISB180 50 |
|
|
Traction system |
4×2 |
Transmission |
6-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |
1. Carbon steel fecal tank, 5mm thickness. 2. With a view of the fecal window, a self-flow port, cleaning device. 3. With a 6m suction pipe, with a boom seat on the top of tank. 4. With vacuum suction pump, with water and oil separator, anti-overflow valve. |
|||
|
Engine |
Dongfeng Cummins Engine Co., Ltd. Diesel engine 180HP |
|||
|
Production cycle |
15-20 days |
|||
|
Warranty |
12 month, from the date of supply |
|||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

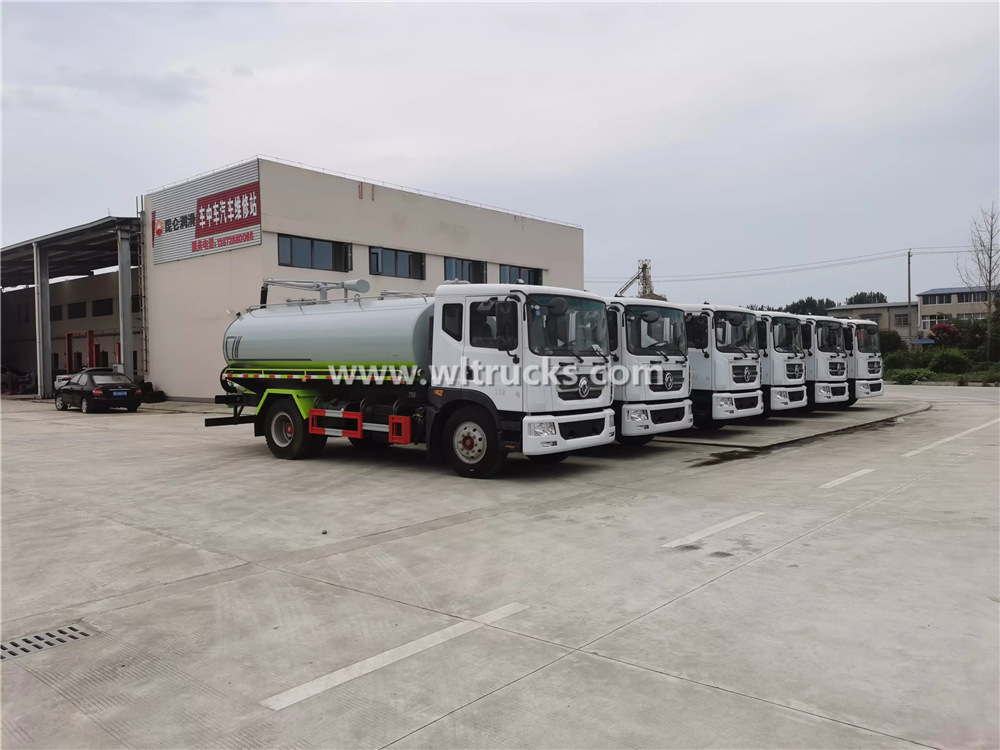

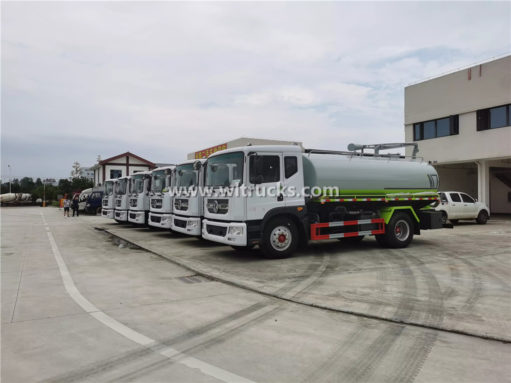

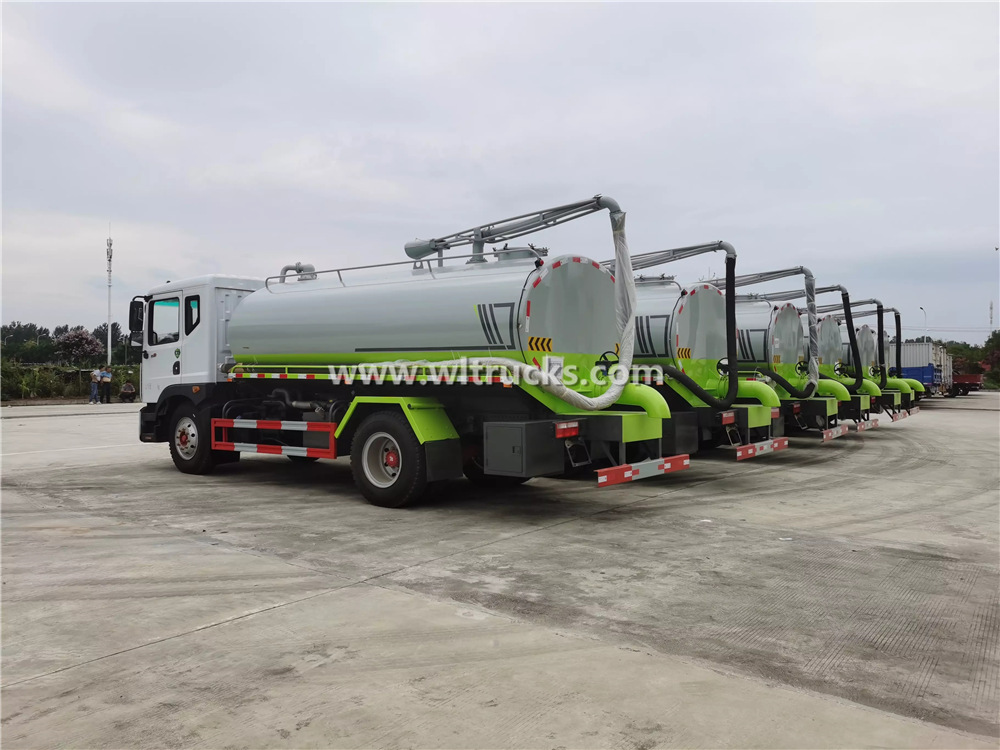

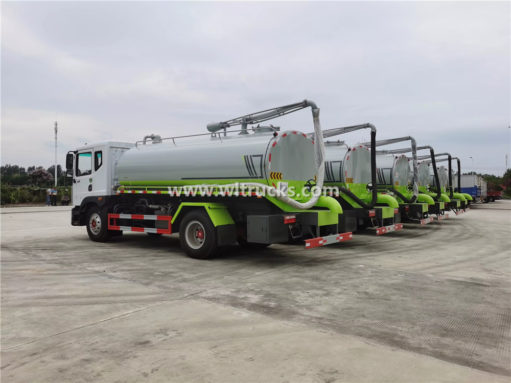

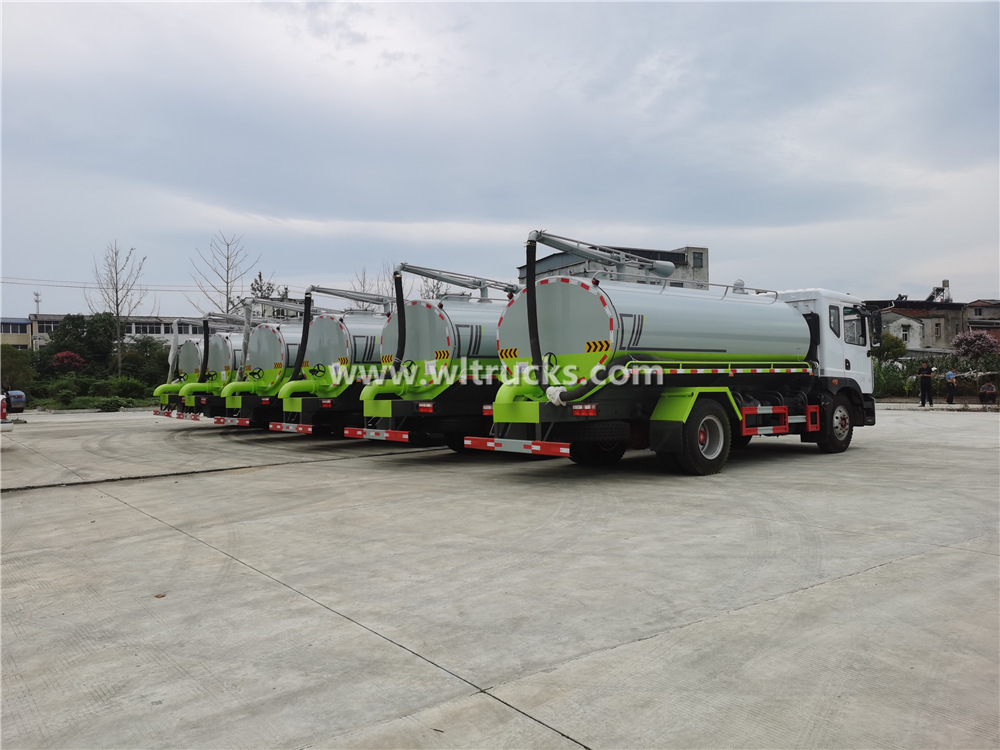

Toilet suction truck Detailed image
