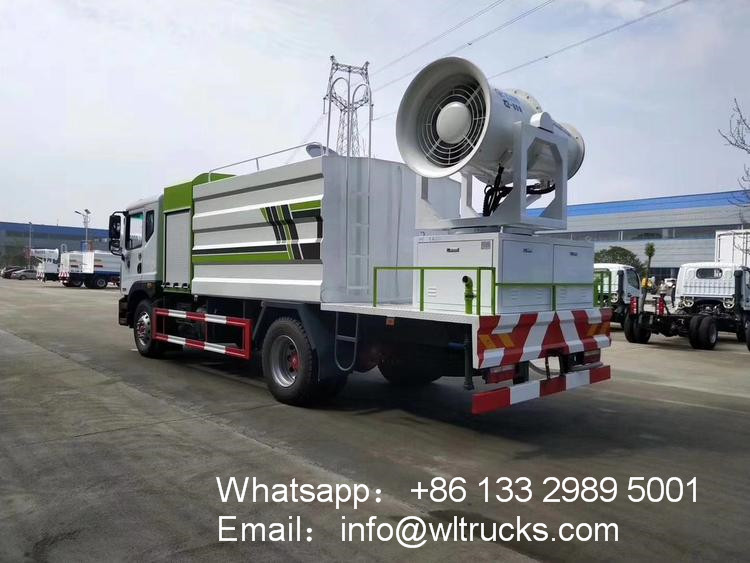

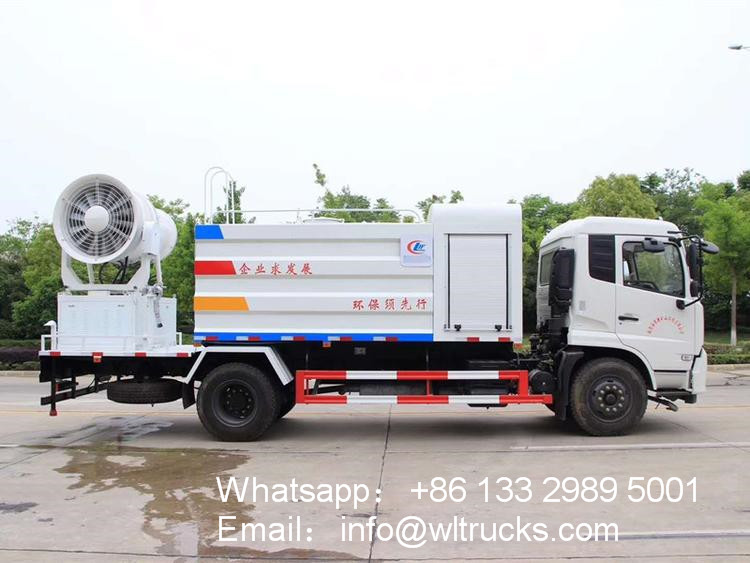

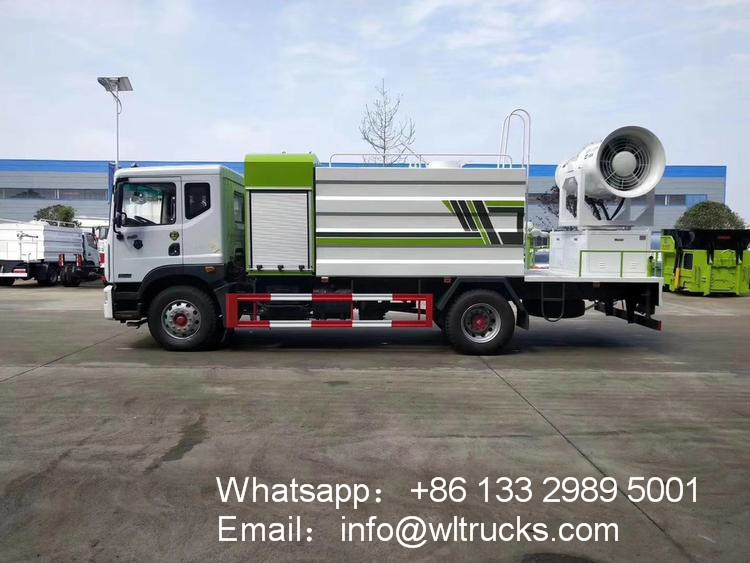

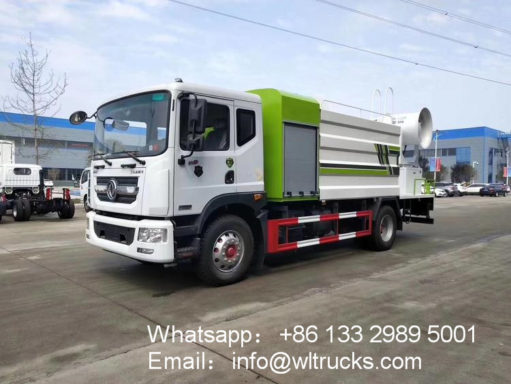

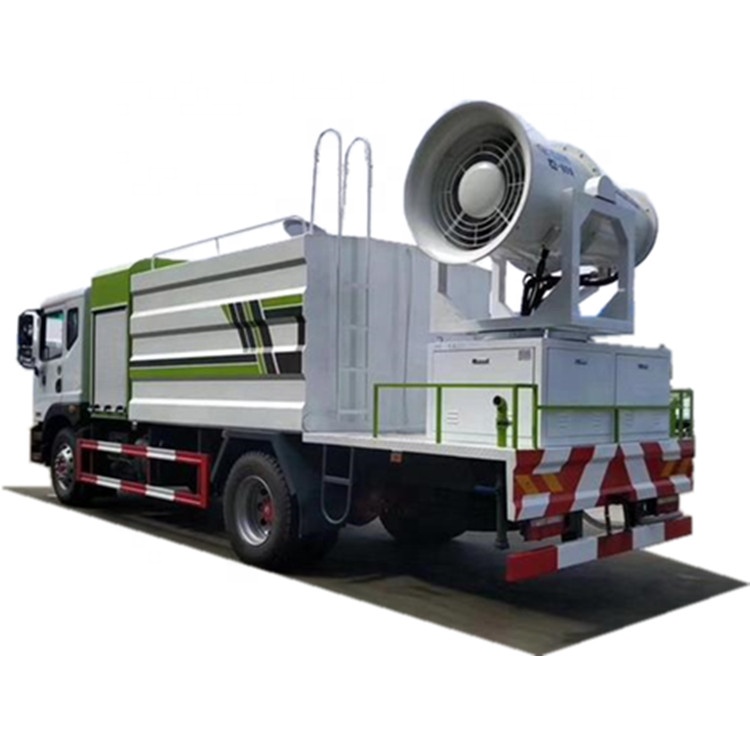

DFAC 10 ton to 12 ton disinfection car Adopt Dolica D9 wide-body luxury sleeper cab with flip, 4500mm wheelbase, Cummins 180 horsepower Euro 5 engine, Shaanxi small eight-speed gearbox, 10.00R20 steel tire belt spare tire, 5 tons front axle, 10 tons rear axle, With direction assistance, electric glass, ABS, original air conditioner.
Top-loading configuration: the effective volume of the tank is 12 tons, anti-corrosion and anti-rust inside the tank, equipped with a high-power sprinkler pump, equipped with a high-power auxiliary engine, and the rear-mounted fog gun unit can be freely selected from 60 meters to 120 meters.
Equipped with diesel generator set, equipped with remote control for remote wireless operation, 360-degree remote control rotation and up and down swing, all-round large-area spray to reduce dust and haze, spray volume 50-150 liters per minute, significant water saving effect, purify the air.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
DFAC 10 ton to 12 ton disinfection car Specification:
| 【Vehicle technical parameters】 | |||||
| product name | Multifunctional dust suppression car | batch | 320 | ||
| Total mass (Kg) | 18000 | Rated load mass (Kg) | 7825,7305 | ||
| Curb weight (Kg) | 9980,10500 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 3 | Rated passenger (person) | |||
| Dimensions (mm) | 8960,9750,9950,10250,10550,10850 x 2550 x 3750 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle/departure angle (°) | 19/12,19/10 | Front overhang/rear overhang (mm) | 1260/2500,1260/2740 | ||
| Axle load (Kg) | 6500/11500 | Maximum speed (Km/h) | 89 | ||
| Remarks | The special device is a dust suppression fog gun, which is used for urban dust suppression. The corresponding relationship of vehicle length/wheelbase/rear suspension is (mm): 8960/3950/2500; 9750/4500/2740; 9950/4700/2740, 10250/5000 /2740, 10550/5300/2740, 10850/5600/2740. The rear extension of this car is (mm): 1250. Protective material: Q235A carbon steel, connection method: the left and right sides are welded, and the lower rear protection is bolted. The size of the protection section (mm): 150×50, the height of the rear protection from the ground (mm): 450. ABS system manufacturer, model: Jiaozuo Boreck Control Technology Co., Ltd., J ABS. When the wheelbase is (3950mm, 4500mm, 4700mm), the kerb weight is 9980kg, when the wheelbase is (5000mm, 5300mm, 5600mm), the kerb weight is 10500kg. The fog cannon picture is optional. | ||||
| 【Other parameters of the whole vehicle】 | |||||
| Chassis model | EQ1185LJ9CDE | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3950,4500,4700,5000,5300,5600 | ||||
| Tire specifications | 295/80R22.5,10.00R20 | ||||
| Front track (mm) | 1862,1933,1949 | Rear track (mm) | 1806,1865 | ||
| Fuel type | Diesel | Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 154 | ||
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely

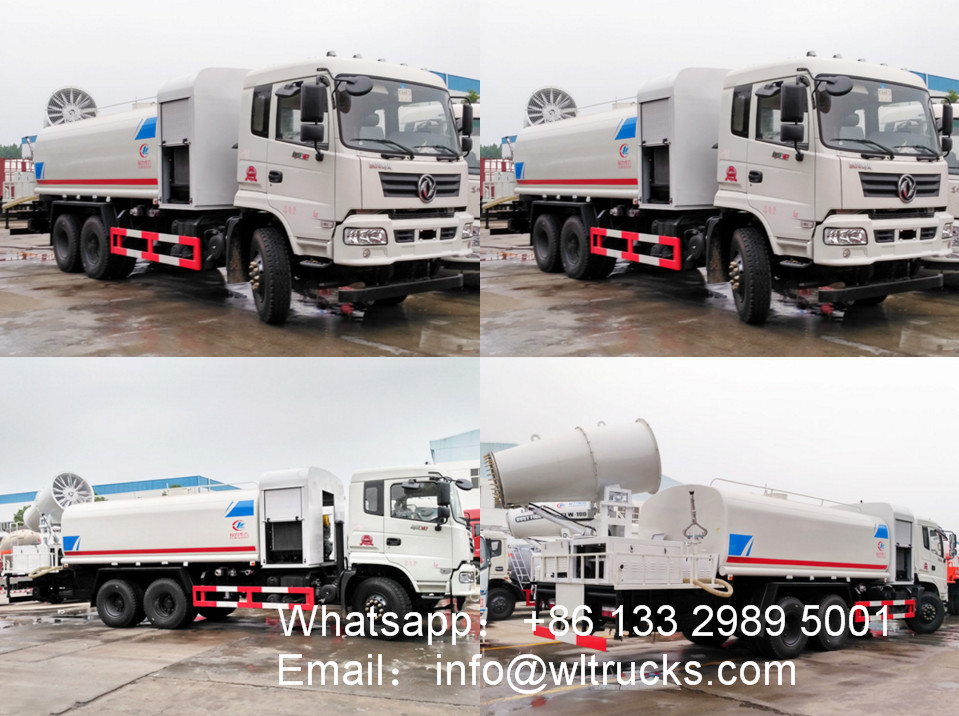

Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
