products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

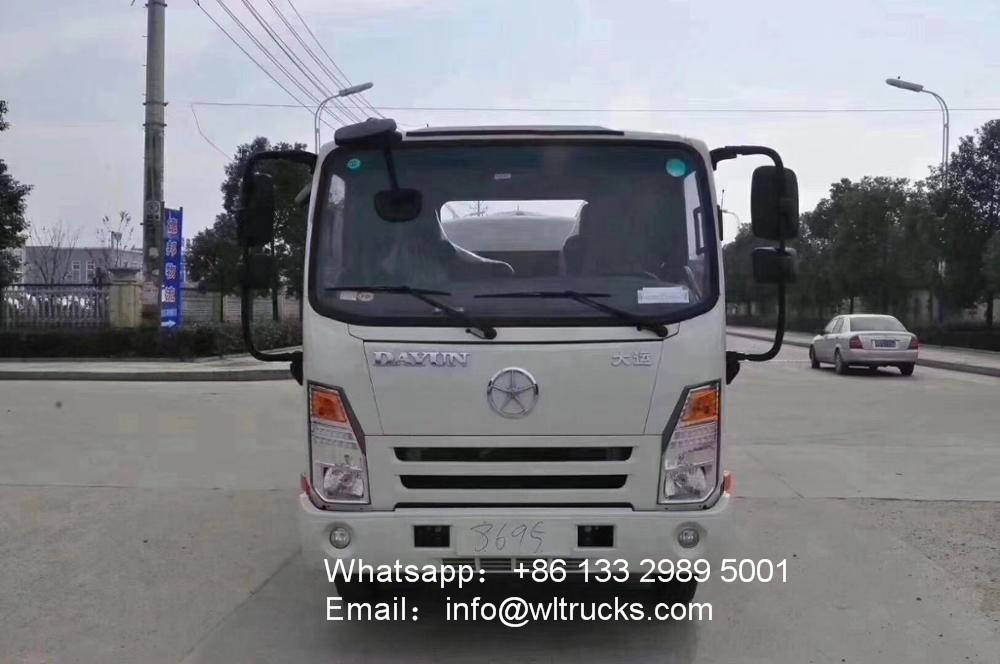

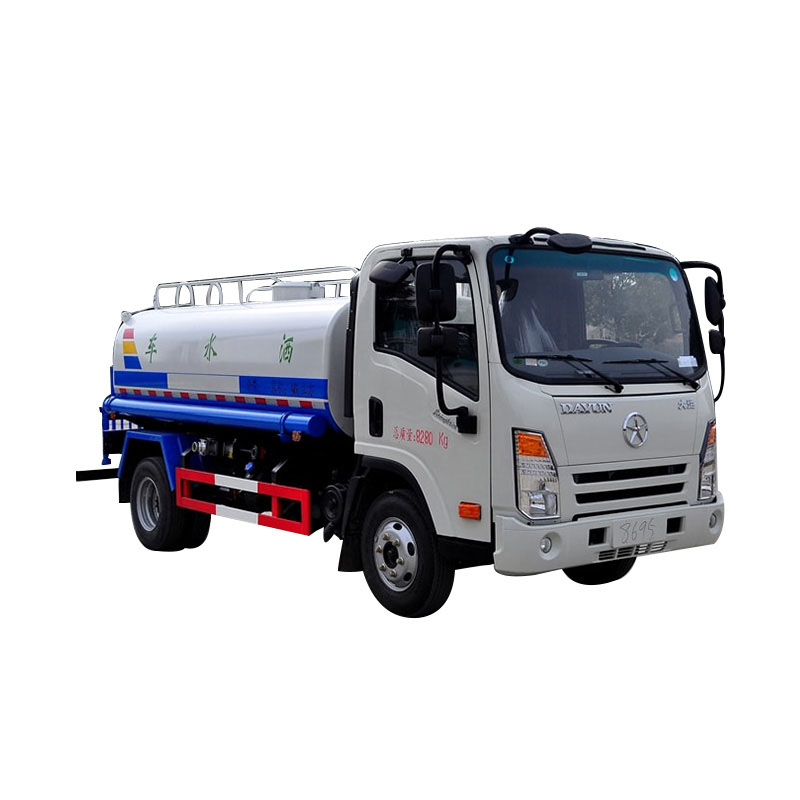

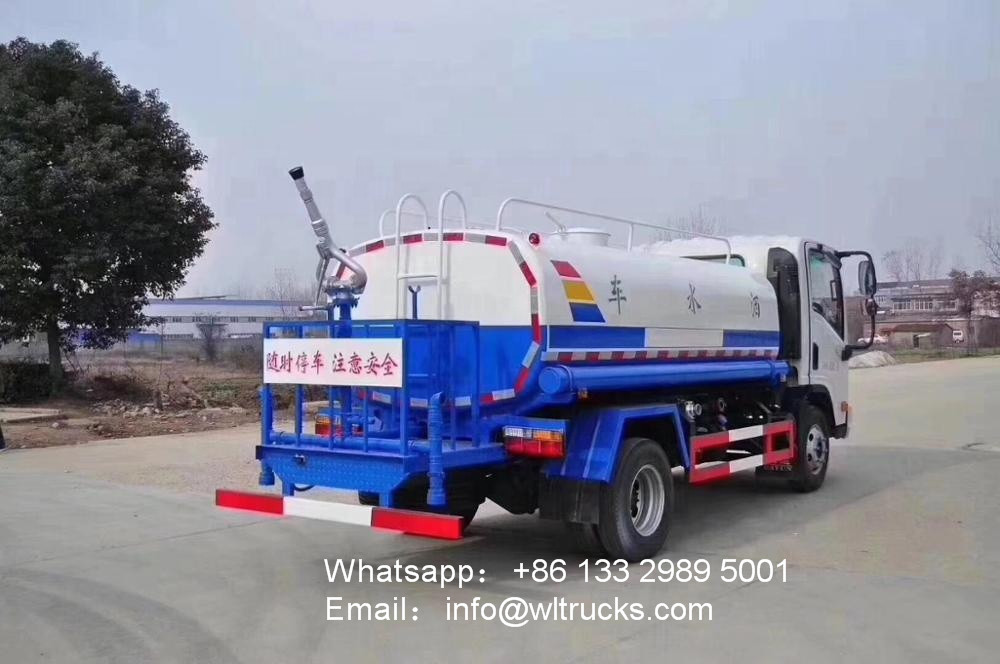

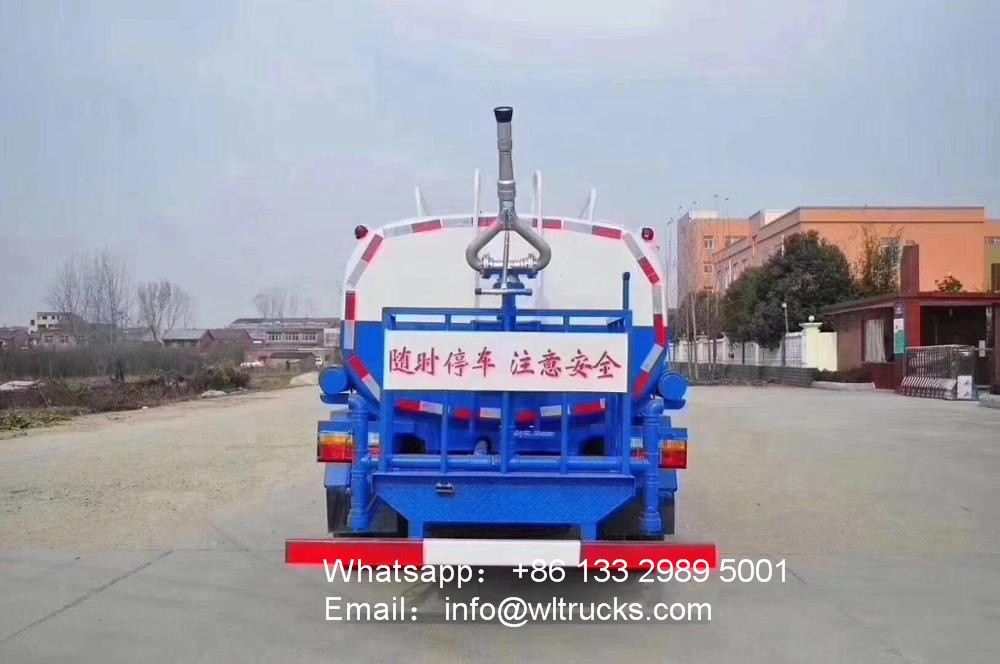

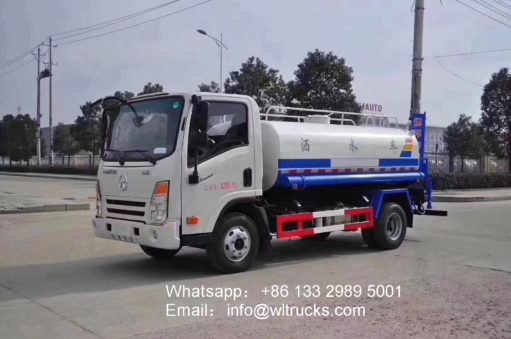

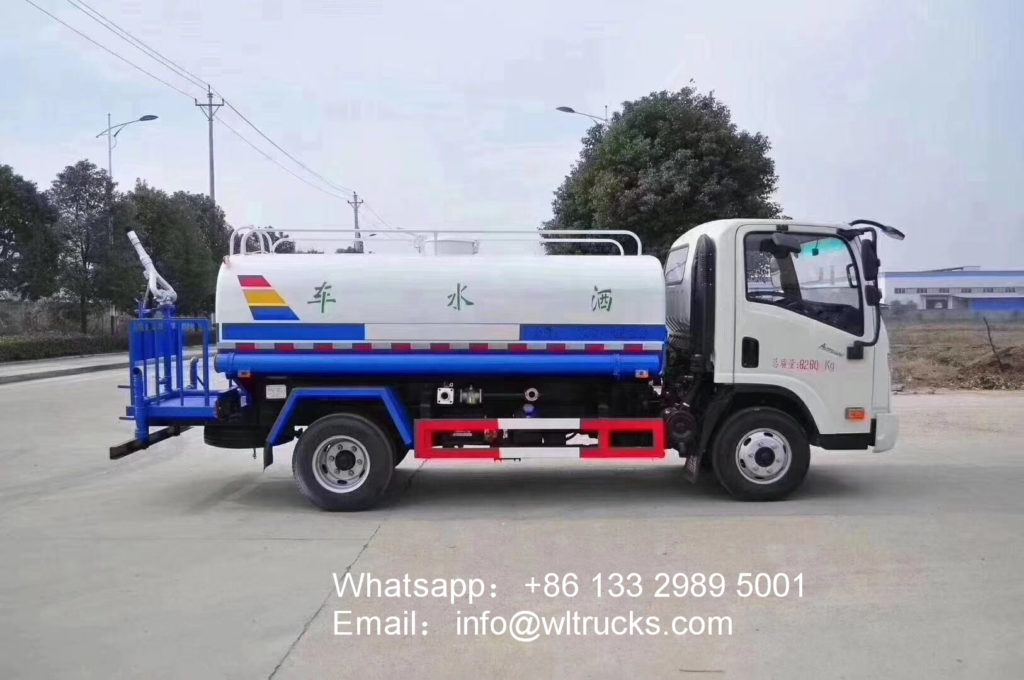

Dayun 5 ton water tank truck Specification:
| hot sale Dayun 5 CBM mini water tank truck | |||
| Vehicle Parameters | |||
| General | Vehicle Model | CLW5041GSSA28D5 | |
| Vehicle Brand | CLW | ||
| Chassis Brand | Dayun | ||
| Overall Dimension(mm) | 5400×1920×2270(mm) | ||
| GVW/Curb Weight(kg) | 4385/2075 | ||
| Chassis Parameters | |||
| Cab | Cab Seat | 2 | |
| Air Conditioner | Optional | ||
| Engine | Fuel Type | diesel | |
| Engie Model | WP2.1Q82E50 | ||
| Engine Brand | Weichai | ||
| Emmission Standard | Euro5 | ||
| Chassis | Drive Type | 4*2 | |
| Wheelbase(mm) | 3300 | ||
| Tyre Specification | 7.00-16LT 8PR | ||
| Tyre No.(pcs) | 6 | ||
| Max Speed(km/h) | 95 | ||
| Leaf Spring | 3/5+3 | ||
| Axle Load | 1590/2795 kg | ||
| F/R Tread | 1750 /1650 kg | ||
| F/R Overhang | 1495/1490 mm | ||
| Super structure | |||
| Tank | Tank capacity | 5000 litre | |
| Tank material | Carbon steel | ||
| Equipment | Equipped with front(rear, side) sprinkler(sprinkling width>10m) | ||
| Equipped with rear working platform with water cannon(range>28m) | |||
| Equipped with XDR pump(suction lift>6m) | |||
| Equipped with fire valve, water valve and filter gauze | |||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
