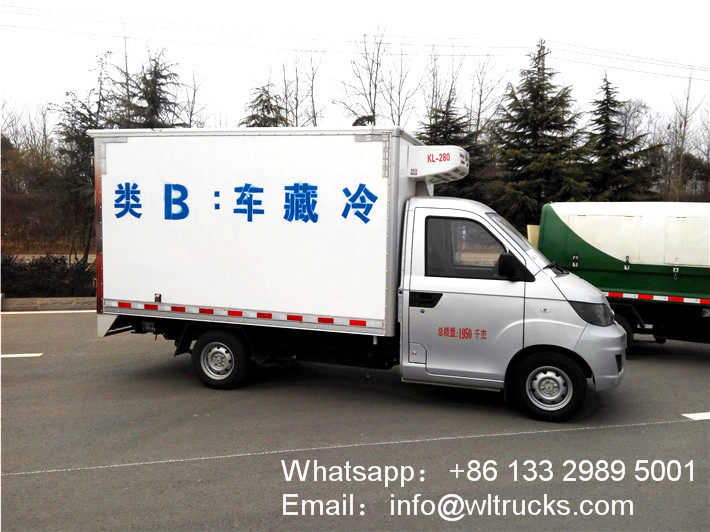

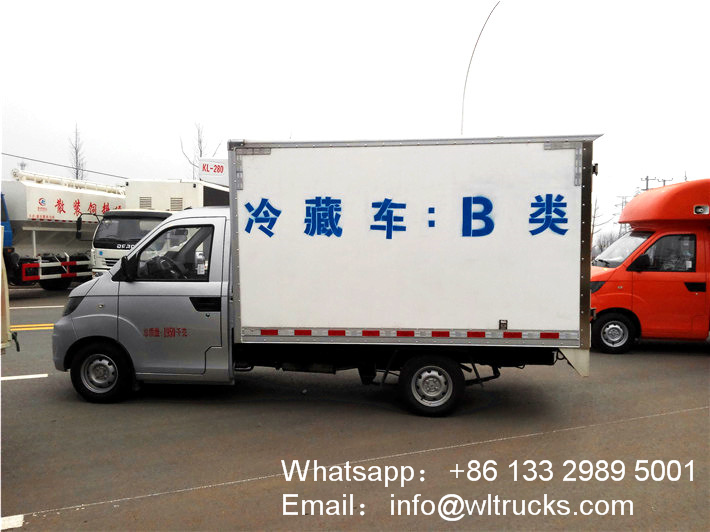

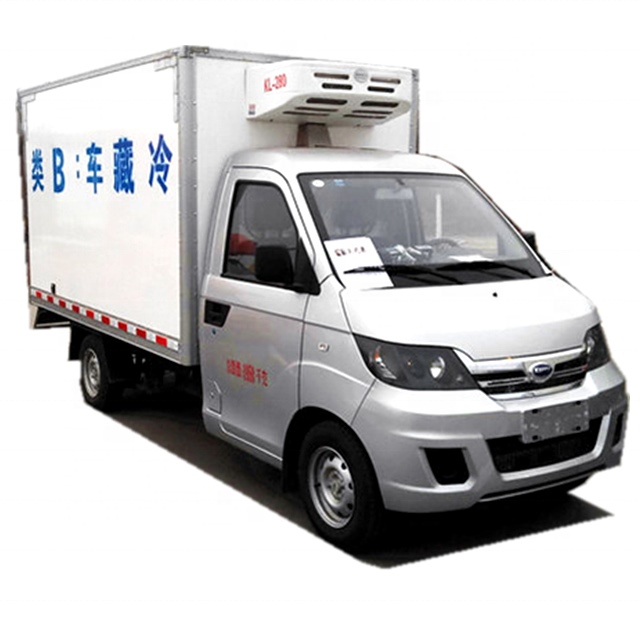

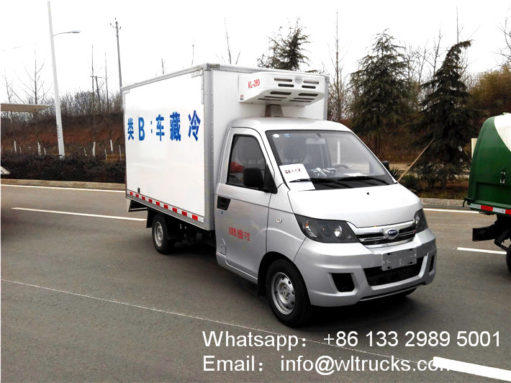

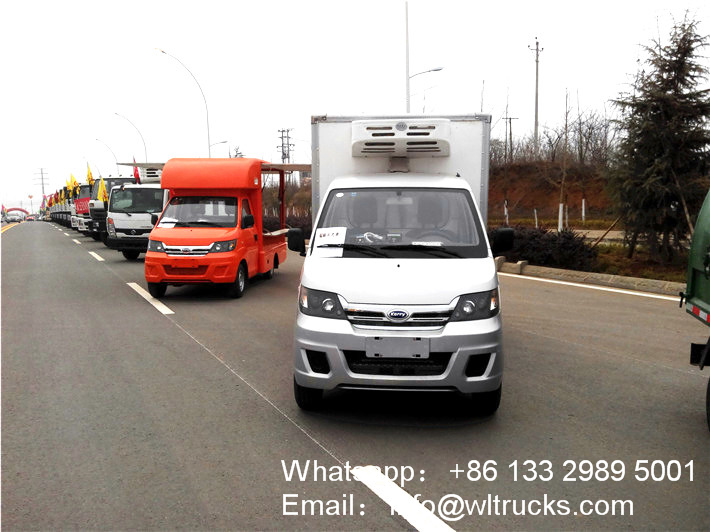

Chery Karry 1 ton mini refrigerator van truck
Adopts single-row cab, Chery SQR472WD type 81.6 horsepower engine, 175R14LT vacuum tire, five-speed gearbox, oil brake, adjustable collapsible energy-absorbing steering column, front anti-collision steel beam, double airbags, and thickened beams. Steel plate reinforcement.

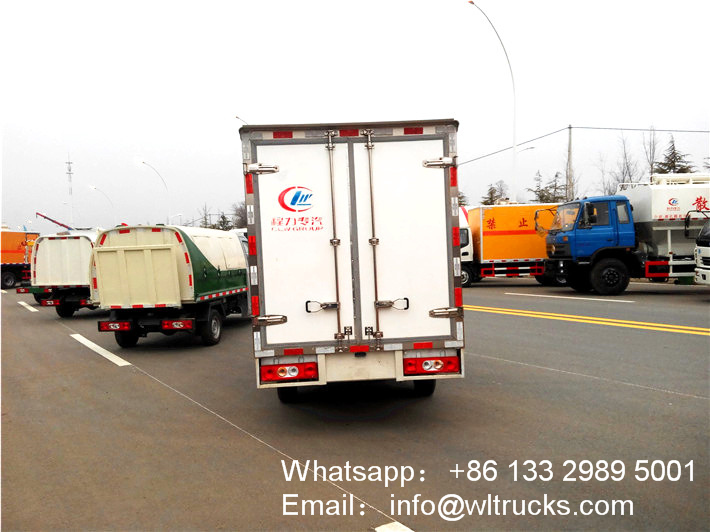

Top: Cargo box size: 2840×1490*1660mm, inside and outside glass fiber reinforced plastic box, 8CM thick polyurethane insulation layer, stainless steel door lock, rear double door, standard Han Xue -5 degree unit
Optional equipment: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Chery Karry 1 ton mini refrigerator van truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Chery Karry 1 ton mini refrigerator van truck specification:
|
Vehicle model
|
CLW5020XLCQ5
|
Dimensions
|
4950×1700×2550
|
|
Emission Standards
|
ERUO 3
|
Cargo size
|
2840×1490×1660
|
|
Vehicle parameters
|
|||
|
Total mass (kg)
|
1950
|
Approach/departure angle
|
18/19
|
|
Rated mass (kg)
|
320
|
Front overhang / rear overhang
|
635/1265
|
|
Curing quality (kg)
|
1500
|
Maximum speed
|
115
|
|
Axle load
|
645/1296
|
||
|
Chassis parameters
|
|||
|
Chassis model
|
SQR1021H08-E
|
batch
|
293
|
|
Number of axes
|
2
|
Fuel type
|
gasoline
|
|
Wheelbase (mm)
|
3050
|
Front track
|
1360
|
|
Rated passengers:
|
2
|
Rear track
|
1380
|
|
Number of tires
|
4
|
Number of springs
|
-/6
|
|
Tire specifications
|
165R13LT 8PR
|
||
|
Engine parameters
|
|||
|
Engine number
|
Engine manufacturer
|
Displacement (ml)
|
Power (KW)
|
|
SQR472WD
|
Chery Automobile Co., Ltd.
|
1251
|
60
|
Chery Karry 1 ton mini refrigerator van truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Chery Karry 1 ton mini refrigerator van truck New craft:
Chery Karry 1 ton mini refrigerator van truck Optional configuration:
Chery Karry 1 ton mini refrigerator van truck Bodywork details:
Chery Karry 1 ton mini refrigerator van truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
