Changan gasoline 3m3 hook arm garbage truck Product Description:
Changan gasoline 3m3 hook arm garbage truck Configuration: Changan new cab, front wheel front, 2.7m wheelbase, Chongqing Xiaokang DK12-10 gasoline engine (National V) 88 hp, 5 speeds, front disc rear drum brake, 165 vacuum tire The garbage bin is made of high-quality carbon steel plate with a volume of about 3 cubic meters. The bucket is sealed. There are garbage inlets on both sides. The back cover can be opened. One vehicle can be equipped with multiple garbage bins.
Changan gasoline 3m3 hook arm garbage truck Chassis features
1. The appearance is novel and magnificent, the proportion of the whole vehicle is harmonious and beautiful
2. Convex cab, front wheel front, safe and comfortable, large space
3. The electromechanical combination meter provides precision, enhanced vacuum booster pump and enhanced brake
4. Strengthen vacuum booster pump and reinforced brake
5. Stable chassis, light and flexible, easy to start and operate
6. High customer return rate and trustworthy
Changan gasoline 3m3 hook arm garbage truck Specifications:
|
product name
|
Changan 3 cubic meter mini hook arm lifting garbage truck
|
Chassis model
|
CLW5159GSSD3
|
|
Actual volume ( cubic )
|
3 cubic
|
Total mass (kg)
|
3890
|
|
Engine horsepower
|
98
|
Rated load mass (Kg)
|
165
|
|
Engine name
|
Changan
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
5000x2080x2330
|
Fuel type
|
gasoline
|
|
Number of tires
|
6
|
Tire specifications
|
600-16 |
|
Wheelbase (MM)
|
2700
|
Maximum speed (km/h)
|
95
|
|
Front track
|
1495
|
Rear track
|
1490
|
|
Performance profile
|
Compressed Garbage Truck Adopts Electromechanical and Hydraulic Integration Technology. With The Combined Automatic Control System of Machine, Electricity and Liquid, Computer Control and Manual Operation System, IT CAN the Realize The dumping, Crushing or pressing of Garbage through Special Devices SUCH AS Filler and Pusher The compressed garbage truck has the functions of automatic repeated compression and Peristaltic Compression, high compression ratio, good sealing performance, large load capacity, convenient operation, good environmental protection, and high power utilization of the whole vehicle. | ||
|
Dedicated configuration
|
New non-ribbed box body, flat arc with beautiful appearance, effective compression volume of 3 cubic meters, tail with reverse feeding mechanism, electronically controlled manual dual control system, double control box for cab and tail, tail belt 3 After the centimeter , the rubber sealing bead has a sewage collection tank, a large-capacity sewage tank, and the cabinet can be printed with patterns and words as required.
|
||
Changan gasoline 3m3 hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
Changan gasoline 3m3 hook arm garbage truck New craft:
Changan gasoline 3m3 hook arm garbage truck Optional configuration:

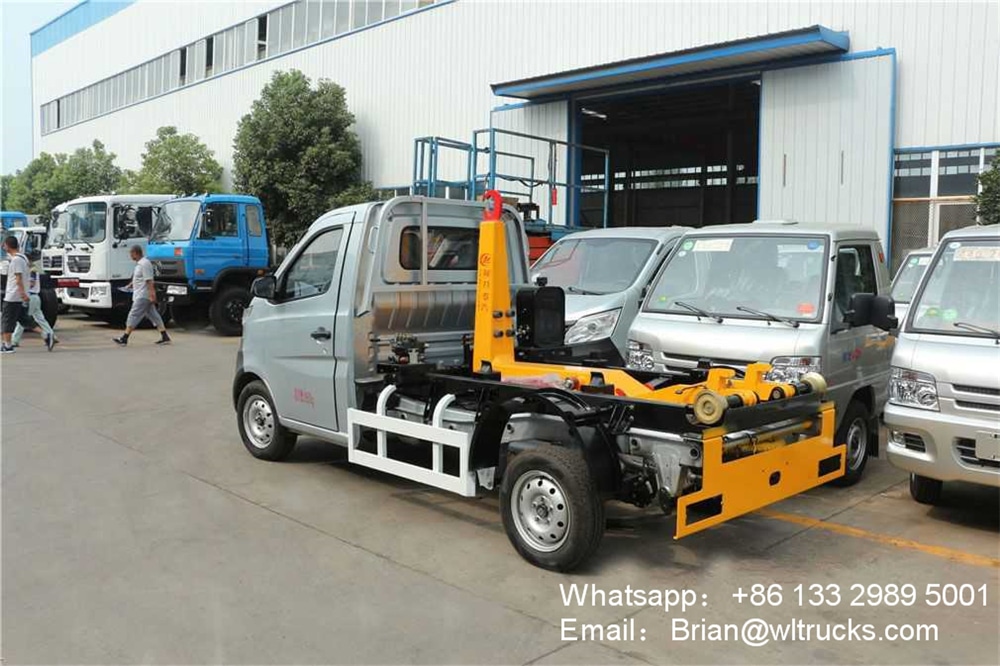

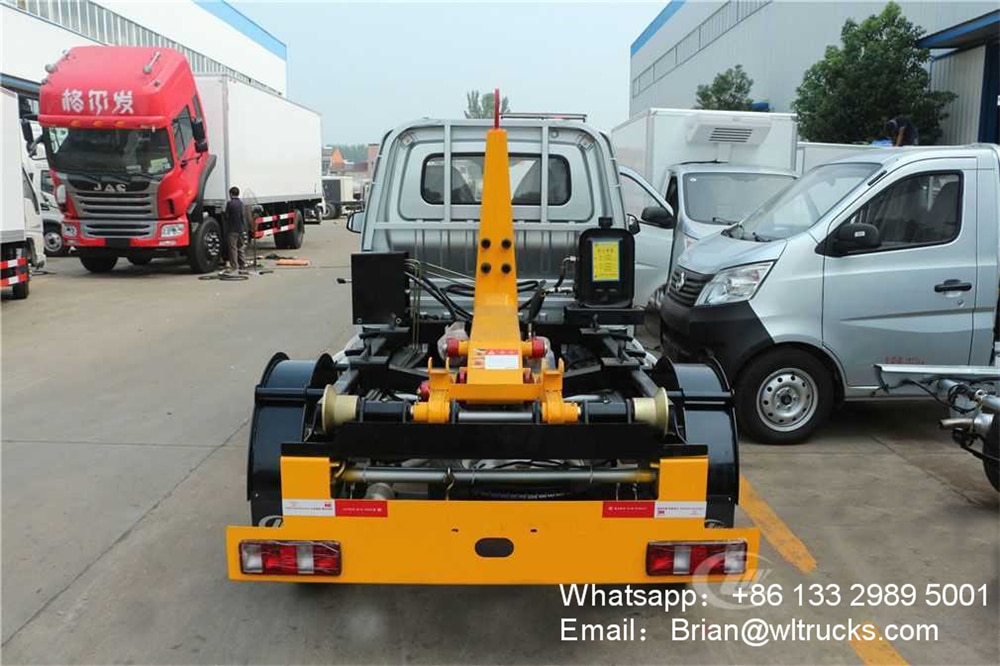

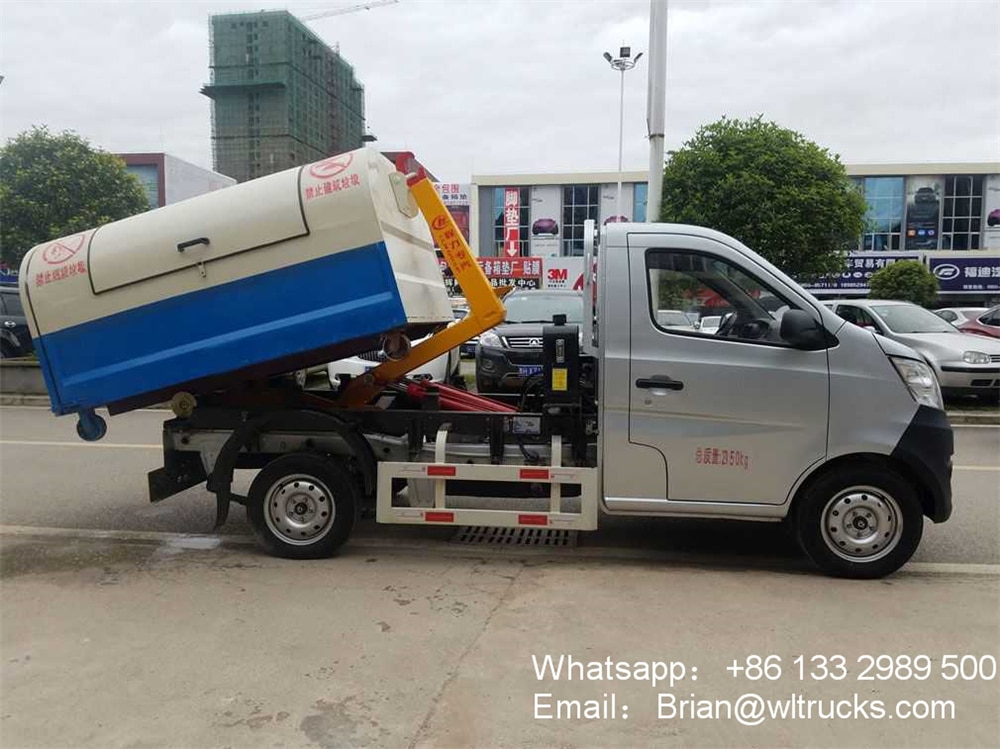

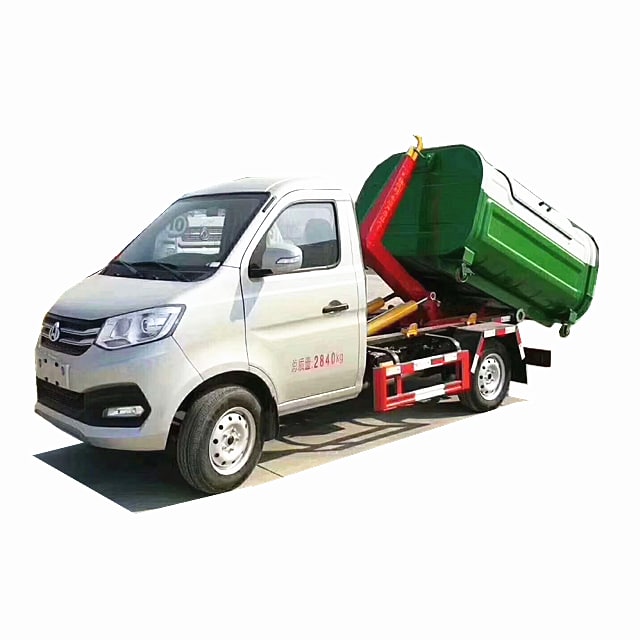

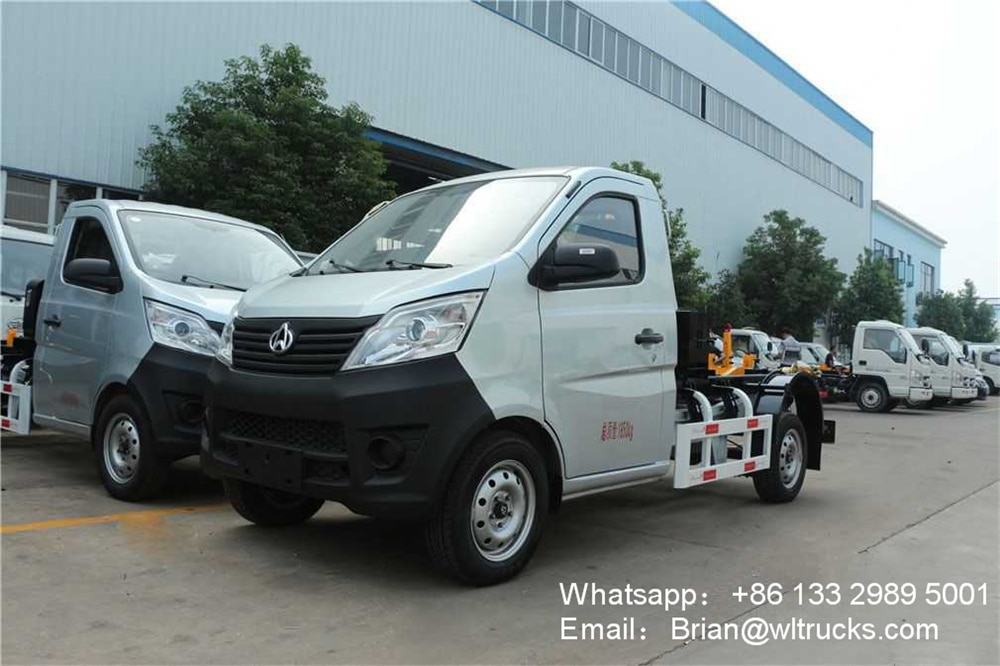

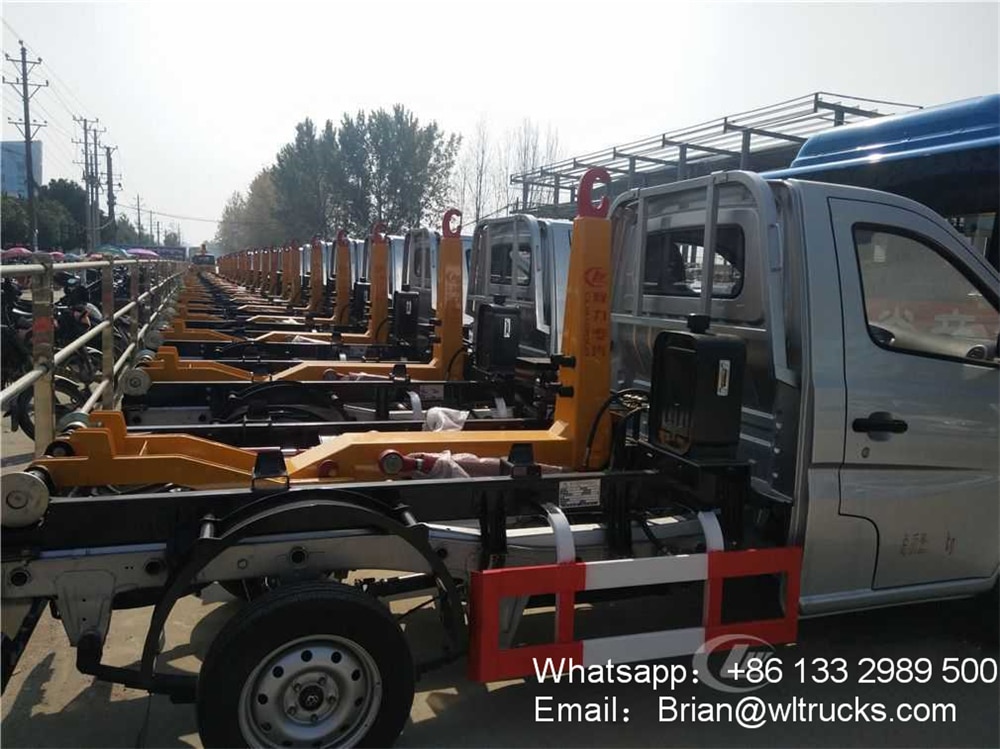

Changan gasoline 3m3 hook arm garbage truck detailed images:
Changan gasoline 3m3 hook arm garbage truck Structure diagram：
Changan gasoline 3m3 hook arm garbage truck Detail drawing:
Customizable garbage truck models
