Changan 4m3 minibus refrigerated truck
Adopts Harbin Dongan 109 horsepower gasoline engine, 1.5L displacement, five-speed gearbox, 3050 wheelbase, 185R14LT tire, with original air conditioner, ABS, direction assist, headlight adjustment. Vehicle size: 4805*1715*2160mm, the box body is 2260mm long, the bottom width is 1340mm and the top width is 1090mm, the inner height is 1100mm, the door frame is 920mm wide, and the door frame is 1020mm high.
Changan 5m3 minibus refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Changan 4m3 minibus refrigerated truck specification:
|
Changan Ruixing M80 bread refrigerated truck vehicle technical parameters
|
|||
|
Box volume
|
4.2 cubic meters
|
Refrigeration temperature
|
-5°C/-15°C
|
|
Sheet thickness
|
80mm
|
Inner and outer wall panels
|
FRP / stainless steel
|
|
Total mass
|
2350 ( kg)
|
Load quality
|
590 (kg)
|
|
Curb quality
|
1700 (kg)
|
Dimensions
|
4805*1715*2610 (mm)
|
|
Number of passengers
|
2 (person)
|
Box size
|
2400*1450*1200 (mm)
|
|
Changan Ruixing M80 bread refrigerated truck chassis technical parameters
|
|||
|
Chassis name
|
Changan Ruixing M80
|
Chassis model
|
SC6483A5
|
|
Number of axes
|
2
|
Number of tires
|
5 (including spare tire)
|
|
Wheelbase (mm)
|
3050
|
Tire specifications
|
185R14LT
|
|
Gearbox
|
5 files
|
Front and rear bridge
|
153
|
|
Fuel type
|
gasoline
|
brake
|
Front drum
|
|
Emission Standards
|
ERUO 5
|
||
|
engine model
|
Engine company
|
Displacement (ml)
|
horsepower
|
|
4G15S
|
Harbin Dongan Automobile Engine
|
1488
|
109
|
Changan 4m3 minibus refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Changan 4m3 minibus refrigerated truck New craft:
Changan 4m3 minibus refrigerated truck Optional configuration:
Changan 4m3 minibus refrigerated truck details:

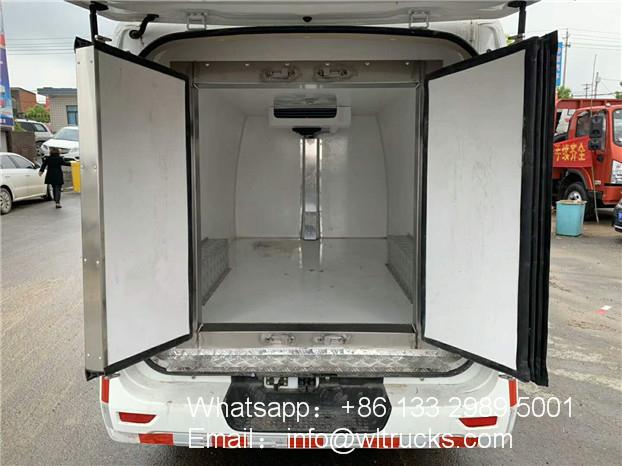

Changan 4m3 minibus refrigerated truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
