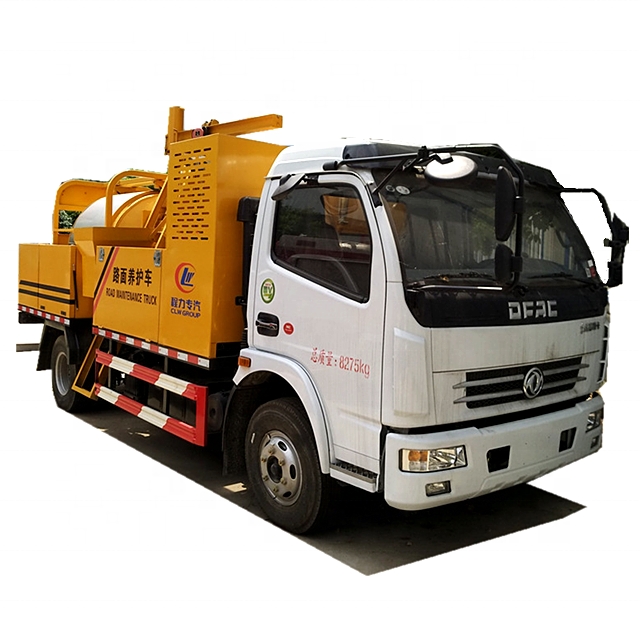

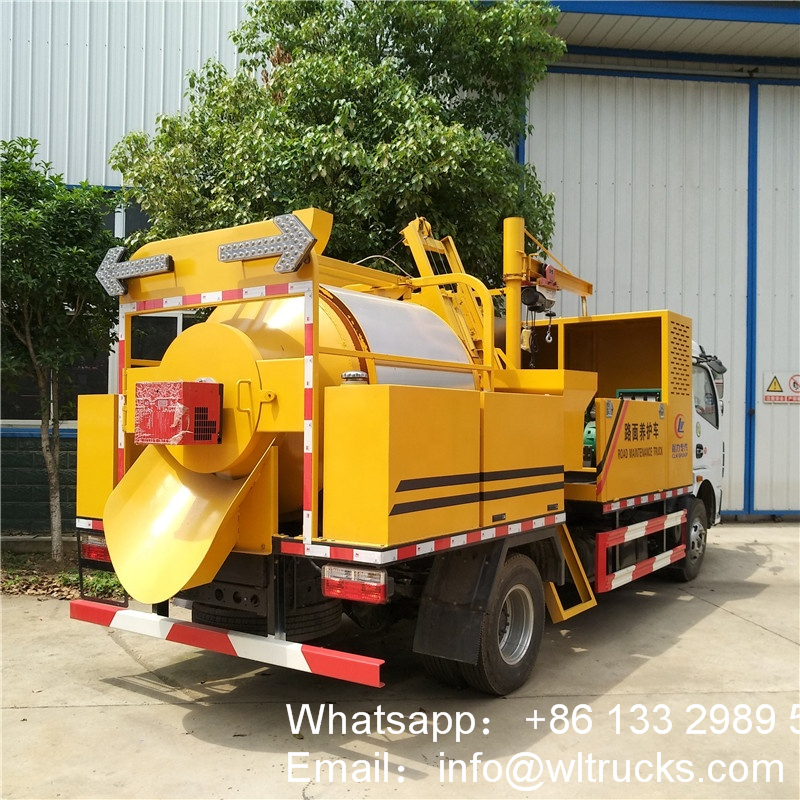

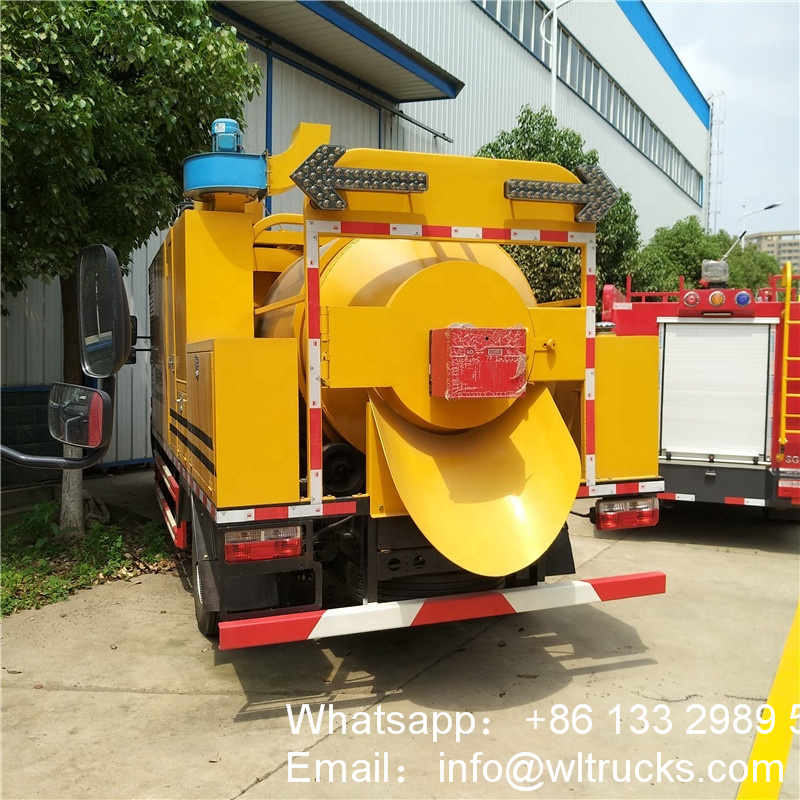

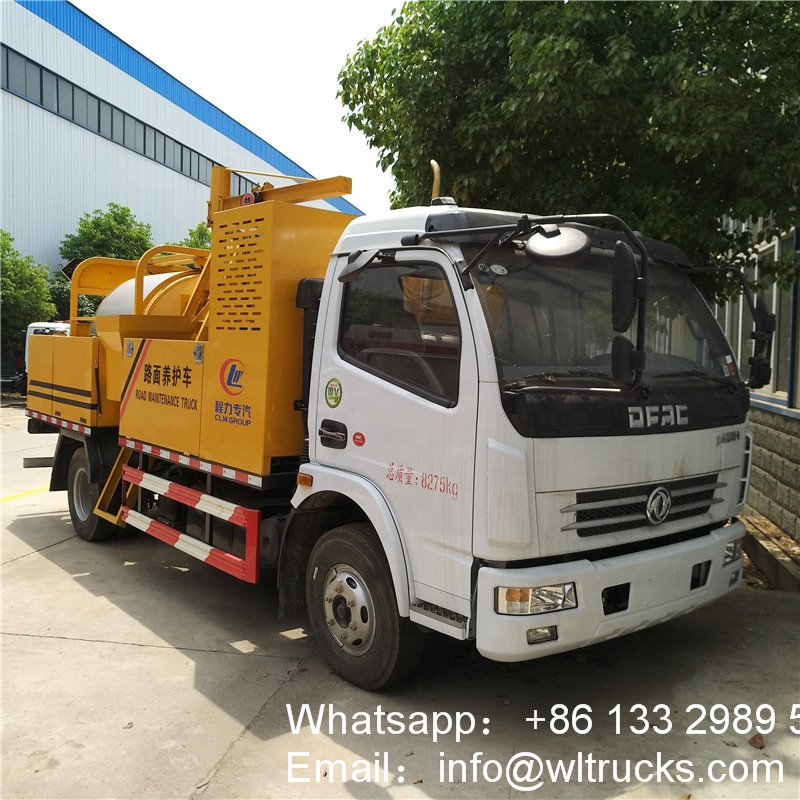

Dongfeng Multi-functional Asphalt Road Maintenance equipment truck,Asphalt pothole patcher/asphalt pavement repair truck
Our Asphalt road repair truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
specification:
ITEM | UNIT | PARAMETER | |
Vehicle | Asphalt road repair truck
CLW5080TYHD5 |
||
Overall dimensions | mm | 6720×2200×3100 | |
Fuel tank dimensions | 4000×1750×1150 | ||
GVW | kg | Appro×8275 | |
Curb weight | Appro×6860 | ||
Loading capacity | Appro×1220 | ||
Wheel base | mm | 3800 | |
F/R track base | 1506/1466 | ||
Approach/departure angle | ° | 20/17 | |
Exhaust/Power | ml/kw/hp | 3856/88/120 | |
Max speed | km/h | 103 | |
Axle Load | kg | 3300/4975 | |
Tire specification | 7.50-16 | Engine type | CY4102-E3C |
Traction system | 4×2 | transmission | Manual , 5-speed |
Number of axles | 2 | Emission standard | Euro 3 |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 |
Engine | diesel engine | ||
Production cycle | 20-25 working days | ||
Warranty | 12 month,from the date of supply | ||
Remark |
The vehicle is used for pavement maintenance. The special device is asphalt mixture regeneration device; Protective material: Q235B carbon steel, connection method: the left and right sides and the lower part of the protection are welded, the rear protection section size (mm): 120×50, the rear protection from the ground height (mm): 300. ABS model: ABS /ASR-24V-4S/4M |
