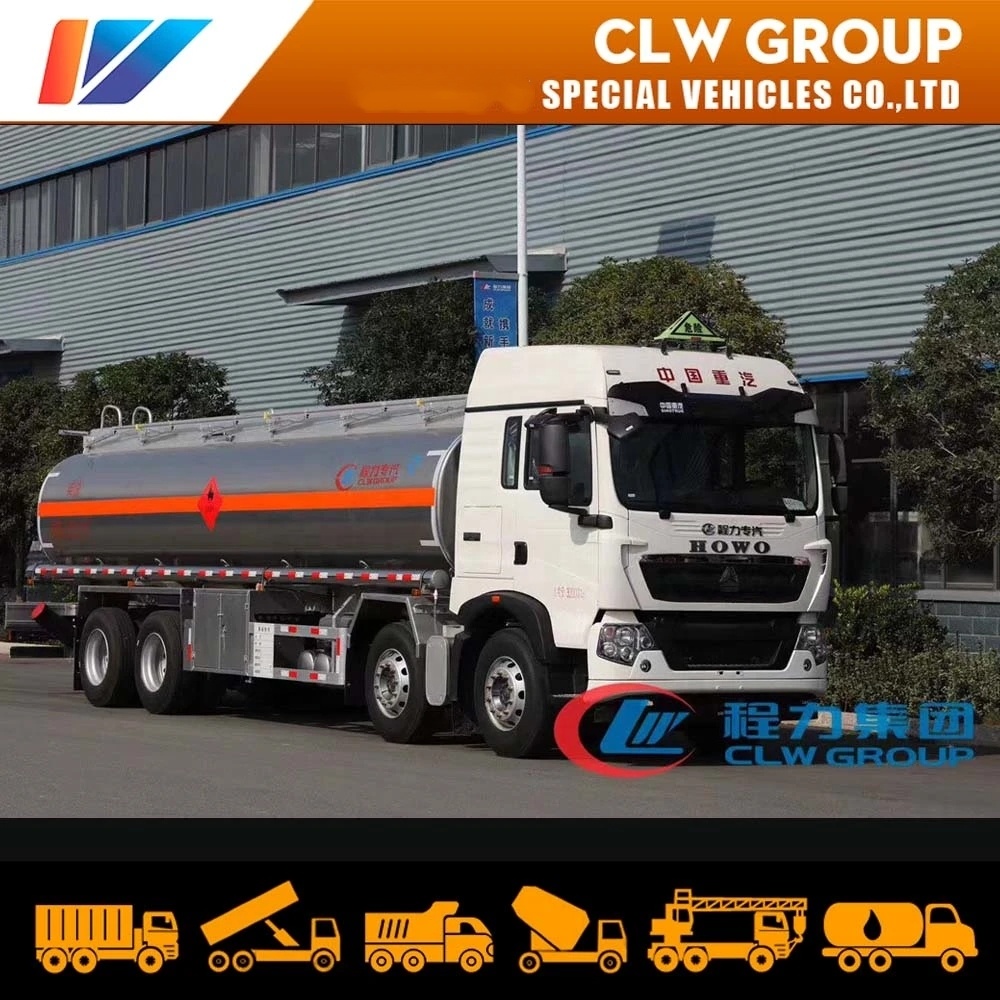

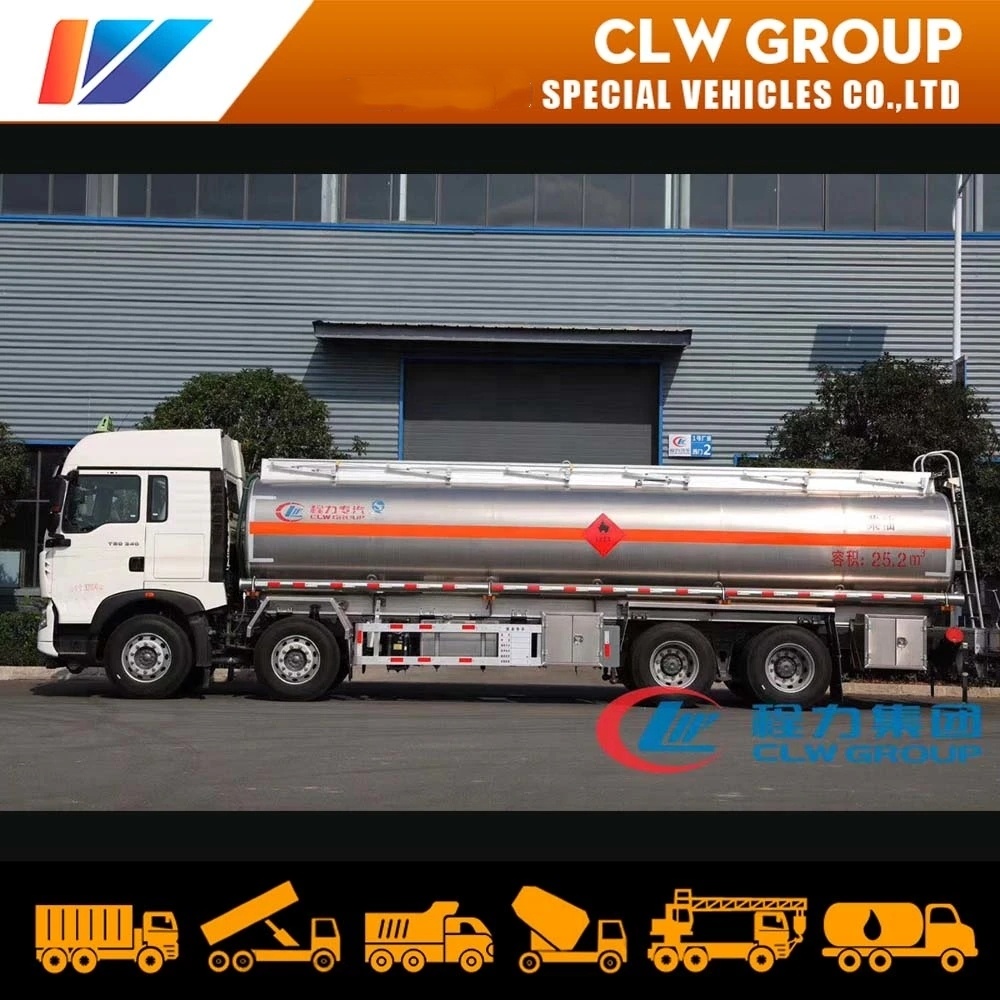

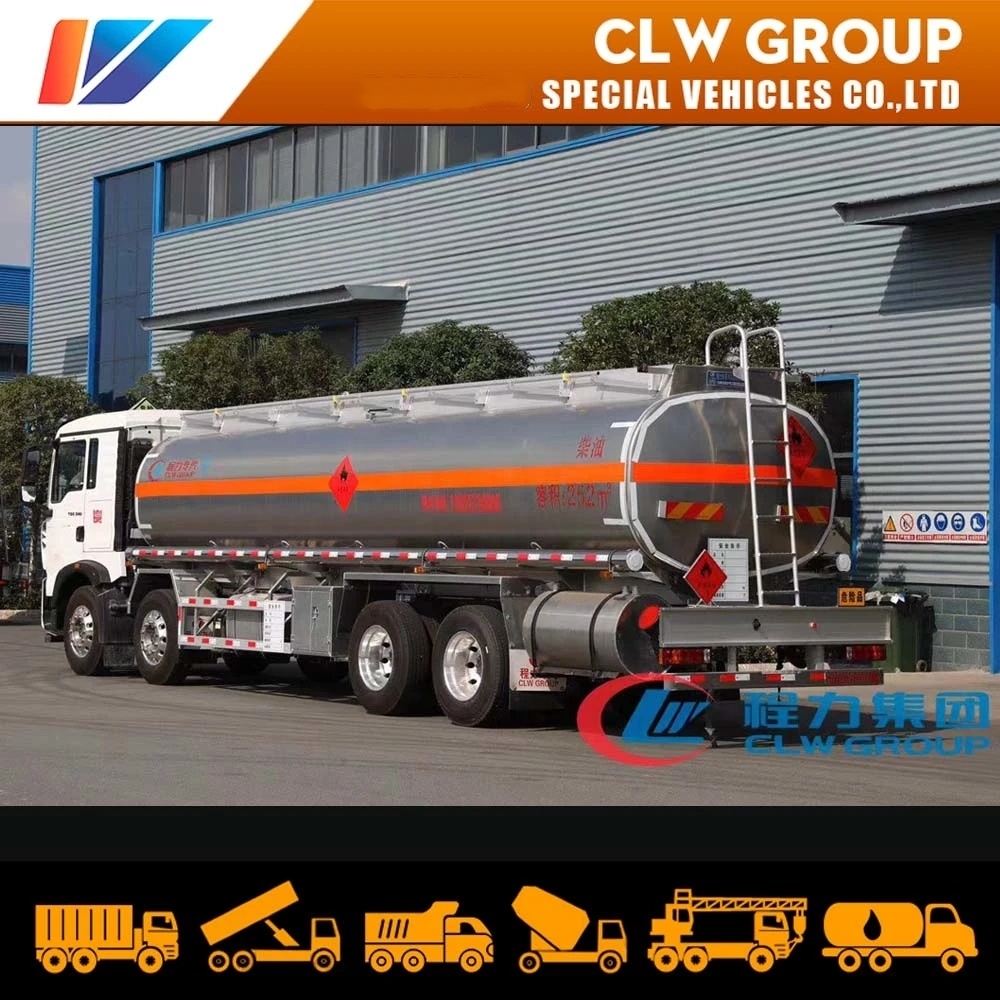

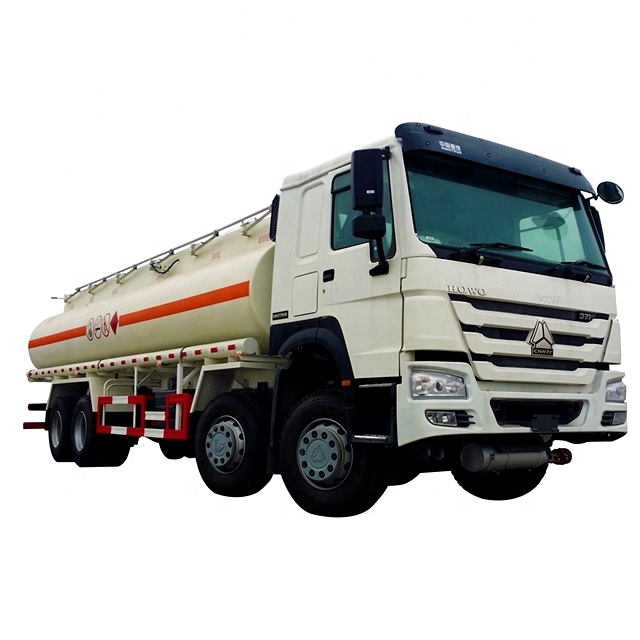

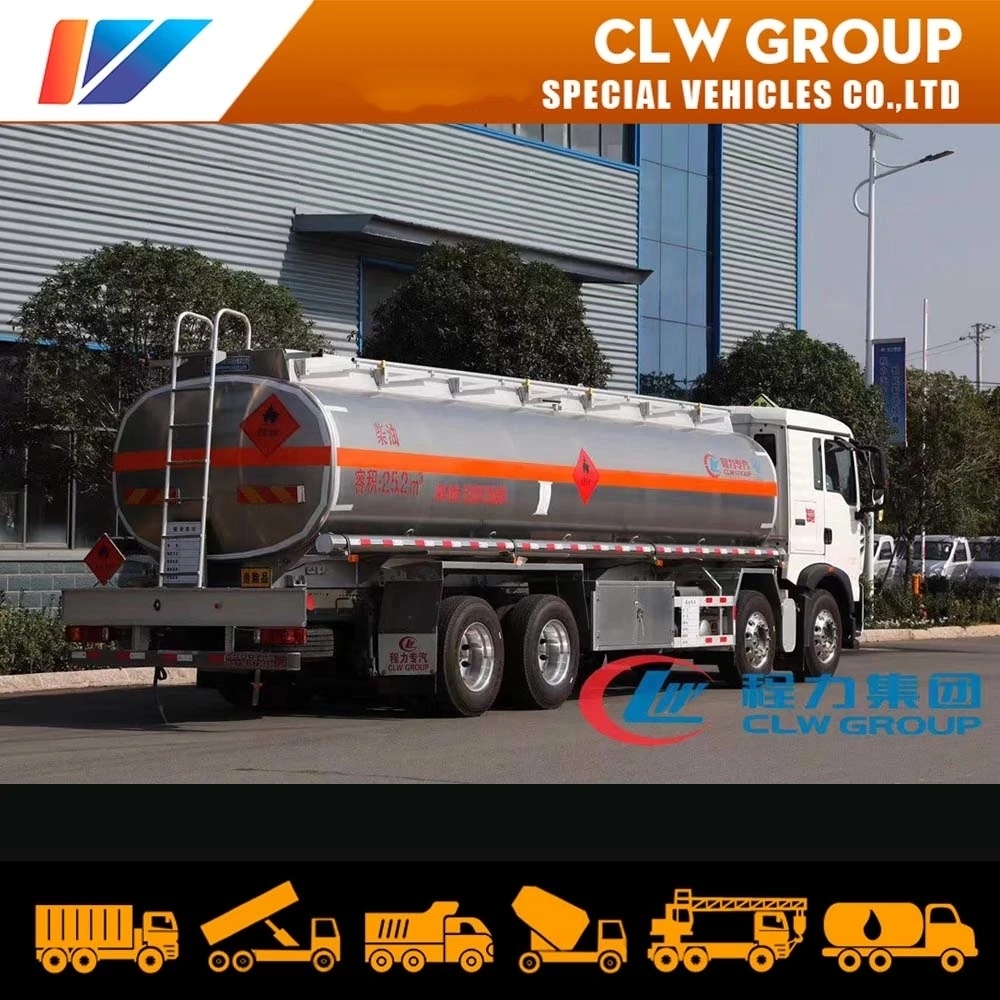

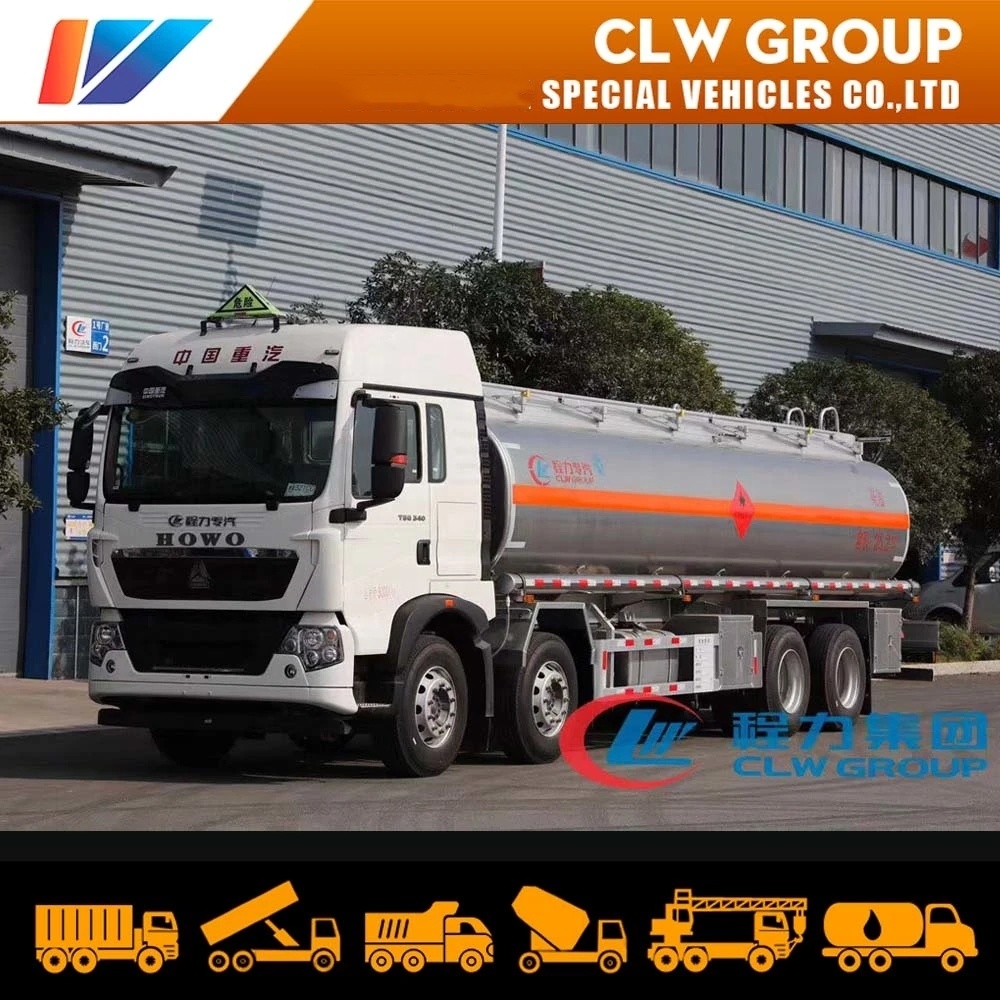

8×4 sinotruk howo 30000l fuel oil tanker truck
x4 sinotruk howo 30000l fuel oil tanker truck is equipped with Sinotruk 370 horsepower engine, Sinotruk 10-speed gearbox, German Man 11-ton two-stage rear axle, original 50 power take-off, with direction assist, airbag seat, driving recorder, ABS, air brake brake system, brake belt with automatic adjustment arm, headlights with adjustment function, fender with anti-splash device, with disc brake, speed limit device, exhaust pipe front and fire protection cap.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| General Technical Parameters | ||||
| Overall Dimension | 11500*2496*3600(mm) | Gross Vehicle Weight | 32000(kg) | |
| Curb Weight | 13030(kg) | Loading Weight | 18840(kg) | |
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | HOWO | ||
| Cabin | Row and half, Left Hand Driving | |||
| Engine | Power | 371HP | ||
| Emission standard | EURO III | |||
| Displacement | 7.79L | |||
| Fuel type | Diesel | |||
| Gearbox | 10 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 9T/16T | |||
| Wheel Base | 1800+3800+1350(mm) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 295/80R22.5, 12 Pieces | |||
| Maximum speed | 80(km/h) | |||
| Tank Body | ||||
| Shape | Monoblock Cylinder | |||
| Total Volume(m3) | 35m3 | |||
| Tanker Body Material | 5mm carbon steel | |||
| Manhole Cover | 500mm ,1 set with 1 breather valve | |||
| Bottom Valve | 1 set | |||
| Discharging Valve | 1 set 80mm discharging valve | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
