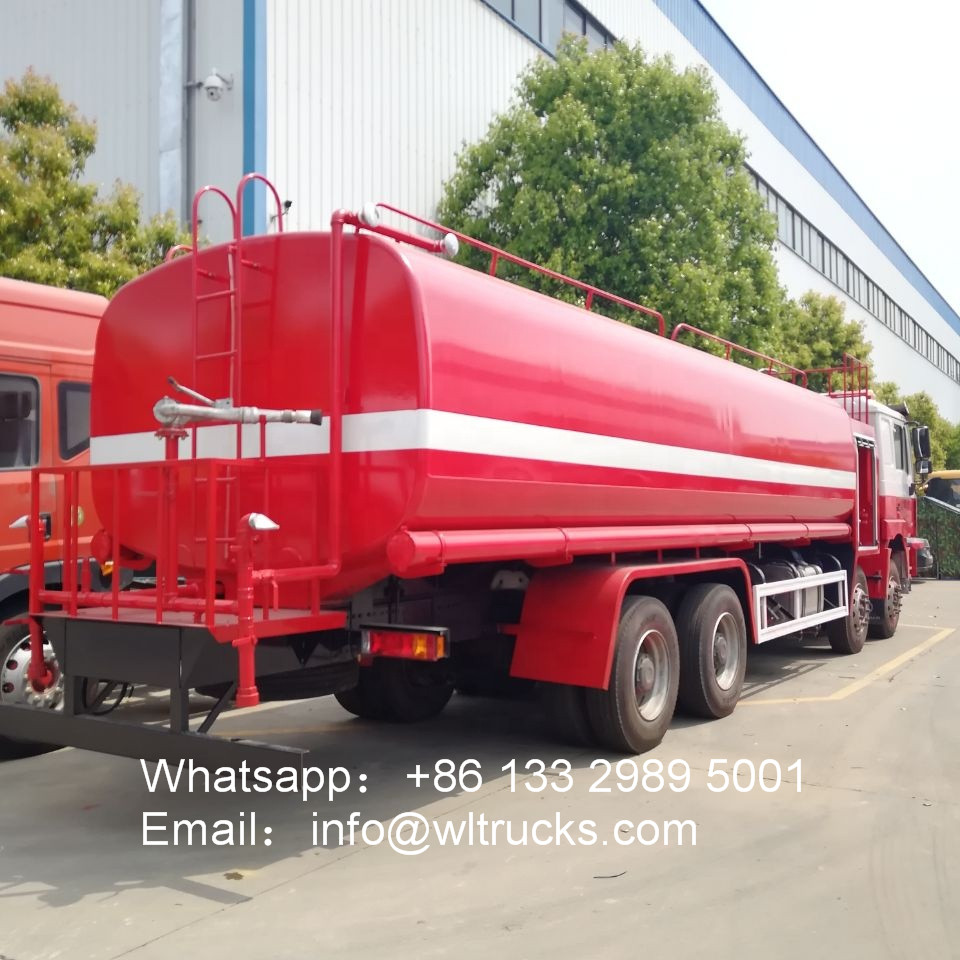

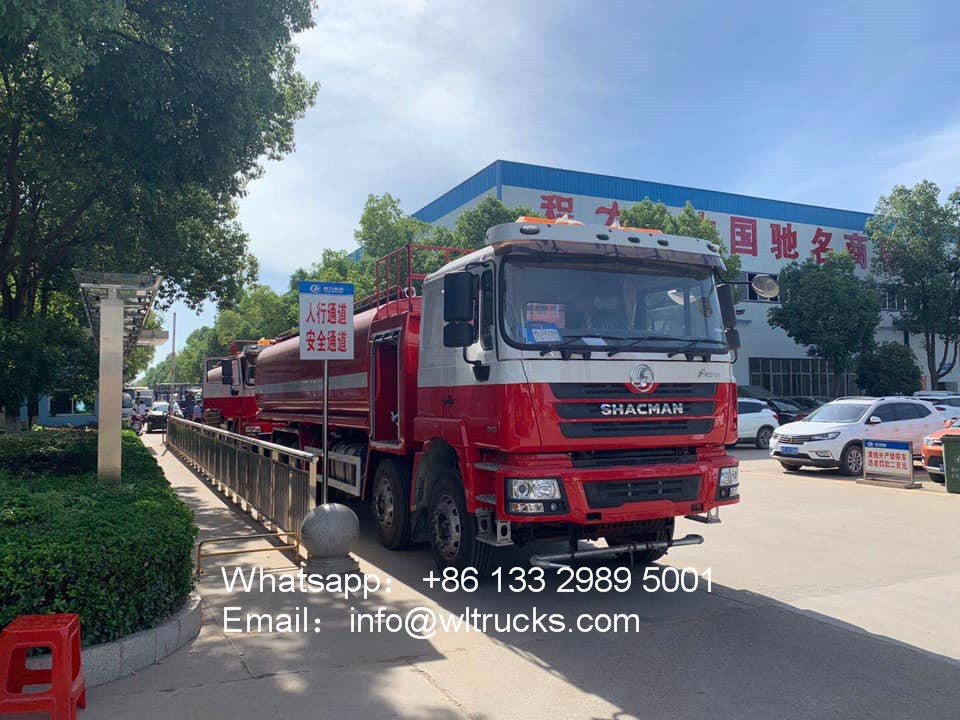

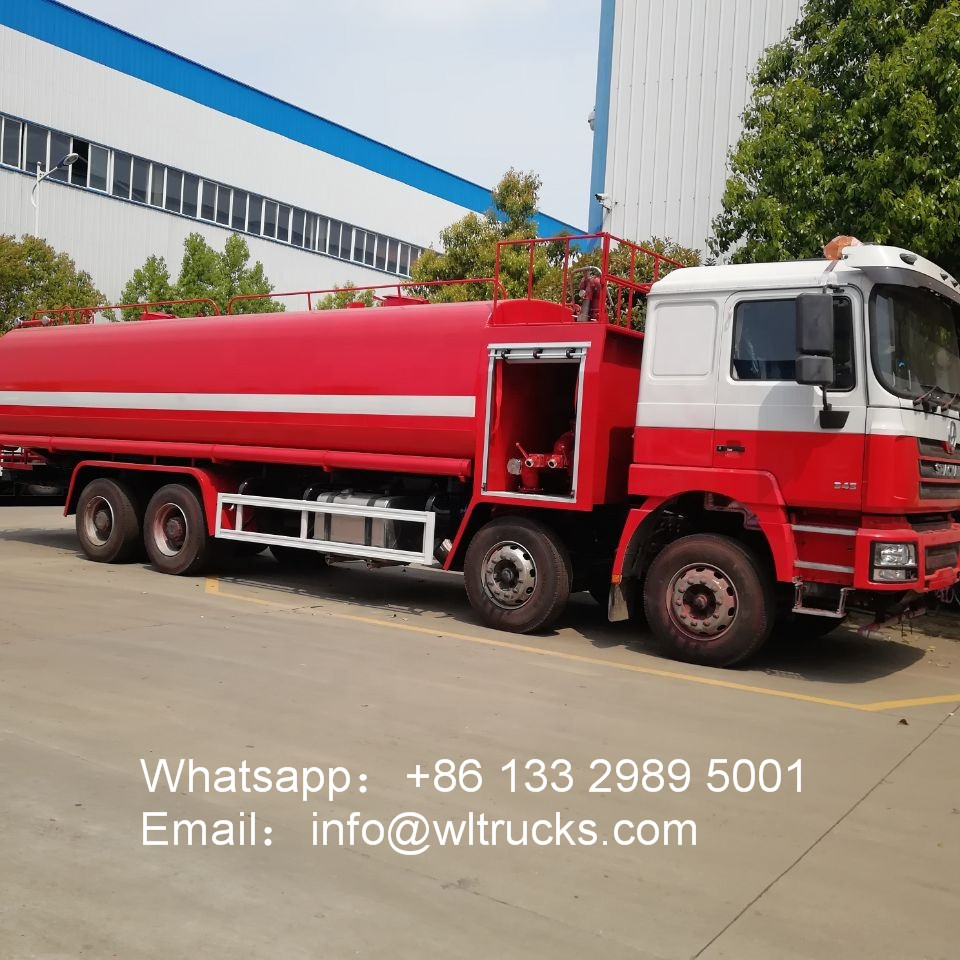

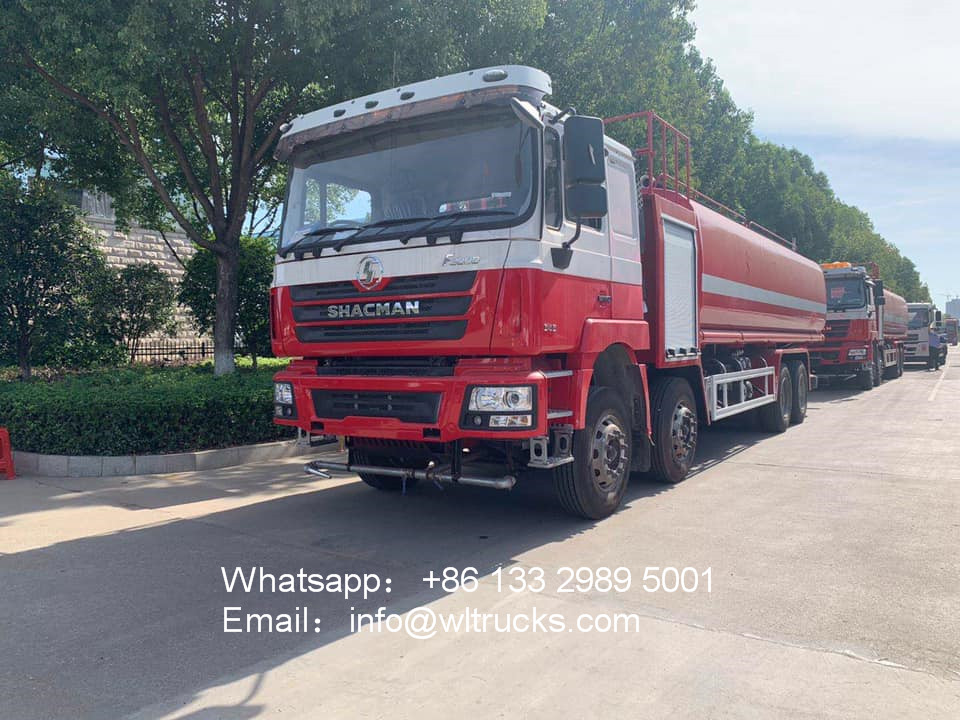

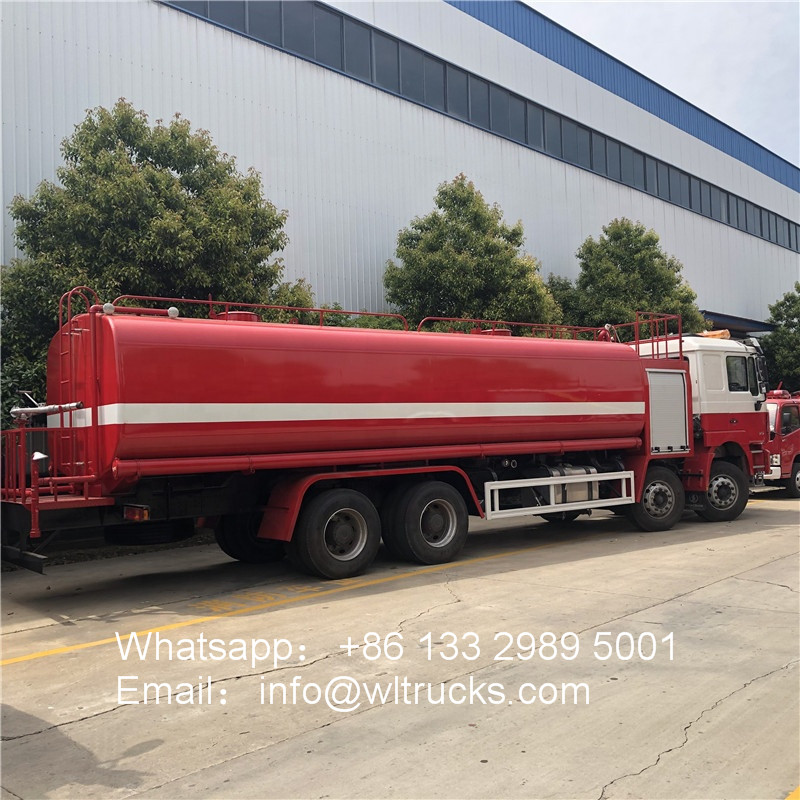

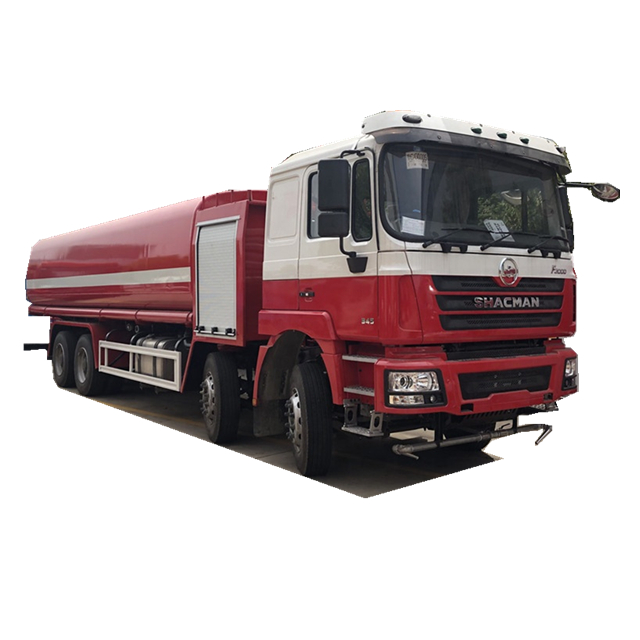

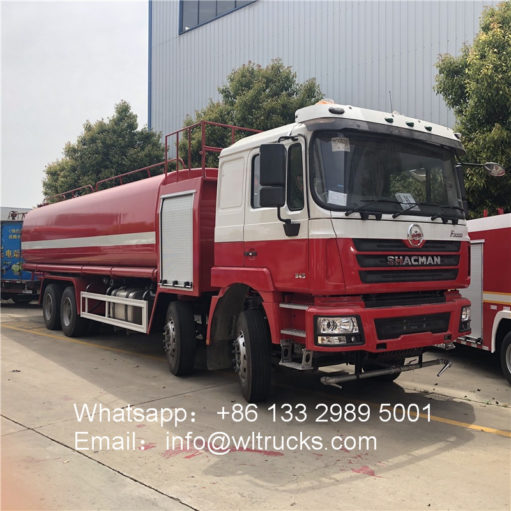

8×4 Shacman 25000 liter fire water tank truck is modified by Shacman 8×4 Delong F3000 chassis, flat-head single row with horizontal cab, Weichai 300 horsepower engine, Euro III emission standard, tank volume 21 cubic meters, maximum 25 cubic meters, front flush, rear sprinkler, side Spraying, rear working platform with green sprinkler; self-priming and self-draining, front flushing, rear spraying, side spraying, rear working table with high-pressure gun, high-pressure gun water spray can be adjusted into columnar and mist, equipped with large Power-specific Hangzhou Weilong sprinkler pump, with fire-fighting joint, self-flow valve, tank body made of 4 mm high-quality carbon steel, with 2 4 m long suction pipes.
Product Specifications:
|
Shacman fire WATER TANKER TRUCK |
||
| # | Descriptions | Specifications and types |
| General | Truck Brand | Chengliwei (our brand) |
| Chassis Brand | Shacman | |
| Approx. Dimension | 9950*2490*3350 mm | |
| GVW./Kerb Wt. | 31000/ 9005 kg | |
| Cab | Cab Capacity | 3 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 8X4,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | Weichai engine | |
| Power | 375hp | |
| Emission Standard | Euro II or EURO III or Euro IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 1800+4350+1300 mm / 4 | |
| Tyre Specfication | 10.00-20,11.00-20,10.00R20,11.00R20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Automative metallic paint | |
| Capacity | 30CBM | |
| Structure& Function | *Equipped with front(rear, side)sprinkler(sprinkling width>14m )
*Equipped with rear working platform with water cannon (range>28m) *Equipped with water pump(suction lift>6m) *Equipped with fire valve, water valve, and filter gauze *Equipped with fire pump 110L/S suction 3-7m |
|
8×4 Shacman 25000 liter fire water tank truck detail structure diagram:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
