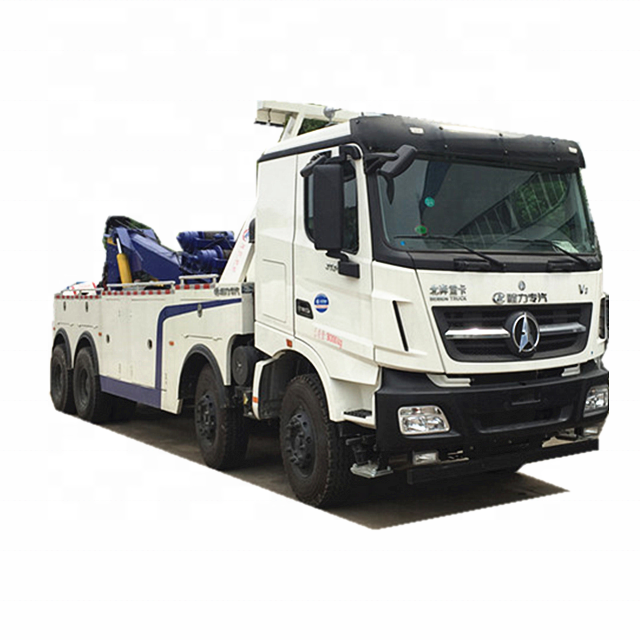

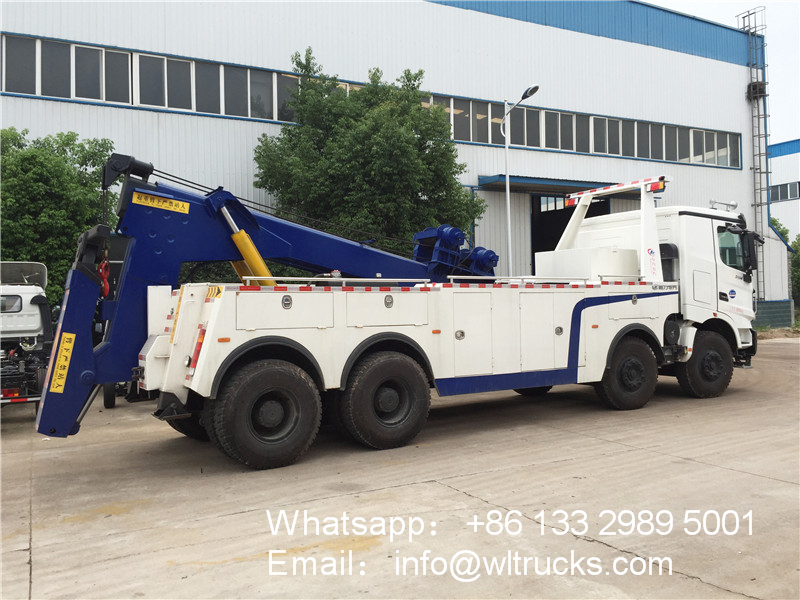

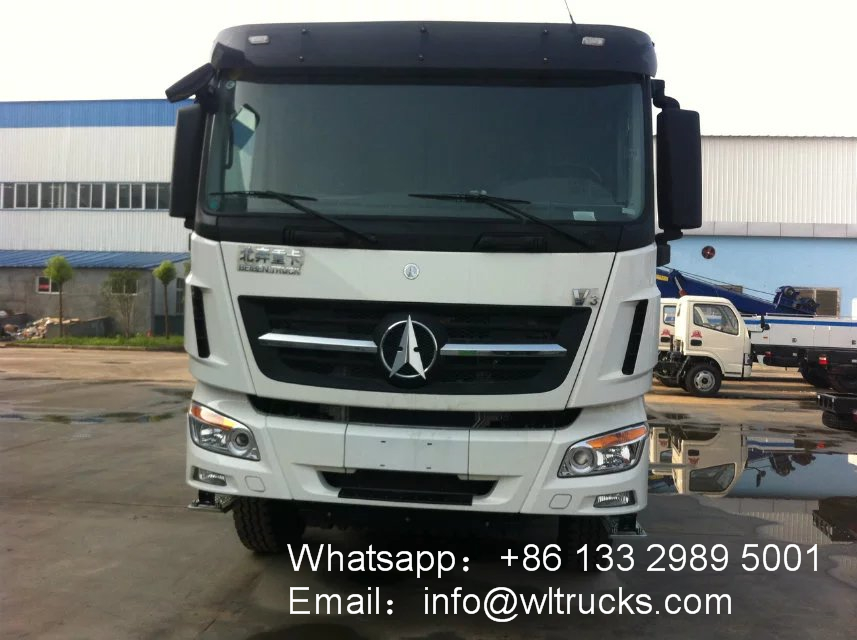

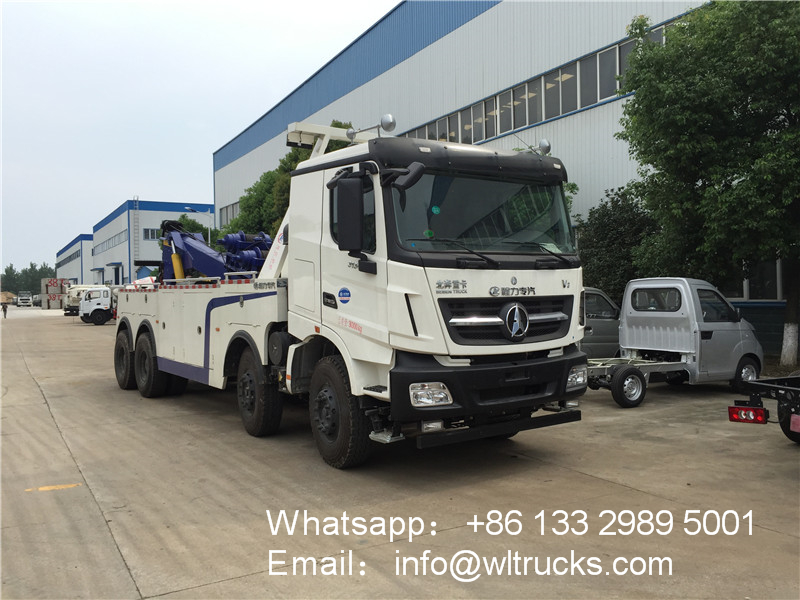

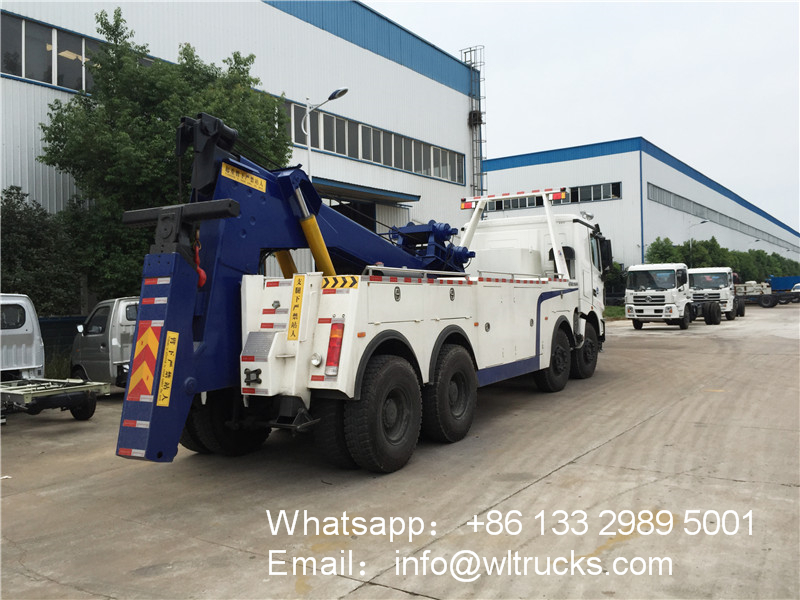

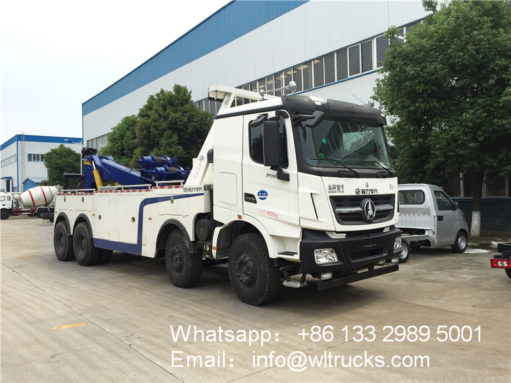

8×4 North Benz 40ton to 50ton recovery tow truck
8×4 North Benz 40ton to 50ton recovery tow truck Chassis：
Adopt Beiben Mercedes-Benz chassis, half-row cab, original cab air conditioner, electric glass, Weichai 375 horsepower engine, 12-speed gearbox, 7.5 tons front axle, 16 tons rear axle, wheelbase 1950 + 4300 + 1450mm 12.00R20 original steel wire tire, air brake, original abs.
8×4 North Benz 40ton to 50ton recovery tow truck Bodywork：
Shaanxi Automobile Delong front four rear eight heavy-duty wrecker, 20T MAN bipolar conjoined bodywork (can be installed with a reinforced configuration of 25 tons), two-section six-sided boom, three-section support arm, split carriage, imported Hydraulic system, double-sided linkage operation, a set of remote control operation device, the front bumper is equipped with counterweight, the trailer performance is more stable.
Equipped with two 10 tons hydraulic winches, 45 meters of steel wire rope, diameter 18mm, equipped with 4 sets of steel forks, a set of steel plate lugs, a set of U-shaped tire holding device, a set of tools on board, a set of auxiliary lights A set of auxiliary trachea assembly, with a long yellow LED warning lights.
8×4 North Benz 40ton to 50ton recovery tow truck specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions | 11.465×2.5×3.3 meters |
| Total mass (kg) | 31 tons | Curb quality | 25.5 tons |
| Winding specifications | 20 tons | Tops | 25 tons |
| Chassis technical parameters | |||
| Chassis name | Beiben | Chassis model | ND13104D43J7 |
| Number of axes | 4 | Number of tires | 13 |
| Wheelbase | 1.95 + 4.3 + 1.45 meters | Tire specifications | 12.00R20 |
| Gearbox | 12-speed shift | Rear axle | 16 tons |
| Fuel type | Diesel | brake | Air brake |
| Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| WP10.336E40
WP12.375E40 |
Weichai
Weichai |
9726
11596 |
336 horsepower
375 horsepower |
| Basic upload configuration | |||
| Standard configuration | 25 tons of conjoined bodywork, with 10 tons x 2 hydraulic winch, 45 meters steel wire rope, 4 sets of steel forks, a set of trailers, a set of steel plate lugs, a set of tire protection devices, a set of tools on board, auxiliary lights One set of assembly, one set of auxiliary trachea assembly, and one set of yellow long-row engineering warning lights. | ||
8×4 North Benz 40ton to 50ton recovery tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
