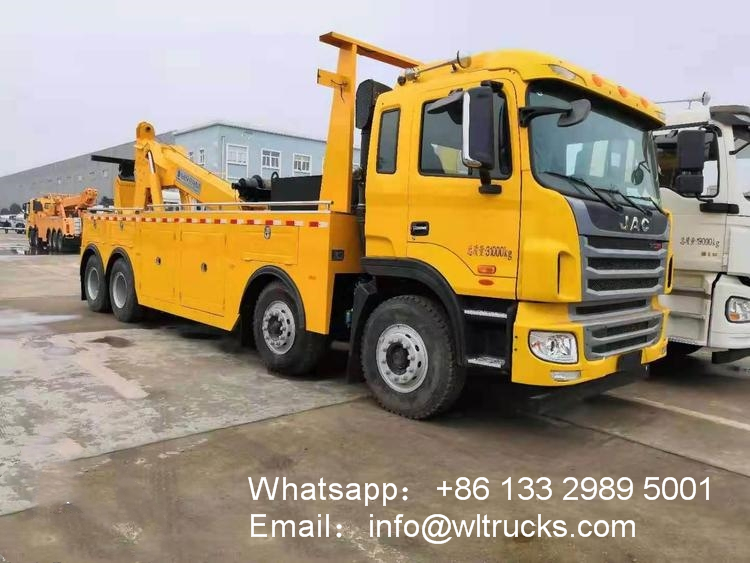

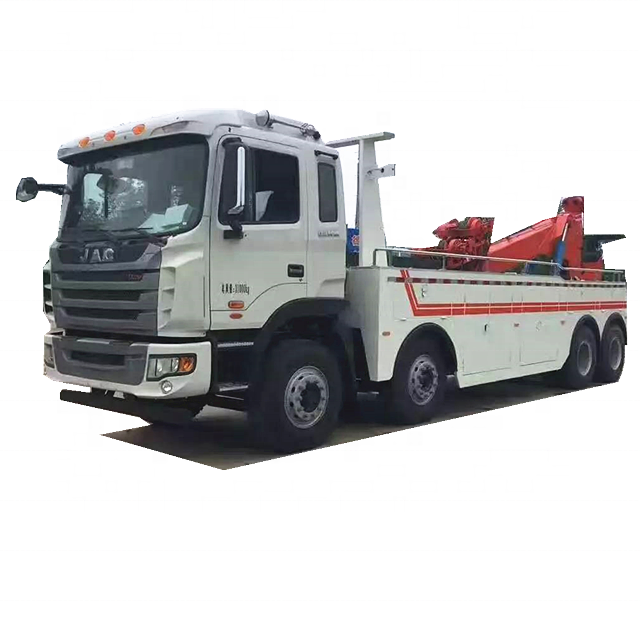

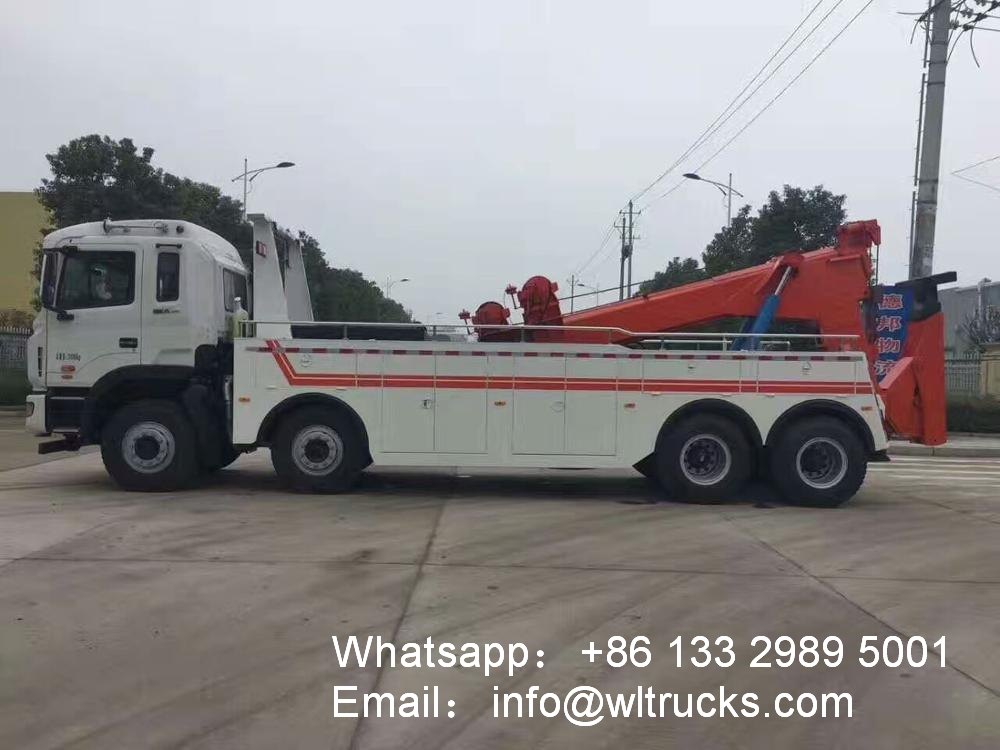

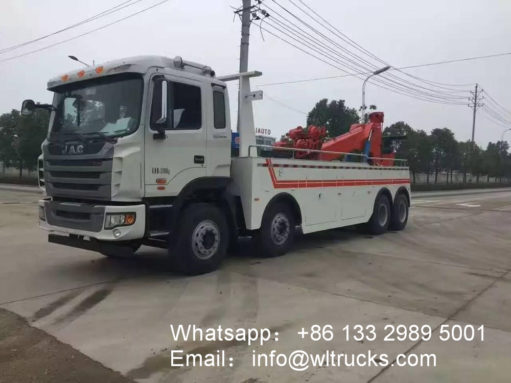

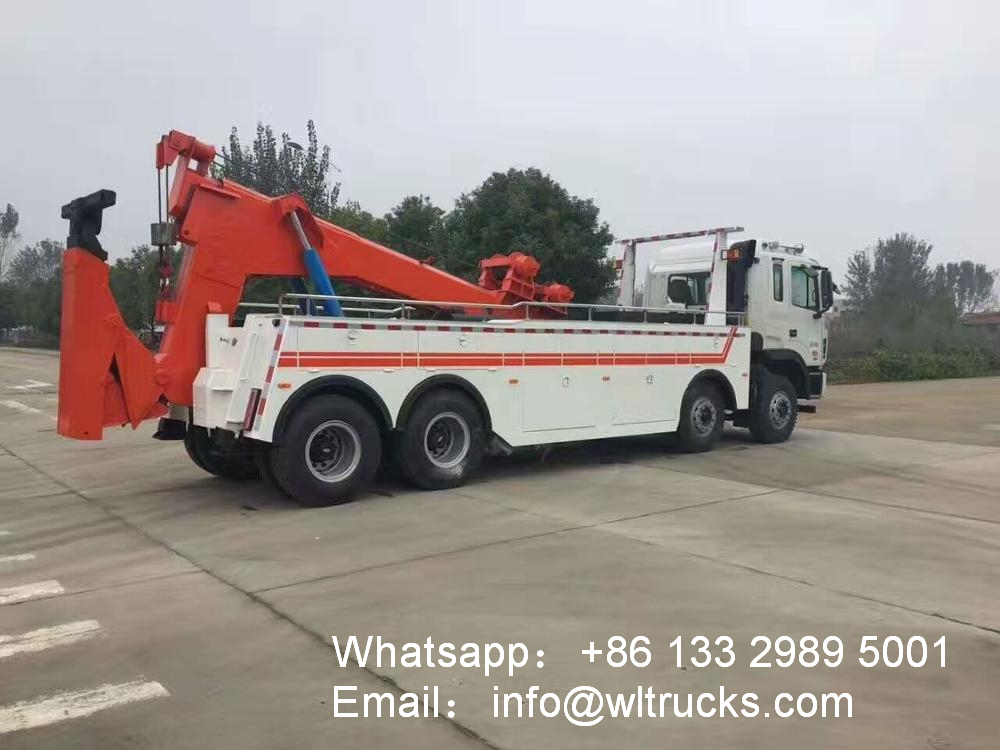

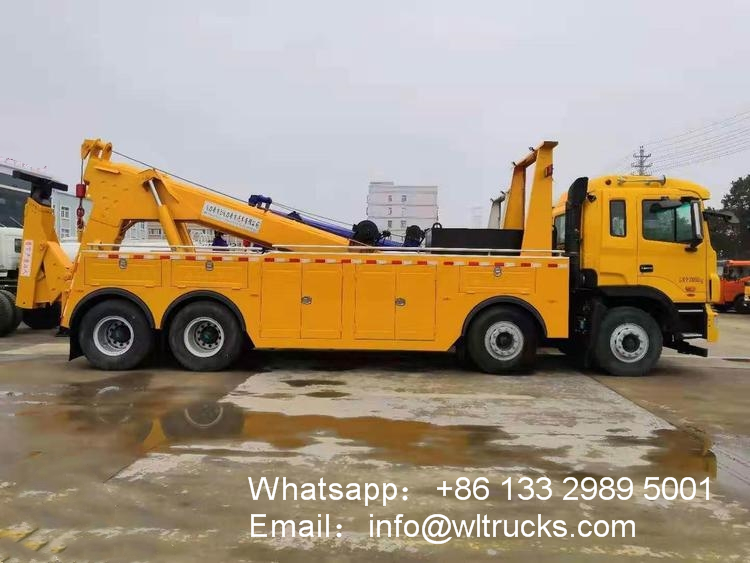

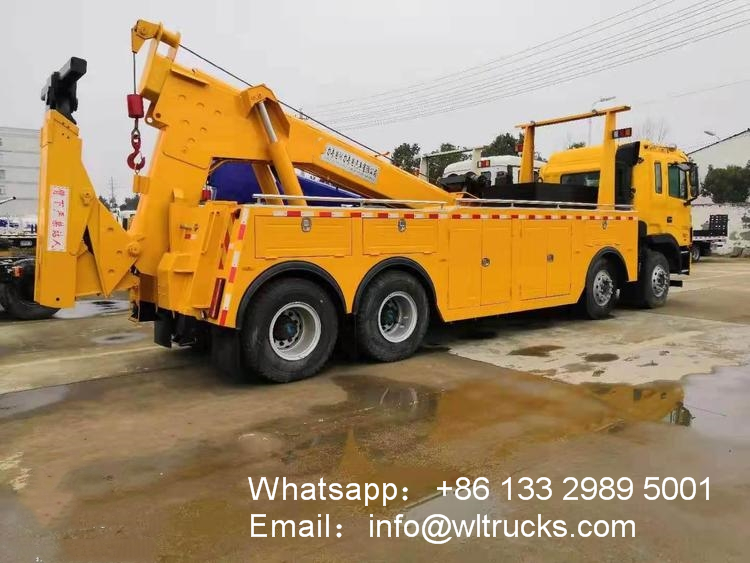

8×4 JAC 40ton to 50ton Heavy duty tow truck
8×4 JAC 40ton to 50ton Heavy duty tow truck Chassis：
Adopt JAC K5 chassis, half-row cab, original heating and cooling air conditioner in the cab, Weichai 350 horsepower, Shaanxi 10-speed gearbox, 7T front axle, 13T rear axle, 11.00 steel tires, ABS, with air conditioning, air cut Brake, original abs.
8×4 JAC 40ton to 50ton Heavy duty tow truck Bodywork：
Shaanxi Automobile Delong front four rear eight heavy-duty wrecker, 20T MAN bipolar conjoined bodywork (can be installed with a reinforced configuration of 25 tons), two-section six-sided boom, three-section support arm, split carriage, imported Hydraulic system, double-sided linkage operation, a set of remote control operation device, the front bumper is equipped with counterweight, the trailer performance is more stable.
Equipped with two 10 tons hydraulic winches, 45 meters of steel wire rope, diameter 18mm, equipped with 4 sets of steel forks, a set of steel plate lugs, a set of U-shaped tire holding device, a set of tools on board, a set of auxiliary lights A set of auxiliary trachea assembly, with a long yellow LED warning lights.
8×4 JAC 40ton to 50ton Heavy duty tow truck specification:
|
Vehicle technical parameters
|
|||
|
product name
|
8X4 JAC 40 ton heavy wrecker towing truck and tow truck accessories
|
Dimensions
|
10.62×2.5×3. 36 meters
|
|
Total mass
|
25 tons
|
Curb quality
|
18.72 tons
|
|
Hoisting specification
|
20 tons
|
Tops
|
20 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
S
|
Chassis model
|
CA5250JSQP63K1L5T1E5
|
|
Number of axes
|
3
|
Number of tires
|
11
|
|
Wheelbase
|
5.8+1.35 meters
|
Tire specifications
|
10.00R20
|
|
Gearbox
|
10 files
|
Rear axle
|
10 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
YC240-50
|
China yuchai
|
7896
|
240 horsepower
|
|
Top basic configuration
|
|||
|
The standard configuration
|
20 tons joint body top, with winch 10 tons x 2 hydraulic winch, 45 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights.
|
||
8×4 JAC 40ton to 50ton Heavy duty tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
