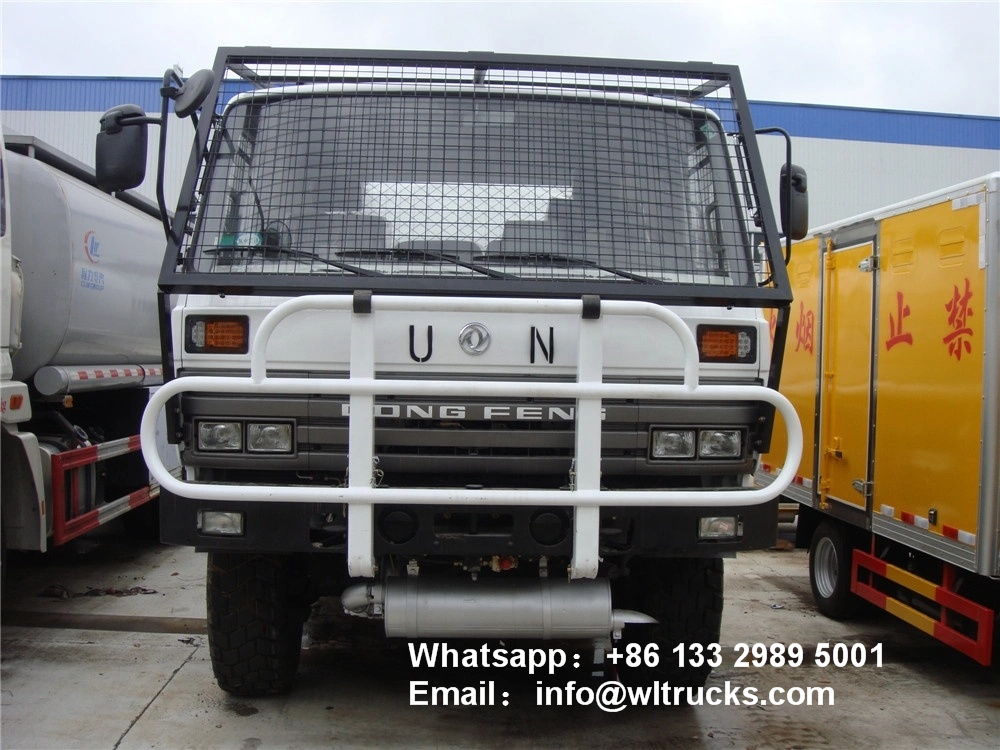

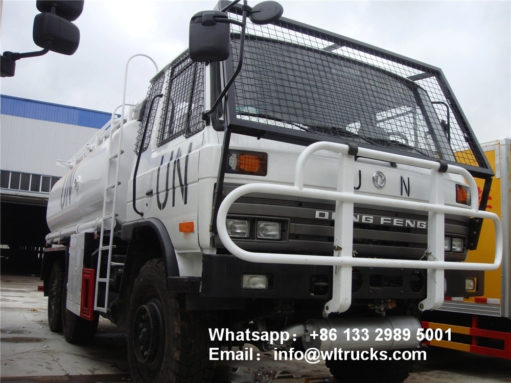

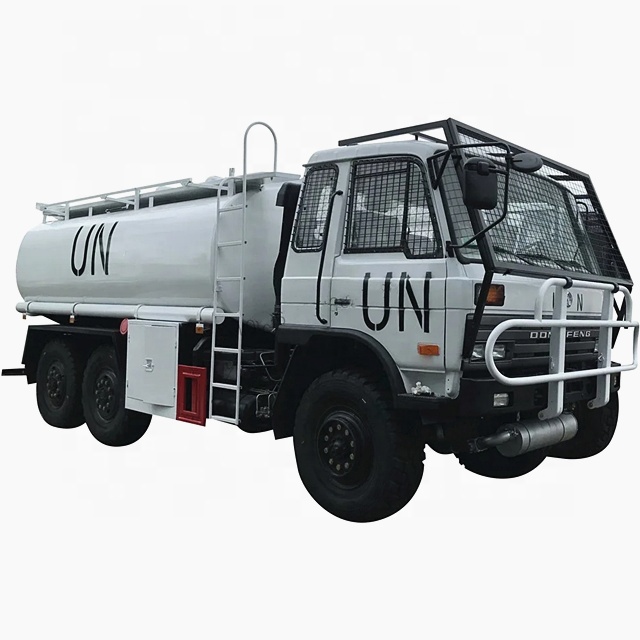

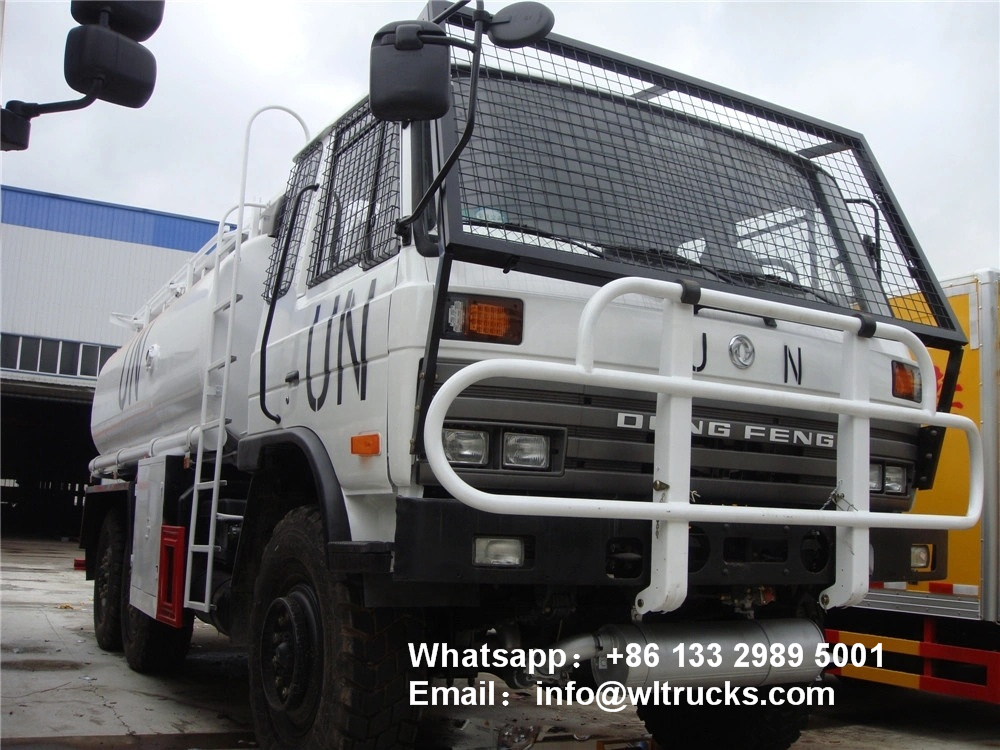

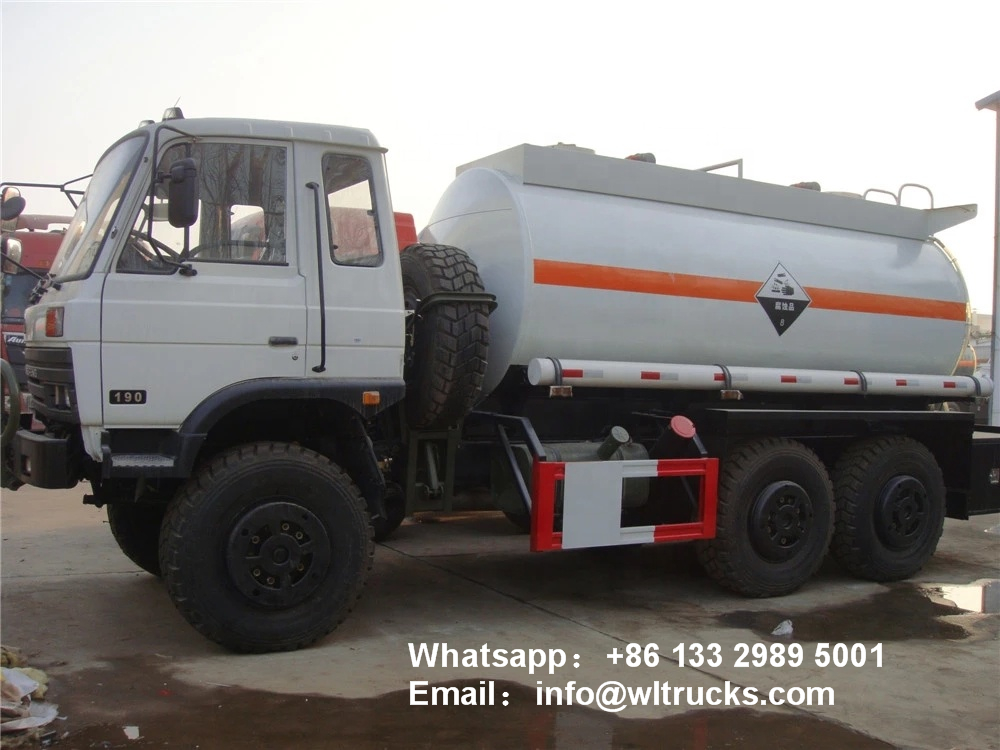

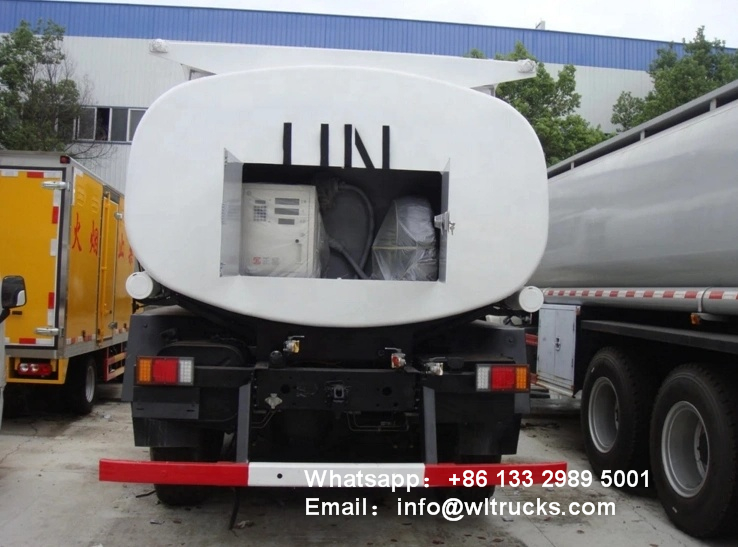

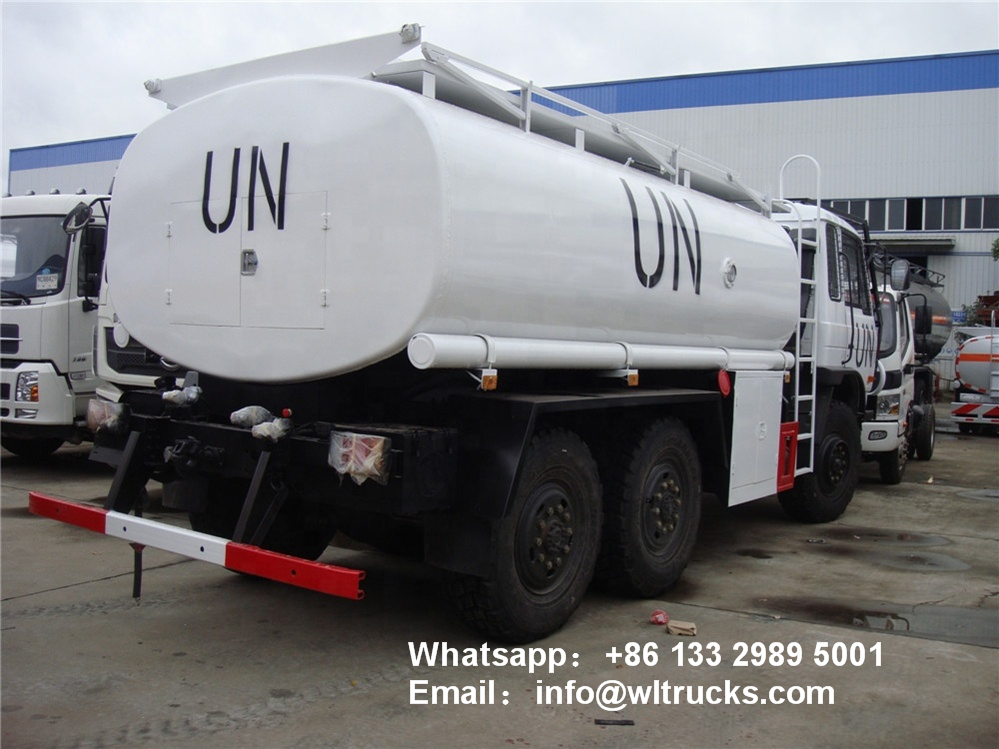

6×6 fuel oil tank truck（4000liter to 20000liters）
6×6 fuel oil tank truck adopts world-class automotive technology, novel design, unique style, comfortable cab ride, wide field of vision, good sealing, complete functions; best engine power matching, high passability, high reliability chassis, flexible and flexible,
It is used for the transportation of goods in roadless areas. It is suitable for road conditions such as desert, floating soil, Gobi, gravel, muddy, mountains, ruggedness, ice and snow. The temperature resistance is ± 45 ° C. The use of desert off-road special tires makes vehicles more powerful. (Optional by model)
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
|
Truck Specification
|
|
|
Product Name
|
dongfeng 6×6 fuel tank truck 10-20m3
|
|
Drive type
|
6×6,Left hand drive
|
|
Overall dimension(mm)
|
approx.9600×2500×3250
|
|
tank capacity
|
20-25m3
|
|
Wheelbase(mm)
|
4350+1350
|
|
Payload(kg)
|
20-25tons
|
|
Truck weight(kg)
|
approx .10400
|
|
Transmission
|
8forwards,1 reverse gear,manual
|
|
Steering
|
Power steering
|
|
Brake
|
air brake
|
|
Axle(front/Rear axles)
|
457 rear double axle
|
|
Tire
|
12.50-20
|
|
Cab
|
dongfeng
|
|
Electric system
|
24V
|
|
A/C
|
optiona
|
|
Engine Speficiation
|
|
|
Engine model
|
B210 33
|
|
Engine type
|
Diesel
|
|
No.of cylinders
|
Straight-6 cylinders
|
|
Displacement(L)
|
5.9L
|
|
Max Power/ Rev(Kw/rpm)
|
155kw
|
|
Emission standard
|
ERUO 3(National 3)
|
|
Tank specification
|
|
|
Tank capacity
|
10-20m3
|
|
Tank material
|
Q235 carbon steel,also can choose stainless steel,aluminum
|
|
Configuration
|
With oil pump,3 pcs compartments,sea valve,bottom loading,flow meter,european manhole,oil vapor recovery
|
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
