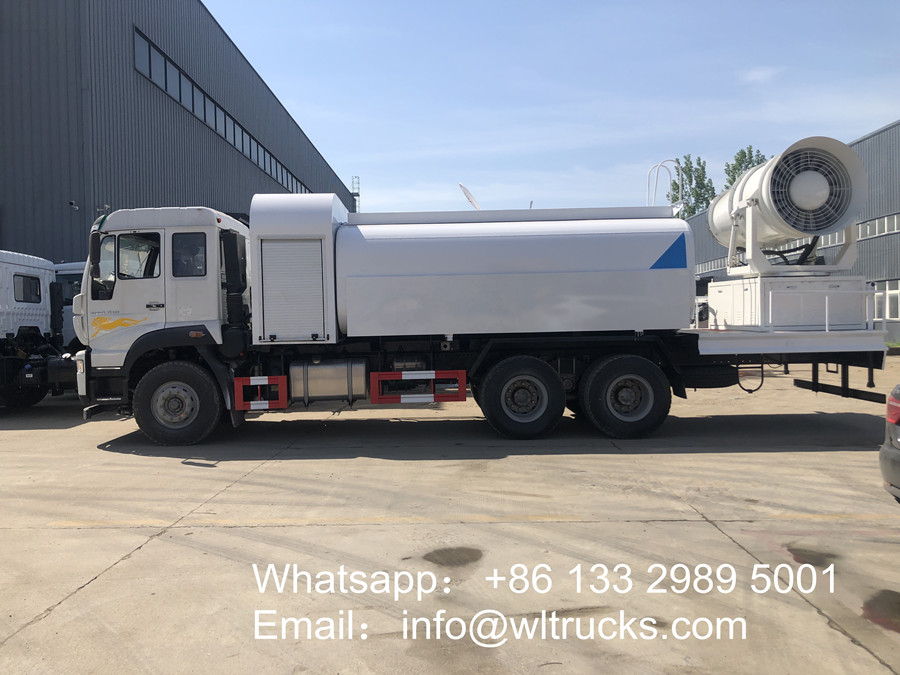

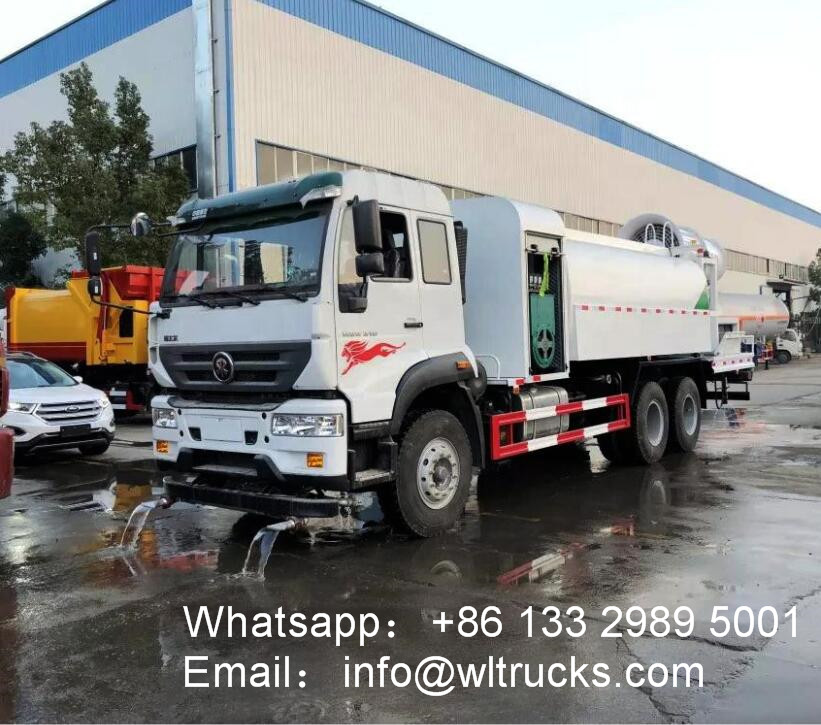

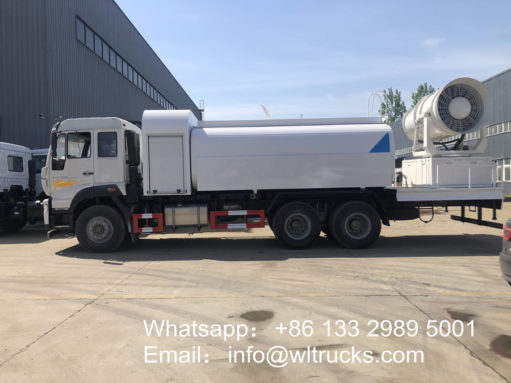

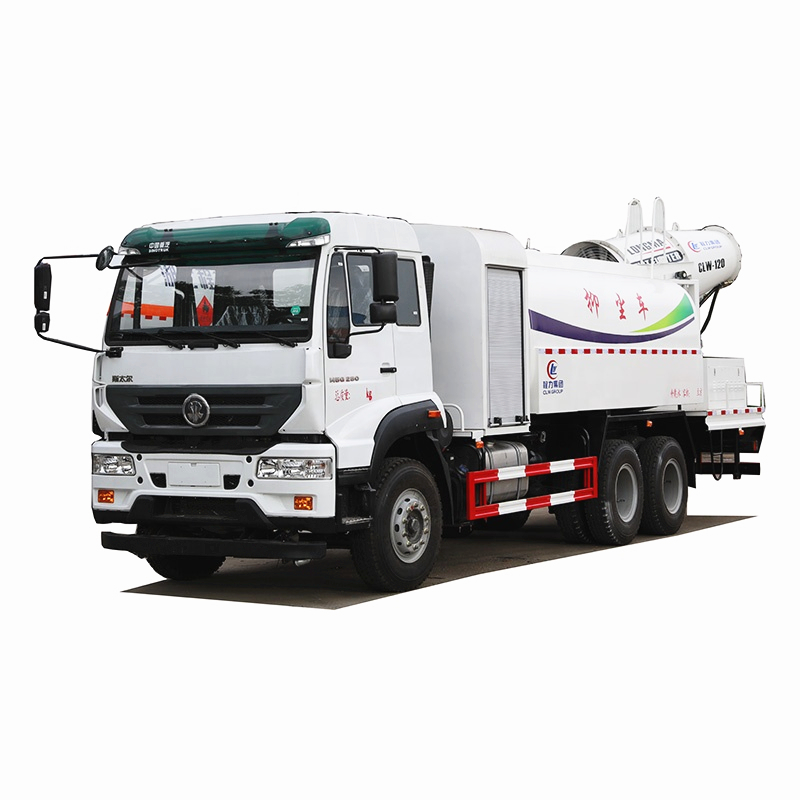

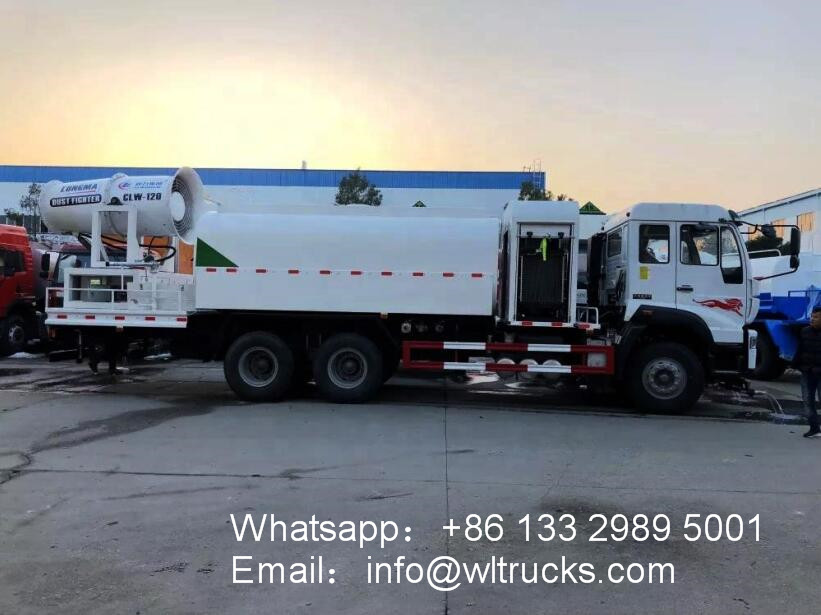

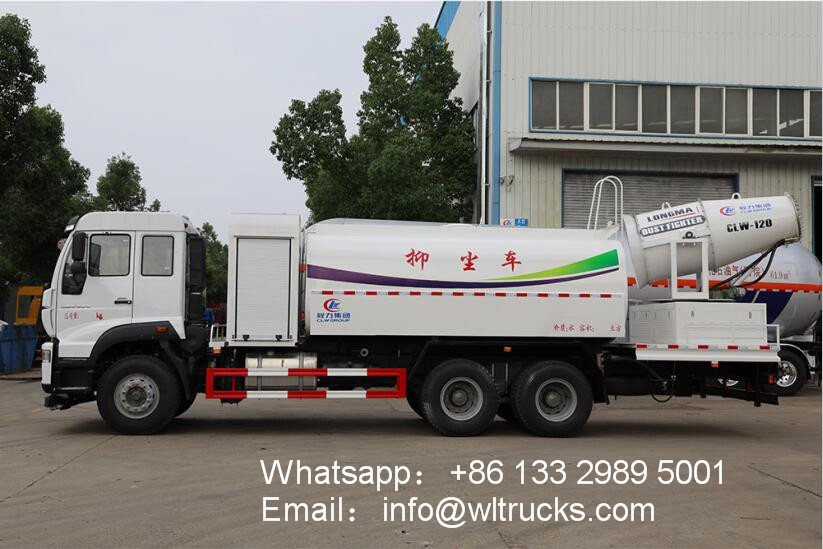

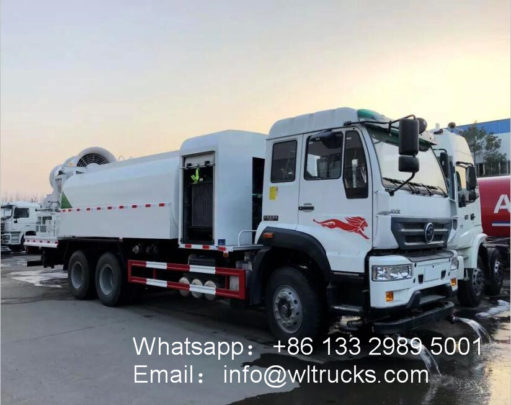

6×4 Sinotruk Steyr 16 ton 120m Dust suppression truck Adopt Sinotruk Steyr M5G wide body luxury cab with sleeper, 10-wheel 4500+1350mm wheelbase, Sinotruk 280 horsepower engine, 1100 steel tire belt spare tire, Sinotruk 10-speed gearbox, 7 tons front axle, 10 tons rear Bridge, 300-frame frame, partial three-layer (8+5+10) direction assistance.
Top-loading configuration: the effective volume of the tank is 16 tons, anti-corrosion and anti-rust inside the tank, equipped with a high-power sprinkler pump, equipped with a high-power auxiliary engine, and the rear-mounted fog gun unit can be freely selected from 60 meters to 120 meters.
Equipped with diesel generator set, equipped with remote control for remote wireless operation, 360-degree remote control rotation and up and down swing, all-round large-area spray to reduce dust and haze, spray volume 50-150 liters per minute, significant water saving effect, purify the air.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
6×4 Sinotruk Steyr 16 ton 120m Dust suppression truck Specification:
| Product parameters | ||
| Effective volume | 16m3 | |
| Chassis model | ZZ1251N464GE1 | |
| Exterior | Overall vehicle size ( mm ) | 10550 x2500x3750 |
| Tank size ( mm ) | 4540×2430×1430 | |
| engine | Engine manufacturer | Sinotruk Group |
| engine model | MC07.24-50 | |
| Engine power ( kw ) | 176 | |
| Engine horsepower | 280 | |
| Emission Standards | Eruo 3 | |
| performance | Total mass ( kg ) | 25000 |
| Curb weight ( kg ) | 14050 | |
| Rated load mass ( kg ) | 10820 | |
| Wheelbase ( mm ) | 4350+1350 | |
| Tire specifications | 11.00R20 | |
| Number of tires | 10 | |
| Maximum speed ( km/h ) | 101 | |
Disinfection truck structure composition:

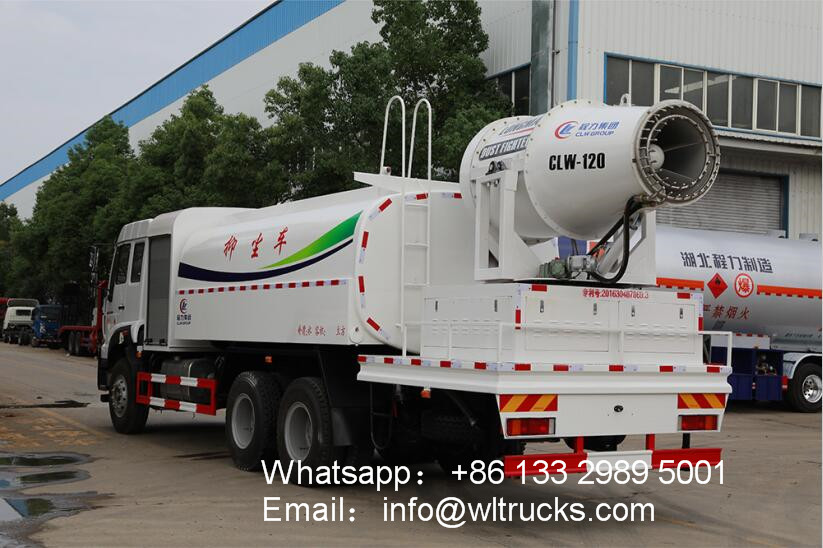

80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
