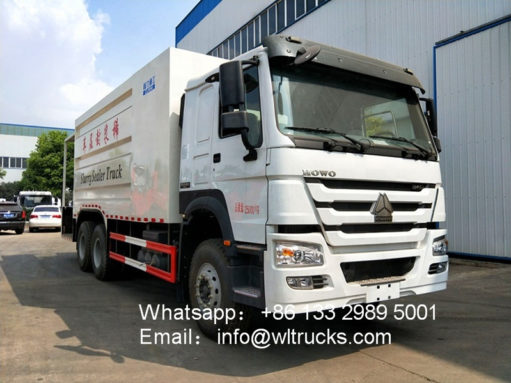

6X4 Sinotruk HOWO Slurry sealer,Slurry seal truck Adopt 10wheels Howo A7 Cab, Sintruk 336hp/370hp Euro 3 engine in the cloud, Ten-speed gearbox, a wheelbase of 4500+1350+1100mm, tires 1100R20, and a vehicle size of 10200x2500x3730mm.

Send Inquiry

Description
6X4 Sinotruk HOWO Slurry sealer,Slurry seal truck Video

HOWO 5m3 Bitumen Tank 5.5m3 water tank and 16m3 Gravel Tank Slurry seal truck

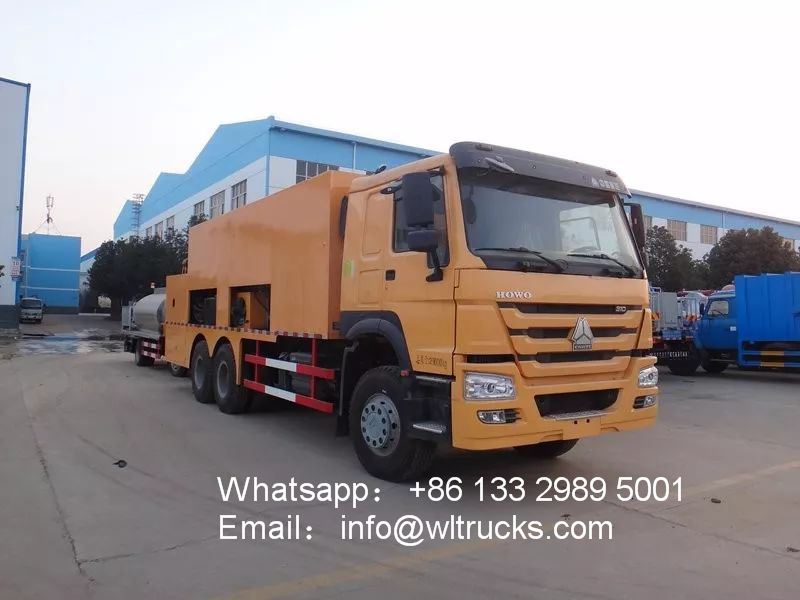

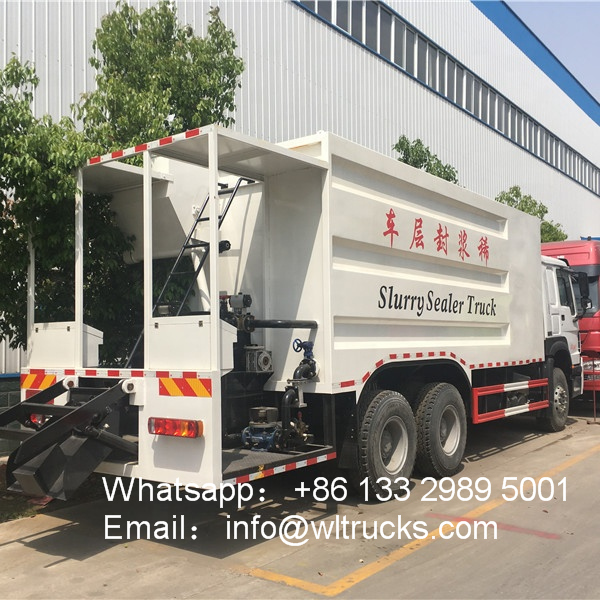

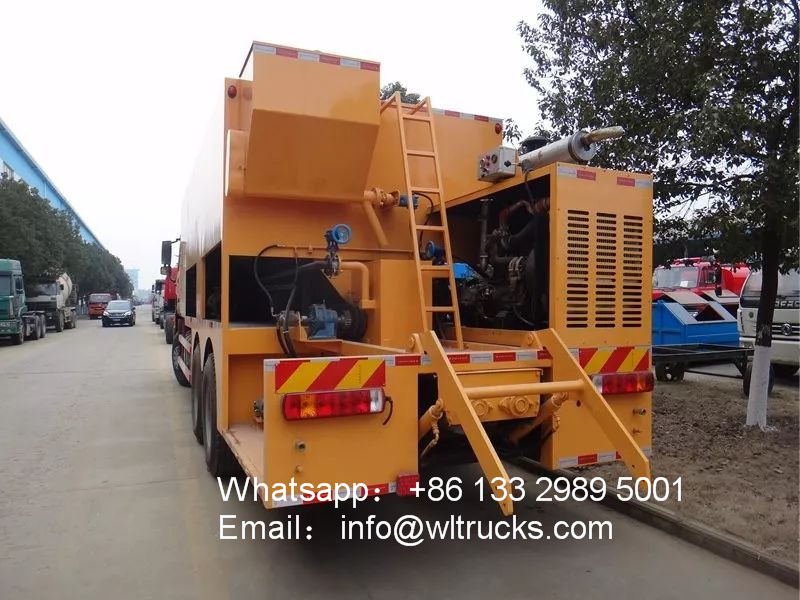

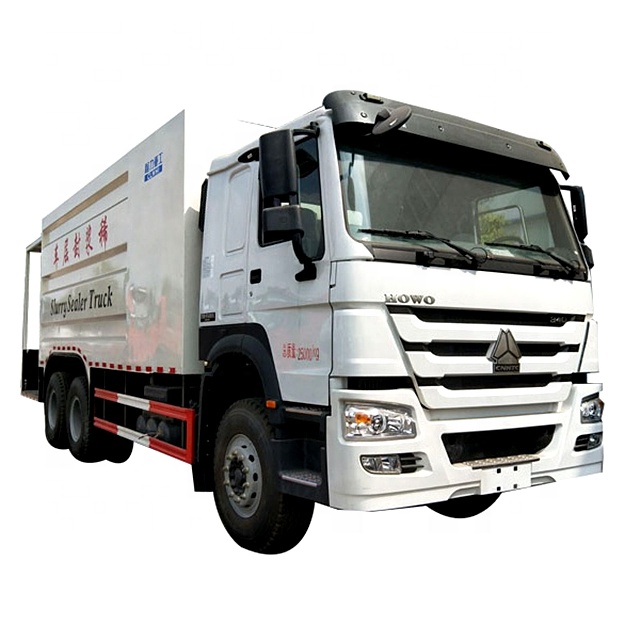

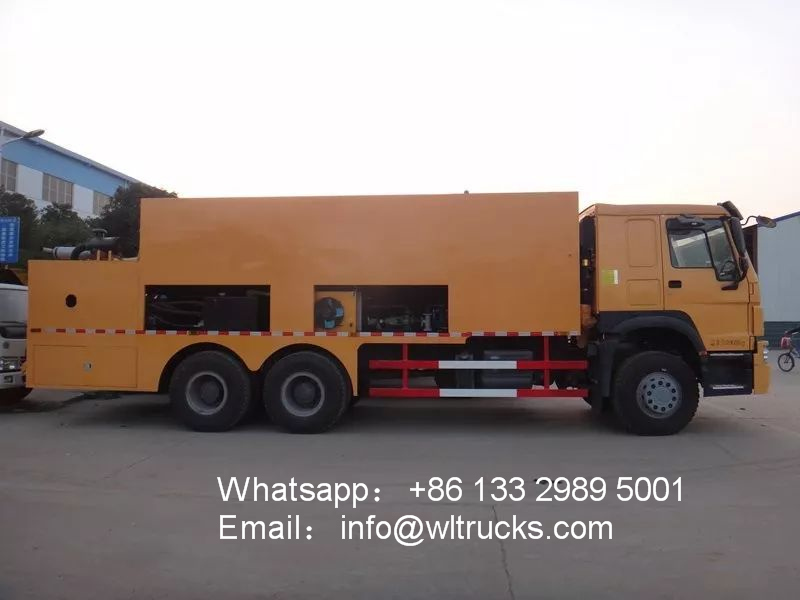

6X4 Sinotruk HOWO Slurry sealer,Slurry seal truck

Our Slurry seal truck for sale features and advantage:
1. An independent high-power engine provides strong power and is more suitable for construction at micro-surface.
2. The touch screen operation is automatically executed according to the input parameters.
3. Automatic control technology, the metering system does not need to be re-calibrated when the mix ratio changes.
4. Aggregate, powder, water, asphalt and additive systems are all equipped with high-precision imported monitoring and metering components.
5. Fully symmetrical double-head retractable large-diameter four-spiral cloth mechanism in front, back, left and right to ensure the quality of paving.
6. During the paving process, the spiral steering and speed can be adjusted to achieve no dead angle, no segregation of cloth and secondary mixing.
7. The working process only needs one person to complete on the post-operation platform, and the operation is convenient and simple.
8. Two sets of batching systems can automatically batch or complete the operation manually on the operating platform.
9. Paving width and paving thickness can be adjusted arbitrarily.

specification:

The Parameters of the Slurry Sealing Truck
Model	CLW5311TFCZ4	Chassis Engine	Sinotruck 336hp
Chassis	HOWO ZZ1317N4667C1	Assistant Engine	Cummins 140hp
Asphalt Tank	5500 liters	Water Tank	6000 Liters
Aggregate Tank	18000 liters	Additive Tank	260 Liters
Filler Tank	1000 liters	Spreading Width	2.4~4.2 m
Spreading Thickness	5~15 cm	Lowest Working Speed	Cummins 140hp
Hydraulic System	American Technology	Control System	Germany Siemens Control System
Herb Weight	20 Tons	Dimensions	10.2 X 2.5 X 3.73 m
Additive Control	Adopting the hydrodynamic force and labor force together
Spreading Box Control	Adopting hydraulic power to controlt the angle od the mixer to suit different slopes.
Usuage Scopes	Micro surfacing, Slurry Selaing, PCA Road, Color Road, etc.

6X4 Sinotruk HOWO Slurry sealer,Slurry seal truck Working parameter:

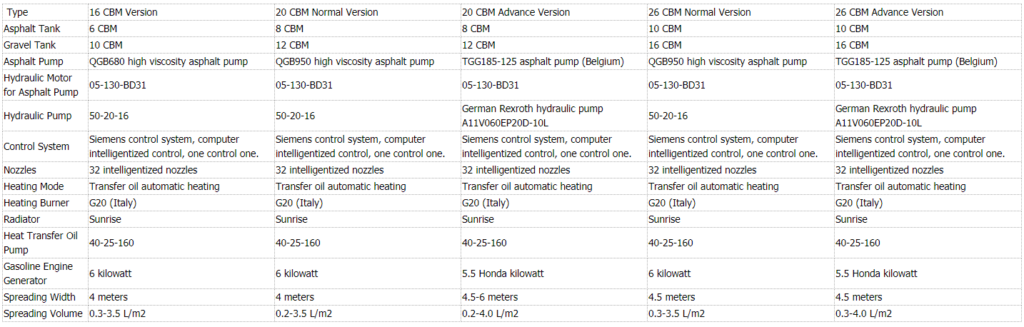

20000liters asphalt truck Working parameter

Asphalt sprayer truck details:

6X4 Sinotruk HOWO Slurry sealer,Slurry seal truck type exhibition:

Asphalt slurry seal truck Work steps:

6×4 HOWO slurry seal Truck is also known as the micro-surface paver: add the construction medium (asphalt) to the asphalt tank, add the construction water to the water tank, add the auxiliary agent to the auxiliary tank, and fill the box Add filler (cement) inside, and add the graded stone into the silo.

Start the auxiliary engine, drive the hydraulic power system, operate the control switch to achieve the working cycle of the asphalt pump, the working cycle of the water pump, and the mixer. After the adjustment of the paving box, operate the hydraulic control device to realize the work of the paving box. Start the master control switch, asphalt, water, aggregates, fillers, and additives will automatically enter the mixer according to the control program.

The mixer will form a slurry mixture through the rapid and strong mixing of the mixer and send it to the paving box. The spiral material distribution device of the paving box evenly distributes the slurry mixture in the paving box, and spreads the slurry mixture on the road surface through the paving box.

Stop the control switch, each system will finish the work according to the automatic control program. Clean all systems to complete the work.
