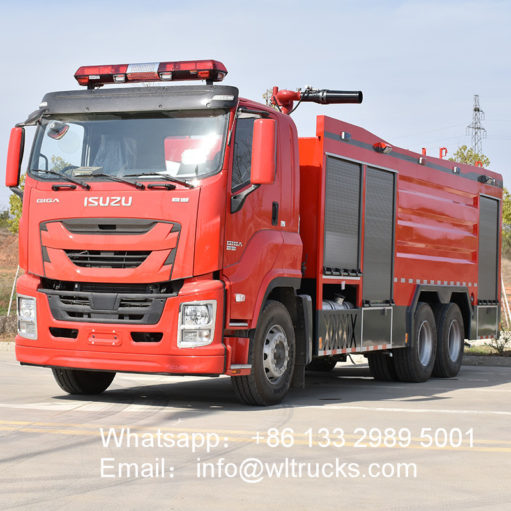

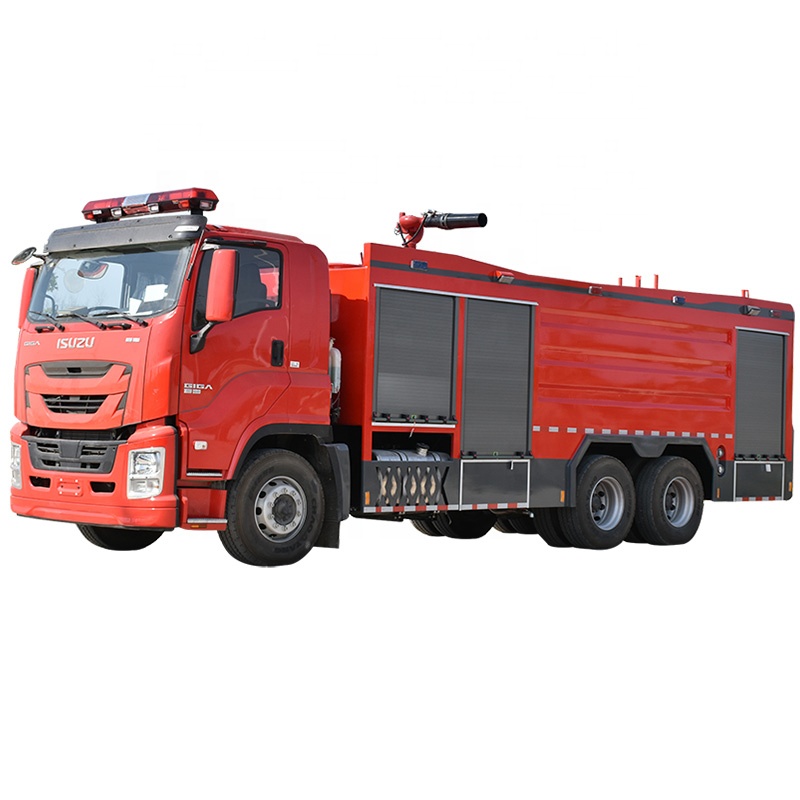

Japanese 6×4 ISUZU VC61 12ton water foam powder tank fire truck Adopting 6X4 Isuzu VC61 chassis modification, the car’s water tank volume is 9 cubic meters, foam volume is 3 cubic meters, CB10/60 type fire pump, PL48 type dual-purpose fire monitor, water range is more than 60 meters, foam range is more than 55 meters.
Product Specifications:
| Vehicle model | CLW5243GXFPM110 foam fire truck | Chassis model | QL1250WPFZY |
| engine | Isuzu 300 hp (6HK1-TCH)/221kw | Emission Standards | Eruo IV |
| Outside dimensions | 9550×2500×3500mm | Wheelbase | 4650+1300mm |
| Carrier volume | 11000L (water 8000L, foam 3000L) | Tank size (mm) | 2561×2400×1360 water tank 910×2400×1360 foam tank |
| Fire Pump | CB10/60 | Fire cannon | PL48 |
| Fire pump rated flow | 60L/s 1.0MPa | Environmental protection/exemption | Yes/To be released |
| Rated flow of fire monitor | 48L/s 1.0MPa | Fire gun range | Water≥55m Foam≥50m |

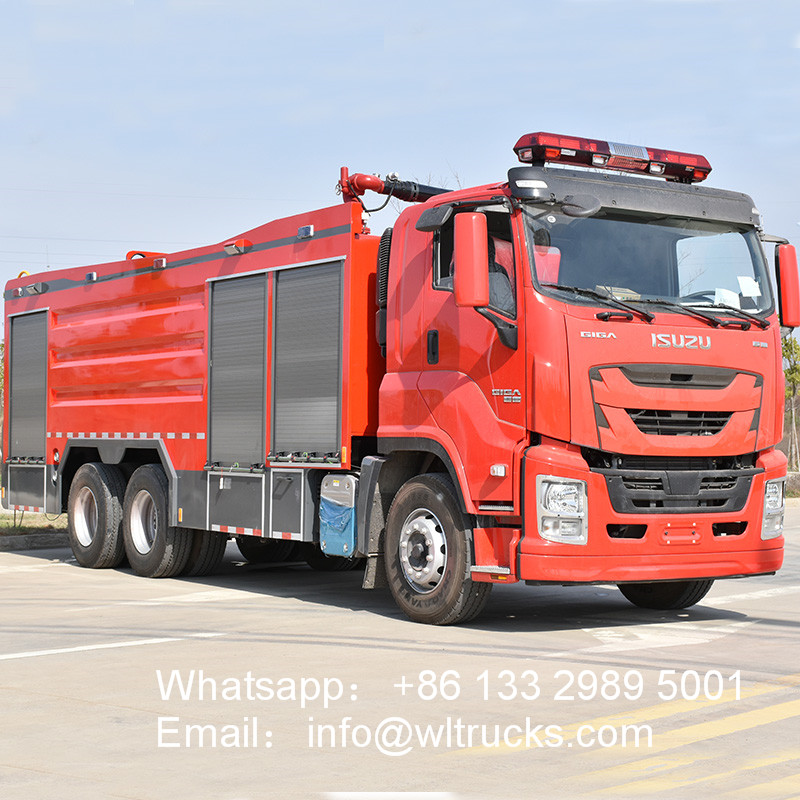

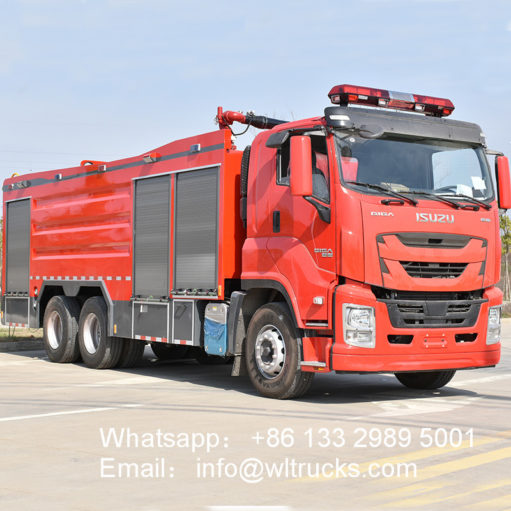

Japanese 6×4 ISUZU VC61 12ton water foam powder tank fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
