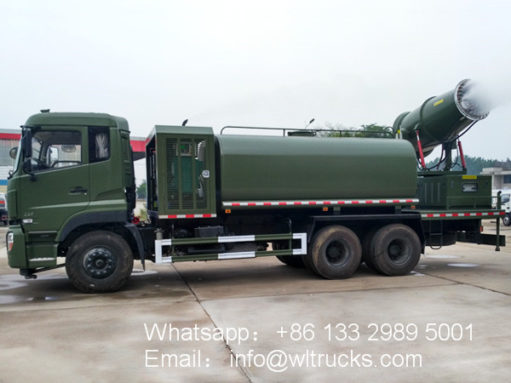

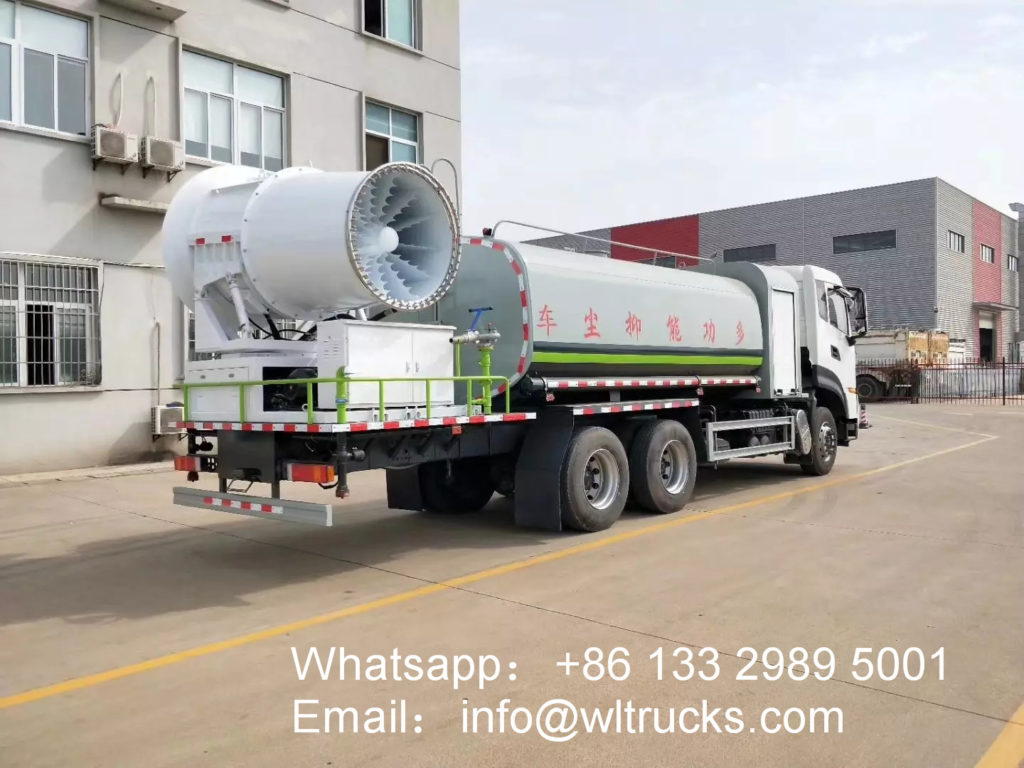

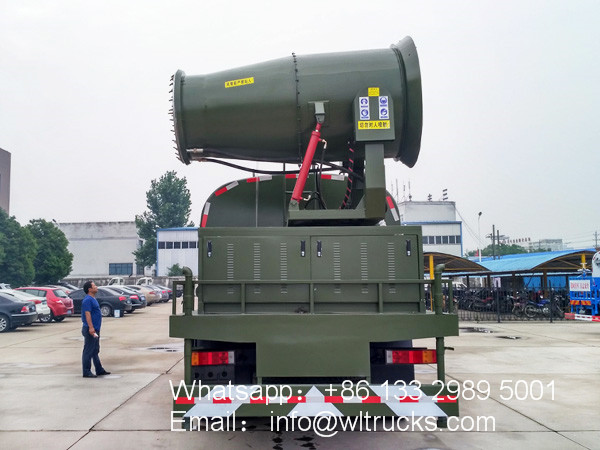

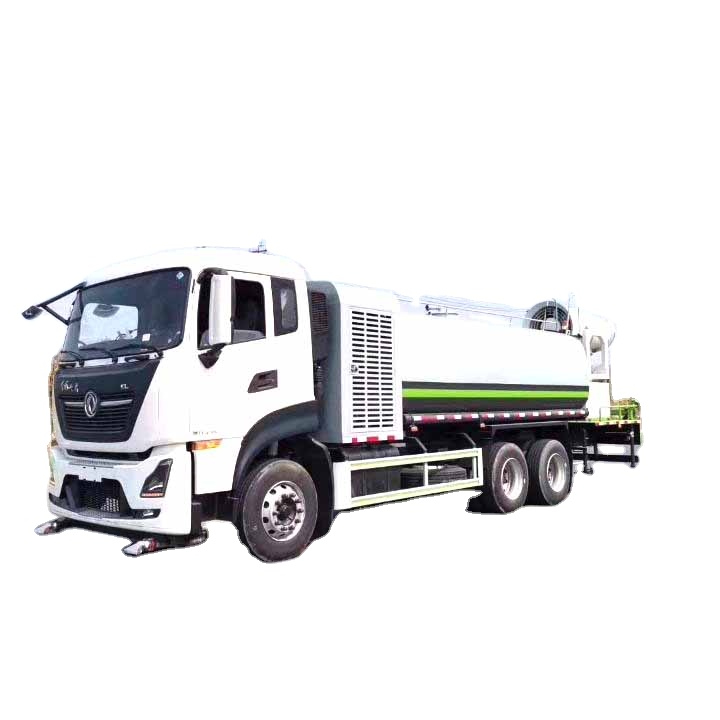

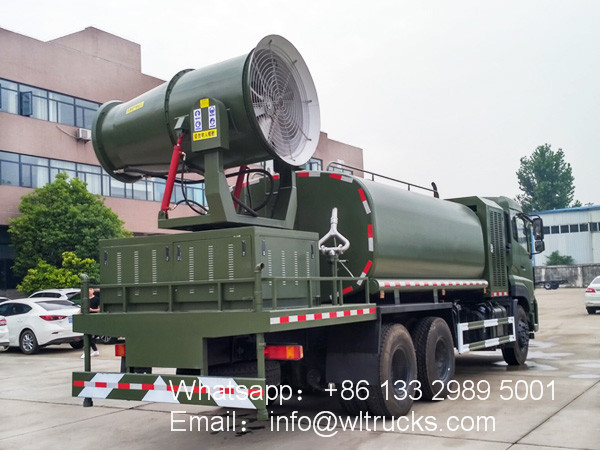

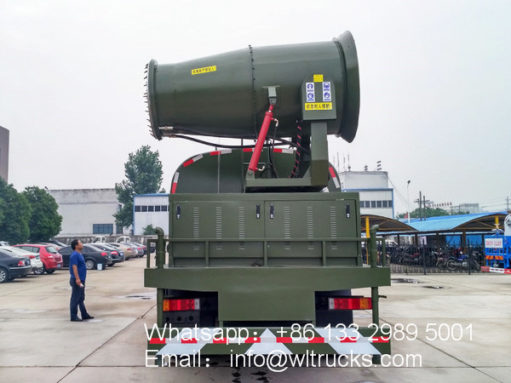

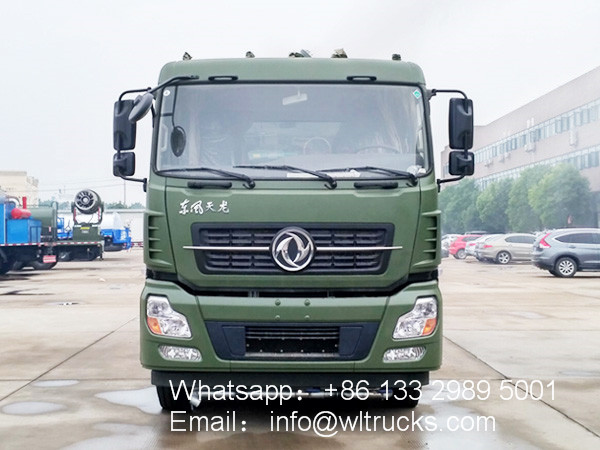

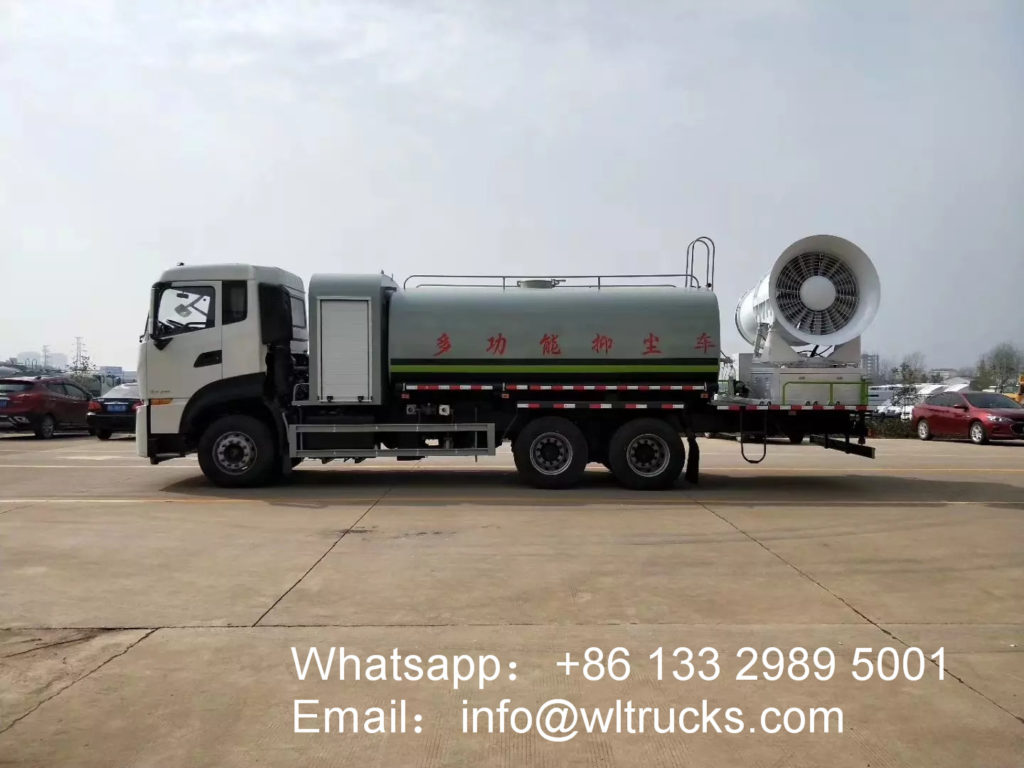

6×4 Dongfeng 16000 liter 100m disinfect truck Adopt Dongfeng rear eight-wheel 4350+1300mm wheelbase chassis, Euro 3 Cummins 210 horsepower engine, 1000-20 tires with spare tires, Shaanxi small eight-speed gearbox, direction assistance.
Top-loading configuration: the effective volume of the tank is 16 tons, anti-corrosion and anti-rust inside the tank, equipped with a high-power sprinkler pump, equipped with a high-power auxiliary engine, and the rear-mounted fog gun unit can be freely selected from 60 meters to 120 meters.
Equipped with diesel generator set, equipped with remote control for remote wireless operation, 360-degree remote control rotation and up and down swing, all-round large-area spray to reduce dust and haze, spray volume 50-150 liters per minute, significant water saving effect, purify the air.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
Spray unit | 30m-120m optional | Water pump brand | China pump |
way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing |
6×4 Dongfeng 16000 liter 100m disinfect truck Specification:
Vehicle Parameters | |||
General |
Vehicle Name | 16m³ disfection truck | |
Vehicle Brand |
Dongfeng |
||
Chassis Brand |
Dongfeng |
||
Overall Dimension(mm) |
10050×2500×3900 |
||
GVW/Curb Weight(kg) |
25000/13830 |
||
Payload(KG) |
11040 |
||
Chassis Parameters | |||
Cab |
Cab Seat |
2-3 |
|
Air Conditioner |
Optional |
||
Engine |
Fuel Type |
diesel |
|
Engie Model |
ISB260 |
||
Engine Brand |
Cummins |
||
Power(HP) |
260 |
||
Displacement(cc) |
8900 |
||
Emmission Standard |
Euro 3 or Euro 5 optional |
||
Chassis |
Drive Type |
6*4 |
|
Transmission |
9 forward gear,1 reverse gear, Manual |
||
Wheelbase(mm) |
4350+1350 |
||
Tyre Specification |
11.00R20 |
||
Tyre No.(pcs) |
10 |
||
Max Speed(km/h) |
90 |
||
Paint |
Blue and White |
||
Water Tank Structure Parameters | |||
Tank Volume | 10000-18000L | Tank Material |
Carbon Steel |
Tank Thickness | 5/4/3mm | Mist cannon range | 100m |
fan power | 45KW | up and down angle: | -10~35 degree |
Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. | ||
Selective configuration | stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | ||
Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,mining water truck,and etc. |
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
